2001-2005 Pontiac Aztek HVAC Control: Why It's (Usually) Not the Problem
This guide helps you determine if your HVAC control unit has failed, or if the real problem is a much simpler, cheaper fix like a blower motor resistor or actuator.
- This part is only for Aztek models with single-zone manual AC (Option C60); you must match OEM part number 10301043 or 10301044.
- If your fan only works on high, the problem is the blower motor resistor, not this control unit.
- If air temperature or direction is stuck, the problem is a blend/mode door actuator, not this control unit.
- The most common actual failure of this unit is burnt-out backlights; used OEM is the most practical replacement option.
Is This the Right Part for Your Aztek? Compatibility Check
Warning: This part is ONLY for Pontiac Aztek models equipped with single-zone manual air conditioning (GM option code C60). It has three large knobs for fan speed, temperature, and mode (airflow direction). It will NOT work in vehicles with automatic or dual-zone climate control systems. Before purchasing, you must verify your vehicle has the C60 manual system and match the OEM part number on the back of your original unit to 10301043 or 10301044.
Symptoms of Failure: Control Unit vs. Other HVAC Parts
Many common HVAC problems in the Pontiac Aztek are incorrectly blamed on the main control unit. It's important to correctly diagnose the issue to avoid buying parts you don't need. Here’s how to tell the difference.
Symptoms of a Truly Failed HVAC Control Unit
- Burnt-Out Backlights: The most common failure on these units is that the small bulbs that light up the faceplate at night burn out. The controls still work, but you can't see them in the dark.
- Unresponsive or Sticking Buttons: The buttons for A/C or Recirculation may become intermittent or stop working entirely due to internal wear.
- Dead Knobs: Turning a knob does nothing at all. For example, if turning the fan speed knob has no effect on any speed, and you've already confirmed the blower motor and resistor are good, the control unit's internal switch may have failed.
Symptoms Often Mistaken for a Bad Control Unit

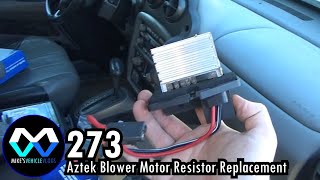

- Fan Only Works on High Speed: If your fan works on setting '5' but not on 1, 2, 3, or 4, the problem is almost certainly a failed blower motor resistor, not the control unit. This is the most common HVAC issue in these vehicles. The resistor is a separate, inexpensive part located under the dash on the passenger side. 🎬 Watch: How to replace the blower motor resistor
- Air Blows From the Wrong Vents: If you can't switch the airflow from the dash vents to the floor or defrost, the problem is likely a failed mode door actuator. This small motor gets stuck and can't move the doors that direct airflow.
- Temperature is Stuck on Hot or Cold: If you can't adjust the air temperature, the problem is likely a failed blend door actuator. This motor controls the door that mixes hot and cold air. You might also hear a clicking or grinding noise from behind the dashboard.
Buying a Used HVAC Control: What to Look For
Since new aftermarket units are not widely available and new OEM parts are often discontinued or extremely expensive, a quality used OEM unit is the best choice for most owners. Here’s what to inspect.
- Verify the Part Number: The single most important step. The unit must have OEM part number 10301043 or 10301044 printed on its sticker. Do not purchase a unit without verifying this.
- Inspect the Knobs and Faceplate: Check for excessive wear on the graphics. Turn each of the three knobs. They should rotate with a distinct click or detent for each position. They should not feel loose, sloppy, or gritty.
- Check the Buttons: Press the A/C and Recirculation buttons. They should depress and return smoothly without sticking.
- Examine the Rear Connector: Look at the electrical connector port on the back of the unit. The plastic should not be melted or warped, and the metal pins inside should be straight, clean, and free of corrosion.
- Assume the Bulbs are Bad: It's very common for the backlights to be burned out on used units. Consider this a minor, fixable issue rather than a dealbreaker. The bulbs can be replaced with some basic soldering skills.
Known Issues, Recalls, and TSBs
There are no NHTSA recalls or manufacturer Technical Service Bulletins (TSBs) specifically for the manual HVAC control unit in the 2001-2005 Pontiac Aztek. The primary known issue is the frequent burnout of the internal incandescent illumination bulbs, which is a cosmetic and convenience problem rather than a functional or safety defect.
Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $400+ (if found) | Largely discontinued. Price reflects dealer cost when last available. |
| New Aftermarket | Not Widely Available | Major aftermarket brands do not appear to produce a direct replacement for the full control unit. |
| Used OEM | $40 - $90 | The most common and cost-effective option. Prices vary by condition and seller. |
| Shop Labor | $60 - $120 | Typically 0.5 to 1.0 hours of labor. |
Replacement Difficulty: 1.5/5
Replacing the HVAC control unit is a straightforward job that most DIY mechanics can complete in under an hour with basic tools.
- Disconnect the Battery: Disconnect the negative terminal of the battery to prevent electrical shorts.
- Remove the Dash Bezel: The large plastic trim piece surrounding the radio and HVAC controls is held in by clips. Use a plastic pry tool to gently work your way around the edges and pop it loose. 🎬 See this dash bezel removal walkthrough
- Unscrew the Control Unit: The HVAC control is held in place by a few screws (typically Phillips or 7mm). Remove them.
- Disconnect and Replace: Pull the unit forward, press the tab on the electrical connector at the back, and pull it off. Connect the new unit, screw it into place, and snap the dash bezel back on.
Frequently Asked Questions (FAQ)
Why does my fan only work on the highest setting?
This is a classic symptom of a failed blower motor resistor, not the HVAC control unit. It's a separate, inexpensive part that controls the lower fan speeds. When it fails, power bypasses it and only the direct-wired high speed will function.
🎬 Watch: Why your fan only works on highCan I replace the burnt-out lights in my control unit?
Yes, but it requires disassembly of the unit and soldering. The small incandescent bulbs are soldered to the circuit board. Replacement bulbs can be found at electronics suppliers or specialty auto lighting websites. This is a common repair for those comfortable with a soldering iron.
Can I install an automatic climate control unit in my manual-equipped Aztek?
No. The wiring harnesses, sensors, and underlying HVAC system components are completely different. You must replace your manual control unit with another manual control unit.
Do I need to disconnect the battery to replace the HVAC control?
Yes, it is highly recommended. Disconnecting the negative battery terminal prevents the risk of causing an electrical short that could damage the replacement part or other vehicle electronics.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10301043 10301044
Fits vehicles with manual single-zone climate control (GM RPO Code: C60). Features three rotary knobs for fan speed, temperature, and mode.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
