2025 Toyota Camry HVAC Control: A Guide to Part Number 55900AQ020

Key Part Details and Compatibility

The HVAC control unit for the 2025 Toyota Camry is a modern, all-digital interface. The most critical factor when sourcing a replacement is ensuring it matches your vehicle's specific options. This guide focuses on OEM part number 55900AQ020.

Common Symptoms of a Failing HVAC Control

Because the 2025 Camry is a new model, widespread failures are not yet common. Most issues will likely be isolated defects. However, based on general HVAC control module failures, here are the symptoms to watch for:

• Unresponsive Controls: Buttons or temperature adjustments do not respond or work intermittently.
• Incorrect Temperature Output: The system blows hot air when set to cold, or cold air when set to hot, because the module isn't controlling the temperature blend door correctly.
• Improper Airflow Direction: Air comes out of the wrong vents (e.g., stuck on defrost) and won't change when you press the mode button.
• Fan Speed Issues: The blower fan may be stuck on one speed (high or low) or may not turn on at all.
• Blank or Flickering Display: The screen on the control unit is dim, flickers, or completely dead.
• A/C Compressor Not Engaging: The A/C button lights up, but the module fails to send the signal to the A/C compressor, resulting in no cold air.
• Odd A/C Light Behavior: Some owners have reported confusion where the A/C compressor is running and blowing cold air even when the A/C indicator light is off. This appears to be a design choice by Toyota but can be a source of confusion.

Buying a Used 2025 Camry HVAC Control: What to Check

For a vehicle as new as a 2025 model, "used" parts typically come from vehicles damaged in collisions with very low mileage. This can be a great way to get a like-new OEM part at a significant discount.

Key Inspection Points:

• Verify the Part Number: This is the most important step. The part must be stamped with 55900AQ020. Do not rely on visual similarity alone. A salvage yard may list it with a slightly different number like 55900-AQ030, which should also be compatible if the description matches (heated, no cooled seats).
• Inspect the Faceplate: Look for deep scratches, cracks, or any signs of cosmetic damage. While minor scuffs may be acceptable, significant damage is a red flag.
• Check the Buttons: Press every button. They should have a solid, tactile click with no sticking.
• Examine the Connectors: This is critical. Turn the unit over and carefully inspect the electrical connector ports on the back. The plastic housings should be free of cracks, and all the small metal pins inside must be straight and clean. Bent or corroded pins can render the part useless.
• Ask About the Source Vehicle: If possible, get the VIN of the vehicle the part came from. This allows you to check for any recalls or TSBs associated with that specific car.

Replacement Overview

Replacing the HVAC control unit on a 2025 Camry is a straightforward task for a DIYer with the right tools and patience.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1 hour
• Tools Needed: Plastic trim removal tools, 10mm socket or driver, Phillips screwdriver.

General Steps:

1. Disconnect the Negative Battery Terminal: Wait a few minutes to allow the vehicle's systems to fully discharge. This prevents electrical shorts and potential damage to electronic modules.
2. Remove Surrounding Trim: Using plastic pry tools, carefully remove the dash trim pieces surrounding the radio and climate control panel. 🎬 See how to safely remove the surrounding dash and radio trim. Several videos demonstrate this process, which often involves pulling panels that are held in by clips.

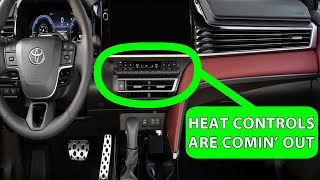

🎬 Watch: Step-by-step guide to removing the HVAC control panel.
3. Unbolt the Control Unit: The HVAC control is typically held in place by four 10mm bolts. Remove these bolts.
4. Disconnect Electrical Connectors: Gently pull the unit out from the dash. Press the release tabs on the electrical harnesses plugged into the back of the unit and disconnect them.
5. Install the New Unit: Installation is the reverse of removal. Plug in the new unit, bolt it into place, re-install the trim, and reconnect the battery.

Post-Installation Check: After installation, start the car and test all functions. Cycle the temperature from full hot to full cold, test all fan speeds, and direct air to every vent setting (face, feet, defrost) to ensure the new unit is communicating correctly with all actuators.

Known Issues, Recalls & TSBs

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Toyota or the NHTSA that directly address the HVAC control unit for the 2025 Camry. The vehicle is still very new, and long-term issues have not yet emerged.

However, there are a few general recalls for the 2025 Camry that owners should be aware of, including for the second-row seat belt and potential instrument panel software errors. You can check if your specific vehicle is affected by entering your VIN on Toyota's recall website or the NHTSA website.

Cost Comparison

Prices can vary, but this provides a general expectation of costs.

Frequently Asked Questions (FAQ)
