2010-2016 GM Ignition Switch: Stalling, No-Start, and Replacement Guide for Equinox, Cruze, Malibu & More

Symptoms of a Failing Ignition Switch

A faulty ignition switch can cause a range of confusing and dangerous electrical problems. Because it controls power to nearly every system, its failure can mimic other issues. Watch for these common signs in your Chevrolet Malibu, Equinox, Cruze, Sonic, Trax, Colorado, GMC Terrain, or Buick Encore, LaCrosse, and Regal.

• Engine Stalls While Driving: This is the most dangerous symptom. A worn switch can lose internal contact, cutting power to the ignition and fuel systems and causing the engine to shut off unexpectedly. This can also lead to a loss of power steering and power brakes, making the vehicle difficult to control.
🎬 Watch: A visual guide to common ignition switch failure symptoms.
• Car Won't Start or is Intermittent: You might turn the key and get nothing—no clicking, no cranking from the starter motor. This happens because the switch fails to send power to the starter solenoid. The problem can be intermittent, working one moment and failing the next.
• Starts and Immediately Stalls: The switch may provide momentary power to start the engine, but fail to keep the 'run' circuit engaged, causing the engine to die as soon as you release the key from the 'start' position.
• Flickering Dashboard Lights and Accessories: A defective switch can cause dashboard lights, interior lights, the radio, and the HVAC system to flicker or cut out intermittently while driving.
• Key is Difficult to Turn or Gets Stuck: While often a problem with the mechanical lock cylinder, a failing ignition switch can sometimes contribute to the key feeling stiff or getting stuck between positions.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Many General Motors vehicles from this era were subject to significant recalls related to the ignition switch. While the most widely publicized recall (NHTSA Campaign ID: 14V047) primarily focused on other models like the Chevrolet Cobalt and Saturn Ion, the underlying issue of the key moving out of the 'run' position due to weight on the keychain or a jarring event affected a wide range of GM products. This defect could cause the engine to shut off, disabling the airbags.

Additionally, a separate recall (GM numbers 50490/50491) was issued for some of the vehicles covered in this guide, including the 2013 Buick Encore, 2011 Buick Regal, 2011-2016 Chevrolet Cruze, 2010-2013 Chevrolet Equinox, 2013-2015 Chevrolet Malibu, and 2011-2013 GMC Terrain. This recall addressed a defect where the ignition key could be removed without the transmission being in PARK, creating a rollaway risk. The fix involved dealers inspecting and, if necessary, replacing the key cylinder lock housing.

Programming and Anti-Theft System

This is the most common question buyers have, and there's good news. Replacing only the electronic ignition switch module does not require special programming tools or a visit to the dealer. However, it is directly linked to the vehicle's anti-theft system (often called Passlock or Passkey III), and you must perform a security relearn procedure after installation.

Without this procedure, the vehicle will not start. The relearn process is simple and can be done by anyone.

GM Anti-Theft Relearn Procedure (30-Minute Method)

1. Ensure the vehicle's battery is fully charged. A battery charger is recommended during this process.
2. Insert the key and turn it to the 'ON' position (do not try to start the engine). The 'Security' light on the dashboard will illuminate.
3. Leave the key in the 'ON' position for approximately 10 minutes, or until the 'Security' light turns off.
4. Turn the ignition switch to 'OFF' for 5-10 seconds.
5. Repeat steps 2-4 two more times, for a total of three 10-minute cycles.
6. After the third cycle, the vehicle has learned the new component's security data. Turn the key to 'OFF', then start the engine. It should now run normally.
🎬 Watch: How to perform the GM anti-theft relearn procedure.

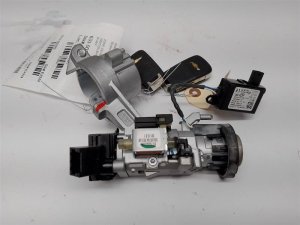

Buying a Used Ignition Switch: What to Look For

A used OEM ignition switch can be a reliable and cost-effective alternative to expensive new parts or lower-quality aftermarket options. Since these switches are purely electronic with no significant mechanical wear parts, a part from a low-mileage vehicle is an excellent choice. Here's what to check:

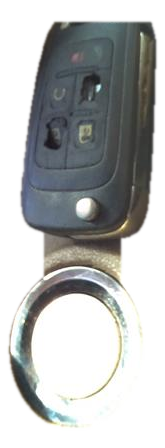

• Verify Compatibility: This guide covers vehicles with a traditional turn-key ignition. These switches are not compatible with push-button start systems. Double-check the OEM part number against the numbers listed in this guide.
• Inspect the Connector Pins: Look closely at the electrical connector. The pins should be straight, clean, and free of any corrosion or signs of overheating (discoloration/melting plastic).
• Check the Housing: Ensure the plastic housing of the switch is not cracked or damaged, which could indicate it was removed forcefully.
• Colorado/Canyon Specifics: For 2015 Chevrolet Colorado and GMC Canyon models, it is critical to verify your vehicle has the 6-pin, 45-degree angled connector before ordering.
• Why Used OEM is Better: Original Equipment Manufacturer (OEM) parts are built to GM's exact specifications for durability and electrical performance. Many cheap aftermarket switches use lower-grade materials that can lead to premature failure, putting you right back where you started. A used OEM part provides the original quality at a fraction of the price.

Cost Comparison

The cost to replace an ignition switch can vary, but choosing a used OEM part offers significant savings over a new part from the dealer.
