GM Push-Button Start & Headlight Switch Guide: 2016-2025 Malibu, Equinox, Trax & More

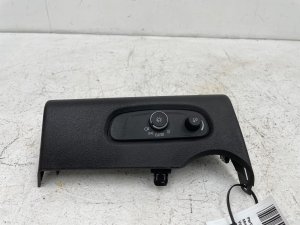

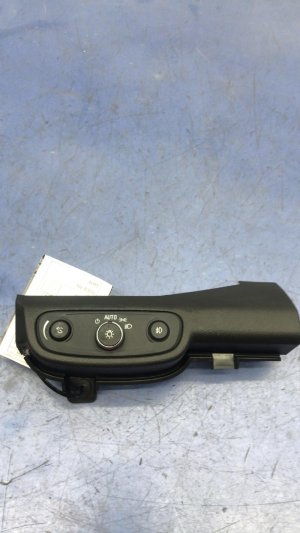

Understanding the GM Integrated Start & Headlight Switch

If your Chevrolet Trax, Buick Encore GX, or another vehicle on the list is having trouble starting, you might suspect the ignition switch. On these models, the part you interact with is the 'Engine Start/Stop' button. However, this button is part of a larger, single component officially known as the Headlight Switch Assembly. This design choice means the switch that starts your car is the same part that controls your lights.

This is critical for buyers to understand. You cannot typically replace just the start button. You must replace the entire assembly. Furthermore, these assemblies come in different versions depending on your vehicle's factory options. The most common variation is for vehicles with or without fog lamps.

Vehicles Covered in This Guide:

• 2020-2025 Chevrolet Trax
• 2020-2025 Buick Encore GX
• 2024-2025 Buick Envista
• 2021-2025 Chevrolet Trailblazer
• 2018-2021 Buick Enclave
• 2021-2022 Buick Encore
• 2019-2025 Chevrolet Blazer
• 2018-2024 Chevrolet Equinox
• 2016-2025 Chevrolet Malibu
• 2018-2023 Chevrolet Traverse

Symptoms of a Failing Ignition Switch

A problem with the start/stop button or the assembly it's housed in can cause a range of frustrating electrical issues.

What to Check First

Before assuming the switch has failed, rule out these common and simple issues first:

• Dead Key Fob Battery: Most of these vehicles have a designated spot in the center console or glove box where you can place a key fob with a dead battery to start the car. Check your owner's manual for the specific location. If this works, simply replace the CR2032 battery in your fob.
• Dead Vehicle Battery: A weak or dead 12-volt car battery is a primary cause of no-start conditions. If you hear a rapid clicking sound or the dash lights are very dim when you press the button, your battery is likely the culprit.
• Brake Pedal Not Pressed: The vehicle will not start unless the brake pedal is firmly pressed. The brake pedal switch must send a signal to the computer before the starting sequence is allowed.

Common Failure Symptoms

• Engine Won't Start: The most obvious symptom. You press the button, and nothing happens, or you only hear a single click from under the dash.
• Intermittent Starting: The vehicle may require multiple button presses to start. It might work fine one day and fail to respond the next.
• Stalling After Start: The engine starts but immediately shuts off. This can indicate a problem with the switch's internal contacts failing to hold the 'run' circuit active.
• Accessory Mode Works, But Won't Start: You can press the button without your foot on the brake to turn on the radio and accessories, but the engine will not crank when you press the button with the brake applied.
• Flickering Dashboard Lights: A faulty switch can cause poor electrical connections, leading to flickering dash lights or other strange electrical behavior when you try to start the car.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls for the ignition switch or headlight switch assembly on these vehicles. However, there are a few related issues to be aware of:

• NHTSA Recall 23V744000: Affects some 2024 Buick Encore GX, Envista, and Chevrolet Trax vehicles. The instrument panel display may intermittently go blank at startup or while driving due to a software issue in the Virtual Cockpit Unit (VCU). While not a switch failure, a blank screen could be confused for a power-related problem.
• NHTSA Recall N202313440: Affects many 2018-2020 models including the Equinox, Traverse, Blazer, and Enclave. Missing bolts on the transmission's start-stop accumulator can cause a fluid leak and loss of propulsion. This is related to the fuel-saving auto-stop feature, not the engine start/stop button on the dash.

Buying a Used Ignition Switch: What to Check

Purchasing a used OEM headlight and ignition switch assembly is a cost-effective solution, but careful inspection is key. A used original part is often superior in quality and fit to a cheap aftermarket alternative.

1. Verify the Part Number

This is the most critical step. The part number is printed on a sticker on the side or back of the switch housing. You must remove your old switch to see the number. Do not buy a replacement based on looks alone.

• Part Number 84192536: Includes controls for fog lamps.
• Part Number 84192541: For vehicles WITHOUT fog lamps.
• Other numbers like 22992801 have been superseded by 84192536.

2. Physical Inspection

• Button Feel: Press the engine start/stop button several times. It should have a crisp, tactile click. A mushy or sticky button is a sign of internal wear or contamination.
• Cosmetic Condition: Check the face of the assembly for deep scratches, worn-off graphics, or damage to the knobs.
• Connector Pins: Look at the electrical connector pins on the back. They should be straight, clean, and free of any corrosion or green residue.
• Mounting Tabs: Ensure all plastic mounting tabs and clips are intact. Broken tabs will result in a loose fit in your dashboard.

Cost Comparison: New vs. Used

Here is an estimated cost breakdown for replacing the headlight switch assembly. Prices can vary based on location and supplier.

Replacement Overview

Replacing the headlight switch assembly is a manageable DIY task for someone with basic tools and patience.

• Difficulty: 2 out of 5
• Estimated Time: 0.5 - 1 hour
• Tools Needed: Trim removal tool, 7mm or 10mm socket set (depending on model).

General Steps:

1. Disconnect the negative terminal from your vehicle's 12-volt battery.
2. Remove the driver's side lower dashboard panel (knee bolster). This is usually held on by a few screws and clips.
3. Reach behind the panel to locate the headlight switch assembly.
4. Carefully pry the assembly out of the dashboard. It is held in by pressure clips.
5. Press the release tab on the electrical connector and unplug it from the back of the switch.
6. Installation is the reverse of removal. Plug in the new switch, press it firmly into the dash until it clicks, and reinstall the lower dash panel.
