2023-2025 Toyota Prius, Corolla Cross, bZ4X & Prime Ignition Switch: No-Start Diagnosis and Replacement

Symptoms of a Failing Ignition Switch

A failing push-to-start button can be frustrating, but the symptoms are often confused with other, more common issues. Here are the signs that may point to the switch itself, along with common problems that mimic a bad switch.

Direct Symptoms of a Bad Switch

• Intermittent Starting: The vehicle may require multiple presses of the button to start one day, then work perfectly the next. This can be a sign of worn internal contacts.
• No Response: Pressing the button does nothing at all. The dashboard lights do not turn on to the 'Accessory' or 'On' modes, and the engine does not crank.
• Physical Damage: The button may be physically stuck, cracked, or feel loose in its housing, preventing it from making proper electrical contact.

Symptoms Often Mistaken for a Bad Ignition Switch

• Dead Key Fob Battery: If the key fob's battery is dead, the car won't detect it, and the ignition switch will not respond. Most Toyotas will display a message like "Key Not Detected." Try holding the fob directly against the start button, as this can often work even with a very weak battery.
• Dead Vehicle Battery: A weak or dead 12-volt battery is a very common cause of a no-start condition. You might hear a rapid clicking sound or see the dashboard lights flicker and dim when you press the button.
• Failed Brake Pedal Switch: Modern Toyotas require you to press the brake pedal firmly to start the engine. A faulty brake pedal switch will not send the required signal to the computer, preventing the start sequence. A quick check is to see if your brake lights illuminate when you press the pedal. If they don't, the brake switch is a likely culprit.
🎬 See this video for common reasons your Prius won't start.
• Steering Lock Failure: In some cases, a failure in the electronic steering column lock can prevent the vehicle from starting.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no recalls specifically for the ignition switch on these models, there are important safety recalls and TSBs for these vehicles you should be aware of.

2023-2025 Prius & 2023-2024 Prius Prime

• Recall 24V-274 (Expanded by 26V049): This significant recall concerns water entering the electronic rear door opener switches. This can cause a short circuit and lead to a rear door opening unexpectedly while driving. The fix involves dealers modifying or replacing the door opener switches. This is unrelated to the ignition switch but is a critical safety issue for these models.

2023-2025 Toyota bZ4X

• 12-Volt Battery Drain: As mentioned above, this is the most prominent issue for bZ4X owners experiencing a no-start condition.
• HVAC/Defroster Recall: A recall was issued for a software fault that can cause the defroster to become inoperative in certain conditions, increasing the risk of a crash in cold weather.
• Wheel Hub Recall (Early 2023 Models): The very first bZ4X models were recalled because the wheel hub bolts could loosen, potentially causing a wheel to detach. This issue was resolved for later production vehicles.

2024-2025 Toyota Corolla Cross

• Skid Control ECU Recall: Some hybrid models were recalled for a software error in the skid control ECU that could result in a loss of power brake assist when turning, increasing stopping distance.

Does the Ignition Switch Need to be Programmed?

No, the ignition switch button itself does not require any programming. It is a simple plug-and-play component. You can replace a faulty switch with a new or used one, and it will function immediately without any special tools or dealer visit.

However, the switch is part of the larger Toyota Smart Key and immobilizer system. If your no-start problem is actually due to a lost key, a malfunctioning key, or a problem with the immobilizer ECU, then programming *is* required. This process, often called an "Immobilizer Reset," must be done by a Toyota dealer or a qualified locksmith with advanced tools like Toyota's Techstream software. This procedure erases all old keys and registers new ones to the vehicle's computer.

Buying a Used Ignition Switch

A used OEM ignition switch is an excellent choice for this repair, as it offers the same reliability as a new part for a fraction of the cost. Since no programming is involved, the process is straightforward.

• Verify the Part Number: Ensure the used part is OEM number 89611-0A040. This part may also replace the older number 89611-42030.
• Inspect for Physical Damage: Check the button for cracks, deep scratches, or signs of being pried on. Ensure the plastic housing and mounting tabs are intact.
• Check the Connector: Look at the electrical connector on the back. The pins should be straight and free of any corrosion or damage. The connector housing should not be cracked.
• Mileage is Not a Factor: Unlike mechanical parts, the mileage of the donor vehicle is not a major concern for a simple electronic switch like this. Functionality and physical condition are what matter.

Replacement Guide Overview

Replacing the push-to-start button is a relatively simple DIY task that requires basic trim removal tools.

1. Disconnect the 12V Battery: As a safety precaution, always disconnect the negative terminal of the 12-volt battery.
2. Remove Surrounding Trim: The switch is typically held in by the dashboard trim panel. Using plastic pry tools, carefully remove the trim piece surrounding the switch. On many Toyotas, this involves prying off a larger panel that may include air vents.

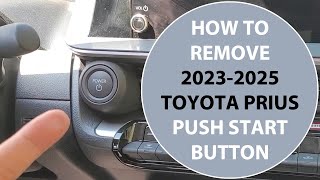

🎬 Watch: Step-by-step guide to removing the Prius push start button.
3. Push the Switch Out: From behind the dashboard panel, you can typically access the back of the switch. Squeeze the retaining clips and push the switch forward and out of its mounting hole.
4. Disconnect the Wiring Harness: Press the small tab on the electrical connector and pull it away from the switch.
5. Install the New Switch: Connect the wiring harness to the new switch, then snap the switch into the dashboard. Reinstall the trim panels and reconnect the battery.

Cost of Replacement

The cost to replace the ignition switch is dominated by the price of the part itself, as labor is minimal.
