1998-2001 Daewoo Lanos Instrument Cluster: Failure, Diagnosis, and Replacement
This guide explains common instrument cluster problems in the Daewoo Lanos, from erratic gauges to total failure, and clarifies whether the issue is the cluster or another part of the car.
- A replacement cluster does NOT need to be programmed; it is a plug-and-play part.
- You MUST match the OEM part number (usually 96275917) from your old cluster to the new one for it to work.
- Erratic speedometer issues are very often caused by a bad Vehicle Speed Sensor (VSS) on the transmission, not a bad cluster.
- The vehicle's mileage is stored in the cluster, so a replacement will show the mileage of the donor car.
Symptoms of a Failing 1998-2001 Daewoo Lanos Instrument Cluster
Diagnosing a faulty instrument cluster in a Daewoo Lanos requires careful observation, as many symptoms can also be caused by other failing parts. Here are the most common signs of a problem.
- Erratic or Inaccurate Gauges: The speedometer, tachometer, fuel, or temperature gauge may provide incorrect readings, get stuck, or sweep back and forth randomly. A twitching speedometer is often linked to a failing Vehicle Speed Sensor (VSS), not the cluster itself.
- Complete or Intermittent Power Failure: The entire cluster may lose power and go dark, either permanently or intermittently. This can sometimes be caused by a poor electrical connection or a known wiring issue.
- Warning Lights Staying On or Not Coming On: Critical warning lights like the 'Check Engine' or oil pressure light may stay illuminated even when there's no issue, or fail to light up during the initial key-on bulb check.
- Backlight Failure: The bulbs that illuminate the cluster for night driving may burn out, creating dark spots or making the gauges impossible to read at night.
- Cluster Stays On After Key is Off: In some cases, the cluster lights may remain on after the car is turned off, draining the battery. This is often caused by water intrusion corroding an electrical connector block under the dash.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no recalls specifically for the instrument cluster, several major safety recalls relate to the vehicle's electrical system, which can directly impact cluster function.
Recall Notice: Before suspecting the cluster, be aware of these related recalls that can cause similar electrical symptoms.
- NHTSA Recall #01V020: Damaged Wiring Harness. A wiring harness located under the carpet in the front passenger footwell can be damaged by foot traffic. This can cause a wide range of electrical issues, including engine stalling and erratic gauge behavior. Dealers were instructed to inspect, repair, and reposition the harness.
- NHTSA Recall #04V357000: Camshaft Position Sensor. On some vehicles, the camshaft position sensor could melt, creating a fire risk. While not a direct cluster fault, it points to potential electrical system vulnerabilities.
Buying a Used 1998-2001 Daewoo Lanos Instrument Cluster
Since new and remanufactured clusters are no longer available, a used OEM part is the only practical option. Sourcing a good used cluster is straightforward if you follow these guidelines.
Why Part Number Matching is Critical
The single most important step is to match the part number on your replacement cluster with your original one. The primary OEM part number is 96275917 or 96275917AP. You may also see other numbers like 96275911. While they may look identical, clusters can have internal differences for different trim levels or transmission types. Failure to match the part number will likely result in it not working correctly. You must physically remove your old cluster to verify the number on the back before ordering a replacement.
Physical Inspection Checklist
- Check the Lens: Look for deep scratches, hazing, or cracks in the clear plastic lens. Minor scuffs are normal, but major damage will obstruct your view.
- Inspect the Rear Circuit Board: Look for any signs of corrosion (green or white crust), which indicates water damage. Avoid any cluster that looks like it has been wet.
- Verify the Odometer Reading: The mileage is stored inside the instrument cluster itself and will transfer with the part. Federal law requires sellers to disclose the mileage from the donor vehicle. Choose a cluster with mileage that is acceptable to you, as it cannot be easily changed.
- Confirm Transmission Type: Ensure the cluster came from a vehicle with the same transmission (automatic or manual) as yours, as the warning light layout may differ.
Programming, Calibration, and Anti-Theft
A major concern for any electronic part is programming. Fortunately, for the 1998-2001 Daewoo Lanos, this is not an issue.
- No Programming Required: The instrument cluster does not need to be programmed or flashed by a dealer. It is a "plug and play" part.
- No Immobilizer Link: The Lanos does have a key-chip based immobilizer system, but it is controlled by a separate module and is not integrated into the instrument cluster. Swapping the cluster will not affect the anti-theft system or prevent the car from starting.
- Mileage: The mileage is stored in the cluster. The mileage you see on the replacement part is what your car's odometer will display. It is not transferred from your old unit.
Cost Comparison
The value of a used OEM part is clear when compared to other options, which are largely unavailable for this vehicle.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $0 (No longer available) |
| New Aftermarket | $0 (Not produced) |
| Used OEM | $40 - $75 |
| Shop Labor for Replacement | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I need a dealer to install a replacement instrument cluster?
No. A replacement cluster for a 1998-2001 Daewoo Lanos does not require any programming or special tools. It can be installed by a DIY mechanic or any independent shop.
Will replacing the cluster change my car's mileage?
Yes. The odometer reading is stored in the cluster itself. The mileage from the donor vehicle will now be displayed in your car. It is important to document this change for your records.
My speedometer is jumping or not working. Is the cluster bad?
Not necessarily. The most common cause of an erratic or non-functional speedometer on a Daewoo Lanos is a faulty Vehicle Speed Sensor (VSS), which is located on the transmission. It's cheaper and easier to replace the VSS first before assuming the entire cluster is bad.
Will a cluster from a manual transmission Lanos work in my automatic?
It is not recommended. While it may physically fit, the display for the gear selector lights (P, R, N, D) will be missing, and there may be other internal electronic differences. Always buy a cluster that matches your car's original specifications.

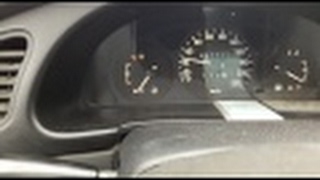

Helpful Videos
Technical Specifications
OEM Part Numbers: 96275917 96275917AP 96275911
Analog gauges with bulb illumination. Mileage is stored internally on the cluster's circuit board.
