2019-2025 Ford Ranger Instrument Cluster: Decoding Screens, Failures, and Programming

Instrument Cluster Variants for 2019-2025 Ford Ranger

One of the most critical aspects of replacing a Ford Ranger instrument cluster is matching the exact type that your truck was built with. Ford offered several different screen configurations depending on the trim level (XL, XLT, Lariat, Raptor) and model year. Installing the wrong type will result in compatibility issues and feature loss.

• Base Model (XL Trim): These trucks typically feature a simple cluster with a central 2.3-inch monochrome or 4.2-inch color information screen flanked by analog gauges.
• Mid-Level (XLT Trim): XLT models often came with a more advanced cluster featuring dual 4.2-inch color LCD screens on either side of a physical analog speedometer.
• High-Level (Lariat Trim): Lariat trims are equipped with a fully digital 8-inch instrument cluster, offering more customization and display options.
• Raptor & Upper Trims (2024+): The high-performance Raptor and some top-tier Lariat models feature a large, fully configurable 12.4-inch digital instrument cluster.

Symptoms of a Failing Instrument Cluster

A faulty instrument cluster can cause a wide range of issues, from minor annoyances to critical safety problems. Here are the most common symptoms owners experience:

• Complete Blackout: The entire cluster screen may go blank intermittently or permanently. Some owners report that disconnecting the vehicle's battery can temporarily restore function, which often points to a software or communication glitch.
• Erratic or Dead Gauges: The speedometer, tachometer, fuel gauge, or temperature gauge may provide incorrect readings, get stuck in one position, or stop working entirely.
• Flickering or Dim Display: The backlighting or the digital screens may flicker, appear dim, or have missing pixels, making them difficult to read.
• Constant or False Warning Lights: The check engine light, ABS light, or other warning indicators may stay on for no reason, or fail to illuminate during the initial startup check.

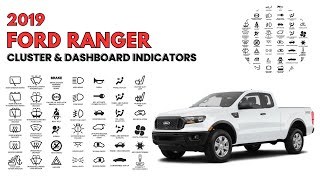

🎬 Watch: A guide to understanding your Ranger's dashboard warning lights
• Settings Reset on Shutdown: Some electrical failures can cause the cluster and even the SYNC infotainment system to lose their settings every time the truck is turned off.

Known Issues, TSBs, and Recalls

While there haven't been widespread recalls specifically for cluster hardware failure, there are several software-related issues and TSBs that are important to know.

• Recall 25C23 / NHTSA 24V140: Ford issued a recall for a small number of 2025 Ranger trucks because the instrument panel cluster was not properly configured at the factory. This prevented critical safety warnings, gauges, and telltales from displaying correctly. The fix is a software update performed by the dealer.
• TSB SSM 50442: This Technical Service Bulletin applies to 2020-2021 Ranger models and relates to the "ELECTRICAL SYSTEM: INSTRUMENT CLUSTER/PANEL," though specific details of the issue are not widely published.
• Shifter Cable Recall (19S15): On some 2019 Rangers, a faulty shifter cable bracket could cause the gear indicated on the instrument cluster to be different from the actual gear the transmission is in. This could lead to a rollaway risk if the driver believes the truck is in Park when it is not.

Programming and Immobilizer Requirements

THIS IS THE MOST IMPORTANT PART OF REPLACING YOUR CLUSTER. A replacement instrument cluster, whether new or used, WILL NOT work correctly without being programmed to your specific vehicle. The cluster is a key component of the truck's Passive Anti-Theft System (PATS).

Programming is required to:

1. Match the VIN: The cluster's software must be configured with your truck's Vehicle Identification Number.
2. Configure Vehicle Options: The cluster needs to know which features your truck has (e.g., 4x4, Blind Spot Information System (BLIS), adaptive cruise control, etc.) to display information and warnings correctly.
3. Program the Odometer: The vehicle's mileage is stored in the instrument cluster. The correct mileage must be programmed into the replacement unit.
4. Sync Anti-Theft Keys: The PATS immobilizer runs through the cluster, so your existing keys must be reprogrammed to the new cluster for the engine to start.

Who Can Program a Ranger Instrument Cluster?

• Ford Dealership: This is the most straightforward and reliable option. They have the proprietary Ford Integrated Diagnostic System (IDS) software required to perform all necessary configuration and key programming.
• Qualified Independent Shop: Some automotive locksmiths and repair shops that specialize in electronics may have the tools and subscriptions necessary to program Ford modules.
• DIY with FORScan: For advanced DIY mechanics, the FORScan software provides a powerful, near-dealer-level diagnostic and programming interface. The correct procedure is to save the 'as-built' data from your original cluster and write it to the replacement cluster. This copies over all the factory configuration settings.
🎬 See this quick tutorial on using FORScan with your Ranger

Buying a Used 2019-2025 Ranger Instrument Cluster

A used OEM cluster can be a great value, but careful purchasing is essential to avoid headaches.

• Match the Part Number EXACTLY: The most important step is to match the Ford engineering part number (e.g., KB3T-10849-CL) on the back of the cluster. This ensures you are getting the correct hardware and screen configuration.
• Verify the Screen Type: Visually confirm the cluster has the same screen layout as your original—whether it's the 2.3", 4.2", dual 4.2", 8", or 12.4" version.
• Consider the Mileage: A used cluster will display the mileage of the vehicle it came from. You will need to have the mileage professionally corrected during programming. If you plan to use a tool like FORScan, you may need to find a cluster with mileage that is lower than your vehicle's actual mileage, as you can typically only program the mileage upwards.
• Inspect for Damage: Check the front lens for deep scratches or cracks. Ensure all mounting tabs and electrical connector ports on the back are intact and free of damage. Avoid parts from flood-damaged vehicles.

Cost to Replace a Ford Ranger Instrument Cluster

Note: Labor costs can vary significantly depending on whether a dealership or an independent shop performs the programming. The physical installation is relatively simple.
