2017-2018 Infiniti QX30 Instrument Cluster: A Guide to Failures, Replacement, and Programming
This guide covers common failures, replacement procedures, and the critical programming requirements for the 2017-2018 Infiniti QX30 instrument cluster, highlighting its unique Mercedes-Benz connection.
- The QX30 is based on the Mercedes-Benz GLA, making cluster replacement complex; it requires Mercedes-specific programming knowledge.
- A used cluster is NOT plug-and-play. It MUST be professionally programmed to the vehicle's VIN and mileage to function.
- Before buying a used part, you must find a shop (dealer or specialist) that confirms they can program it.
- Match the part number and options (Navigation/Surround View Camera) exactly. The part number 248105DC2C is for fully-equipped models.
Understanding the QX30's Mercedes-Benz DNA
Before diagnosing or replacing the instrument cluster in a 2017-2018 Infiniti QX30, it's crucial to understand the vehicle's background. The QX30 is the result of a partnership between Infiniti's parent company, Nissan, and Daimler, the parent company of Mercedes-Benz. This means the QX30 is built on the same platform as the Mercedes-Benz GLA-Class and shares its engine, transmission, and many electronic components, including the instrument cluster. This relationship is the single most important factor when it comes to repairs, as it often requires Mercedes-specific knowledge and diagnostic tools (like XENTRY) in addition to Infiniti's own (CONSULT) for programming and troubleshooting.
Symptoms of a Failing Instrument Cluster
A failing instrument cluster can cause a wide range of issues, from minor annoyances to problems that make the vehicle unsafe to drive. Here are the most common symptoms:
- Erratic or Dead Gauges: The speedometer, tachometer, fuel, or temperature gauges may stick, jump randomly, or stop working altogether.
- Complete or Partial Display Failure: The central information display or the backlighting for the gauges may flicker, become pixelated, or go completely dark.
- Flashing Warning Lights: Multiple warning lights may illuminate on the dash for no apparent reason. This can be caused by a faulty cluster or a related component like the CAN bus power distributor located behind the cluster.
- Communication Errors: A common sign of an internal cluster failure is the presence of the OBD-II code U0155 (Lost Communication With Instrument Panel Cluster Control Module). This code indicates that other modules in the car can no longer receive a signal from the cluster.
- No-Start Condition: In some severe cases, a complete failure of the instrument cluster can prevent the vehicle from starting, as it is a key part of the vehicle's immobilizer and network system.

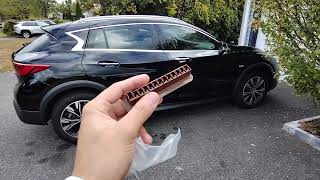

Pro Tip: Some owners have reported that erratic flashing lights and cluster failure were resolved by replacing a small, inexpensive part called the CAN bus power distributor, which is a Mercedes-Benz part located directly behind the instrument cluster. 🎬 Watch: How to fix flashing dash lights for under $20 This should be investigated before condemning the entire cluster.
Known Issues, TSBs, and Recalls
While there are no recalls specifically for the instrument cluster failing, the 2017-2018 QX30 was subject to a significant safety recall that is important for owners to be aware of.
- NHTSA Recall 17V-685: This recall was issued for approximately 17,507 vehicles due to insufficient grounding of the steering components. In specific circumstances, this could lead to an electrostatic discharge causing the driver's airbag to deploy unexpectedly. The fix involves dealers adding a commutator ring and proper grounding to the steering column, free of charge.
- Other Recalls: Other campaigns for this model year include one for incorrect certification labels (PG8B2) and another for passenger airbag module replacement (ITB17-019a).
Buying a Used Instrument Cluster
Purchasing a used instrument cluster can be a cost-effective solution, but it requires careful attention to detail to avoid buying an incompatible or useless part.

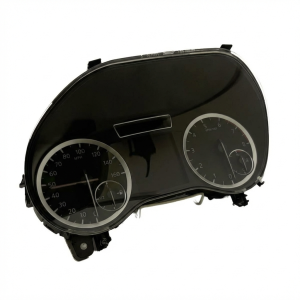

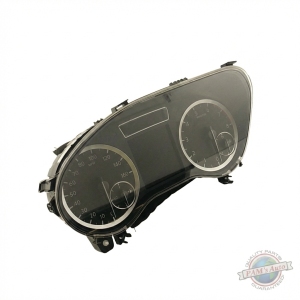

- Verify Part Numbers: The most critical step is to match the OEM part number exactly. The primary part number for models with navigation and a surround-view camera is 248105DC2C. Other part numbers exist for different option packages, such as 24810-HW50B (with navigation, without surround view) and 24810HG00B (without navigation). Installing the wrong part number will result in features not working.
- Match Vehicle Options: You must purchase a cluster from a vehicle with the exact same options. The initial buyer warning is critical: the part number 248105DC2C is specifically for vehicles equipped with both a navigation system and a surround-view camera. Do not buy a cluster from a base model if your car is fully equipped.
- Ignore the Mileage: The mileage displayed on the used cluster is irrelevant. The vehicle's true mileage is stored in other modules, and the replacement cluster must be professionally programmed to reflect your car's actual mileage to be legal and functional.
- Secure a Programmer First: Before purchasing a used cluster, find and consult with an Infiniti dealership or a qualified independent shop that specializes in European vehicles. Confirm they have the tools and ability to program a used Mercedes-derived cluster to your vehicle. Without this step, you risk owning a part that cannot be installed.
Warning: A used instrument cluster is not a plug-and-play part. It is tied to the original vehicle's VIN and security system. Simply swapping the cluster will likely result in a no-start condition or a dashboard full of errors. Professional programming is mandatory.
Programming and Calibration Requirements
Replacing the instrument cluster in a QX30 is a complex task that goes beyond simple installation.
- VIN and Immobilizer Linking: The cluster is a key component of the vehicle's anti-theft system. The replacement unit must be 'virginized' (reset to factory state) and then programmed to your vehicle's VIN. This procedure requires specialized diagnostic tools that can access these security functions.
- Mileage Correction: Federal law requires the vehicle's true mileage to be documented and displayed. A technician must use specialized equipment to write your car's correct mileage to the replacement cluster.
- Configuration and Coding: The cluster must be coded to know which options your vehicle has (e.g., navigation, surround-view camera, driver-assist features). Incorrect coding will lead to errors and non-functional features.

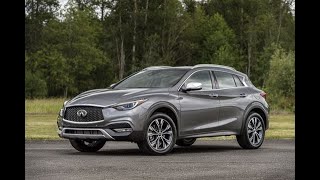

This level of programming typically requires an Infiniti dealership with their CONSULT III Plus tool 🎬 Watch: Programming a QX30 module using the Consult 3 Plus or a high-end independent shop that has invested in dealer-level Mercedes-Benz diagnostic equipment and software. Some mail-in services offer mileage correction and cloning, but on-vehicle programming is often still required to sync with other modules.
Cost Breakdown
The cost to replace the instrument cluster can vary significantly based on the path you choose.
| Part/Service | Estimated Cost | Notes |
|---|---|---|
| New OEM Cluster | $3,000 - $4,500 | Price for the part only (e.g., 24810-5DC2C has an MSRP of $4,464.65). |
| Used OEM Cluster | $200 - $600 | Price varies by recycler and condition. Programming is still required. |
| Repair Service | $150 - $400 | Mail-in services can repair specific faults like bad gauges or displays. May not require programming if your original board is repaired. |
| Shop Labor (Replacement) | $150 - $250 | Estimated 1-2 hours for physical removal and installation. |
| Shop Labor (Programming) | $200 - $500+ | This is a specialized task. Cost varies greatly depending on whether a dealer or independent shop performs the work. |
Frequently Asked Questions
Can I just swap in a used cluster and drive?
No. The instrument cluster is linked to the vehicle's immobilizer system. Installing a used cluster without proper programming will likely result in a no-start condition, and the mileage and certain features will not display correctly.
Will a cluster from a Mercedes-Benz GLA work in my QX30?
While the underlying hardware is nearly identical, the software, branding, and specific programming are different. It is strongly recommended to use the exact Infiniti part number for your vehicle to ensure compatibility and avoid programming conflicts.
My screen is blank but the gauges work. Do I need a whole new cluster?
Not necessarily. Sometimes the display itself fails while the main board is still functional. Some specialized electronics repair shops can replace just the LCD screen or repair the backlight, which can be much cheaper than replacing the entire unit.
What is the OBD-II code U0155?
U0155 is a generic diagnostic trouble code that means "Lost Communication With Instrument Panel Cluster (IPC) Control Module". It means other computers in the car, like the engine or brake modules, are not receiving the necessary information from the cluster. This can be caused by a blown fuse, wiring issue, or an internal failure of the cluster itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 248105DC2C 24810-5DC2C 24810-HW50B 24810HG00B 248105dc2a 248105df2a 24810hw50a
Integrates with CAN bus network. Requires programming and coding specific to vehicle options like navigation and surround-view camera.
