2015-2019 Kia Cadenza Instrument Cluster: Mileage Programming and Variant Guide

Symptoms of a Failing Instrument Cluster

A failing instrument cluster in a 2015-2019 Kia Cadenza can create distracting and potentially unsafe driving conditions. Symptoms often start intermittently but tend to worsen over time. Look for these common signs:

• Inaccurate or Dead Gauges: The speedometer, tachometer, fuel gauge, or temperature gauge may provide incorrect readings, fluctuate erratically, or stop working completely.
• Flickering or Dead Backlighting: The lights that illuminate the gauges and needles may dim, flicker, or go out entirely, making the cluster difficult to read at night.
• Malfunctioning Center Display: The digital screen that shows the odometer and other vehicle information may become pixelated, display random characters, show dashes (------) instead of mileage, or go completely blank.
• Warning Light Problems: Critical warning lights (like Check Engine, ABS, or Airbag) may stay on constantly even when no problem exists, or fail to light up during the initial startup test.
• Intermittent Power Failure: The entire cluster may lose power and then turn back on randomly while driving.
• Vehicle Will Not Start: In some cases, communication issues with a failed cluster can interfere with the vehicle's anti-theft system, causing a no-start condition.

Known Issues, TSBs, and Recalls

While there are no recalls specifically for instrument cluster failure on the 2015-2019 Cadenza, there are important related service bulletins and a safety recall you should be aware of.

NHTSA Recall 21V-137: HECU Fire Risk

A significant safety recall was issued for 2017-2019 Kia Cadenza vehicles concerning the Hydraulic Electronic Control Unit (HECU), which is part of the ABS. An electrical short circuit can occur within the HECU, creating a risk of an engine compartment fire. One of the potential warnings for this dangerous condition is the illumination of multiple lights on the instrument cluster, including the ABS and Tire Pressure warning lights. Kia's remedy involves installing a new fuse kit. Owners are advised to park their vehicles outdoors and away from structures until this recall repair is performed.

Technical Service Bulletin PS613: Mileage Setting

Kia issued TSB #PS613 (NHTSA ID: 10162043) for technicians, detailing the procedure for setting the mileage on a newly replaced instrument cluster using the Kia Diagnostic System (KDS). This bulletin confirms that programming is a required step and that mileage can only be set once on a new cluster. It also mentions the need for "cluster (variant) coding," which configures the cluster for the specific options on the vehicle.

Buying a Used 2015-2019 Cadenza Instrument Cluster

Buying a used instrument cluster can save you a significant amount of money, but it's crucial to understand the compatibility and programming requirements to avoid purchasing a part you can't use.

1. Match the Cluster Type: Analog vs. Super Vision

The 2015-2019 Cadenza was available with two different types of instrument clusters. They are not interchangeable. Before buying, you must verify which type your vehicle has.

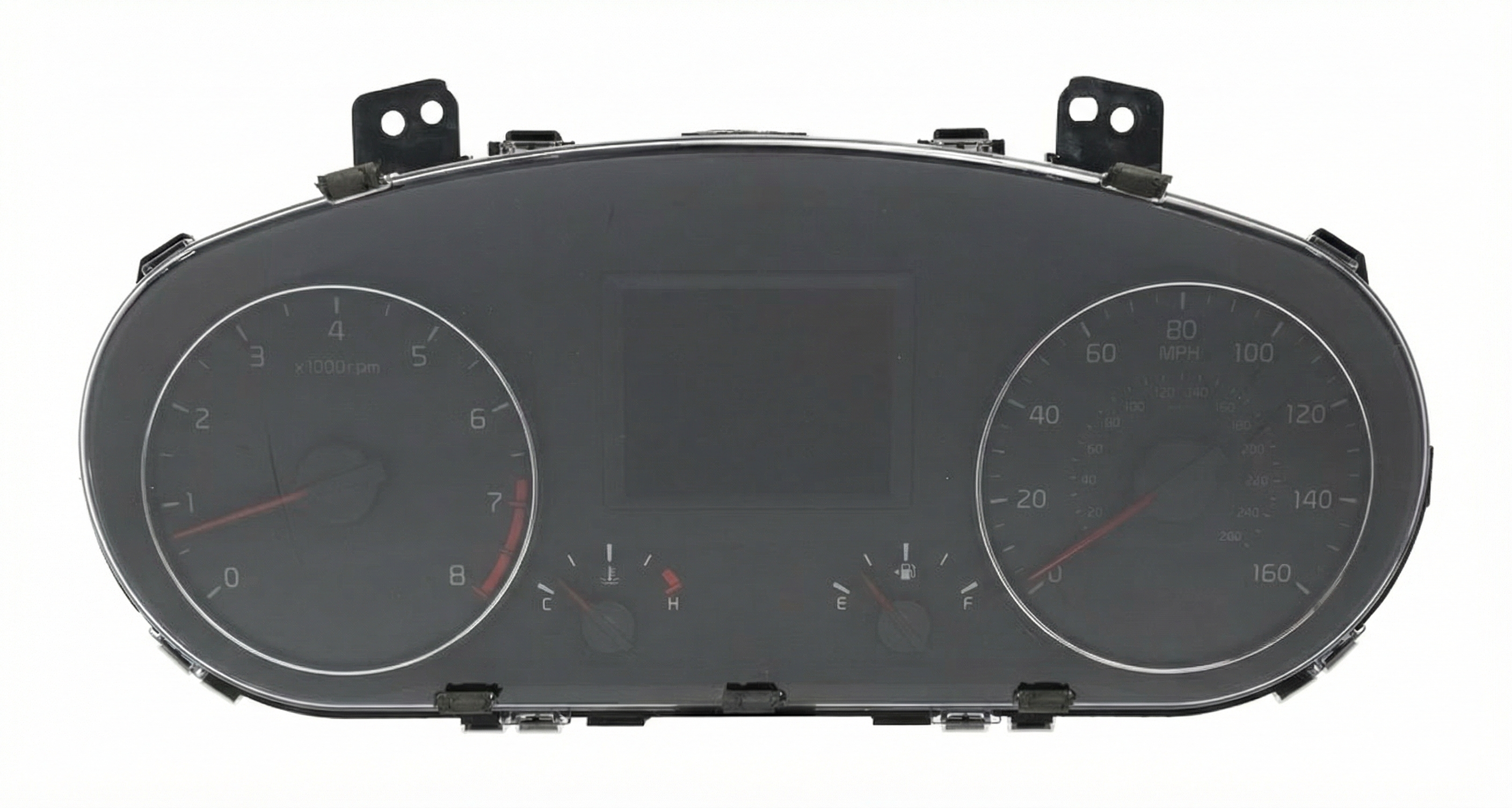

• Standard (Analog) Cluster: This cluster features traditional physical needles for the speedometer and tachometer and has a smaller 3.5-inch central display screen. Part number 94001-F6050 is a common OEM number for this type in the 2017-2019 models. This is the more common base and mid-trim level cluster.
• Super Vision Cluster: This is a premium, fully digital or mostly digital display found on higher trim levels. It will not work in a vehicle originally equipped with the standard analog cluster, and vice-versa.

2. Mileage and VIN Programming: The Most Important Consideration

A used instrument cluster will arrive displaying the mileage from the vehicle it was removed from, not your vehicle's actual mileage.

• Mileage Correction is Required: To have the correct mileage displayed, you will need to send the used cluster to a specialized third-party service for odometer correction. These services have the tools to reprogram the mileage stored in the cluster's memory. This is a mail-in service.
• Dealer Programming: While a Kia dealer can set the mileage on a brand new, never-installed cluster, their tools are generally not set up to adjust the mileage on a used unit. However, after you have the mileage corrected by a third party, a dealer or a qualified independent shop with a Kia-compatible scan tool (like KDS) may still be needed to perform "variant coding." This syncs the cluster with your car's specific features (e.g., trim level, options).

3. Physical Inspection

When your used part arrives, inspect it carefully. Check for a clear, unscratched plastic lens, ensure the housing has no cracks, and verify that all electrical connector pins on the back are straight and undamaged.

Replacement Cost Comparison

Prices can vary based on location and availability, but this table provides a general estimate of what to expect.
