2002-2004 Lexus ES300 & ES330 Instrument Cluster: Solving Dim Displays and Mileage Swaps

Symptoms of a Failing Instrument Cluster

When the instrument cluster in a 2002-2003 Lexus ES300 or 2004 Lexus ES330 begins to fail, it can present a variety of symptoms. Some may be a minor annoyance, while others can make the vehicle unsafe to operate.

• Dim or Dark Backlighting: The most common reported issue is the backlighting for the gauges becoming very dim, making them difficult or impossible to read during the day. At night, the display might be completely dark, even if the needles are still lit. This is often due to a failure in the cluster's internal power supply or the aging of the electroluminescent lighting elements.

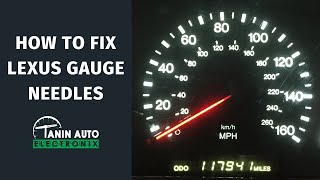

🎬 Watch: How to upgrade and fix dim gauge needle lights.
• Failing Odometer or Gear Indicator Display: Segments of the digital odometer display may burn out, making the mileage unreadable. This can also affect the gear selection indicator (P, R, N, D).
• Inaccurate or Dead Gauges: The speedometer, tachometer, fuel gauge, or temperature gauge may behave erratically, provide incorrect readings, or stop working altogether. An inaccurate speedometer can also be caused by a faulty Vehicle Speed Sensor (VSS), so further diagnosis is recommended.
• Complete Cluster Failure: In some cases, the entire instrument cluster may lose power and go completely blank. This is a critical failure as you will have no information about your speed, fuel level, or engine status.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) issued by Lexus or the NHTSA that directly address widespread failure of the instrument cluster itself for the 2002-2004 ES models. While these vehicles were subject to other recalls, such as those for Takata airbags and crankshaft pulleys, the instrument cluster has not been the subject of a dedicated safety campaign. The common dimming issue is generally considered a result of component age rather than a manufacturing defect that would trigger a recall.

Programming, Mileage, and Immobilizer Concerns

This is the most critical area to understand when replacing the cluster in your ES300 or ES330.

Mileage is Stored in the Cluster

Unlike some vehicles where the mileage is stored in a central body computer, the odometer data for these Lexus models is stored directly inside the instrument cluster itself. This means if you install a used cluster, your dashboard will display the mileage from the donor car, not the correct mileage for your vehicle. This can cause legal and resale issues if not handled correctly.

Programming is Required for Mileage Correction

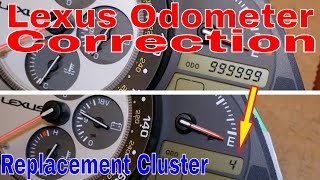

Because the mileage is stored in the cluster, simply swapping the part is not enough. The replacement cluster must be programmed to reflect your vehicle's true mileage. This is not a task that can be done by a typical DIY mechanic. It requires specialized equipment to access and rewrite the data on the cluster's internal memory chip. 🎬 See how specialized tools are used for odometer mileage correction. You have two main options:

• Send your replacement cluster to a programming service: Many online services specialize in odometer correction. You can purchase a used cluster and send it to them along with proof of your vehicle's current mileage. They will program it and send it back, ready for installation.
• Have your original cluster repaired: If the issue is with backlighting or gauges, you can send your original cluster to a repair service. This avoids all mileage issues, but means your car will be undrivable while the cluster is out for repair.

No Immobilizer Link

The vehicle's engine immobilizer system is not tied to the instrument cluster on these models. The car will still start and run with a different cluster installed. The primary concern is the incorrect mileage display, not a no-start condition.

Buying a Used Instrument Cluster for ES300 & ES330

A used OEM cluster is often the most cost-effective solution. Here’s what to look for:

1. Match the Part Number EXACTLY: This is the most important step. Several different part numbers were used for these vehicles. Remove your original cluster and find the OEM part number printed on a sticker on the back or side. Purchase a used cluster with the exact same number to ensure compatibility. The primary numbers are 83800-33610, 83800-33611, and 83800-33680, but others may exist.
2. Check the Production Date (2004 ES330): For the 2004 Lexus ES330, there is a known split in compatibility. Some parts are only for models built up to May 2004. While matching the part number is the best method, also check your vehicle's production date on the driver's door jamb sticker and confirm with the seller if possible.
3. Inspect the Lens and Housing: Look for a clear, unscratched plastic lens. Ensure the rear housing and all connector ports are free of cracks or damage.
4. Ignore the Mileage: Since the mileage on the used cluster is irrelevant and will need to be reprogrammed anyway, do not pay extra for a "low mileage" unit. Focus on the part number and physical condition.
5. Why Used OEM is a Good Choice: For this part, a used original Lexus cluster is generally preferable to a new aftermarket unit. The quality, fit, and function of the gauges and warning lights will be identical to the original. Aftermarket clusters can sometimes have issues with incorrect backlighting color or gauge calibration.
