2017-2024 Maserati Levante Instrument Cluster: Failures, Compatibility, and Programming

Symptoms of a Failing Instrument Cluster

A failing instrument cluster in a Maserati Levante can cause a range of issues, from minor annoyances to problems that can prevent the vehicle from starting. Recognizing the signs early can help in diagnosing the problem correctly.

• Blank or Flickering Center Display: The central TFT screen may go completely blank, flicker intermittently, or display distorted graphics. This is a common failure point that can make it impossible to see vital information.

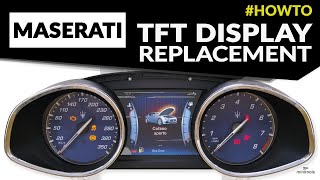

🎬 Watch: How to replace a failing TFT center screen
• Inaccurate or Dead Gauges: The analog speedometer or tachometer may provide incorrect readings, fluctuate wildly, or stop working altogether.
• Warning Lights Stay On or Don't Turn On: You might see multiple warning lights illuminated on the dash for no reason, or conversely, a critical warning light may fail to turn on when there is a real problem.
• Complete Power Loss: In some cases, the entire cluster may lose power and go dark. This can be an intermittent or permanent failure.
• Vehicle Will Not Start: Because the instrument cluster is tied into the immobilizer system, a complete failure can prevent the car from starting, often accompanied by a flashing security light.
• Flashing Odometer/Mileage: A flashing mileage display is a classic sign that the instrument cluster is not properly communicating with the rest of the vehicle's modules, often seen after a replacement has been installed without correct programming.

Associated diagnostic trouble codes (DTCs) are often related to communication errors. Look for U-series codes, such as U0155 (Lost Communication With Instrument Panel Cluster Control Module), which indicate a network problem with the cluster.

Known Issues, Recalls, and TSBs

While there are no widespread recalls specifically for instrument cluster failure, the Levante has had several recalls and service bulletins related to software and electrical systems that can affect the cluster's operation.

• NHTSA Recall 17V-161 (Software Issue): Certain 2017 Levante models were recalled for an engine software problem that could cause the transmission to shift to neutral or the engine to shut down at very low speeds. While not a direct cluster failure, the warnings and vehicle behavior would be seen on the instrument panel. The fix was a software re-flash.
• NHTSA Recall (Rear Visibility): A recall was issued for 2021-2024 models where the radio software could prevent the rearview camera image from displaying, which is shown on a different screen but is part of the vehicle's overall electronics network.
• Technical Service Bulletins (TSBs): Maserati has issued TSBs for various electrical issues. For example, TSB MAS002203 exists for the "ELECTRICAL SYSTEM: INSTRUMENT CLUSTER/PANEL" for the 2019 model year, indicating that dealers have specific repair instructions for certain issues.

Programming and Calibration Requirements

This is not a plug-and-play part. Replacing the instrument cluster in a Maserati Levante requires a special programming procedure known as a "Proxy Alignment."

• What is Proxy Alignment? This is a procedure used by Fiat-Chrysler Automobiles (now Stellantis), which includes Maserati, to make a new electronic module recognized by the vehicle's network. It essentially introduces the new cluster to all the other computers in the car, allowing them to communicate correctly.
🎬 See a demonstration of the Proxi Alignment procedure
• Why is it necessary? Without a proxy alignment, the vehicle will detect a mismatch between the components. This will result in a flashing odometer, numerous error messages, and potentially a no-start condition due to the immobilizer.
• Who can perform the programming? This procedure requires a dealer-level diagnostic tool (like the Maserati WiTECH system) or a high-end professional scan tool with specific Maserati capabilities. Most DIY mechanics and general repair shops will not have this equipment. A Maserati dealer or a specialist in high-end European vehicles is required.
• Mileage and VIN: The vehicle's mileage and Vehicle Identification Number (VIN) are stored in the instrument cluster. When a used cluster is installed, it will display the mileage from the donor vehicle. Correcting the mileage requires specialized tools and services to avoid issues with vehicle history reports.

Buying a Used Instrument Cluster

Purchasing a used OEM instrument cluster is a cost-effective alternative to a new unit, but careful verification is essential to ensure you get the right part.

1. Match the OEM Part Number Exactly

This is the most critical step. Maserati produced several versions of this cluster for different engines, model years, and features. Using the wrong part number can lead to incompatibility even if the cluster looks identical. Check the number on your original cluster before ordering.

2. Verify Vehicle Specifications

Beyond the part number, confirm these details:

• Engine Type: Clusters are specific to the 3.0L V6 (gasoline), 3.8L V8 (GTS/Trofeo), and diesel engines. They are not interchangeable.
• Market: Ensure the cluster is for a North American (US/Canada) vehicle with a speedometer in Miles Per Hour (MPH), not Kilometers Per Hour (KPH).
• Transmission: The cluster must be for a vehicle with an automatic transmission.

3. Physical Inspection

When you receive the part, inspect it carefully:

• Lens Condition: Check for deep scratches, cracks, or hazing on the clear plastic lens.
• Screen Condition: Look for any signs of delamination, dead pixels, or damage to the central TFT screen.
• Connectors: Ensure the electrical connectors on the back are clean and free of any bent or broken pins.

Cost Comparison

The cost of replacing a Maserati Levante instrument cluster can vary significantly depending on the source of the part and labor rates.
