2002-2014 Camry Dash Bezel Guide: Navigating Generations, Colors, and Melting Dash Issues

Key Differences by Camry Generation

The 2002-2014 Toyota Camry spans three distinct generations. The instrument panel bezels are NOT interchangeable between these generations. You must correctly identify your vehicle's generation before purchasing a replacement part.

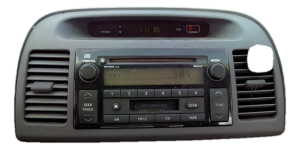

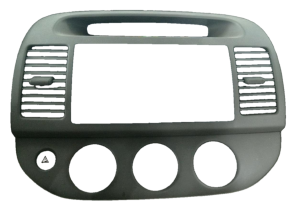

2002-2006 (XV30 Generation)

Bezels for this generation typically feature a straightforward design, often in a standard gray or tan finish to match the rest of the interior. The primary variations depend on the climate control system. Models with manual climate controls have three simple rotary knobs, while automatic climate control models have a digital display and push buttons, requiring a different cutout in the bezel. Removal is relatively simple, usually involving prying off the trim and removing a few screws.

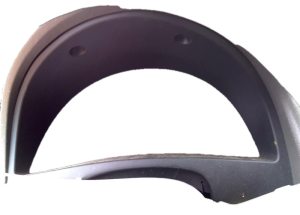

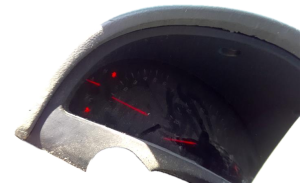

2007-2011 (XV40 Generation)

This generation is the most problematic. The key issue is the material used for the dashboard and bezel, which can become sticky, melt, or crack in high heat and humidity. Toyota acknowledged this with a Warranty Enhancement Program (ZE6), but this program has long since expired. When buying a used bezel for this generation, it is absolutely critical to check for this condition. Beyond the material defects, these bezels vary based on trim level (with different finishes like silver or woodgrain) and whether the car has the standard radio or the optional factory navigation screen.

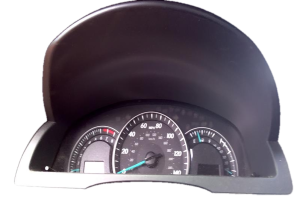

2012-2014 (XV50 Generation)

The design for the XV50 generation is more modern and integrated. Variations continue to be based on the audio system (standard vs. touchscreen) and climate controls. While not prone to the melting issues of the previous generation, these bezels can still be scratched or have their mounting clips broken during removal. Removal involves prying off several surrounding trim pieces to access the bezel and radio mounting bolts.

Symptoms of a Failing Instrument Panel Bezel

Failure of an instrument panel bezel is almost always physical or cosmetic. It does not have electronic components itself, but its condition can affect the components it holds.

• Cracks, Scratches, or Gouges: The most common issue is simple cosmetic damage from age, sun exposure, or impacts.
• Sticky or Melting Surface (2007-2011): In XV40 generation Camrys, the surface of the dash and bezel can degrade, becoming shiny, sticky to the touch, and easily damaged. This is a widespread, well-documented problem.
• Broken Mounting Tabs: The plastic tabs on the back of the bezel that hold it to the dashboard structure are fragile. If they break, the bezel can become loose, rattle, or fail to sit flush.
• Peeling or Faded Finish: On models with special finishes like woodgrain or silver paint, the finish can peel, flake, or fade over time, exposing the base plastic underneath.

Buying a Used 2002-2014 Camry Instrument Panel Bezel: A Buyer's Guide

Purchasing a used OEM bezel is often a great value, but careful verification is required to ensure you get the right part in good condition. Aftermarket bezels are available, but they often have issues with color match, fitment, and texture compared to a quality used original part.

Step 1: Verify Your Camry's Generation and Configuration

• Generation: Is your Camry a 2002-2006 (XV30), 2007-2011 (XV40), or 2012-2014 (XV50)? A part from the wrong generation will not fit.
• Climate Controls: Does your car have manual (rotary knobs) or automatic (digital display) climate controls? The cutouts are different.
• Audio System: Does your car have the standard radio or the optional factory navigation system? The opening for the screen is a different size and shape.

Step 2: Match Your Interior Color and Finish

Toyota offered several interior colors and trim finishes. Common colors include gray and tan. Higher trim levels like SE and XLE often featured silver-painted or woodgrain finishes instead of the standard textured plastic. Bring a photo of your interior or the old part with you to ensure the color and finish are a perfect match.

Step 3: Physical Inspection Checklist

When inspecting a used bezel, check the following:

• ✅ All Mounting Tabs Intact: Flip the bezel over and carefully inspect every single mounting tab and clip location. Even one broken tab can cause a poor fit or persistent rattles.
• ✅ No Stickiness (2007-2011 models): Run your hand over the entire surface. If it feels tacky, gummy, or sticky, reject the part. This is the melting dash issue, and it cannot be easily fixed.
• ✅ No Cracks: Inspect the entire part, especially around screw holes and corners, for any stress cracks.
• ✅ Air Vents Function: If the vents are included, make sure they open, close, and direct air smoothly. The small plastic louvers can be fragile.
• ✅ Finish Condition: Check for deep scratches, peeling paint, or significant sun fading.

Cost Comparison

Replacement Guide Overview

Replacing the instrument panel bezel is a manageable DIY job for most owners. The general process involves carefully prying away trim pieces, removing screws, and disconnecting any attached electrical components like the hazard light switch.

1. Disconnect the Battery: As a safety precaution, disconnect the negative battery terminal.
2. Remove Surrounding Trim: Depending on the generation, you may need to remove shifter trim, side trim panels, or air vents first to gain access to the main bezel. Use plastic pry tools to avoid damage.
3. Unscrew the Bezel/Radio Assembly: Once the trim is clear, you will see the screws (typically 10mm bolts or Phillips head screws) holding the bezel and radio/climate control assembly in place.
4. Disconnect Electrical Connectors: Gently pull the assembly forward and disconnect the electrical connectors for the climate controls, hazard switch, and clock.
5. Swap Components: You will likely need to transfer your climate controls, vents, and clock from the old bezel to the new one.
6. Installation: Installation is the reverse of removal. Connect all electrical components and test them before fully seating the bezel and reinstalling all screws and trim.
