2012-2019 Ford Focus, Escape, C-Max & Lincoln MKC Interior Door Handle and Latch Issues

Critical Warning: Is It the Handle or the Latch?

Symptoms of a Failing Interior Door Handle

If the door latch recall does not apply or has already been performed, the handle itself can still fail. Here are the most common symptoms:

• Loose or Floppy Handle: The handle has excessive play and feels disconnected from the internal mechanism. This can happen if the plastic pivot points are worn or broken.
• Handle Pulls But Door Doesn't Open: You can pull the handle, but nothing happens. This often means the cable has detached from the handle or the handle's internal lever has snapped.
• Visible Cracks or Breakage: The handle itself is physically broken, often where the lever pivots. This is common with age and repeated use.
• Door Lock Switch Fails: On some models, the manual door lock switch is integrated into the handle assembly. If the switch breaks or becomes difficult to operate, the entire handle unit may need to be replaced.

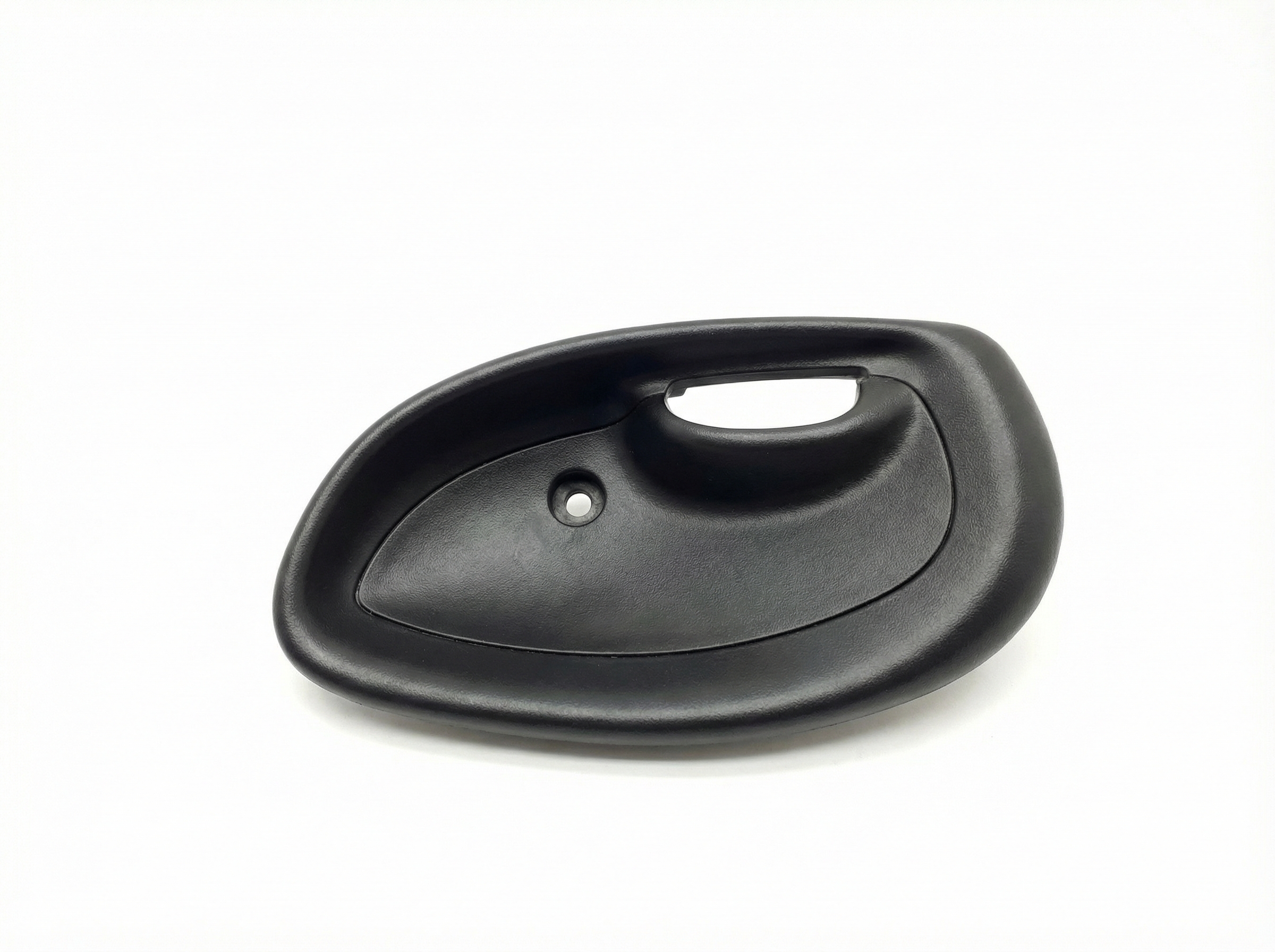

Buying a Used Interior Door Handle: What to Check

A used OEM (Original Equipment Manufacturer) handle is often a better choice than a cheap aftermarket alternative, which may suffer from poor fitment or use brittle plastic. Here’s what to inspect before buying a recycled part:

1. Verify Exact Placement: Handles are position-specific. You must order the correct one for your needs: Front Left (Driver), Front Right (Passenger), Rear Left, or Rear Right. They are not interchangeable.
2. Check for Stress Cracks: Closely inspect the plastic around the main pivot point and where the cable attaches. Look for hairline cracks that could lead to a future failure.
3. Confirm the Color and Finish: These vehicles were offered with several interior colors. The most common are black and tan. Higher trim levels (like SEL, Titanium) and Lincoln models may have a satin chrome or silver finish instead of the standard black. Match the part to your vehicle's interior.
4. Check for Ambient Lighting Compatibility: If your vehicle has the optional ambient lighting package, the interior door handles have a small, clear insert to allow light to pass through. A handle from a vehicle without this option will not have the provision for the light. Part descriptions for OEM handles often note "without light pkg." for the base models.
5. Test the Action: If possible, move the handle through its range of motion. It should feel smooth and spring back firmly. Any binding or grittiness is a red flag.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Safety Recall 16S30 / 20S30: Faulty Door Latches

As mentioned, the most significant issue related to the doors on these vehicles is the latch mechanism, not the handle itself. Ford issued a recall because a component within the door latch could break, preventing the door from latching securely. This could lead to a situation where a driver believes the door is closed when it is not, or the door could open while driving. The recall affects the 2012-2015 Focus, 2013-2015 C-Max and Escape, and the 2015 Lincoln MKC. A follow-up recall (20S30) was issued because some of the initial repairs were not performed correctly. Owners can check if their vehicle is affected by entering their VIN on the NHTSA or Ford website.

Replacement Difficulty: 2012-2019 Ford Focus, Escape, C-Max & Lincoln MKC

• Difficulty Rating: 2 out of 5 (Easy to Moderate)
• Estimated Time: 0.5 - 1.0 hours per door
• DIY Feasible: Yes

Replacing the interior door handle is a straightforward job for most DIY mechanics. The process involves removing the door panel to access the back of the handle.

General Replacement Steps:

1. Remove Trim and Screws: Carefully pry off small trim covers, such as the one behind the door handle and in the door pull cup. Remove the screws located underneath these covers. There may also be screws along the bottom and side edge of the door panel.
2. Detach the Door Panel: Use a plastic trim tool to pry around the edges of the door panel, releasing the plastic clips that hold it to the door frame.
3. Lift and Disconnect: Once the clips are free, lift the door panel up and away from the door. Disconnect any electrical connectors for the window switch, mirror switch, and door light.
4. Unhook the Handle Cable: The door handle cable has a small ball on the end that sits in a slot on the handle. Unhook this cable from the old handle.
5. Swap the Handle: The handle itself is typically held to the door panel by a few plastic clips. Press the tabs to release the old handle and install the new one in its place. If your handle has a separate door lock switch, you may need to transfer it to the new handle.
6. Reassemble: Reconnect the door handle cable and all electrical connectors, then hang the door panel back on the door, and press the clips back into place. 🎬 Follow this walkthrough for replacing the handle on a Ford Focus. Reinstall all screws and trim pieces.

Cost Breakdown

Prices for a single interior door handle can vary based on the source and specific version (color, finish, etc.). Labor costs are typically for one hour of shop time.

Variant Differences

• Ford Focus RS/ST: While these performance models share the same basic interior structure, they feature unique trim and heavily bolstered Recaro sport seats. While the door handle itself is likely the same, the surrounding trim pieces may differ. It is wise to double-check compatibility for RS models.
• Trim Levels (SE, SEL, Titanium): Base models typically come with a standard black plastic handle. Higher trim levels on the Focus and Escape, as well as the Lincoln MKC, often feature a satin chrome or silver finish for a more premium look.
• Ambient Lighting: The optional ambient lighting package includes a small LED that illuminates the door handle recess. Handles for these models have a special translucent insert to accommodate the light. A base model handle will not work with this feature.
