2021-2024 Subaru Ascent Overhead Console: A Guide to Sunroof and Seating Compatibility
This guide covers the critical differences in overhead light consoles based on your Ascent's trim level, seating configuration, and model year.
- Compatibility is determined by the presence of a panoramic sunroof, not just the model year.
- 2024 and newer models have non-replaceable, soldered-in front map lights, requiring a full console replacement for a single bulb failure.
- Always match the part number from your old unit exactly to avoid issues with features like STARLINK telematics.
- Failure of all interior lights, despite a good fuse, is the most common symptom pointing to a bad console.
Symptoms of a Failing Interior Light Console
When the overhead console in a 2021-2024 Subaru Ascent begins to fail, it can present several distinct symptoms. Because the console is an integrated electronic unit, problems can range from simple lighting issues to more complex system malfunctions.
- Complete Interior Light Failure: The most common reported issue is when all interior lights suddenly stop working. This can happen even if the fuse is checked and appears to be in good condition. The map lights, dome light, and cargo area light may all become unresponsive.
- 'Door' Setting Malfunctions: The switch that allows the lights to turn on automatically when a door is opened may fail. The lights might stay on continuously, risking battery drain, or not turn on at all. This often forces the owner to set all light switches to the 'Off' position manually.

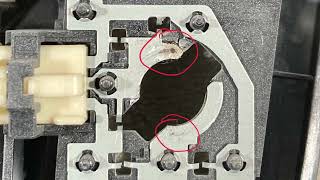

- Unresponsive Buttons: Individual map light buttons or the sunroof switch may stop working. This points to a failure within the console's internal switch contacts or circuit board. 🎬 Watch: Troubleshooting and repairing common map light switch failures.
- STARLINK or GPS Issues: After a replacement, some owners have reported problems with the telematics system (SOS/i-call buttons) and GPS. This happens because the console houses critical components for these systems, and an incorrect or improperly installed part can disrupt communication.
Known Issues and Model Year Changes
While there are no specific recalls for the overhead console itself, it's important to be aware of related vehicle information and key design changes.
Important: 2024+ Models Have Non-Replaceable Map Lights
Warning: For the 2024 model year and newer, Subaru changed the design of the front overhead console. The map lights are no longer simple, replaceable 194-style bulbs. Instead, they are warm-white LEDs that are permanently soldered to the console's circuit board. This means a single failed map light requires the replacement of the entire console assembly. It also creates a challenge for owners who want to upgrade to cooler-white LED lighting, as the map lights will not match the color of other upgraded bulbs.
Related Recalls
No recalls directly target the overhead lighting console. However, a significant recall was issued for 2019-2022 Ascent models for an improperly fastened ground bolt for the PTC heater. This could cause smoke or melting in the driver's footwell or dash area, which could be mistaken for an overhead electrical issue. If you smell smoke, it is critical to have your vehicle inspected by a dealer to rule out this fire risk.
Variant Differences: The Key to Compatibility
Choosing the correct used overhead console is entirely dependent on your Ascent's factory options. The primary difference is whether your vehicle is equipped with a panoramic sunroof. This feature directly changes the shape, size, and part number of the console.
- Models WITHOUT Panoramic Sunroof: These are typically the Base and Premium trims, which most often have the 8-passenger bench seating configuration. They use a specific console designed for the standard roof.
- Models WITH Panoramic Sunroof: These are typically the Onyx, Limited, and Touring trims, which often feature the 7-passenger captain's chairs configuration. These models require a different, larger console that incorporates the sunroof controls.
Part numbers also changed around the 2023 model year. You must match the part number from your original unit or confirm with a dealer using your VIN.
| Model Years | Configuration | Common Trims | Known Part Numbers |
|---|---|---|---|
| 2021-2022 | Without Panoramic Sunroof | Base, Premium | 87505XC00BME, 87505XC01BME |
| 2021-2022 | With Panoramic Sunroof | Premium, Onyx, Limited, Touring | 87505XC04BME |
| 2023-2024 | Without Panoramic Sunroof | Base, Premium, Limited | 92151XC01AVH |
| 2023-2024 | With Panoramic Sunroof | Onyx, Limited, Touring | (Example: 92151XC16A for 2025) |
Warning: The initial part number 83037XC03A is for a hazard switch and is not the correct number for the complete overhead console assembly. Do not use it for reference when buying this part.
Buying a Used Interior Light Console
A used OEM console is an excellent, cost-effective solution for a failed unit, especially on 2024+ models where a single burnt-out map light requires replacing the whole assembly. Here’s what to check:
- Verify the Part Number: This is the most critical step. Remove your existing console and find the part number sticker on the housing. Match it exactly. Using the wrong console can lead to dead buttons or malfunctioning telematics.
- Check for Sunroof Controls: The easiest visual check is for the presence of a sunroof switch. If your Ascent has a panoramic roof, the replacement console MUST have the sunroof switch. If it doesn't, the console will not fit or function correctly.
- Inspect the Physical Condition: Look for cracks in the plastic housing, especially around the mounting points. Ensure the sunglass holder door opens and closes properly. Check that the light lenses are not scratched, cloudy, or broken.
- Test the Buttons: Press every button on the console. They should have a solid, tactile click and not feel mushy or stuck. This includes the map light buttons, the door switch, and the SOS/i-call buttons.
Cost Comparison
| Part Source | Estimated Cost |
|---|---|
| New OEM | $160 - $280 |
| Used OEM | $75 - $150 |
| New Aftermarket | Not Available (Bulb kits only) |
| Shop Labor | $50 - $100 |
Replacement Overview
Replacing the overhead console is a straightforward DIY job that usually takes less than 15 minutes.

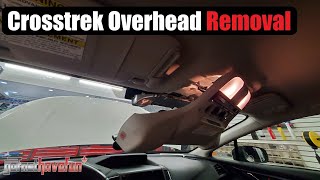

🎬 Watch: A quick guide on how to remove the console.Difficulty: 1/5 (Very Easy)
Tools Needed: Plastic trim removal tool.
General Steps:
- Using a plastic pry tool, carefully pry around the edges of the console assembly. It is held in by clips. For some models, you may need to open the sunglasses holder to access two screws first.
- Gently lower the console to expose the electrical connectors on the back.
- Press the release tabs on each electrical connector and unplug them.
- Connect the new console, ensuring each plug is securely seated.
- Align the console with the opening in the headliner and press firmly around the edges to snap the retaining clips into place.
- Test all functions, including lights, door-open functionality, sunroof, and the SOS button (it should light up briefly on startup).
Pro Tip: The Subaru EyeSight cameras are located near the overhead console, but the plastic cover for the cameras is a separate piece. You can remove the console without disturbing the cameras. However, as a precaution, do not touch the camera lenses.
Frequently Asked Questions (FAQ)
Why won't any of my interior lights turn on?
If you've checked the fuse and it's good, the problem is most likely a failure within the overhead console's main switch or internal circuitry. The entire console assembly will likely need to be replaced.
What's the difference between the 7-passenger and 8-passenger interior light?
The primary difference is not the seating itself, but the presence of a panoramic sunroof. Higher trims with 7-passenger captain's chairs usually have the sunroof, which requires a larger console with integrated controls. Base and Premium trims with the 8-passenger bench seat typically do not have a sunroof and use a smaller console. You must buy the correct console for your vehicle's roof configuration.
Can I upgrade my 2024 Ascent's map lights to brighter LEDs?
No. On 2024 and newer models, the front map lights are LEDs that are permanently soldered to the console's circuit board and cannot be replaced like traditional bulbs. Attempting to change them would require advanced electronics work and could damage the console.
Can I replace just the bulbs in my 2021-2023 Ascent?
Yes. For models from 2021-2023, the map and dome lights use standard, replaceable incandescent bulbs (typically type 194). You can easily pry off the lenses and swap them for new incandescent or aftermarket LED bulbs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 87505XC00BME 87505XC01BME 87505XC04BME 92151XC01AVH 92151XC15A 92151XC16A
Bulb Type (2021-2023): 194 incandescent. Bulb Type (2024+): Integrated, non-replaceable LED (front map lights).
