2024-2025 Kia EV9 Rear HVAC Ducts: Diagnosing Airflow Problems and Rattles

Symptoms of Rear HVAC Duct Failure

Failure of a rear HVAC duct is typically due to physical damage, like cracking, or improper installation, where connections come loose. Because these ducts are buried behind trim, diagnosing them often involves tracing symptoms back to the source.

• No or Low Airflow from Rear Vents: This is the most common symptom. If you feel strong airflow from the front vents but little to nothing from the second or third-row vents, a duct may be disconnected, crushed, or cracked.
• Air Leaking from Incorrect Areas: You might feel cold or warm air seeping out from the base of a trim panel, from under a seat, or from the cargo floor. This indicates a significant leak in the ductwork.
• Rattling or Whistling Noises: A loose duct can vibrate against the vehicle's body or interior panels, causing a persistent rattle, especially on rough roads. 🎬 Learn how professionals use chassis ears to diagnose interior rattles. A small crack or poor connection can create a whistling sound as air is forced through it.

Known Issues, TSBs, and Recalls for the 2024-2025 Kia EV9

While there are no specific recalls or TSBs for the rear HVAC ducts themselves, anyone working on the interior of an EV9 should be aware of several related issues. Accessing the ducts requires removing many other interior components.

Recalls

• Headliner Impact Absorption (NHTSA Campaign): A recall was issued for 2,401 EV9s built between September 25, 2023, and March 21, 2024, because the headliner might not provide adequate impact protection. Dealers will replace the impact-absorbing plates free of charge.
• Blank Instrument Cluster (NHTSA Campaign SC326): Some vehicles may experience an intermittent blank instrument panel screen at startup. This is a software issue that can be fixed with an over-the-air (OTA) update or by a dealer.
• Remote Smart Parking Assist (RSPA) Braking (NHTSA Campaign SC324): On GT-Line and Land trims, a software error can cause reduced braking performance when using the remote parking feature. This also requires a software update.

Technical Service Bulletins (TSBs)

Several TSBs have been issued for software updates related to charging and electrical systems. One notable TSB addresses potential damage to the Integrated Charging Control Unit (ICCU) during AC charging in cold weather, which can prevent the vehicle from charging on Level 1 or Level 2 chargers.

Common Owner Complaints

Owners on forums frequently discuss various interior rattles. Sources include the passenger door panels, second-row seats when unoccupied, and the rear cargo hatch. Another reported issue is the inner trim of the charge port door becoming misaligned, preventing it from closing properly.

Buying a Used 2024-2025 EV9 Rear HVAC Duct

Since these parts are relatively inexpensive to buy new, purchasing a used one is often unnecessary unless the new part is on backorder. If you do buy a used duct, here’s what to check:

• Check for Cracks: Carefully inspect the entire length of the duct for hairline cracks, especially at corners and connection points. A cracked duct will leak air and may whistle.
• Inspect All Mounting Tabs: The ducts are secured by small plastic tabs. Ensure none are broken or stressed. A duct with broken tabs will not mount securely and will almost certainly cause rattles.
• Verify Part Numbers: Ductwork is specific. Match the part number from your old duct exactly to the used one. Even a small difference in shape can prevent it from fitting around other components behind the trim.
• Look for Blockages: Check inside the duct to ensure there is no debris from the salvage vehicle that could block airflow or get blown into the main HVAC system.

Cost Comparison for EV9 Rear HVAC Ducts

The primary cost of this repair is labor due to the extensive disassembly required to access the parts.

Installation Guide & Difficulty

Difficulty: 4 out of 5

This is an advanced DIY project due to the sheer number of interior components that must be removed. While not technically complex, it requires patience and careful organization to avoid breaking plastic clips or losing fasteners.

Required Tools:

• Plastic Trim Removal Tool Kit
• Socket Set and Ratchet
• Screwdriver Set (Phillips and flathead)
• Pliers

General Replacement Steps:

1. Disconnect the Battery: As a safety precaution, always disconnect the 12V battery before working on a vehicle's interior to avoid deploying airbags or causing electrical shorts.

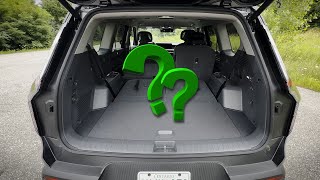

2. Remove Rear Seats/Cargo Floor: Depending on which duct section needs replacement, you may need to unbolt and remove the third-row seats 🎬 See how to fold and manage the rear seating rows. and/or parts of the cargo area floor.
3. Remove Interior Trim Panels: Using plastic pry tools, carefully begin removing the rear interior panels. Start with the liftgate sill plate, then move to the large D-pillar and main cargo area side panels. 🎬 Watch this walkthrough on removing the EV9 trunk trim panels. These are held in by a series of hidden metal and plastic clips. Pull firmly but carefully to release them.
4. Disconnect Electrical Components: As you remove panels, you will need to disconnect any attached electrical connectors for lights, power outlets, or speakers.
5. Locate and Replace the Duct: With the trim removed, the HVAC ducts will be visible. Unclip or unscrew the old duct, disconnect it from adjoining sections, and remove it. Install the new duct, ensuring all connections are secure and all mounting tabs are engaged.
6. Reassembly: Reinstall all components in the reverse order of removal. Before fully seating each panel, reconnect its electrical connectors and test them. Give each panel a firm tap with the palm of your hand to engage all clips.
