2017-2025 Cadillac XT5 Roof Side Rails: Replacement, Leaks, and Airbag Warnings
This guide covers the crucial differences between side rails and crossbars, common issues, and why replacing the side rails is a complex interior job.
- Replacing a roof side rail is an expert-level job that requires removing the interior headliner to access the mounting nuts.
- Multiple safety recalls exist for the roof rail airbags, which are located directly next to the side rail mounting points. DIY replacement is not recommended due to this risk.
- The 'Luggage Rack Assembly' refers only to the front-to-back side rails. Side-to-side crossbars are a separate part.
- Water leaks in the cabin are more commonly caused by clogged sunroof drains than by failing roof rail seals, but the rails are a possible cause.
Important: Side Rails vs. Crossbars
Before diagnosing or buying, it's critical to understand the terminology. This guide covers the side rails (also called the luggage rack), which are the two rails that run from front-to-back on the roof of the XT5. The crossbars, which mount from side-to-side to carry cargo, are a separate part and are not included with the side rail assembly.
Known Issues & Recalls for 2017-2025 Cadillac XT5
While the roof side rails themselves have proven to be reliable with no major recalls or common failure patterns, their replacement is directly impacted by critical safety recalls involving adjacent components.
Safety Recalls: Roof Rail Airbags (RRAB)
Warning: Several major safety recalls exist for the roof rail airbag system in 2020-2022 Cadillac XT5 models (NHTSA Recalls N202305380, N202305381, N212342780). These recalls address defects where the airbag inflator may not be properly crimped or the airbag itself may be twisted, which could prevent it from deploying correctly in a crash. Replacing the roof side rails requires removing the interior headliner, which places the installer in direct contact with this airbag system. Attempting this repair without proper knowledge can be extremely dangerous and may disturb a recalled safety component.
Water Leaks

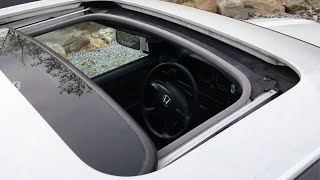

Water leaking into the cabin and causing a wet headliner or floor is a common complaint. However, this is most often caused by clogged sunroof drains that run down the A-pillars, not the roof rack itself. 🎬 See this DIY guide on how to unclog sunroof drains. If your sunroof drains are clear and you still have a leak, the seals around the roof rail mounting bolts are the next place to inspect. Over time, these seals can degrade and allow water to seep through the bolt holes into the area above the headliner.
Symptoms of Failing Luggage Rack Side Rails
Failure of the side rails is almost always due to physical damage or cosmetic issues rather than mechanical breakdown.
- Visible Damage: Cracks, deep gouges, or bending, usually from an accident or impact.
- Corrosion or Flaking Finish: The clear coat or paint (on black versions) can peel, bubble, or flake, exposing the aluminum underneath to corrosion. This is a cosmetic issue but can worsen over time.
- Looseness: The rail may feel loose or have a gap between it and the roof. This indicates the mounting nuts underneath the headliner have backed off or the mounting studs are damaged.
- Water Stains on Headliner: While less common than sunroof leaks, water stains appearing near the edges of the headliner can point to failed roof rail seals.
Buying a Used 2017-2025 XT5 Luggage Rack: What to Check
A used OEM side rail is an excellent alternative to a new part, provided you inspect it carefully. Fitment and quality will be identical to the original.
Inspection Checklist:
- Verify the Finish: XT5s came with at least two finishes: Bright Anodized Aluminum (standard) and Gloss Black (on Sport models). Ensure the used rail matches your vehicle's remaining rail and trim package.
- Check for Straightness: Lay the rail on a flat, level surface. It should sit perfectly flush with no wobbling or gaps. A bent rail from an accident will never seal correctly and may be impossible to install.
- Inspect Mounting Points: Look at the studs or bolt holes on the underside of the rail. Check for any stress cracks in the plastic or aluminum around these points. Avoid any rails with visible damage here.
- Examine the Finish Quality: Minor scuffs are acceptable, but avoid rails with deep scratches, widespread clear coat peeling, or bubbling corrosion.
- Confirm What's Included: Ideally, the rail will come with its original mounting nuts. The rubber or foam seals at the base are critical; if they are brittle, torn, or missing, you will need to source new ones or use a high-quality automotive sealant to prevent leaks.
Replacement Overview & Difficulty
- Difficulty: 5/5 (Expert)
- DIY Feasible: Not Recommended
- Estimated Time: 3-5 hours
Replacing a roof side rail is a surprisingly complex and involved job. Unlike crossbars that bolt on from the outside, the side rails are secured by nuts located on the underside of the roof. This requires the complete or partial removal of the vehicle's interior headliner.
🎬 Watch: A walkthrough of the complex headliner removal process.The general procedure involves:
- Disconnecting the vehicle's battery to disable the SRS (airbag) system.
- Removing interior trim pieces, including the A, B, C, and D-pillar covers.
- Removing sun visors, overhead consoles, dome lights, and all grab handles.
- Carefully lowering the headliner to gain access to the roof rail mounting nuts.
- Unbolting the old rail, cleaning the roof surface, installing the new rail with proper seals, and torquing the new nuts to specification.
- Re-installing the entire interior in reverse order.
Pro Tip: The headliner is fragile and easily creased or damaged. The side curtain airbags are located directly next to the work area. Due to the complexity and the significant safety risks associated with the airbag system, this job is best left to a professional body shop or technician experienced with interior work.
Cost Comparison
Prices can vary by finish (Bright vs. Black) and supplier. Labor is a significant portion of the total cost due to the complexity.
| Part Type | Estimated Cost (Per Rail) |
|---|---|
| New OEM | $250 - $400 |
| New Aftermarket | Not commonly available |
| Used OEM | $75 - $150 |
| Shop Labor | $450 - $750 |
Frequently Asked Questions
Do these side rails include the crossbars for mounting cargo?

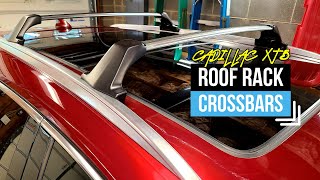

No. The side rails are only the front-to-back mounting foundation. The side-to-side crossbars (Part numbers like 84121220 for Bright or 84800283 for Black) must be purchased separately.
Can I replace a roof side rail myself?
It is not recommended for a DIY mechanic. The job requires removing the vehicle's interior headliner to access the mounting nuts, which is a delicate and time-consuming process. More importantly, it requires working directly next to the roof rail airbag system, which has been subject to multiple safety recalls.
What is the weight capacity of the roof rack?
The maximum load capacity, typically between 150 lbs and 220 lbs depending on the specific crossbars used, applies to the entire system when crossbars are installed. The side rails are the structural base designed to support this weight, but the limit is defined by the crossbars.
My headliner is wet. Is my roof rack leaking?
It's possible, but not the most likely cause. On XT5 models with a sunroof, the most common cause of a wet headliner is a clogged sunroof drain tube. If you have confirmed the drains are clear, the seals around the roof rail mounting bolts are the next potential source of the leak and should be inspected.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84228496
Available in Bright Anodized Aluminum or Gloss Black finishes.
