2011-2016 Duramax LML Cylinder Head & Gasket Failure Guide

Symptoms of a Failing LML Duramax Cylinder Head or Gasket

A failing cylinder head or head gasket on the 2011-2016 Chevrolet Express 2500/3500, GMC Savana 2500/3500, Chevrolet Silverado 2500 HD/3500 HD, or GMC Sierra 2500 HD/3500 HD with the 6.6L LML Duramax engine will present serious symptoms. It's crucial to address these signs immediately to prevent catastrophic engine damage.

1. Unexplained Coolant Loss & Overheating

This is the most common sign. A failed head gasket or cracked head allows high-pressure combustion gases to enter the cooling system. This pressurizes the system beyond its limits, forcing coolant out of the reservoir overflow, especially under heavy load like towing. You may find yourself constantly adding coolant with no visible external leaks. This can lead to the engine overheating, which can cause severe damage.

2. White Smoke from the Exhaust

If a crack in the head or a breach in the gasket allows coolant to enter the combustion chamber, it will be turned into steam and exit through the exhaust. This produces thick, white smoke with a distinct sweet smell. On newer trucks with a Diesel Particulate Filter (DPF), this symptom might be less obvious as the DPF can trap some of the smoke. Instead, you might notice the truck entering its DPF regeneration cycle more frequently.

3. High Pressure in Cooling System Hoses

Even after the engine has cooled down for several hours, the upper radiator hose may feel hard and pressurized. When you open the coolant reservoir cap, you might hear a significant release of air pressure. This indicates that combustion gases are trapped in the cooling system, a classic sign of a head gasket leak.

4. Engine Performance Issues

A loss of compression from a cracked head or failed gasket can lead to a rough running engine, misfires, and a general loss of power. This is because the cylinder can no longer maintain the pressure needed for efficient combustion. The check engine light may also illuminate.

5. Milky or Contaminated Engine Oil

In severe cases, a crack or gasket failure can allow coolant to mix with the engine oil. This will turn the oil into a milky, frothy substance. You can check for this on the oil dipstick or under the oil filler cap. Driving with contaminated oil can quickly destroy engine bearings and lead to complete engine failure.

Buying a Used LML Duramax Cylinder Head

Purchasing a used cylinder head is a viable way to save money on a very expensive repair, but it requires careful inspection. A flawed used head will fail quickly, wasting thousands of dollars in parts and labor. Here’s what to look for:

• Verification: Ensure the head is from a 2011-2016 6.6L LML Duramax engine. While heads from other Duramax generations may look similar, they are not interchangeable.
• Professional Testing: The single most important step is to have the used head professionally inspected by a machine shop. They should perform a pressure test to check for leaks and magnaflux or dye penetrant testing to identify any cracks. Do not skip this step.
• Check for Warping: The head must be perfectly flat to seal correctly against the engine block. A machine shop will check the deck surface with a straight edge. Any warping beyond specification requires the head to be resurfaced (milled).
• Visual Inspection: Look for any visible cracks, especially around the valve seats and fuel injector bores, which are common problem areas. Examine the threaded holes for any damage.
• Mileage and History: If possible, get the mileage and history of the donor vehicle. A head from a lower-mileage, well-maintained truck is always preferable. Avoid heads from engines that have been severely overheated.
• Remanufactured vs. Used: A quality remanufactured head is often a better choice than a standard used one. Remanufactured heads are completely disassembled, cleaned, and inspected. Worn components like valve guides, seals, and springs are replaced, and the head is resurfaced to meet or exceed OEM specifications. They often come with a warranty, which a private-party used head will not.

Known Issues, TSBs, and Recalls

While the LML Duramax is a robust engine, head gasket failure is a known, if not rampant, issue. Unlike earlier Duramax generations (like the LLY) that had more well-defined causes for head gasket failure, LML failures can seem more random, occurring on trucks with both stock and modified power levels.

• Technical Service Bulletin 16-NA-204: In June 2016, GM issued a bulletin to help technicians properly diagnose cooling system issues and differentiate between other coolant loss problems and a failed head gasket. It provides a detailed procedure for pressure testing the cooling system to confirm if combustion gases are present.
• No Major Recalls: There have been no major recalls specifically for cylinder head or head gasket failures on these vehicles.

Cost of Replacement

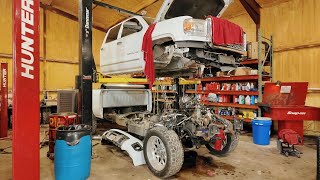

Replacing the cylinder head(s) and gaskets on an LML Duramax is a significant, labor-intensive repair. The job requires extensive disassembly of the top end of the engine. Many shops prefer to lift the cab off the frame for better access. 🎬 See this full LML Duramax engine teardown and gasket fix Labor time is often quoted between 36 and 44 hours.

Note: Prices are estimates and can vary based on location, shop rates, and parts chosen. Most experts recommend replacing both cylinder heads at the same time.

Frequently Asked Questions

Technical Specifications

• Engine: 6.6L V8 Duramax LML Turbo-Diesel
• Cylinder Head Material: Cast Aluminum
• Engine Block Material: Cast Iron
• OEM Part Numbers: 12646217, 12690607 (Part number 12690607 supersedes 12646217)
