B0013 on 2007-2014 Cadillac Escalade ESV: Airbag Light Causes and Fixes

What's Unique About the 2007-2014 Cadillac ESCALADE ESV

The GMT900 platform, which includes the 2007-2014 Escalade, is specifically called out in a General Motors Technical Service Bulletin (TSB) for issues with airbag connectors. The problem is so common that GM issued TSB #08-09-41-002H, which identifies a loose, missing, or damaged Connector Position Assurance (CPA) retainer as the primary culprit for B0013 and a host of related codes. This means that for these vehicles, the issue is very often a small plastic clip on a connector rather than a more expensive airbag module or sensor. These CPA retainers can become brittle and break, especially during other repairs.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is illuminated on the instrument panel.
• "Service Air Bag" message on the driver information center.

Most Likely Causes

1. Loose, Missing, or Damaged Connector Position Assurance (CPA) Retainer 🔴 High Probability → Shop Multi-Purpose Retainer This is a well-documented issue on this platform, as cited in GM TSB #08-09-41-002H. The small plastic CPA clips can become brittle and break, leading to a poor connection that interrupts the circuit.
   How to confirm: After disabling the SIR system, visually inspect the yellow airbag system connectors, particularly the yellow connectors for the steering wheel airbag or side impact sensors. Check if the CPA (a small, often different colored plastic insert, like yellow or orange) is fully seated, cracked, or missing.
   Typical fix: Replace the faulty CPA retainer and ensure the connector is fully seated. The CPA part is inexpensive and readily available. The GM part number for a common CPA retainer is 88988974.
   Est. part cost: $5-$15
2. Damaged Wiring or Poor Connection 🟡 Medium Probability Wiring for airbag components, especially the seat position sensor under the driver's seat, is prone to damage from seat movement or items stored under the seat. The wires can chafe or break completely, causing an open circuit. Another common failure point is poor terminal tension at the steering wheel airbag coil connector.
   How to confirm: Perform a visual inspection of the harness leading to the relevant airbag component, especially under the front seats. With a multimeter and proper training, check for continuity and resistance in the circuit, comparing it to manufacturer specifications (typically between 2.1-4.0 ohms for GM). This should only be done with the SIR system disabled and the component disconnected.
   Typical fix: Repair the damaged section of the wiring harness using appropriate SIR-safe methods (special terminals and crimpers, no soldering unless using a specific butane tool). Replace the connector pigtail if necessary. For under-seat wiring, securing the harness to prevent future damage is crucial.
   Est. part cost: $15-$50 for a pigtail connector like ACDelco PT2438
3. Aftermarket 12V Power Outlet Charger Interference ⚪ Low Probability GM issued a Preliminary Information Bulletin (PIT5564A) noting that low-quality aftermarket USB chargers can create electrical interference (EMI/RFI) that disrupts the sensitive airbag circuits, causing random codes like B0013 to set.
   How to confirm: Unplug all aftermarket devices from the 12V power outlets. Clear the codes and see if the fault returns. If it does not, the charger was the likely cause.
   Typical fix: Discontinue use of the low-quality charger and replace it with a high-quality, certified one.
   Est. part cost: $0-$30

Rare But Worth Checking

• Failed Airbag Component (e.g., Side Impact Sensor, Clock Spring, or Airbag Module): While possible, this is less common than connector or wiring issues. The component itself can fail internally. A diagnostic scan tool that can read airbag resistance values can help confirm if the component is out of specification.
• Failed Sensing and Diagnostic Module (SDM): → Shop Air Bag Control Module The main airbag computer (SDM) can fail, but this is rare and should only be considered after all other possibilities (wiring, connectors, components) have been exhaustively ruled out.

Diagnosis Steps

1. SAFETY FIRST: Disable the Supplemental Inflatable Restraint (SIR) system. This typically involves disconnecting the negative battery terminal and waiting for at least 2 minutes (GM often recommends longer) for the system's backup power to discharge.
2. Scan for Codes: Use a professional-grade scan tool capable of reading SRS/airbag codes to confirm B0013 and any associated symptom bytes (e.g., :04 for open circuit, :0D for high resistance).
3. Check for TSBs: Confirm TSB #08-09-41-002H and PIT5564A apply to your vehicle.
4. Remove Aftermarket Chargers: Unplug any devices from the 12V power outlets to eliminate potential electrical interference.
5. Inspect Connectors: Locate the yellow airbag system connectors. Common locations for issues are under the front seats (for side impact/seat position sensors) or behind the steering wheel airbag (for the clock spring). Visually inspect the connector and its CPA retainer for damage, corrosion, or a loose fit.
6. Verify Connection: Disconnect and reconnect the relevant airbag connector, ensuring you hear and feel a click. Make sure the CPA retainer is present and fully seated.
7. Test Wiring: If the connector is secure, inspect the wiring harness for any signs of chafing, pinching, or damage, especially under the driver's seat. If you have the expertise and proper tools, check for continuity and resistance in the circuit.
8. Re-enable System and Clear Codes: Reconnect the battery, turn the ignition on, and use the scan tool to clear the B0013 code. See if the light returns. Note that some SRS faults will clear on their own after a certain number of key cycles once the fault is fixed.
9. Component Testing: If the code persists, the fault may lie with the component itself (sensor, clock spring, airbag module) or the SDM. This level of diagnosis is best left to a professional.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #88988974) — Per TSB #08-09-41-002H, this is the most frequent cause of the fault. The original part can become brittle and fail, causing a poor connection.
  Trusted brands: ACDelco, Dorman
  OEM price range: $5-$15
  Aftermarket price range: $5-$10
• Side Impact Sensor (OEM #13505393) — If the sensor itself has failed due to internal corrosion or damage, it will need to be replaced. This is a less common cause than the connector issue.
  Trusted brands: ACDelco
  OEM price range: $60-$100
  Aftermarket price range: $35-$70
• Steering Wheel Airbag Clock Spring (OEM #25966963) — If the fault is in the driver's airbag circuit, the clock spring (which allows the wheel to turn while maintaining electrical contact) is a potential point of failure. Failure here often triggers both B0012 and B0013. 🎬 Watch: Step-by-step clock spring and steering wheel removal guide.
  Trusted brands: ACDelco, Standard Motor Products
  OEM price range: $150-$250
  Aftermarket price range: $80-$150

Related Codes That Often Appear With This One

• B0012 — B0012 and B0013 often refer to Stage 1 and Stage 2 of the same dual-stage airbag inflator, such as the one in the steering wheel. A fault in the shared connector or clock spring can trigger both codes.
• B0015, B0016, B0019, B0020, etc. — TSB 08-09-41-002H lists a large family of airbag codes that all share the same potential cause: a faulty CPA retainer on a connector. Seeing any of these codes together points strongly toward this common connector issue.

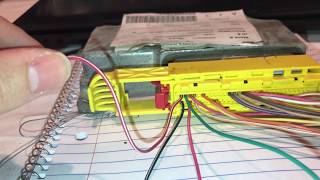

🎬 See how these specific GM airbag codes are diagnosed.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-002H: The primary TSB for this issue, covering intermittent airbag lights caused by faulty CPA retainers on a wide range of GM vehicles.
• PIT5564A: A preliminary bulletin warning that aftermarket USB chargers can cause electromagnetic interference, leading to spurious airbag DTCs.
• PI1474: While for a later model Cadillac, this bulletin details diagnosing B0012/B0013 caused by poor terminal tension in the steering wheel airbag coil connector, a relevant diagnostic path.

Platform-Specific Known Issues

• Widespread CPA Retainer Failure: As detailed in TSB 08-09-41-002H, the plastic CPA retainers on various airbag connectors are a known weak point across dozens of GM models from this era, including the Escalade. They become brittle and can break during unrelated service, leading to intermittent or constant airbag faults.
• Broken Driver's Seat Position Sensor Wire: A very common failure point on the GMT900 platform is the wiring for the driver's seat position sensor located under the seat. The wires can get snagged or broken from the seat moving back and forth, or from items stored under the seat. A YouTube video by 'Wrench Sense with Nate Johnson' specifically highlights this issue on a 2007-2014 Yukon, showing the wire completely

Mechanic-Grade Diagnostic Values

• Deployment Loop Resistance (Normal Operation) — expected: 2.1 - 4.0 Ω (Ohms). Failure: A reading outside this range. A GDS2 scan tool can monitor this value live under 'Deployment Loop Resistance Data'.
• Deployment Loop Resistance (High Resistance Fault) — expected: > 4.4 Ω for 2 seconds. Failure: This reading will set a B0013 with symptom byte :0D.
• Deployment Loop Resistance (Low Resistance Fault) — expected: < 1.7 Ω for 2 seconds. Failure: This reading will set a B0013 with symptom byte :0E.
• Deployment Loop (Open Circuit Fault) — expected: Infinite resistance (Open Loop). Failure: An open circuit condition for 2 seconds will set a B0013 with symptom byte :04.

Hidden / Shadow Codes Worth Checking

• B0013:04: Indicates an open circuit in the deployment loop. (see via Professional scan tool like GM GDS2 or Tech2.)
• B0013:0D: Indicates the deployment loop resistance is above the specified threshold (e.g., >4.4 Ohms). (see via Professional scan tool like GM GDS2 or Tech2.)
• B0013:0E: Indicates the deployment loop resistance is below the specified threshold (e.g., <1.7 Ohms). (see via Professional scan tool like GM GDS2 or Tech2.)

Scan Tool Commands That Help

• GM GDS2: Module Diagnostics > K36 Restraints Control Module > Data Display > Deployment Loop 1-14 Resistance Data — This function allows a technician to monitor the live resistance values of the various airbag deployment loops to identify intermittent high or low resistance conditions that may not be present during a static test.
• Professional SRS Scan Tool: Clear DTCs / Erase Codes — After a repair is completed, the fault codes stored in the Sensing and Diagnostic Module (SDM) must be cleared. Unlike some engine codes, airbag codes will typically not clear on their own and require a scan tool to turn off the warning light.

Wiring & Ground Locations

• G201 — In the upper left corner of the instrument panel, near the A-pillar.. A poor ground at this location can cause various electrical issues within the dashboard, potentially affecting the Sensing and Diagnostic Module (SDM) or related wiring.
• G300 / G301 — On the body mounts/frame area under the driver and passenger doors.. These are major body and chassis grounds. Corrosion or looseness here is a known issue on GMT900 trucks and can cause a wide array of seemingly unrelated electrical faults, including airbag system errors.
• Inflatable Restraint Sensing and Diagnostic Module (SDM) — Located under the center console.. This is the central computer for the airbag system. All deployment loop wiring terminates here, making its connectors a critical inspection point if codes persist after checking component-level connectors.
• X85 Steering Wheel Air Bag Coil X3 connector — Located at the steering wheel airbag coil (clock spring).. GM has noted that poor terminal tension specifically in this connector can cause B0012 and B0013 codes. This should be checked before replacing the clock spring.

Real Owner Repair Stories

• Tahoe Yukon Forum user (2007-2014 GM SUV (platform relative)) — Airbag light on, various weird electrical issues, codes being set.
  ❌ Tried (didn't work) Chasing individual codes and symptoms without success.
  ✅ What actually fixed it The user found a main ground wire on the frame under the driver's side door had rusted and fallen off. After cleaning the frame contact point with a Dremel and re-securing the ground with a new stainless steel bolt, all the strange electrical problems, including the airbag light, were resolved.

OEM Part Supersession History

• 15112677, 15274878, 15829094 → 25966963 — Standard part evolution and consolidation for the Steering Wheel Airbag Clock Spring.
  Heads up: Part 25966963 is specified for vehicles without a heated steering wheel. Using it on a vehicle with a heated wheel will result in loss of the heating function.
