B0033 on 2006-2010 Chevrolet Cobalt: Airbag Light Causes & Fixes

What's Unique About the 2006-2010 Chevrolet COBALT

The first-generation Chevrolet Cobalt and its GM Delta platform mates (Pontiac G5/Pursuit, Saturn Ion, Chevy HHR) are well-known for intermittent airbag light issues due to connector problems. General Motors issued Technical Service Bulletin (TSB) #08-09-41-002H, which covers the Cobalt and many other models, for this exact problem. The TSB identifies that codes like B0033 are frequently caused by a faulty Connector Position Assurance (CPA) retainer—a small plastic lock on the yellow airbag connectors—rather than an expensive component failure. This makes checking the connectors under the front seats the most critical first step in diagnosis.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is continuously illuminated on the instrument panel
• "Service Air Bag" message may appear on the Driver Information Center (DIC)

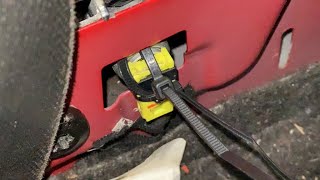

🎬 Watch: A quick fix for the Service Air Bag light

Most Likely Causes

1. Loose, Damaged, or Missing Connector Position Assurance (CPA) Retainer 🔴 High Probability → Shop Multi-Purpose Retainer This is a well-documented issue on this platform, as specified in GM TSB #08-09-41-002H. The small plastic CPA clips can become brittle and break or simply work themselves loose over time, causing an intermittent connection. This prevents the internal shorting bars in the connector from disengaging, leading to a fault code.
   How to confirm: Visually inspect the yellow airbag connectors, most commonly found under the driver and front passenger seats. Check if the small plastic CPA lock (often pink or orange) is present, fully seated, and not broken. An audible and/or tactile click should be felt when it is properly seated.
   Typical fix: Reseat the connector and replace the CPA retainer if it is broken or missing. The CPA retainer is a specific, inexpensive part available from dealers or auto parts suppliers. The GM part number is 88988974.
   Est. part cost: $3-$10
2. Damaged Wiring or Terminals at an Airbag Connector 🟡 Medium Probability The wiring under the front seats is susceptible to damage from seat movement, items stored under the seat, or corrosion from moisture. This can lead to chafed wires or bent/corroded connector pins. Owners report items like water bottles rolling under the seat and snagging the harness. 🎬 See how to fix the under-seat SRS connector after cleaning
   How to confirm: After disconnecting the battery and waiting at least 15 minutes, unplug the connector and inspect the wiring and metal terminals inside. Look for any signs of corrosion (green or white powder), bent pins, or wires pulled out of the connector housing.
   Typical fix: Repair the damaged wire or replace the connector pigtail. Cleaning corroded terminals may sometimes work, but replacement is often a more permanent solution. A common Dorman pigtail for this application is 645-622.
   Est. part cost: $15-$50 for a pigtail connector
3. Failed Airbag Component (e.g., Seat Belt Pretensioner) ⚪ Low Probability While less common than connection issues, the internal resistance of a component like a seat belt pretensioner can change over time, causing it to fall out of the SDM's specified range. This should only be considered after the connectors and wiring are confirmed to be perfect.
   How to confirm: This requires a professional scan tool to read the specific resistance values of the deployment loop. If the connectors and wiring are confirmed to be perfect, the component itself is the next logical point of failure. A healthy squib circuit typically has a resistance of 1.1-3.9 ohms.
   Typical fix: Replace the faulty component. For example, if the code points to the passenger seat belt pretensioner, the entire pretensioner assembly would be replaced.
   Est. part cost: $150-$350

Rare But Worth Checking

• Faulty Sensing and Diagnostic Module (SDM): → Shop Air Bag Control Module This is the airbag control computer. It is rare for it to fail, but it can happen, especially if there has been water intrusion in the cabin. 🎬 Watch: How to remove the airbag control module This should only be considered after all other possibilities (wiring, connectors, and components) have been exhaustively ruled out by a professional.

Diagnosis Steps

1. SAFETY FIRST: Disconnect the negative battery terminal and wait at least 15 minutes for the airbag system's backup power to discharge before touching any SRS components.
2. Scan the vehicle with a scan tool capable of reading GM-specific 'B' codes from the SRS/SDM module to confirm B0033 is the active code. Note any two-digit symptom codes (e.g., 04, 0D, 0E) if available.
3. Locate the yellow airbag system connectors under the driver and front passenger seats. They are often attached to the seat frame or under the carpet.
4. Carefully inspect the Connector Position Assurance (CPA) retainer on each connector. Confirm it is present, fully seated, and not cracked or broken. If it's loose, push it in until it clicks. The CPA is often pink or orange.
5. If the CPA is damaged or missing, it must be replaced with GM Part #88988974.
6. If the CPA appears fine, disconnect the main connector. Inspect the male and female terminals inside the connector for any signs of damage, corrosion (green/white powder), or being pushed back into the housing.
7. If the wiring and connector appear to be in perfect condition, the fault may lie in the specific component or the SDM itself, which typically requires professional diagnosis with advanced tools to measure circuit resistance.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #88988974) — This small plastic clip is the most common point of failure for this code on this vehicle, as documented in TSB #08-09-41-002H. It is often pink or orange.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $3-$10
  Aftermarket price range: $2-$8
• Airbag Connector Pigtail — Needed if the connector housing or wiring terminals are corroded or damaged beyond repair from moisture or physical stress.
  Trusted brands: ACDelco, Dorman (e.g., 645-622)
  OEM price range: $25-$50
  Aftermarket price range: $15-$35

Related Codes That Often Appear With This One

• B0012 — Relates to the driver frontal deployment loop; often triggered by the same connector issue per TSB #08-09-41-002H.
• B0013 — Relates to the passenger frontal deployment loop; often triggered by the same connector issue per TSB #08-09-41-002H.
• B0022 — Relates to the driver seat belt pretensioner; often triggered by the same connector issue per TSB #08-09-41-002H.
• B0040 — Relates to the driver side deployment loop; often triggered by the same connector issue per TSB #08-09-41-002H.
• B0081 — Relates to the Passenger Presence System (PPS), another common airbag fault on this platform, sometimes caused by swapped seats or faulty sensors in the passenger seat.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #08-09-41-002H: Directly addresses an intermittent airbag light with DTC B0033 (and others) caused by a faulty Connector Position Assurance (CPA) retainer, instructing technicians to inspect and replace it. This TSB applies to a very wide range of GM vehicles from 2005-2014, including the Cobalt.

Platform-Specific Known Issues

• A recall was issued for some 2010 Chevrolet Cobalts for an improperly routed wiring harness in the driver's door that could chafe on the window regulator, potentially disabling the driver-side roof rail airbag.
• Owner experiences frequently cite that items rolling under the front seats (water bottles, tools, etc.) can snag the yellow airbag connector harness, either pulling the connector partially loose or breaking the CPA retainer.

Mechanic-Grade Diagnostic Values

• Deployment Loop Resistance (at SDM) — expected: 1.1 - 3.9 ohms. Failure: A reading less than 1.1 ohms (sets B0033 0E) or greater than 3.9 ohms (sets B0033 0D) indicates a fault.
• Seat Belt Pretensioner Resistance (at component) — expected: 2.0 - 3.0 ohms. Failure: A reading significantly outside this range, or an open/infinite reading, points to a faulty pretensioner squib itself.

Hidden / Shadow Codes Worth Checking

• B0033 01: Deployment Loop Short to Battery/Voltage (see via Requires a professional GM-specific scan tool (e.g., Tech2, GDS2) that can read two-digit symptom codes.)
• B0033 02: Deployment Loop Short to Ground (see via Requires a professional GM-specific scan tool (e.g., Tech2, GDS2) that can read two-digit symptom codes.)
• B0033 04: Deployment Loop Open Circuit (see via Requires a professional GM-specific scan tool (e.g., Tech2, GDS2) that can read two-digit symptom codes.)
• B0033 0D: Deployment Loop Resistance Above Threshold (High Resistance) (see via Requires a professional GM-specific scan tool (e.g., Tech2, GDS2) that can read two-digit symptom codes.)
• B0033 0E: Deployment Loop Resistance Below Threshold (Low Resistance) (see via Requires a professional GM-specific scan tool (e.g., Tech2, GDS2) that can read two-digit symptom codes.)

Scan Tool Commands That Help

• GM Tech2 / GDS2: Read/Clear DTCs (in SIR module) — Used to read the specific B-code and its two-digit symptom byte, and to clear the code after the repair is complete. The light will not turn off on its own.
• GM Tech2 / GDS2: Data Display > Deployment Loop Resistance Data — Allows for live monitoring of the resistance value (in ohms) of each airbag circuit, helping to confirm an intermittent open or short without direct probing of the wires.

Wiring & Ground Locations

• Sensing and Diagnostic Module (SDM) — Located underneath the vehicle carpet under the center console.. This is the airbag control computer where all sensor and deployment loop circuits terminate. Water intrusion or damage in this area can cause various SRS codes.
• G301 — Under the driver's seat.. This is a primary ground point for components in the driver's seat area. A loose or corroded ground here could potentially cause resistance issues in nearby circuits, including the under-seat airbag connectors.
• G306 — Under the center console, near the Sensing & Diagnostic Module (SDM).. This ground is critical for the proper function of the SDM itself. A fault at this location could lead to erratic behavior or false codes from the airbag module.

Real Owner Repair Stories

• YouTube channel 'Edvancive' (2010 Chevrolet Cobalt LT with 132,000 miles) — Persistent 'Service Air Bag' light on the dash.
  ❌ Tried (didn't work) The owner had previously tried hot gluing the connector, but the light returned.
  ✅ What actually fixed it A local shop read the code, which pointed to the driver's side seat belt pretensioner. The owner located the yellow two-wire connector behind the B-pillar trim and found it was slightly loose. He firmly reconnected it and then secured the connector by wrapping a zip tie around it to prevent it from vibrating loose again. This permanently resolved the issue.

OEM Part Supersession History

• 88988974 → N/A — This part number is still the current and active part for the Connector Position Assurance (CPA) retainer.
  Heads up: This part is widely used across many GM vehicles and years for airbag connectors. It is often sold in a pack of two.
