OBD-II Code B0065: Left Front Seat Belt Pretensioner Circuit Malfunction

What Does B0065 Mean?

Code B0065 indicates the airbag control module (SDM) detects an electrical fault in the driver's side seat belt pretensioner circuit. The pretensioner uses a pyrotechnic charge to instantly tighten the seat belt during a collision. Because the computer cannot verify this circuit's integrity, it disables the entire airbag system as a fail-safe to prevent accidental deployment.

Technical definition: The SAE/ISO definition is "Left Front Seat Belt Pretensioner - Deployment Control." The Sensing and Diagnostic Module (SDM) continuously monitors the resistance of the pretensioner deployment loop. If the resistance falls outside the specified range (typically below 1.3 ohms or above 4.8 ohms), the module sets code B0065 and illuminates the airbag light.

Can I Drive With B0065?

⚠️Yes, But With Caution. You can physically drive the vehicle, but the entire Supplemental Restraint System (SRS) is disabled. None of the airbags or seat belt pretensioners will deploy in a crash. This dramatically increases the risk of serious injury. Have the vehicle serviced immediately.

Common Causes

• Broken Wires in Door Harness (Very Common) — Wires running through the flexible rubber boot between the door and body fatigue and break over time. On GM extended cab trucks, this occurs in the rear door and is the most frequent cause of B0065.
• Loose or Corroded Under-Seat Connector (Common) — The primary yellow wiring connector under the driver's seat becomes loose or corroded from moisture and debris. This creates high resistance in the circuit.
• Faulty Seat Belt Pretensioner Assembly (Less Common) — The pretensioner unit's internal wiring or pyrotechnic charge develops high resistance. This requires replacing the entire retractor or buckle assembly.
• Improper Previous Wiring Repairs (Less Common) — Using wire nuts or crimp connectors instead of soldering creates high-resistance points. Failing to add extra wire length in high-flex areas guarantees a rapid repeat failure.

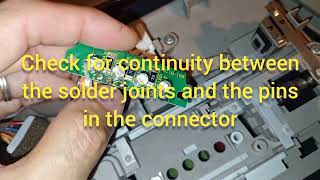

• Cracked Solder Joints on Overhead Console (Subaru) (Rare) — On 2005-2009 Subaru models, cracked solder joints on the passenger airbag indicator LED trigger a system-wide SRS fault, setting various codes including B0065.
🎬 See how to repair the overhead console solder joints on Subarus.
• Faulty Airbag Control Module (SDM) (Very Rare) — The SDM fails internally and logs a false error code. Only consider this after exhaustively ruling out wiring and pretensioner faults.

Symptoms

• Airbag or SRS Warning Light is On — The light stays illuminated on the dashboard after the initial startup self-check.
• Intermittent Airbag Light — The airbag light turns on and off when driving over bumps or moving the driver's seat, indicating a loose connection.
• "Service Safety Restraint System" Message — A text message displays on the driver information center indicating an active SRS fault.
• Failed Safety Inspection — An active B0065 code causes an automatic failure during state safety inspections.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repair Broken Wires in Door Harness — Parts: $5-$20, Labor: $125-$250, ~1.5 hr book time (Intermediate)
• Clean or Repair Under-Seat Connector — Parts: $0-$10, Labor: $75-$150, ~0.8 hr book time (DIY)
• Replace Driver's Seat Belt Pretensioner Assembly — Parts: $200-$450, Labor: $150-$300, ~1.2 hr book time (Professional)
• Replace Door Wiring Harness — Parts: $75-$200, Labor: $225-$400, ~2.5 hr book time (Intermediate)

Used vs. New Parts: Buying Guide

When a used part is worth it: Due to the pyrotechnic nature of seat belt pretensioners, buying new is strongly recommended. A used part is a last resort on an older vehicle where a new part is unavailable.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not in a flood or major collision.
• Ensure the part is an exact match for the model year and trim.
• Ask for the VIN of the donor vehicle to check for recall history.

Decision logic:

• If A new OEM or quality aftermarket part is available → Buy new. The safety guarantee outweighs the cost savings.
• If The vehicle is older and budget is the primary concern → Consider a professional mail-in repair service for your original pretensioner before buying used.

Warranty tradeoff: Used parts from salvage yards typically have a 30-day warranty. New parts carry a 1-year or longer warranty.

Worst-case if a used part fails: A used or improperly repaired pretensioner fails to deploy in a crash, leading to severe injury or death.

What Happens If You Wait — Timeline

1. Immediately: The B0065 code sets, the airbag warning light illuminates, and the entire SRS is disabled. (MPG impact: 0%% · Added cost: $0)
2. Ongoing: The vehicle operates without a functional airbag system, drastically increasing the risk of severe injury in a crash. (MPG impact: 0%% · Added cost: Non-monetary risk of severe personal injury.)
3. Next State Inspection: The vehicle fails its state safety inspection due to the illuminated airbag warning light. (MPG impact: 0%% · Added cost: $50-$200 in re-inspection fees.)

Cost of Not Fixing It

• Immediately: The entire Supplemental Restraint System (SRS) is disabled. None of the airbags or seat belt pretensioners will deploy. (Added cost: N/A)
• Next State Inspection: The vehicle fails its annual safety inspection in states that check for an illuminated airbag warning light. (Added cost: Cost of re-inspection and potential fines.)

Diagnosis Steps

1. Read the SRS Codes
   Use an SRS-capable OBD-II scanner to confirm B0065 is the active fault. Basic code readers cannot access the SRS module.
   Tools: OBD-II Scanner (SRS capable) (Beginner)
2. Inspect the Door Wiring Harness
   Pull back the rubber boot between the driver's door (or rear extended cab door on GM trucks) and the body. Look for broken, stretched, or pinched wires inside.
   Tools: Flashlight (Beginner)
3. Visually Inspect Under-Seat Wiring
   Locate the yellow connector under the driver's seat. Ensure it is plugged in securely and check for pinched wires along the seat track.
   Tools: Flashlight (Beginner)
4. Disconnect Battery and Depower System
   CRITICAL: Disconnect the negative battery terminal and wait 15 minutes. This discharges the backup capacitor, preventing accidental airbag deployment.
   Tools: Wrench set (Beginner)
5. Inspect and Clean Connector Pins
   Unplug the yellow pretensioner connector. Inspect pins for corrosion or damage. Clean with contact cleaner and apply dielectric grease.
   Tools: Electrical contact cleaner, Dielectric grease (Intermediate)
6. Measure Pretensioner and Circuit Resistance
   Measure resistance across the pretensioner's two pins. A healthy unit reads 2.0 to 3.5 ohms. Readings above 4.5 ohms or OL (infinite) indicate a failed pretensioner. Next, test the harness wires for continuity to the SDM.
   Tools: Digital Multimeter (Advanced)
7. Substitute Pretensioner with SRS Test Resistor
   Plug a 2.2 to 3.3-ohm SRS test resistor into the vehicle-side harness. Reconnect the battery. If the airbag light turns off, the vehicle wiring is good, confirming the pretensioner assembly is faulty.
   Tools: Specialized SRS diagnostic resistor set (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Ignition Status: ON (The SRS module runs a self-test every time the key is turned to the 'ON' position.)
• Fault Status: Present/Active (The B0065 code sets the instant the module detects out-of-range resistance in the pretensioner circuit.)

Related Codes

• B0066 — Identical code for the passenger side ('Right Front') seat belt pretensioner.
• B0064 — Points to the driver's side pretensioner but specifies 'Deployment Loop Resistance Low' (a short circuit) rather than an open circuit.
• B0057 / B0058 / B0059 — Relates to the passenger-side pretensioner circuit on specific manufacturer platforms.

Climate & Environmental Factors

• High Humidity / Moisture: Moisture and road salt enter under-seat connectors and door jamb boots, causing pin corrosion that increases circuit resistance.
• Extreme Cold: Plastic wire insulation becomes brittle and cracks in high-flex areas like door harnesses, leading to broken wires.

How to Talk to a Mechanic About This Code

Say this: "I have an airbag light on with code B0065 for the left front pretensioner. Please inspect the door jamb wiring harness and the under-seat connector for breaks or high resistance before quoting a pretensioner replacement."

Directs the technician to perform a proper diagnosis on the most common failure points instead of jumping to a profitable part replacement.

Avoid saying:

• My airbag light is on, can you fix it?
• I think I need a new airbag.
• Just do whatever it takes to turn the light off.

Questions to ask before authorizing the repair:

• Did you find a broken wire or a bad connector?
• What was the resistance reading from the pretensioner itself? Was it in spec?
• If the wire is broken, will you solder in a new section with enough slack for the door to move?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only if the vehicle is under warranty or independent shops fail to find the fault.
  Best for: Vehicles under warranty or covered by a specific recall., Complex cases where the wiring and pretensioner have been ruled out.
  Downsides: Highest labor rates., May replace an entire harness rather than perform a detailed wire repair. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit. Experienced independent mechanics can perform cost-effective wire repairs.
  Best for: Most out-of-warranty vehicles., Diagnosing and repairing common wiring faults.
  Downsides: Requires verifying the shop has ASE-certified technicians comfortable with SRS diagnostics. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. SRS repairs are safety-critical and require diagnostic expertise not found at chain shops.
  Best for: Simple, unrelated maintenance like oil changes or tires.
  Downsides: Technicians lack specific training for SRS systems., Not equipped with advanced scan tools needed for in-depth SRS diagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of the car's private-party value, pause and evaluate your options.

• Car worth $4000, fix is $250: Fix it. This is a minor cost to restore a critical safety feature.
• Car worth $4000, fix is $1800: Walk away. The repair cost is nearly half the car's value.

What Scan Tool You Need for This Code

Minimum: A scanner that specifically reads and clears SRS (Supplemental Restraint System) or Airbag 'B' codes.

Standard $20-$50 OBD-II code readers only access powertrain (P-codes) from the engine computer. They cannot see the SRS module to confirm or clear B0065.

Budget: Autel AutoLink AL619 (~$70-100) — Reads and clears SRS/Airbag trouble codes, allowing you to confirm B0065 and turn off the light after repair.

Mid-range: BlueDriver Pro (~$100-120) — Reads/clears codes and displays live data from the SRS module, such as the resistance value of the pretensioner circuit.

Professional: Autel MaxiCOM MK808S (~$450-500) — Offers full bidirectional control to command the SRS module to perform self-tests, isolating faults without physically substituting parts.

Rent vs buy: Auto parts stores do NOT rent out scanners with SRS capabilities due to liability. Buying a midrange scanner is required.

How to Clear the Code After You Fix It

1. Ensure the physical fault has been permanently repaired.
2. Reconnect the negative battery terminal.
3. Turn the ignition to the 'ON' position.

Drive cycle: No drive cycle is required. The system self-tests at every key-on. If the repair is successful, the airbag light illuminates for 5-7 seconds and then turns off.

Readiness monitors affected: None

Watch out for:

• Clearing the code with a scan tool without fixing the electrical problem causes the light to return immediately.
• Assuming the light will stay off after a temporary 'wiggle fix' of a connector.
• Disconnecting the battery does not clear a hard SRS fault code.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated airbag light is not part of the emissions (smog) inspection, but it remains a critical safety failure.
• New York: An illuminated airbag warning lamp is cause for rejection during the annual safety inspection.
• Texas: An illuminated airbag light is cause for rejection during the annual safety inspection.

Most Commonly Affected Vehicles

• Chevrolet Colorado (Extended Cab) (2004-2012) — Extremely common issue of broken wires in the rear extended cab door harness.
• GMC Canyon (Extended Cab) (2004-2012) — Identical to the Chevrolet Colorado, prone to broken wires in the door jamb harness.
• Cadillac CTS (2003-2007) — The pretensioner assembly itself frequently fails, showing high internal resistance.
• Chevrolet Trailblazer (2002-2009) — Known for wiring fatigue and breakage in the driver's door jamb area.
• Subaru Outback, Legacy (2005-2009) — Triggered by cracked solder joints in the overhead console map light assembly.

Manufacturer-Specific Notes

• General Motors (GM): GM issued TSB #05-09-41-005 for 2004-2005 Colorado/Canyon models, explicitly warning technicians: 'DO NOT REPLACE THE FRONT SEAT BELT PRETENSIONER' until the wiring is thoroughly inspected.
• Subaru: A faulty passenger airbag indicator light on the overhead console sets SRS codes. Re-soldering the joints on the console's circuit board often fixes the entire SRS light issue.

Real Owner Stories

2012 Chevrolet Colorado

Airbag light stayed on. Scanner showed codes B0065 and B0066.

Outcome: Multiple wires inside the rubber boot between the door and cab were broken. The owner soldered the broken wires, and the airbag light turned off upon the next startup.

Lesson: On GM extended cab trucks, always check the wiring harness in the rear door jamb first.

2005 Cadillac CTS

Airbag light appeared with code B0065.

Outcome: Replaced the faulty driver's seat belt pretensioner assembly. The codes cleared and the airbag light went out.

Lesson: Testing the resistance of the pretensioner itself (should be 2-3 ohms) prevents replacing the wrong part.

How to Prevent This Code From Triggering

• Apply dielectric grease to SRS connectors (Anytime a connector is unplugged for service) — Seals out moisture and oxygen, preventing pin corrosion that leads to high resistance.
• Secure under-seat items (Daily habit) — Prevents items from rolling under the seats and snagging or unplugging the sensitive yellow SRS connector.
• Add slack to door harness repairs (During any door wiring repair) — Soldering in an extra inch of wire prevents the new joint from breaking again at the same flex point.

Frequently Asked Questions

Can I just clear the B0065 code?

No. The SRS module performs a self-test every time the vehicle starts. If the physical electrical fault remains, the code and warning light will return instantly.

Is it safe to work on the airbag system myself?

It is dangerous due to explosive charges. You must disconnect the battery and wait 15 minutes before touching any yellow wiring. If you lack electrical diagnostic experience, hire a professional.

Why is the airbag connector always yellow?

Yellow is the universal industry standard for Supplemental Restraint System (SRS) wiring. It warns technicians that the components contain explosive devices requiring special depowering procedures.

Will my airbags deploy by accident because of this code?

No. The system is designed to fail safely. The airbag control module disables the entire system when it detects a fault, preventing accidental deployment but leaving you unprotected in a crash.

I replaced the pretensioner but the code is still on. What now?

The most frequent cause of B0065 is broken wiring, not the pretensioner itself. You must perform resistance and continuity checks on the harness between the pretensioner and the SDM to locate the break.

My cheap scanner won't show SRS codes. Do I need a special tool?

Yes. Basic OBD-II scanners only read engine codes. You need an advanced scanner capable of communicating with the SRS or Body Control Module to read and clear B-codes.

My airbag light turned off by itself, am I okay?

No. An intermittent light means a loose connection or frayed wire temporarily made contact. The underlying damage remains, and the system will fail again when the wire shifts.

What does 'Deployment Loop Open' mean?

It means there is a complete break in the electrical circuit. The airbag module sends a tiny current to monitor the circuit; if it doesn't return, it indicates a broken wire or unplugged connector.

Key Takeaways

• Code B0065 disables your entire airbag system, meaning no airbags or pretensioners will deploy in a collision.
• Over 80% of B0065 codes on GM extended cab trucks stem from broken wires inside the rear door jamb rubber boot.
• Never replace the $300+ pretensioner assembly without first testing the wiring harness for continuity and resistance.
• Always disconnect the negative battery terminal and wait 15 minutes before touching any yellow SRS connectors to prevent accidental deployment.
