B1000 on 2011-2017 Cadillac Escalade ESV: OnStar and ECU Faults Explained

What's Unique About the 2011-2017 Cadillac ESCALADE ESV

The 2011-2017 Escalade ESV spans two generations (GMT900 and K2XX), both of which have well-documented issues that can trigger a B1000 code. The most prominent issue, confirmed by multiple GM Technical Service Bulletins, is an internal failure of the OnStar (VCIM) module, often accompanied by a 'Phone Unavailable' audio message. Another common issue on these large SUVs is the location of the Airbag Control Module (SDM) on the floor under the seats or console, making it vulnerable to water damage from spills, leaking weatherstripping, or melted snow from boots, which can corrode the module and cause a B1000 fault. This water damage issue is a well-documented failure path on the GMT900 platform trucks.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the third generation (2011-2014, GMT900 platform) and the fourth generation (2015-2017, K2XX platform). The OnStar module failure is a known issue on both generations, though the module's location and part numbers differ. The 3rd gen module is often behind the radio/HVAC controls, while the 4th gen module is typically behind the glove box. The airbag module's vulnerability to water damage is more pronounced on the GMT900 platform (2011-2014) where it is located on the floor under the driver's seat. For the K2XX platform (2015+), the SDM was moved to a less vulnerable location under the center console.

Symptoms You May Notice

• "Phone Unavailable" audio message playing in the cabin
• Airbag warning light illuminated on the dashboard
• OnStar system inoperative (red light on mirror, app not connecting)
• GPS navigation showing incorrect location
• Parasitic battery drain leading to a dead battery
• No symptoms may be present if it's a historical code that has not recurred
• Erratic behavior of lights, door locks, or windows (if BCM is the cause)

Most Likely Causes

1. Internal Failure of OnStar Module (VCIM) 🔴 High Probability → Shop Telematics Interface Module This is a widely documented failure on this platform, confirmed by multiple GM Technical Service Bulletins (PIC3278F, PIC3278G). The module can fail internally, causing communication issues and a parasitic battery drain.
   How to confirm: Use a professional scan tool to confirm that the B1000 code is being reported by the Telematics Communication Interface Control Module (VCIM). The presence of a 'Phone Unavailable' message is a strong indicator. Often, code U1500 will be present as well. A simple, though not definitive, test is to pull the OnStar fuse; if the audible message stops and any parasitic battery drain ceases, the VCIM is almost certainly the culprit.
   Typical fix: Replace the OnStar/VCIM module. The new module must be programmed to the vehicle's VIN by a dealer or qualified shop using GM's Service Programming System (SPS). Some owners who do not use the service opt to simply disconnect the module to prevent battery drain and the annoying audio message.
   Est. part cost: $200-$500
2. Internal Failure of Airbag Control Module (SDM) due to Water Damage 🟡 Medium Probability → Shop Air Bag Control Module On GMT900 models (2011-2014), the SDM is located on the floor under the driver's seat, making it highly susceptible to corrosion from water intrusion caused by spilled drinks, rain, or melted snow from boots. The moisture wicks through the carpet padding and corrodes the module's case and internal electronics.
   How to confirm: Use a scan tool to confirm the B1000 code is from the SDM. Physically inspect the module and its connector. This requires moving the driver's seat forward and lifting the carpet flap. Look for a swollen or raised gel seal on the module, white/green crusty corrosion, or rust on the metal case. A heavily corroded case is a clear sign of failure.
   Typical fix: Replace the SDM and its connector if corroded. The new module is safety-critical and MUST be programmed by a professional. The source of the water leak (e.g., door seals, sunroof drains) must also be found and repaired to prevent a repeat failure. Using high-quality, custom-fit floor liners can help prevent spills from reaching the carpet.
   Est. part cost: $250-$600
3. Internal Failure of Body Control Module (BCM) ⚪ Low Probability → Shop Body Control Module General electronic failure over time. Can also be caused by voltage spikes from improper jump-starting or a failing alternator. Poor ground connections, a known issue on GM trucks, can also stress the BCM over time.
   How to confirm: Use a scan tool to confirm the B1000 code is from the BCM. Check for other BCM-related symptoms like erratic lights, door locks, security system issues, or random warning messages. Before replacement, verify all power and ground connections to the BCM are clean and tight.
   Typical fix: Replace the Body Control Module. This module also requires professional programming to function correctly and sync with the vehicle's other modules and security system.
   Est. part cost: $300-$700

Rare But Worth Checking

• Poor Power or Ground Connection to a Module: Before replacing an expensive module, it's always worth checking the integrity of its power and ground circuits. A loose or corroded ground, particularly the main battery-to-frame and chassis grounds, can cause a module to malfunction and set an internal fault code. On these trucks, checking grounds near the driver-side cowl and under the driver's door sill is a common diagnostic step.
• Low Battery Voltage: → Shop Vehicle Battery In some cases, a very low battery or a voltage spike during a jump-start can corrupt a module's memory and set a false B1000 code. Try clearing the code after fully charging the battery and running the vehicle through a few ignition cycles before condemning the module.

Diagnosis Steps

1. Connect a professional-grade scan tool capable of reading manufacturer-specific 'B' codes from all vehicle modules (SDM, BCM, VCIM, etc.).
2. Identify which specific module (e.g., VCIM, SDM, BCM) has stored the B1000 code. This is the most critical step.
3. If the code is from the OnStar module (VCIM) and you hear a 'Phone Unavailable' message, the module has likely failed per TSB #PIC3278G. Check for a companion U1500 code.
4. If the code is from the Airbag module (SDM), especially on a 2011-2014 model, move the driver's seat all the way up and back and peel up the carpet. Visually inspect the module and its connector for corrosion, rust, or a swollen gel seal, which indicates water intrusion.
5. If the code is from the Body Control Module (BCM), check for other seemingly unrelated electrical issues (lights, locks, windows) and verify BCM power and ground connections are clean and tight before condemning the module.
6. For any of the above, before replacing the module, use a multimeter to verify that the module's connector is receiving proper battery voltage and has a solid ground connection.
7. If power and ground are good and there is no visible damage (or if there is clear water damage to the SDM), the B1000 code points to an internal, non-repairable fault within that specific module.
8. Replace the identified faulty module. Note that replacement VCIM, SDM, and BCM modules require professional programming to the vehicle's VIN to function.

Parts You'll Likely Need

• OnStar Module (VCIM) (OEM #23464875) — This is the most common cause of a B1000 code on this vehicle, as documented by GM TSBs. Part number 23464875 is listed for 2015 models. Part numbers vary by year and options.
  Trusted brands: ACDelco (OEM)
  OEM price range: $250-$500
  Aftermarket price range: $150-$350 (Remanufactured)
• Airbag Control Module (SDM) — A common failure point on 2011-2014 models due to its location on the floor, where it is susceptible to water damage. Part numbers are highly specific to the vehicle's VIN and equipment.
  Trusted brands: ACDelco (OEM)
  OEM price range: $300-$600
  Aftermarket price range: $200-$400 (Remanufactured/Reset Service)

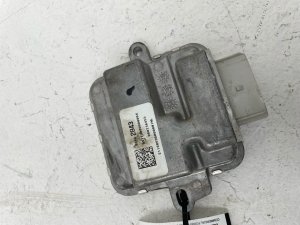

• Body Control Module (BCM) — A less common but possible cause of B1000, often accompanied by other electrical gremlins. Part numbers are specific to the vehicle's VIN and option package.
  Trusted brands: ACDelco (OEM)
  OEM price range: $300-$700
  Aftermarket price range: $200-$500 (Pre-programmed)

Related Codes That Often Appear With This One

• U1500 — This code indicates a LIN Bus communication failure. GM Technical Service Bulletins explicitly state that U1500 and B1000 may appear together when the OnStar module (VCIM) has an internal fault.

Technical Service Bulletins (TSBs) & Recalls

• PIC3278F: Addresses 'Phone Unavailable' message and B1000/U1500 codes due to an internal OnStar module fault.
• PIC3278G: An updated version of the same bulletin, confirming the issue persists across model years and providing diagnostic steps.
• GM Special Coverage 09184B: While for earlier 2007-2009 models, this bulletin details the exact failure pattern of the SDM under the driver's seat due to corrosion from water and road salt, a condition that also affects the 2011-2014 Escalade.

Platform-Specific Known Issues

• TSB #PIC3278F and #PIC3278G: These bulletins from GM directly state that an internal fault in the OnStar module can produce a 'Phone Unavailable' audio message and set a B1000 or U1500 trouble code.
• SDM Water Damage (GMT900): On 2011-2014 models, the placement of the airbag module under the driver's seat carpet makes it a magnet for moisture from rain or snowmelt, leading to corrosion and failure. A special coverage adjustment (09184B) was issued for some 2007-2009 trucks for this exact issue, highlighting the known design vulnerability.

Mechanic-Grade Diagnostic Values

• Voltage Drop Test on Module Ground Circuit — expected: Less than 0.2 volts (200mV). Failure: A reading of more than 0.2 volts indicates a poor ground connection, which can cause a module to malfunction and set a B1000 code.
• Module Power Supply Voltage — expected: Minimum of 10.2V with ignition ON.. Failure: While the module may attempt to run its self-test below this voltage, unreliable power can lead to false internal fault codes. A stable voltage above 11V is recommended for accurate diagnostics.

Hidden / Shadow Codes Worth Checking

• B1000 00: Electronic Control Unit (ECU) Performance (No Additional Information). This is a generic confirmation that the module detected an internal fault during its power-on self-test, common on the GDS2 diagnostic platform for newer (K2XX) models. (see via GM GDS2 or equivalent professional scan tool.)
• B1000 31: Electronic Control Unit General Checksum Problem. This indicates a data corruption error within the module's memory. (see via GM Tech 2, GDS2, or other professional scan tool capable of reading manufacturer-specific symptom bytes.)
• B1000 35: Electronic Control Unit Performance ROM Integrity. This sub-code points to a failure in the module's permanent Read-Only Memory, confirming an internal hardware or software corruption fault. (see via GM Tech 2, GDS2, or other professional scan tool capable of reading manufacturer-specific symptom bytes.)
• B1000 39: Electronic Control Unit Performance Internal Electronic Failure. This is a general hardware failure detected inside the module. (see via GM Tech 2, GDS2, or other professional scan tool capable of reading manufacturer-specific symptom bytes.)
• B1000 3C: Electronic Control Unit Performance Internal Communications Failure. This indicates a fault in the communication pathways within the module's own circuit board. (see via GM Tech 2 or GDS2.)

Scan Tool Commands That Help

• GDS2: Module Diagnostics > BCM > Bi-Directional Controls — If the BCM is suspected, a technician can use GDS2 to command specific outputs like door locks, lights, or window motors. If the commands work, it proves the BCM can control the circuits, making an internal B1000 fault less likely and pointing towards intermittent power/ground issues.
• GDS2 / Tech 2: Module Setup / Programming (SPS) — This function is required after replacing the SDM, BCM, or VCIM. The new module must be programmed to the vehicle's VIN and configured with the correct options to communicate with other modules and function correctly.
• GDS2: Vehicle DTC Information — This is the primary function needed to diagnose a B1000 code. It queries all modules on the vehicle's network and displays which specific module (e.g., 'Telematics Communication Interface Control Module', 'Inflatable Restraint Sensing and Diagnostic Module') has stored the B1000 fault and any associated symptom bytes.

Wiring & Ground Locations

• G301 (GMT900) — Under the left side of the passenger seat on 2011-2014 models.. This ground is in the same area as the SDM, which is prone to water damage. If the SDM is being inspected or replaced, this ground connection should also be inspected for corrosion.
• G201 (GMT900) — In the upper left corner of the instrument panel, near the A-pillar on 2011-2014 models.. This is a key ground for instrument panel components and can affect the BCM. Access requires dash disassembly, but it is a known location for electrical issues.
• G103 (GMT900) — Located at the left rear of the engine compartment on the cowl, above the brake booster on 2011-2014 models.. This is a critical ground point that serves the BCM and the SDM. A poor connection here can cause either module to set fault codes.
• G218 (K2XX) — On the driver's side, under the dash near the A-pillar and speaker on 2015-2017 models.. There is a known factory assembly issue (TSB #PIT5405C) where dash insulation gets trapped under this ground, causing a poor connection for the BCM. This can lead to numerous electrical faults that could be misdiagnosed as a failed BCM setting a B1000 code.

Real Owner Repair Stories

• Tahoe Yukon Forum user 'Joseph Garcia' (2005 Chevrolet Tahoe Z71 (GMT800, similar BCM logic)) — No warning lights, but a scan revealed a stored B1000 with symptom byte 35 (ROM Failure) in the Body Control Module.
  ❌ Tried (didn't work) Clearing the code (it returned), Inspecting wiring harnesses for corrosion
  ✅ What actually fixed it The owner replaced the Body Control Module (BCM) with a new ACDelco unit and performed the necessary programming, which resolved the code.
• YouTube video for GMT900 trucks (2007-2013 GM Truck (GMT900 Platform, same as 2011-2014 Escalade)) — Solid airbag warning light on the dash. A scan tool showed code B1000 in the airbag system.
  ❌ Tried (didn't work) Clearing the code (it was a hard fault and returned immediately)
  ✅ What actually fixed it The Sensing and Diagnostic Module (SDM) under the driver's seat was found to have severe water damage, with visible corrosion and lifting of the gel sealant on the circuit board. Replacing the water-damaged SDM was the fix.

OEM Part Supersession History

• 23211079 → 23464875 — Part revision or manufacturer change for the OnStar/VCIM module.
  Heads up: Part number 23464875 is listed for 2015 models and is noted as a replacement for the earlier number. This part has since been discontinued by GM, so sourcing may require finding used or new-old-stock parts.

Model Year Variations Within This Range

• 2011-2014 (GMT900): The diagnostic system is primarily Tech 2-based. It is more likely to report B1000 with a 2-digit hexadecimal symptom byte (e.g., B1000 39). The SDM is located under the driver's seat, making it highly prone to water damage. Key ground locations follow the GMT900 pattern (G103, G201, G301).
• 2015-2017 (K2XX): The diagnostic system is GDS2-based. It is more likely to report a generic B1000 00 code. The SDM was moved to a safer location under the center console. The VCIM is typically behind the glove box. These models are susceptible to the G218 grounding issue at the driver's A-pillar.
