OBD-II Code B1347: Heated Rear Window or Driver Airbag Circuit Fault

What Does B1347 Mean?

The B1347 code signals a problem in one of two distinct systems. For Ford vehicles, it points to a failure in the heated rear window (defroster) circuit. For Hyundai, Kia, Chevrolet, and Mazda, it indicates a critical fault where the computer detects low resistance in the driver's side airbag circuit, disabling the entire airbag system.

Technical definition: The SAE/ISO definition is manufacturer-dependent. Ford defines it as 'Heated Backlite Relay Circuit Failure'. Hyundai, Kia, and GM define it as 'Driver Airbag Resistance too Low (1st stage)'. The control module expects 1.5 to 4.7 ohms of resistance; readings below this threshold trigger the code.

Can I Drive With B1347?

⚠️Yes, But With Caution. If the airbag warning light is on, the driver's airbag will not deploy in a collision. This is a critical safety failure. If the code relates to the rear defroster, the vehicle is mechanically safe to drive, but rear visibility in frost or rain is severely compromised. Do not drive an airbag-disabled vehicle unless heading directly to a repair shop.

Common Causes

• Improperly Seated Airbag Connector (Airbag-related) (Very Common) — The main yellow connector on the back of the airbag module is not fully seated. The plastic locking tab must push in completely; even a 1mm gap engages the internal shorting bar and triggers this fault.
• Faulty Clock Spring (Airbag-related) (Very Common) — The clock spring's internal ribbon wire breaks or shorts together from constant steering wheel rotation, causing a low resistance reading and severing the connection to the airbag.
• Faulty Heated Rear Window Relay (Defroster-related) (Common) — The electronic switch powering the high-draw rear window defroster grid fails internally, triggering the code on Ford vehicles.

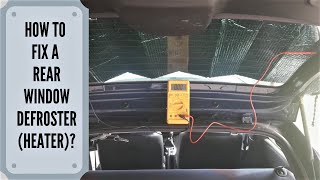

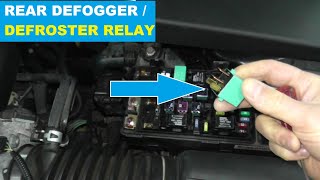

🎬 Watch: How to find and replace the Ford defroster relay.
• Damaged Wiring or Poor Connection (Common) — Connectors to the SRS module, clock spring, or defroster system corrode or loosen. Wires short to ground where they pass through the steering column or vehicle body.
• Blown Fuse (Defroster-related) (Less Common) — The dedicated fuse protecting the defroster circuit blows due to an electrical surge or underlying short circuit.
• Broken Defroster Grid Terminal (Ford Trucks) (Less Common) — The main electrical terminal detaches from the rear window glass. Ford considers this unrepairable, requiring full rear glass replacement.
• Faulty Driver's Airbag Module (Airbag-related) (Rare) — The inflator unit or internal wiring of the airbag module develops a short circuit, requiring complete module replacement.
• Low Battery Voltage (Rare) — A dying battery drops system voltage below 11.5V during cranking, causing the SRS module to log false low-resistance codes.

Symptoms

• Airbag Warning Light is On — The airbag system is disabled and will not deploy. This is the primary symptom for Hyundai, Kia, GM, and Mazda vehicles.
• Rear Window Defroster Fails — The rear window does not clear frost, fog, or ice when activated. This is the primary symptom for Ford vehicles.
• Steering Wheel Controls and Horn Fail — Buttons on the steering wheel and the horn stop working simultaneously. This definitively points to a severed clock spring ribbon.
🎬 See how to replace a clock spring on Kia and Hyundai vehicles.
• Defroster Indicator Light Malfunctions — The light on the defroster button fails to turn on, or turns on briefly and shuts off, indicating a circuit fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Reseat or Repair Airbag Connector — Parts: $0, Labor: $50-$150, ~0.8 hr book time (DIY)
• Replace Clock Spring — Parts: $60-$250, Labor: $120-$250, ~1.5 hr book time (Professional)
• Replace Heated Rear Window Relay — Parts: $15-$50, Labor: $25-$50, ~0.2 hr book time (DIY)
• Repair Wiring or Connector — Parts: $5-$20, Labor: $100-$250, ~1.5 hr book time (Intermediate)
• Replace Driver's Side Airbag Module — Parts: $700-$1500, Labor: $100-$300, ~0.8 hr book time (Professional)
• Replace Rear Window Glass (Ford Trucks) — Parts: $400-$1000, Labor: $150-$300, ~2.5 hr book time (Professional)

DIY vs Professional

• Replace Heated Rear Window Relay 🟢 Beginner
  Tools: Relay puller or pliers.
• Reseat Airbag Connector 🟢 Beginner
  Tools: Socket set, trim removal tools, battery terminal wrench.
• Repair Wiring 🟢 Beginner
  Tools: Multimeter, wire strippers, soldering iron, heat shrink tubing.
• Replace Clock Spring 🟢 Beginner
  Tools: Steering wheel puller, socket set, torque wrench.
• Replace Airbag Module 🟢 Beginner
  Tools: Specialized tools, scan tool for system reset.

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM clock spring from a low-mileage vehicle is a budget-friendly option. NEVER use a salvaged airbag module due to extreme safety risks.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle was not in a frontal collision.
• Check the VIN for open recalls.
• Avoid parts from flood-damaged environments.
• Match the part number exactly.

Decision logic:

• If The failed part is the airbag module. → Buy a new OEM part from a dealer. Never buy used.
• If The failed part is the clock spring and the vehicle is high-mileage. → A new aftermarket part offers the best balance of cost and reliability.
• If The failed part is the clock spring and budget is the top priority. → A used OEM part is acceptable, but carries the risk of premature failure.

Warranty tradeoff: Used parts have a 30-day warranty. New aftermarket parts carry a 1-year warranty. New OEM parts carry a 12-month manufacturer warranty.

Worst-case if a used part fails: $300 if a used clock spring fails prematurely, requiring repeat labor and a new part.

What Happens If You Wait — Timeline

1. Immediate (Airbag Fault): The SRS control module disables the entire airbag system. The warning light illuminates. (MPG impact: 0%% · Added cost: $0)
2. Ongoing (Airbag Fault): The driver's airbag WILL NOT deploy in a collision, drastically increasing injury risk. (MPG impact: 0%% · Added cost: $0)
3. Immediate (Defroster Fault): The rear window defroster fails, severely impairing rear visibility in adverse weather. (MPG impact: 0%% · Added cost: $0)
4. Ongoing (Defroster Fault): A short circuit in the relay or wiring slowly drains the battery over time. (MPG impact: 0%% · Added cost: $150)

Cost of Not Fixing It

• Immediate (Airbag Fault): The entire Supplemental Restraint System is disabled. The driver's airbag WILL NOT DEPLOY in a collision. (Added cost: N/A (Severe safety risk))
• Immediate (Defroster Fault): Severely reduced rear visibility in frost or rain, increasing accident risk. (Added cost: $0)
• Long-term: An unaddressed short circuit in the defroster relay drains the battery over time. (Added cost: $150 (Potential new battery))

Diagnosis Steps

1. Identify Your Vehicle's Code Definition
   Determine which system this code refers to for your car. Search your vehicle's make and model plus 'B1347' to confirm if it is an airbag (Hyundai/Kia/GM) or defroster (Ford) issue.
   Tools: Internet access (Beginner)
2. Inspect Airbag Connectors (Airbag Issue)
   Disconnect the battery and wait 15 minutes. Access the driver's airbag and check the main yellow electrical connector. Push it in completely and ensure the plastic locking tab is fully engaged. A loose connector is the most common cause of this code.
   Tools: Socket set, trim removal tools (Beginner)
3. Check Fuses and Swap Relay (Defroster Issue)
   Locate the fuse box and inspect the rear defroster fuse. If intact, find the 'Heated Backlite' relay. Swap it with an identical relay from a non-essential system (like the horn). If the defroster works, replace the bad relay.
   Tools: Owner's manual, fuse puller or pliers (Beginner)
4. Scan Live Data for Resistance (Airbag Issue)
   Use an SRS-capable scanner to monitor the 'Driver Airbag Resistance' value. A reading below 1.5 ohms confirms the fault. Turn the steering wheel lock-to-lock; wild fluctuations confirm a broken clock spring.
   Tools: Advanced OBD-II Scanner (SRS capable) (Intermediate)
5. Wiggle Test the SRS Harness (Airbag Issue)
   While monitoring live resistance data, wiggle the wiring harnesses at the base of the steering column and under the driver's seat. If the resistance value jumps to normal (1.5-4.7 ohms), you have located the wiring fault.
   Tools: Advanced OBD-II Scanner (SRS capable) (Intermediate)
6. Test Clock Spring Resistance (Airbag Issue)
   Disconnect the battery and wait 15 minutes. Unplug the airbag module and the clock spring connector at the steering column base. Measure resistance between the two clock spring pins. A reading below 1.5 ohms confirms an internal short.
   Tools: Digital Multimeter, trim removal tools (Advanced)
7. Test Defroster Circuit Voltage (Defroster Issue)
   At the defroster relay socket, verify 12-14V on the high-amperage load wire when activated. Use a DC clamp-on ammeter on the power wire to the grid; a healthy grid draws 15-25 amps. Zero draw indicates an open circuit.
   Tools: Digital Multimeter, DC clamp-on ammeter (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• System Voltage: 11.5-14.5V (During key-on self-test)
• Ignition Status: ON / RUN (Code is set immediately upon system self-check)
• Vehicle Speed: 0 mph (Fault is detected before the vehicle moves)
• Odometer: Any (Fault logged with mileage at time of detection)

Related Codes

• B1346 — Means 'Driver Airbag Resistance too High'. Seeing B1346 and B1347 alternate definitively points to an intermittent connection in the clock spring.
• B1348 — For Ford vehicles, this means 'Heated Backlite Relay Circuit Open'. It points specifically to a broken wire, whereas B1347 indicates a short or general failure.
• B1482 — Indicates 'Driver Airbag Resistance too Low (2nd stage)'. If present with B1347, the shared clock spring or airbag module is the culprit, not a single wire.
• B1352 — Indicates 'Passenger Airbag Resistance too Low'. The diagnostic process is identical but focuses entirely on the passenger side components.

Climate & Environmental Factors

• Mechanical Wear: The internal ribbon of the clock spring flexes with every steering wheel turn. Vehicles driven primarily in cities with frequent turns experience clock spring failure much faster than highway-driven vehicles.
• Humidity and Moisture: High humidity promotes corrosion on electrical connectors. This increases resistance or causes intermittent shorts, triggering low-resistance codes in sensitive SRS circuits.

How to Talk to a Mechanic About This Code

Say this: "I have a B1347 code and my airbag light is on. Please visually inspect the main airbag connector and clock spring wiring before quoting a full replacement. If it's a Hyundai/Kia, please check if TSB 17-BE-004-1 or ELE 108 applies for a warranty repair."

Directs the technician to check the cheapest causes first and leverages known manufacturer warranty extensions to save you money.

Avoid saying:

• 'My airbag light is on, can you just fix it?'
• 'Just clear the code for me.'

Questions to ask before authorizing the repair:

• Did you visually confirm the airbag connector was fully seated?
• Have you confirmed my VIN is not covered by the manufacturer's extended warranty?
• What is the warranty on the parts and labor for this repair?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Best Fit for Hyundai/Kia owners due to warranty extensions, or if the airbag module itself failed.
  Best for: Hyundai and Kia vehicles to claim extended warranty coverage on the clock spring., Replacing a faulty airbag module, which requires new OEM parts.
  Downsides: Significantly higher labor rates and parts costs. (Typical cost: +50% vs. baseline)
• Independent Shop: Best Fit for out-of-warranty repairs, provided you choose a certified shop.
  Best for: Out-of-warranty clock spring replacements., Diagnosing and replacing a faulty rear defroster relay on Ford vehicles.
  Downsides: Ensure the shop is ASE certified and experienced with SRS systems. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. Airbag system repair is a safety-critical task requiring specialized training.
  Best for: Unrelated repairs like oil changes.
  Downsides: Technicians lack specialized training for SRS diagnostics., Handling explosive airbag components is a liability chains avoid. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40-50% of your car's private-party value, consider selling the vehicle.

• Car worth $5000, fix is $300: Fix it. A clock spring replacement restores a critical safety feature well below the threshold.
• Car worth $4000, fix is $2200: Walk away. A $2200 repair for a new airbag module is over 50% of the car's value.

What Scan Tool You Need for This Code

Minimum: A scanner that reads and clears Supplemental Restraint System (SRS) or Body (B-prefix) trouble codes.

Standard $20 code readers only access Powertrain (P-prefix) codes. They cannot see or clear airbag system faults.

Budget: Foxwell NT301 / Autel ML629 (~$70) — Reads and clears the B1347 code, which is the minimum required to diagnose and verify the repair.

Mid-range: BlueDriver Pro / Innova 5610 (~$120) — Provides live data streaming to watch the 'Driver Airbag Resistance' value in real-time while turning the steering wheel.

Professional: Autel MaxiCOM MK808S (~$500) — Provides professional-level, bi-directional control to actively test components.

Rent vs buy: Auto parts store loaner tools often do NOT read SRS codes. Buying a budget scanner is a worthwhile investment.

How to Clear the Code After You Fix It

1. Ensure the physical repair is complete.
2. Reconnect the vehicle battery.
3. Use an SRS-capable OBD-II scan tool to access the Supplemental Restraint System module.
4. Select the 'Clear/Erase DTCs' function.
5. Cycle the ignition off, then on, and confirm the airbag warning light performs its self-test and stays off.

Drive cycle (~5 minutes): An SRS code does not require a complex drive cycle. The system performs a self-test every time the ignition turns to 'ON'. A short 5-minute drive confirms the fix is stable.

Readiness monitors affected: Disconnecting the battery resets all emissions readiness monitors. This prevents passing an emissions test until they re-run.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Basic $20 OBD-II scanners cannot communicate with or clear codes from the SRS module.
• Disconnecting the battery does not clear hard-fault SRS codes.
• If the root cause remains, the code reappears immediately upon the next ignition cycle.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: While an airbag light is not part of the smog check, inspection stations fail the vehicle on a separate safety basis.
• New York: An illuminated airbag warning light is immediate grounds for safety inspection failure.
• Texas: An illuminated airbag light causes failure during the annual safety inspection.

Most Commonly Affected Vehicles

• Hyundai Elantra (2003-2014) — Prone to clock spring failure. Hyundai extended the warranty to 15 years/unlimited miles for 2011-2014 models (TSB 17-BE-004-1).
• Kia Sorento (2011-2015) — TSB ELE 108 extends the clock spring warranty to 15 years/unlimited mileage due to frequent B1347 codes.
• Ford Taurus / Fusion / E-Series (1997-2024) — Commonly experience the defroster relay failure. On trucks, a detached terminal requires full rear glass replacement per SSM 48490.
• Hyundai Santa Fe (2004-2012) — TSB 21-BE-003H-1 extends the clock spring warranty to 15 years/unlimited miles for 2007-2012 models.
• Chevrolet / GMC Silverado / Sierra (2007-2014) — Logs B1347 for 'Driver Front Airbag Resistance Too Low'. Clock spring replacement is highly affordable on these models.
• Nissan Versa / Sentra (2007-2019) — Airbag warning lights are frequently linked to faulty clock springs. Nissan features a manual reset procedure via ignition cycles for intermittent faults.
• Mazda 3 / 6 / CX-5 (2004-2016) — Uses B1347 to indicate a fault in the driver's airbag circuit, primarily caused by clock spring failure.
• Honda Civic / Accord (2001-2011) — Displays B1347 due to intermittent connections under the seat or clock spring wear over time.

Manufacturer-Specific Notes

• Ford: B1347 exclusively refers to the rear window defroster circuit. On F-Series trucks, SSM 48490 dictates that a detached glass terminal requires full rear window replacement.
• Hyundai / Kia: B1347 is a critical airbag code. Both manufacturers issued TSBs (ELE 108, 17-BE-004-1) extending the clock spring warranty to 15 years/unlimited mileage. Check with a dealer before paying for repairs.
• General Motors (GM): Clock spring replacement parts and labor are significantly cheaper on GM trucks compared to import brands.
• Nissan: Features a user-accessible diagnostic mode entered via specific ignition key cycles, allowing users to read and reset airbag codes without a scanner.

Real Owner Stories

2013 Kia Sorento with B1347 & B1346

Airbag light illuminated intermittently. Eventually, steering wheel volume controls and the horn failed. Codes B1346 and B1347 were present.

Outcome: Replaced the clock spring. The new part resolved the airbag light and restored horn functionality.

Lesson: An airbag light combined with non-functioning steering wheel controls definitively points to a failed clock spring.

Kia with B1347 - The 'Easy Fix' Misdiagnosis

Airbag light was on with code B1347. The horn and steering wheel functions worked perfectly.

Outcome: Discovered the connector's locking tab was not fully engaged. Pushing it in securely resolved the code for $0.

Lesson: Always check the simplest solution first. A poorly seated airbag connector is a highly common cause of B1347.

2019 Ford Ranger with Rear Defroster Failure

Rear window defroster failed out of warranty. A visual inspection revealed a broken electrical tab on the glass.

Outcome: Ford SSM 48490 states terminals are not serviceable. The owner paid $800 for a full rear glass replacement.

Lesson: If a Ford defroster terminal detaches from the glass, prepare for an expensive full window replacement.

2012 Hyundai Elantra with Airbag Light

Airbag light illuminated. Owner suspected a clock spring failure.

Outcome: The dealer confirmed the clock spring failure and replaced it for free under Hyundai TSB 17-BE-004-1 (15-year warranty).

Lesson: Always check for extended warranties or TSBs on Hyundai/Kia clock springs before paying for repairs.

How to Prevent This Code From Triggering

• Maintain a Healthy Battery (Test annually after 3 years) — Prevents low-voltage conditions that trigger false error codes in sensitive SRS electronics.
• Protect Electrical Connectors (During any related repair) — Keeps airbag and defroster connectors clean and dry, preventing corrosion and shorts.
• Avoid Aggressive Steering Lock (Daily habit) — Reduces stress on the clock spring's internal ribbon cable at its extension limits.
• Clean Defroster Relay Box Area (Periodically) — Prevents moisture buildup and corrosion on relay terminals, ensuring solid connections.

Frequently Asked Questions

Is it safe to drive with code B1347?

If the airbag light is on, it is NOT safe because the driver's airbag will not deploy in an accident. If the code is for the rear defroster, it is mechanically safe to drive. However, reduced visibility in cold or wet weather increases accident risk.

I replaced the clock spring, but the B1347 code came back. What did I miss?

You likely overlooked the airbag connector itself. Double-check the yellow connector on the back of the airbag to ensure it is perfectly seated and the locking tab is fully engaged. A loose connector is the most common cause of a false 'resistance too low' fault.

Will the airbag light turn off by itself after I fix the problem?

If the fault was a temporary glitch or a loose connector, the light turns off after a few drive cycles. For hard faults, the code stores in the SRS module permanently. You must clear it with a compatible OBD-II scanner after completing the repair.

Can a dead or weak battery cause the B1347 airbag code?

Yes, the SRS control module is highly sensitive to voltage drops. A dying battery or a voltage drop during cranking causes the module to store false codes like B1347. Clear the code after replacing the battery to see if it returns.

What are the dangers of just clearing the airbag code without a repair?

Clearing the code does not fix the underlying hardware failure. The light returns immediately, and the airbag system remains disabled. Driving or selling a vehicle with a knowingly disabled safety system is extremely dangerous and carries severe legal liability.

Can I replace an airbag or clock spring myself?

Only certified professionals should replace airbag system components. The system contains explosive charges requiring strict safety procedures, including battery disconnection and capacitor discharge. Incorrect installation causes the airbag to fail during a crash or deploy unexpectedly, causing severe injury.

My defroster button light comes on but the window doesn't clear. Could it still be the B1347 relay issue?

Yes, the dashboard indicator light operates on a separate, low-power circuit from the high-power heating grid. The illuminated light confirms the switch works. The B1347 code indicates the high-power relay or the grid wiring itself has failed.

Key Takeaways

• Code B1347 indicates a critical driver's airbag failure in Hyundai, Kia, GM, and Mazda vehicles, but signals a minor rear defroster fault in Ford models.
• An illuminated airbag warning light means the entire SRS system is disabled, and the driver's airbag will not deploy in a collision.
• Save $200 to $400 on unnecessary clock spring replacements by first verifying the yellow electrical connector on the back of the airbag module is fully seated.
• A broken clock spring is the primary cause of airbag-related B1347 codes, definitively confirmed if your horn and steering wheel controls fail simultaneously.
• Fix Ford defroster B1347 codes by swapping the $20 heated backlite relay, unless a detached glass terminal requires a $500+ full rear window replacement.
