B1443 on 2015-2019 Lexus RC 350: Air Outlet Damper Servo Circuit Fault Guide

What's Unique About the 2015-2019 Lexus RC 350

The 2015-2019 Lexus RC 350, along with its platform siblings like the IS and GS, is known for HVAC servo motor failures. Lexus has acknowledged this pattern by issuing Technical Service Bulletins (TSBs) like L-SB-0001-21 and a Customer Support Program (20LE01) that cover a wide range of these servo motor circuit codes, including B1443. The issue is so common that experienced Lexus technicians are very familiar with the diagnosis and repair, which unfortunately is labor-intensive due to the part's location deep within the dashboard assembly.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airflow is stuck in one position (e.g., only comes out of the defroster vents).
• Inability to change where the air blows from (face, floor, defrost).
• Clicking, grinding, or buzzing noises from behind the dashboard when changing climate control modes or upon vehicle startup.

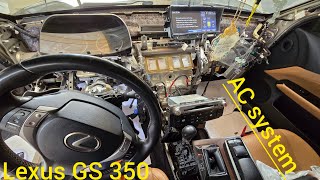

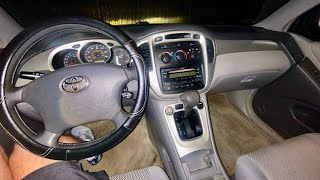

🎬 Watch: Identifying that clicking or grinding noise under your dash.
• Delayed response from the A/C system when the car is started, sometimes taking 30-45 seconds for controls to become active.
• The issue may be intermittent at first, sometimes correcting itself after restarting the car.

Most Likely Causes

1. Failed Air Outlet Damper Servo Motor 🔴 High Probability → Shop HVAC Mode Door Actuator This is a well-documented common failure part on this generation of Lexus vehicles, as acknowledged by multiple TSBs and a Customer Support Program (20LE01). The internal motor and plastic gears wear out over time. 🎬 See how to clean and potentially repair a faulty servo.
   How to confirm: Use a diagnostic scan tool with active test capabilities (like Toyota Techstream) to command the 'Air Outlet Damper' to move. If it makes grinding noises or fails to move while monitoring the live data for 'Target Pulse' vs 'Actual Pulse', the servo has failed. A history code for B1443 is also a strong confirmation.
   Typical fix: Replace the Air Outlet Damper Servo Motor. This is a labor-intensive repair requiring significant dashboard disassembly.
   Est. part cost: $180-$295
2. Wiring Harness or Connector Issue ⚪ Low Probability
   How to confirm: After accessing the servo motor, inspect its electrical connector and nearby wiring for any signs of damage, corrosion, or looseness. Test for power, ground, and signal continuity at the connector when the mode is changed, as per the repair manual diagnostic procedure. A resistance check of the harness should show below 1 Ω.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector itself.
   Est. part cost: $10-$50
3. Jammed Damper Door or Linkage ⚪ Low Probability In some cases, improper cabin air filter replacement can damage the HVAC linkages, causing a door to become stuck.
   How to confirm: During diagnosis, after removing the servo, attempt to move the damper door linkage by hand. It should move freely. If it is stuck, there is an internal obstruction.
   Typical fix: Free the obstruction or replace the broken linkage lever. TSB L-SB-0001-21 notes a specific lever (Part No. 87296-53010) may be needed during servo replacement.
   Est. part cost: $15-$30

Rare But Worth Checking

• Faulty A/C Amplifier (HVAC Control Module): → Shop HVAC Control This is rare. The module is the computer that controls all the servos. It should only be considered after the servo motor and wiring have been proven to be good. TSB L-SB-0001-21 and L-SB-0019-20 include a procedure to reprogram the A/C amplifier, which should be attempted before replacement.

Diagnosis Steps

1. Connect a diagnostic scanner capable of reading Lexus-specific Body (B) codes, such as Toyota Techstream.
2. Confirm B1443 is present as a current or history code.
3. Attempt to change the airflow mode using the control panel (Face, Floor, Defrost) and observe if the air direction changes. Listen for any clicking or grinding noises from the dash.
4. Use the scanner's 'Active Test' function to command the 'Air Outlet Damper' directly. Monitor the data list for 'Target Position' vs 'Actual Position' (or 'Target Pulse' vs 'Actual Pulse'). No movement or a large discrepancy confirms a fault in the circuit.
5. As a temporary diagnostic, some owners have reported that disconnecting the car's 12V battery for several minutes can reset the HVAC system and temporarily restore function, confirming a control glitch rather than a hard mechanical jam.
6. If the servo does not move, the next step is to gain access to it. This typically requires removing the glove box, various trim panels, and potentially the A/C amplifier to reach the servo.
7. Visually inspect the servo's connector and wiring for any obvious damage.
8. If power is present at the connector when commanding a mode change but the motor doesn't work, the servo is confirmed faulty and requires replacement.

Parts You'll Likely Need

• Air Outlet Damper Servo Motor (Damper Servo Sub-Assy, Air Conditioner Radiator, No.3) (OEM #87106-30540) — This is the component that fails and directly causes the B1443 code. It contains the motor and position sensor that wear out. The part number is confirmed across multiple dealer sites and TSBs for this application.
  Trusted brands: Lexus (OEM), Aisin
  OEM price range: $200-$295
  Aftermarket price range: $150-$220
• Heater Air Damper Control Lever (OEM #87296-53010) — The official Lexus TSB L-SB-0001-21 recommends this lever may also need to be replaced, as it can be a point of failure or get damaged during the repair.
  Trusted brands: Lexus (OEM)
  OEM price range: $15-$30

Related Codes That Often Appear With This One

• B1441 — This code is for the passenger-side air mix servo. It's common to see multiple servo motor codes together, as they are of the same design and age, and the TSBs from Lexus group them together.
• B1442 — This code is for the air inlet servo. Like B1441, its appearance with B1443 suggests a potential pattern of failure across the HVAC servo system.
• B1446 — This code is for the driver-side air mix servo. Seeing it with B1443 points to a common vulnerability in the HVAC servo motors used in this vehicle.

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0001-21 Rev: 'HVAC Servo Motor Malfunction', dated Feb 11, 2021. This is the primary TSB for this issue, covering 2013-2017 models including the RC350. It provides the definitive manufacturer procedure for diagnosing and repairing codes B1441, B1442, B1443, and others.
• L-SB-0019-20: Dated Apr 24, 2020, this TSB also lists B1443 among a host of other servo motor codes related to improper HVAC function for 2017-2019 models, indicating the problem continued in later years of the generation.

Platform-Specific Known Issues

• Lexus TSB L-SB-0001-21 Rev1: This Technical Service Bulletin, revised Feb 11, 2021, specifically lists B1443 and outlines the diagnostic procedure for HVAC servo malfunctions on the 2015-2017 RC 350 and related models. It includes steps for reprogramming the A/C amplifier and replacing the servo motors.
• Customer Support Program 20LE01: Lexus initiated this program for a large number of vehicles, including the 2015-2017 RC 350, to cover repairs for malfunctioning A/C servo motors. The primary coverage expired in January 2022, so this is no longer an option for a free repair for most owners, but its existence confirms the widespread nature of the problem.

Mechanic-Grade Diagnostic Values

• Servo Position Sensor Resistance — expected: 3.6 to 6.7 kΩ. Failure: A reading outside this range indicates a faulty position sensor within the servo motor.
• Wiring Harness Resistance — expected: Below 1 Ω. Failure: High resistance or an open circuit (OL) between the A/C amplifier and the servo connector indicates a wiring fault.
• Techstream Live Data: 'A/O DAMP POS' (Air Outlet Damper Position) — expected: FACE: -10.0%, FACE/FOOT: 12.0%, FOOT: 33.5% or 49.0%, FOOT/DEF: 69.0% or 95.0%. Failure: A fixed value (e.g., 50.0%) or a value that does not change when commanded indicates a fault.

Hidden / Shadow Codes Worth Checking

• 43 (on-board diagnostic): The built-in HVAC diagnostic mode can display two-digit codes. Code 43 corresponds to the full B1443 DTC, indicating an Air Outlet Damper Control Servomotor circuit malfunction. (see via Accessed by pressing and holding the 'AUTO' and 'Recirc' buttons while turning the ignition on, then reading the flashing codes from the temperature display.)

Scan Tool Commands That Help

• Toyota Techstream: Active Test: 'Air Outlet Damper' — To directly command the servo motor to move while observing its 'Target Pulse' vs 'Actual Pulse' in the Data List. A discrepancy confirms the fault.
• Toyota Techstream: Utility: 'Servo Motor Initialization' — This procedure should be performed after replacing a servo motor or disconnecting the battery to allow the A/C amplifier to relearn the end points of all servo motors. It can sometimes temporarily resolve intermittent issues.
• Toyota Techstream: ECU Reprogramming: Air Conditioning Amplifier — For 2017-2019 models covered by TSB L-SB-0019-20, if the DTC is present, the first step is to flash reprogram the A/C amplifier with an updated calibration file before replacing any parts.

Wiring & Ground Locations

• Air Outlet Damper Servo (No. 3) — Located behind the glove box assembly. Access requires removing the glove box and the A/C Amplifier module, which sits in front of the servo.. This is the physical component that needs to be accessed for testing and replacement. Its difficult-to-reach location is the primary reason for high labor costs.
• Servo Motor Connector — A blue connector that plugs directly into the Air Outlet Damper Servo motor.. This is the primary test point for checking power, ground, and signal wires from the A/C amplifier to the motor.

Real Owner Repair Stories

• Reddit user on r/LexusRC (2016 Lexus RC350) — Intermittent A/C and heat issues; sometimes blows air, sometimes doesn't. Can fix itself after turning the car off for a day or two.
  ❌ Tried (didn't work) Waiting for the issue to resolve on its own.
  ✅ What actually fixed it Disconnecting the 12V battery for 15 minutes 'fixed' the issue, at least temporarily, by resetting the HVAC control module. This suggests the fault was intermittent or a control glitch at that stage.
• ClubLexus user on IS forum (similar platform) (Lexus IS (3rd Gen)) — 30-45 second delay on startup before HVAC controls become active, B1443 code found with Techstream.
  ❌ Tried (didn't work) Clearing codes with Techstream after running the servo initialization procedure did not fix the fault.
  ✅ What actually fixed it The issue was temporarily resolved after running the initialization and cycling the A/C and heat. However, the user acknowledged the permanent fix required replacing the servo motor (87106-30540) and the control lever (87296-53010).

OEM Part Supersession History

• 87106-30540 → N/A — This is the current and original part number for the Air Outlet Damper Servo on this vehicle.
  Heads up: While this part number is correct for the B1443 fault, the HVAC unit contains several other servos that look similar but have different part numbers and functions. It is critical to order the specific part for the 'Air Outlet' or 'No. 3' position.

Model Year Variations Within This Range

• 2015-2017: These model years are primarily covered by TSB L-SB-0001-21 Rev1. The procedure focuses on diagnosis and replacement of the servo motor itself.
• 2017-2019: These model years are covered by TSB L-SB-0019-20. This bulletin introduces a key first step: flash reprogramming the A/C amplifier with a new calibration file. This software update may resolve the issue without requiring hardware replacement. If the code persists after the reflash, then servo replacement is necessary.
