B1446 on 2016-2017 Lexus IS200T: Driver's Air Mix Servo Failure Causes and Fixes

What's Unique About the 2016-2017 Lexus IS200T

The 3rd generation Lexus IS, including the IS200T, is known for issues with HVAC servo motors. Lexus has issued multiple Technical Service Bulletins (TSBs), such as L-SB-0001-21 Rev and L-SB-0019-20, that include code B1446, acknowledging a high failure rate across several models that share this platform, such as the IS, RC, and GS series. The problem is so common that Lexus initiated a Customer Support Program (CSP 20LE01) to extend warranty coverage for these specific parts, which may cover the repair free of charge. The failure is typically internal to the servo motor itself 🎬 Watch: How to clean and repair your Lexus HVAC servo motor., due to wear on internal contacts, rather than a simple gear or wiring problem.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Inability to control air temperature on the driver's side.
• Driver's side vents blowing only hot air, even when A/C is set to cold.
• Driver's side vents blowing only cold air, regardless of temperature setting.
• Uneven temperature between driver and passenger side vents.
• Clicking, ticking, or buzzing noise from behind the driver's side of the dashboard, especially when starting the car or changing temperature.

Most Likely Causes

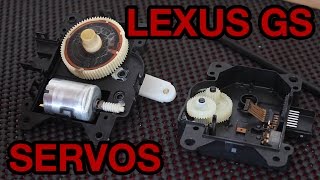

1. Failed Driver Side Lower Air Mix Servo Motor 🔴 High Probability These servo motors are a documented common failure item on this Lexus platform due to wear on internal electrical contacts and grease contamination, as acknowledged in multiple TSBs. A Customer Support Program was created specifically for this high-failure-rate part.
   How to confirm: Using a diagnostic tool like Toyota's Techstream, command the 'Air Mix Servo (D)' to move and watch the 'Air Mix Servo Actual Pulse (D)' data. If the value is stuck or doesn't match the target pulse, the motor has failed. A simpler method is to hold the 'AUTO' and 'Recirculate' buttons while starting the car to enter the HVAC diagnostic mode on the display.
   Typical fix: Replace the faulty servo motor. The part is located deep within the driver's side dashboard assembly. After replacement, a servo initialization procedure must be performed.
   Est. part cost: $170-$250

Rare But Worth Checking

• Wiring Harness or Connector Issue: A damaged wire or loose connector at the servo motor or the A/C amplifier can mimic a failed servo. This should be inspected before replacing expensive parts. The TSBs recommend checking the circuit before replacing the part.
• Faulty A/C Amplifier (HVAC Control Module): → Shop HVAC Control While rare, the control module that commands the servos can fail. A Reddit user on r/MechanicAdvice noted that for some 2017 models, an A/C amplifier re-flash (software update) by the dealer was the correct fix, not servo replacement. This is more likely if multiple servo codes appear simultaneously.
• Mechanical Obstruction: It's possible for the blend door or its linkage to become physically stuck, preventing the servo from moving. The service manual suggests confirming no mechanical lock is present before replacing the servo.

Diagnosis Steps

1. Verify the symptom: Adjust the driver's side temperature from LO to HI and check if the air from the lower (footwell) vents changes temperature. Listen for any clicking from the dash.
2. Scan for codes: Use an advanced OBD-II scanner capable of reading Body (B) codes to confirm B1446 is present. Alternatively, run the built-in HVAC diagnostic by holding the 'AUTO' and 'Recirculate' buttons while turning the car on.
3. Use diagnostic software (like Techstream): Access the HVAC data list. Command the driver's side air mix servo to move and monitor its actual position ('Actual Pulse') versus the target position ('Target Pulse'). If it doesn't move or the reading is stuck, the servo or its circuit is faulty.
4. Check for TSBs and CSPs: Contact a Lexus dealer with your VIN to see if your vehicle is covered under the Customer Support Program (20LE01) for A/C servo motors, which would provide a free repair.
5. Locate the servo: The B1446 servo is the 'Air Mix Servo (D)' and is located on the driver's side of the HVAC unit, deep behind the dashboard. TSB L-SB-0001-21 Rev provides diagrams showing its location.
6. Inspect wiring: Before replacing the servo, visually inspect its electrical connector and nearby wiring for any signs of damage or looseness.
7. Test the circuit: If tools are available, test for power, ground, and signal at the servo motor connector to rule out a wiring or A/C amplifier issue.
8. Replace the servo: If the servo is confirmed to be faulty, it must be replaced. This is labor-intensive due to its location, but can be done without full dashboard removal.
9. Perform Initialization: After replacing the servo or even just disconnecting the battery, it is critical to perform the 'Servo Motor Initialization' procedure using a scan tool to calibrate the new motor.

Parts You'll Likely Need

• Damper Servo Sub-Assembly, Air Conditioner Radiator, No. 5 (OEM #87106-30570) — This is the specific OEM part number for the driver's side lower air mix servo motor that triggers code B1446 on this vehicle. It is described as being for the 'Front Left Lower' position.
  Trusted brands: Lexus (Genuine OEM)
  OEM price range: $170-$250
  Aftermarket price range: $50-$120

Related Codes That Often Appear With This One

• B1441 — This is the code for the passenger side air mix servo. It's common for these servos to fail around the same time due to similar age and construction.
• B1443 — This code relates to the Air Outlet Damper Control Servo. Since these parts are of similar age and design, seeing multiple servo codes together is not uncommon.
• B1448 — This is the code for the Passenger Side Face Servo Motor. A user on ClubLexus with a 2017 RX350 reported having B1446 and B1448 appear simultaneously.

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0019-20: HVAC Servo Motor Malfunction (for 2017 models). Lists B1446 and applicable vehicles.
• L-SB-0001-21 Rev: HVAC Servo Motor Malfunction (for 2016-2017 models). Provides detailed diagnostic flowcharts, part numbers, and repair procedures.
• L-SB-0001-21: HVAC Servo Motor Malfunction (for 2016-2017 models). Original version of the above TSB.

Platform-Specific Known Issues

• Lexus TSB L-SB-0001-21 Rev and L-SB-0019-20 specifically list B1446 as a potential DTC for HVAC malfunctions on 2016-2017 IS200T models.
• A Customer Support Program (CSP 20LE01) was issued by Lexus for this generation due to the high failure rate of A/C servo motors. Owners should check with a dealer with their VIN to see if the repair is covered for free.
• TSB L-SB-0001-21 details a 'Servo Cleaning Process' that may be attempted by dealers using a special Techstream utility, but replacement is the more common and permanent fix.
• A Reddit user on r/MechanicAdvice reported that for some 2017 models, the issue was not the servo itself but the A/C amplifier software, which required a dealer reflash to fix.

Mechanic-Grade Diagnostic Values

• Techstream Live Data: 'Air Mix Servo Actual Pulse (D)' vs 'Air Mix Servo Targ Pulse (D)' — expected: The 'Actual Pulse' value should closely track the 'Target Pulse' value as the driver's temperature is changed. For LHD vehicles, the target pulse is approximately 92 at MAX COOL and 5-6 at MAX HOT.. Failure: The 'Actual Pulse' value does not change, is stuck at a fixed number (e.g., 255), or does not match the commanded 'Target Pulse' value.
• Servo Motor Bench Test (at motor terminals) — expected: Connect a 12V battery source to terminals 4 and 5 of the servo motor. The servo arm should move smoothly to one end of its travel (e.g., MAX HOT). Reversing the polarity should cause it to move smoothly to the other end (MAX COOL).. Failure: The servo arm does not move, moves erratically, or makes grinding noises when voltage is applied.

Hidden / Shadow Codes Worth Checking

• Two-digit codes (e.g., 46): The built-in HVAC diagnostic mode (activated by holding 'AUTO' and 'Recirculate' buttons on startup) can display two-digit codes on the climate screen. Code '46' corresponds to the B1446 DTC. (see via On-board HVAC diagnostic mode; not a true 'hidden' code but an alternative way to view faults without a scanner.)

Scan Tool Commands That Help

• Toyota Techstream: Servomotor Initialization — This utility, found under 'Body Electrical / Air Conditioner / Utility', recalibrates all HVAC servos. It is required after replacing a servo or disconnecting the battery and should be used as a first diagnostic step, as it can sometimes resolve the issue without part replacement.
• Toyota Techstream: Active Test — Allows the technician to directly command the servo motor to move while observing live data ('Actual Pulse') to confirm if the motor is physically responding to commands from the A/C amplifier.
• Toyota Techstream: AC Damper Servo Operation Check Tool (Servo Cleaning) — This is a special utility detailed in TSB L-SB-0001-21 that cycles the servos for 8-14 minutes to clean and redistribute internal grease. It may be attempted by a dealer before resorting to servo replacement.

Wiring & Ground Locations

• Air Mix Servo (D) Connector — On the servo motor body, located on the driver's side of the main HVAC unit, deep behind the dashboard above the accelerator pedal area. The connector is typically blue.. This is the direct electrical connection to the faulty component. A poor connection here will cause code B1446.
• Driver-Side Dash Access — To access the B1446 servo, the driver's side knee airbag assembly and the 'No. 1 Air Duct Sub-Assembly' must be removed.. This defines the primary labor involved in replacing the servo motor.
• Ground Point AG — Located on the right side of the passenger dash area.. While this specific ground was identified for the blower motor circuit, a poor ground connection for the HVAC system in this area could potentially cause erratic behavior in various components, including servo motors.
• Ground Point G08 — A general instrument panel ground located at the lower side of the left A-pillar harness fixer.. The A/C Amplifier and related controls are part of the instrument panel harness, and a fault at this ground point could cause widespread electrical issues.

Real Owner Repair Stories

• ClubLexus user (2007 Lexus LS460 (similar servo system)) — A/C resetting to 75 degrees, face vents not working correctly, recirc door stuck open.
  ❌ Tried (didn't work) Visual inspection, Monitoring live data which showed no response to commands.
  ✅ What actually fixed it Running the 'AC Servomotor Initialization' utility in Toyota Techstream fixed all symptoms without replacing any parts.
• Reddit user comment on r/MechanicAdvice (2017-era Lexus IS/RC/GS models) — HVAC servo codes (like B1441, B1453).
  ❌ Tried (didn't work) Replacing the servo motors.
  ✅ What actually fixed it The root cause was identified as a known issue with the A/C amplifier programming. The correct fix was to have a Lexus dealer flash a new calibration file (released around 2020) into the ECU, not replace the hardware.
• ClubLexus user (2016 Lexus GS350 (shared platform)) — Passenger side blowing warmer air than driver's side.
  ❌ Tried (didn't work) Considering immediate replacement of the servo.
  ✅ What actually fixed it A technician advised that re-initializing the servos with Techstream had a high success rate, often fixing the issue for weeks or months, and should be tried before replacement. The user also noted that repeated initializations unstuck a problematic servo.

When the Usual Fixes Don't Work

• While B1446 most often points to a failed servo motor, it is not the only cause. In a significant number of cases, particularly after a battery disconnect, the issue is a loss of calibration. Running the 'Servomotor Initialization' function in Toyota Techstream can restore function without replacing any parts. Furthermore, for 2017 models specifically, a known software glitch in the A/C Amplifier can trigger this code, and the correct repair is a dealer-performed software update (reflash), not a hardware replacement. Therefore, these software-based solutions should be explored before committing to a labor-intensive servo replacement.

OEM Part Supersession History

• 87106-30570 → No supersession found. — The original part number appears to be current.

Model Year Variations Within This Range

• 2017: For some 2017 models, the root cause of servo-related codes like B1446 may be a software issue in the A/C Amplifier, not a hardware failure. A dealer reflash with an updated calibration file (available since 2020) is the specified fix, whereas earlier models more commonly required servo replacement.
