B1447 on 2009-2010 Saturn VUE: OnStar Backup Battery Failure Causes and Fixes

What's Unique About the 2009-2010 Saturn VUE

Unlike other manufacturers where B1447 might point to HVAC or airbag sensors, on this GM platform, it is specifically tied to the OnStar system. GM Technical Service Bulletins (TSBs) directly link this code to the failure of the OnStar backup battery. The system is designed to self-diagnose the battery's health, and this code is the primary indicator that the battery has reached the end of its service life. The OnStar module in this vehicle is often referred to as the VCIM.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Red LED light on the OnStar button panel.
• "Service OnStar" message on the driver information center (DIC)
• Inability to use any OnStar services.

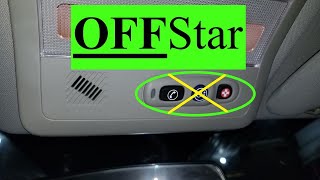

🎬 Learn how to completely disable or remove the OnStar system
• DTC B1447 stored in the OnStar/VCIM module.
• Inability for the OnStar system to place a call in the event of a main battery disconnect during a collision.

Most Likely Causes

1. Failed OnStar Backup Battery 🔴 High Probability → Shop Vehicle Battery The backup battery is a non-rechargeable lithium battery with a finite lifespan, typically 3-5 years. Vehicles from 2009-2010 are well past the point where the original battery would be expected to fail. The battery is designed to be used once in an emergency and is not meant to be recharged.
   How to confirm: The presence of code B1447 combined with a red OnStar LED is the primary confirmation. A scan tool that can read Body (B) codes is required to retrieve the code from the VCIM. B1447 specifically sets when the VCIM detects an open circuit or no voltage from the backup battery.

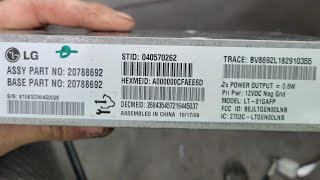

   Typical fix: Replace the OnStar backup battery. This requires accessing the OnStar module (VCIM), opening it, and replacing the internal battery. A video for a 2009 Saturn Vue shows the VCIM located under the rear passenger seat, accessible by lifting the cargo area floor and foam insert. 🎬 Watch: How to access and remove the OnStar module
   Est. part cost: $15-$40

Rare But Worth Checking

• OnStar Module Configuration Issue: → Shop Telematics Interface Module According to TSB PIC5141A and PIT5463B, this code can appear after replacing the OnStar module or performing a 'Canada upgrade.' This is not a part failure but a software/configuration problem that requires dealer intervention with GM Technical Assistance.
• Faulty OnStar Module (VCIM): → Shop Telematics Interface Module While less common than a simple battery failure, the charging/monitoring circuit within the OnStar module itself could fail, causing it to incorrectly report a bad battery. This would typically require replacing the entire OnStar module, which must be programmed by a dealer.
• Improper Service Procedure: Disconnecting the main vehicle battery or the OnStar fuse while the ignition is on or Retained Accessory Power (RAP) is active can trigger the backup battery. Once activated, it will completely discharge and be permanently ruined, as it is not rechargeable. This will set a B1447 code.

Diagnosis Steps

1. Verify the symptom: Check if the OnStar indicator light is red.
2. Scan for codes: Use a scan tool capable of reading Body (B) codes from the OnStar/VCIM module to confirm B1447 is present.
3. Heed the TSB warning: Per TSB PIC4541F, DO NOT disconnect the main vehicle battery or remove the OnStar fuse with the ignition in any position other than 'Off'. Allow Retained Accessory Power (RAP) to time out first (usually by opening the driver's door).
4. Locate the OnStar Module (VCIM): In the 2009 Saturn VUE, a repair video shows the VCIM located under the rear passenger-side seat. Access is gained by lifting the rear cargo floor panel and the underlying foam spare tire cover.
5. Access and replace the backup battery: The module is held by three 10mm bolts. 🎬 See this walkthrough for removing the backup battery After removing the module, the battery can be disconnected and replaced.
6. Clear codes: After replacement, use a scan tool to clear the B1447 code.
7. Verify the fix: Turn on the ignition and check that the OnStar indicator light turns green after its initial self-check. This may require a key cycle or a short drive.

Parts You'll Likely Need

• OnStar Backup Battery (OEM #25796753 (battery only, may be discontinued), 22739970 (module with battery)) — This is the direct cause of the trouble code, having reached the end of its service life. The battery is a non-rechargeable lithium unit.
  Trusted brands: ACDelco, Dorman, Aftermarket replacements are common and widely available on sites like eBay.
  OEM price range: $20-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• B1446 — This code is also related to the OnStar backup battery circuit, specifically for 'Voltage Below Minimum Threshold'. TSBs PIC4541F and PIC5141A mention that B1446 and B1447 often appear for the same underlying issue of a failed backup battery.

Technical Service Bulletins (TSBs) & Recalls

• PIC4541F: Provides a diagnostic tip for OnStar backup battery failure causing DTC B1446 or B1447 and a red OnStar LED. Warns against improper power disconnection, as the backup battery is not rechargeable and will be permanently damaged if activated during service.
• PIC5141A: Notes that DTCs B1446 or B1447 may appear after module replacement or a 'Canada upgrade,' requiring a call to GM Technical Assistance Center.
• PIT5463B: Corroborates that code B1447 can appear after a 'Canada Upgrade' and instructs technicians to install a new backup battery.

Platform-Specific Known Issues

• A related Customer Satisfaction Program (Bulletin #14648) was issued for some 2009 Saturn VUEs for an OnStar module issue that could cause the main vehicle battery to drain. While not the same as the B1447 code's cause, it highlights the platform's known issues with the OnStar system from this era.
• VCIM Location: Unlike many other GM vehicles where the VCIM is behind the glove box, in the 2009 Saturn VUE it is located under the rear passenger seat, making access relatively straightforward through the cargo area.

Hidden / Shadow Codes Worth Checking

• B1447 04: Backup Power Source Open Circuit. This is the most common symptom byte and indicates the VCIM detects a complete open circuit or no voltage from the backup battery, which is typical of an internally failed battery. (see via GM Tech2 or GDS2 Scan Tool)
• B1447 07: Backup Power Source Component Protection Timeout Voltage Above Threshold. A less common variant that can point to a voltage regulation or monitoring issue within the VCIM itself. (see via GM Tech2 or GDS2 Scan Tool)

Scan Tool Commands That Help

• Tech 2: VCIM Setup — After replacing the Vehicle Communication Interface Module (VCIM), this function is used to configure the new module to the vehicle. The path is typically: Body > Vehicle Comm. Interface Module > Special Functions > VCIM Setup.
• Tech 2: Request VCIM Info for SPS — This function is used to retrieve module information required for the Service Programming System (SPS) when an update or programming event is needed. The path is typically: Body and Accessories > Cellular Communication > Special Functions > Vehicle Comm. Interface Module > Request VCIM Info for SPS.

Wiring & Ground Locations

• G401 — Under the left side of the luggage compartment.. The OnStar module (VCIM) is located under the rear passenger seat, which is adjacent to the luggage compartment. A poor ground at G401 could potentially cause communication or power issues for modules in that vicinity, including the VCIM.
• OnStar Fuse — In the passenger side interior fuse box, located in the footwell. A video for the 2009 Vue identifies a 10A fuse for OnStar.. This fuse provides primary power to the VCIM. TSBs warn not to remove this fuse while the ignition or Retained Accessory Power (RAP) is active, as it will trigger and destroy the non-rechargeable backup battery.

Real Owner Repair Stories

• YouTube channel 'Mongo Fix' (2009 Saturn Vue) — Owner wanted to disable the OnStar system, which is a common action for owners who do not subscribe and have a red light due to a failed backup battery (DTC B1447).
  ❌ Tried (didn't work) The video notes that simply pulling the OnStar fuse can have unintended consequences. In the demonstration, pulling the 10A OnStar fuse also disabled the instrument gauge cluster, indicating it's not a viable method for disabling the system.
  ✅ What actually fixed it The video demonstrates the correct procedure for accessing and removing/replacing the OnStar module and its backup battery. The VCIM was located under the rear passenger seat, held by three 10mm bolts. The battery was a 16.5 volt lithium unit attached to the module. The video successfully shows the removal of the module and battery.

OEM Part Supersession History

• Unknown → Unknown — The specific part number for the battery alone is not consistently documented as a standalone GM part. It is often included with the VCIM module (e.g., 22739970) or replaced with an aftermarket equivalent. The previously cited number, 25796753, is incorrect and refers to an audio amplifier.
  Heads up: Aftermarket batteries are widely available, but must match the voltage (e.g., 16.5V) and connector of the original.
