B1453 on 2015-2019 Lexus RC F: Driver Side A/C Servo Motor Failure and Fixes

What's Unique About the 2015-2019 Lexus RC F

The Lexus RC platform, which includes the RC F, is known for widespread issues with its HVAC servo motors. The problem was so common that Lexus issued Technical Service Bulletins (like L-SB-0001-21 Rev and L-SB-0019-20) and a Customer Support Program (CSP 20LE01, also known as ZLE) for this specific failure on many models. The CSP covered approximately 328,700 vehicles, including 4,660 model year 2015-2017 RC Fs, due to an acknowledged "internal electrical malfunction" within the servo motors. The failure is almost always due to the motor itself, often from contaminated internal grease or worn contacts, rather than a more complex electronic issue. The RC F uses the same servo part number for this function as many other affected Lexus models from the same era, including the IS and GS series.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Incorrect air temperature from the driver's side vents (e.g., blowing warm or hot air when the A/C is set to cold).
• Inability to adjust the temperature for the driver's side.
• Clicking, grinding, or whirring noises from the driver's side of the dashboard when changing temperature settings or during startup.
• Uneven temperature between the driver and passenger side vents.
• Airflow stuck in one mode (e.g., defrost), even if other codes are not present.

Most Likely Causes

1. Failed Driver Side Cool Air Mix Servo Motor 🔴 High Probability This is a well-documented, common failure point across many Lexus models of this era, including the RC platform, acknowledged by multiple TSBs and Customer Support Program 20LE01. The motors are known to develop internal electrical faults, sometimes due to contaminated conductive grease on the internal potentiometer.
   How to confirm: Use a diagnostic scan tool like Toyota's Techstream to command the 'Driver Side Cool A/M Servo' to move. Observe if the 'Actual Pulse' value on the live data screen changes to match the 'Target Pulse'. A large, persistent discrepancy or a static 'Actual Pulse' value confirms the motor is faulty. The servo for B1453 often has a blue electrical connector and is located high up in the driver's footwell.
   Typical fix: Replace the faulty servo motor. After replacement, the HVAC system should be re-initialized using a scan tool or by disconnecting the battery for 15-30 minutes. Some owners have had success cleaning the servo's internal contacts as a temporary fix, but replacement is the permanent solution. 🎬 See how to open and clean the internal servo contacts.
   Est. part cost: $150-$250
2. Damaged Wiring or Loose Connector ⚪ Low Probability
   How to confirm: While accessing the servo motor, visually inspect its electrical connector and the nearby wiring for any signs of damage, corrosion, or looseness. Use a multimeter to check for power and ground at the connector when the system is commanded to operate.
   Typical fix: Repair the damaged wire or re-secure the connector.
   Est. part cost: $0-$25
3. A/C Amplifier Software Issue ⚪ Low Probability TSBs L-SB-0001-21 and L-SB-0019-20 mention that flash reprogramming the A/C amplifier is a required step in the diagnostic and repair process, suggesting software can be a factor.
   How to confirm: This is typically confirmed at a dealership. If a servo initialization via Techstream temporarily fixes the issue, it points towards a logic or control problem that a software update might address.
   Typical fix: Flash the A/C amplifier with the latest calibration file using Techstream. This is often done in conjunction with servo replacement. One owner reported a dealer reprogram fixed their issue without needing a new servo.
   Est. part cost: $0 (if under warranty/CSP) - $200

Rare But Worth Checking

• Faulty A/C Amplifier (Climate Control ECU): This is the computer that controls all the servo motors. It is a very rare failure and should only be considered after the servo motor and wiring have been definitively ruled out.

Diagnosis Steps

1. Confirm the symptom: Set the A/C to its coldest temperature and verify that the air from the driver's side vents is warmer than the passenger's side.
2. Scan for codes: Use an OBD-II scanner capable of reading Lexus-specific Body (B) codes to confirm B1453 is active.
3. Use a bi-directional scan tool (like Techstream): Access the HVAC live data. Command the 'Driver Side Cool A/M Servo' to move from hot to cold and observe the 'Target Pulse' vs. 'Actual Pulse' data. A failure to respond or a large discrepancy indicates a bad servo.

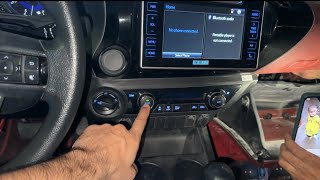

4. Perform Servo Initialization: Using the scan tool's utility menu, run the 'Servo Motor Initialization' function. Sometimes this can temporarily restore function, confirming a faulty servo. 🎬 Watch a demonstration of the HVAC servo motor calibration. If the problem returns, replacement is needed.
5. Listen for noise: Change the driver's temperature setting from max hot to max cold and listen for clicking or grinding from the driver's side footwell area.
6. Access the servo: Following the service manual, remove the driver's side lower dash panels and knee airbag assembly to gain access to the servo motors. The B1453 servo is typically located above the gas pedal area, high up in the assembly, and may have a blue connector.
7. Inspect and test: Visually inspect the connector and wiring. If possible, test for power and ground at the connector when the temperature is changed.
8. Replace the servo: If the servo is confirmed to be faulty, replace it. A small ratchet with a Phillips bit is considered essential for removing the mounting screws in the tight space. Before installing the new servo, align the flat part of the HVAC unit's protruding shaft with the mark on the plastic housing.

Parts You'll Likely Need

• Damper Servo Sub-Assembly, Air Conditioner Radiator, No. 2 (OEM #87106-30610) — This is the specific servo motor that controls the driver's side cool air mix. It is the most common point of failure for code B1453 on this platform. Some sources indicate this part may be discontinued, so verifying stock with a dealer is recommended.
  Trusted brands: Lexus (OEM), Aisin, Genuine
  OEM price range: $180-$260
  Aftermarket price range: $120-$180

Related Codes That Often Appear With This One

• B1454 — This is the code for the passenger side equivalent, the 'Passenger Side Air Outlet Damper COOL Control Servo Motor Circuit'. These servos are often identical parts and can fail around the same time.
• B1443, B1446, B1455 — These are codes for other servo motors located in the same HVAC unit. A systemic issue or age can cause multiple servos to fail and log codes simultaneously. TSBs list a wide range of servo codes from B1441 to B1458 as being related to this common issue.

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0001-21 Rev: HVAC Servo Motor Malfunction - Confirms B1453 as 'Driver Side Air Outlet Damper COOL Control Servo Motor Circuit' and provides repair procedures, including software reprogramming and servo replacement, for 2015-2017 RC F models.
• L-SB-0019-20: HVAC Servo Motor Malfunction - Covers 2017-2019 RC F models, also listing B1453 as a known DTC for this issue and specifying that a software update for the A/C amplifier should be performed.

Platform-Specific Known Issues

• Lexus issued TSB L-SB-0001-21 Rev and L-SB-0019-20 which directly address failures of HVAC servo motors, including the one that causes code B1453, across a wide range of models including the RC F.
• A Customer Support Program (CSP 20LE01, also known as ZLE) was initiated for 2015-2017 RC F models (among 328,700 other vehicles) to extend the warranty for this specific issue due to the high failure rate of the servos' internal electronics. Owners on forums have confirmed getting repairs for free under this program, though sometimes a diagnostic fee is required if the servo is not the confirmed cause.

Mechanic-Grade Diagnostic Values

• Techstream Live Data: 'Cool A/M Servo Pulse (D)' — expected: The 'Actual Pulse' value should closely track the 'Target Pulse' value as the temperature setting is changed. The pulse range is typically between 0 and 255.. Failure: The 'Actual Pulse' value is static, does not change when commanded, or shows a large, persistent discrepancy from the 'Target Pulse'.
• Servo Motor Resistance — expected: N/A. Failure: According to the service manual, the servo motor cannot be inspected with a multimeter while removed from the vehicle. Diagnosis must be performed using a scan tool's active test and live data functions.

Hidden / Shadow Codes Worth Checking

• B1497 / B149A: These codes indicate a LIN bus communication error between the A/C amplifier and the servo motors. (see via A professional scan tool like Toyota's Techstream. If one of these codes is present alongside B1453, it may point to a broader communication or wiring issue rather than an isolated servo failure.)

Scan Tool Commands That Help

• Techstream: Servomotor Initialization — This utility, found under Body -> Air Conditioner -> Utility, forces the A/C amplifier to relearn the position of all servo motors. It is required after replacing a servo motor or disconnecting the battery. It can also be used as a diagnostic step; if initialization temporarily restores function, it confirms a problem with the servo that was 'stuck'.
• Techstream: Active Test — This function, found under Body -> Air Conditioner -> Active Test, allows a technician to directly command a specific servo motor (e.g., 'Cool Air Bypass Pulse Driver side') to move, while observing its 'Actual Pulse' in the Data List. This is the definitive way to confirm if a servo is non-responsive.

Wiring & Ground Locations

• Servo Motor Connector — On the servo motor itself, located high in the driver's side footwell, often above the accelerator pedal.. The servo motor responsible for code B1453 is consistently identified by owners and technicians as having a blue electrical connector. This helps physically differentiate it from other nearby servos with different colored connectors (e.g., brown, red).

Real Owner Repair Stories

• Reddit user on r/LexusIS (Lexus IS (shares platform, part number, and issue with RC F)) — DTC B1453 was stored, causing incorrect A/C temperature.
  ❌ Tried (didn't work) Not specified, user went straight to replacement.
  ✅ What actually fixed it The user replaced the servo motor (part #87106-30610) themselves. A critical tip was to remove the two screws holding the servo to its mounting bracket, rather than trying to remove the entire bracket from the A/C unit, which is much harder. After replacement, they aligned the new servo with a mark on the A/C housing and performed a re-initialization. They noted a small ratchet with a Phillips bit was an essential, non-negotiable tool for the tight space.

OEM Part Supersession History

• 87106-30530 → 87106-30610 — Part revision by the manufacturer. TSB L-SB-0001-21 lists both part numbers as applicable for the B1453 repair, indicating the change occurred during the vehicle's production run.
  Heads up: The newer part 87106-30610 is the correct replacement. Some OEM parts suppliers have now listed 87106-30610 as discontinued, meaning remaining stock is finite. Verify availability before starting the repair.

Model Year Variations Within This Range

• 2015-2017 vs. 2017-2019: Lexus issued two separate TSBs for this issue: L-SB-0001-21 for 2015-2017 models and L-SB-0019-20 for 2017-2019 models. While the root cause (servo failure) is the same, this implies there may be different software calibration updates for the A/C amplifier depending on the vehicle's production year. The physical servo part is the same across the range.
