OBD-II Code B1773: Passenger Seat Belt Tension Sensor Circuit Malfunction

What Does B1773 Mean?

B1773 means the Sensing and Diagnostic Module (SDM) detected an electrical fault in the passenger seat belt tension sensor circuit. This sensor helps the Occupant Classification System (OCS) determine airbag deployment force based on occupant size and belt tension. When active, the airbag warning light illuminates and the passenger-side front and knee airbags are disabled.

Technical definition: The formal definition is "Passenger Seat Belt Tension Sensor Circuit Malfunction". This indicates the Occupant Classification ECU detected an open, short to ground, or short to power within the sensor circuit for a continuous duration of 2 seconds or more.

Can I Drive With B1773?

⚠️Yes, But With Caution. The vehicle remains drivable, but the airbag system is critically compromised. With this fault active, the passenger-side airbags will not deploy in a frontal collision. The lack of a supplemental airbag significantly increases the risk of severe head, neck, and chest injuries to a passenger. The cost of potential injury far outweighs the cost of immediate repair.

Common Causes

• Broken wiring harness under the passenger seat (Very Common) — The wiring harness running under the passenger seat is highly susceptible to damage. Items pushed under the seat, or the back-and-forth movement of the seat over time, stretches and breaks the wires inside their insulation. This creates an invisible open circuit and is the leading cause of this code in Toyota and Lexus models.
🎬 Watch: The right way to repair damaged airbag wiring harnesses.
• Loose or corroded electrical connector (Common) — The primary yellow SRS connector under the seat becomes loose, unplugged by debris, or develops corrosion on its pins, leading to an intermittent or total loss of connection.
• Faulty seat belt tension sensor (Common) — The sensor measuring tension on the seat belt webbing fails internally. Because it is integrated into the seat belt anchor or retractor assembly, the entire seat belt unit requires replacement.
• Faulty Occupant Classification System (OCS) ECU (Less Common) — The control module interpreting data from the tension sensor fails. This is typically considered only after ruling out wiring or sensor issues.
• Spilled liquids or moisture intrusion (Uncommon) — Spilled drinks or water from a floor leak seep into the Occupant Classification ECU located under the passenger seat, corroding the circuit board.
• Previous improper repair (Uncommon) — After a collision repair or interior detailing, a technician fails to reconnect the sensor harness securely or improperly splices a damaged wire, creating a high-resistance connection.

Symptoms

• Airbag warning light is on — The SRS (Supplemental Restraint System) warning light on the dashboard illuminates continuously.
• Passenger airbag 'OFF' light remains lit — The indicator light showing the passenger airbag is deactivated stays on, even when an adult is properly seated.
• Intermittent warning light — The airbag light turns on and off as the passenger seat moves or the vehicle hits bumps, indicating a broken wire making and losing connection.
• Restraint system warning message — The instrument cluster displays a specific message such as 'Check Airbag System' or 'SRS Malfunction'.
• Code stored in memory (scan-tool only — no driver-felt sign) — The B1773 fault code is stored in the SRS control module's history, readable only with an SRS-capable OBD-II scanner.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repairing wiring harness under the passenger seat — Parts: $10-$50, Labor: $150-$350, ~2.0 hr book time (Intermediate)
• Securing or cleaning the electrical connector — Parts: $0-$20, Labor: $50-$125, ~0.8 hr book time (DIY)
• Replacing the seat belt tensioner/retractor assembly — Parts: $200-$450, Labor: $150-$300, ~1.5 hr book time (Professional)
• Replacing the Occupant Classification System (OCS) ECU — Parts: $400-$800, Labor: $200-$400, ~1.2 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Never. Due to the critical safety nature of the seat belt tensioner assembly, using a used part is strongly discouraged and illegal in some jurisdictions.

Donor quality checklist:

• Do not use salvaged or used seat belt assemblies or related SRS sensors.
• The risk of installing a faulty or previously deployed part is too high.

Decision logic:

• If The fault requires a new sensor → Always buy a new, genuine OEM seat belt assembly. Do not consider used or aftermarket alternatives.

Warranty tradeoff: Used SRS components carry no warranty and immense liability. A new OEM part installed by a certified shop includes a parts and labor warranty.

Worst-case if a used part fails: Catastrophic. If the replacement part fails in a collision, the cost is measured in severe injury or loss of life.

What Happens If You Wait — Timeline

1. 0-3 months: Intermittent Fault: The airbag light flickers on and off, triggered by seat movement. A wire has a partial break. The passenger airbag is unreliable. (MPG impact: 0%% · Added cost: $0)
2. 3-6 months: Hard Fault: The wire breaks completely. The airbag warning light stays on permanently, and the passenger airbag system is definitively disabled. (MPG impact: 0%% · Added cost: $0 (Safety risk is constant))
3. 6+ months: Catastrophic Risk & Liability: The safety system remains disabled indefinitely. The vehicle owner faces significant civil liability if a passenger is injured in an accident. (MPG impact: 0%% · Added cost: Immeasurable liability risk)

Cost of Not Fixing It

• Immediate: Passenger-side front and knee airbags are disabled. In a frontal collision, a passenger's risk of severe or fatal injury is significantly increased. (Added cost: N/A (Safety Risk))
• 0-6 months: The vehicle fails state safety inspections in jurisdictions requiring functional airbag systems. (Added cost: Potential fines or inability to register vehicle.)
• 6+ months: Extreme liability risk for the vehicle owner if a passenger is injured in an accident while operating a vehicle with a known disabled safety system. (Added cost: Potential for civil liability.)

Diagnosis Steps

1. Read the Fault Codes
   Use an OBD-II scanner with SRS capabilities to confirm B1773 is active. Note any accompanying codes, such as B1776, which points specifically to a power circuit issue within the same harness.
   Tools: OBD-II Scanner (with SRS capability) (Beginner)
2. Check for Technical Service Bulletins (TSBs) and Recalls
   Search your VIN for open recalls. Toyota issued safety recall 18V887000 for the wiring harness issue on 2008-2019 Land Cruiser and Lexus LX 570 models. Checking this first saves hours of diagnostic time.
   Tools: Internet access, VIN (Beginner)
3. Visually Inspect Under the Passenger Seat
   Use a flashlight to inspect the area under the front passenger seat. Remove foreign objects pinching wires. Trace the yellow wiring harness for obvious signs of stretching, chafing, or broken wires.
   Tools: Flashlight (Beginner)
4. Inspect and Clean the Connector
   Disconnect the battery and wait 15 minutes for the SRS system to discharge. Disconnect the yellow seat belt tension sensor connector. Inspect the pins for corrosion or damage. Apply electrical contact cleaner, re-seat firmly, reconnect the battery, and check if the code clears.
   Tools: Socket set, electrical contact cleaner (Intermediate)
5. Perform a 'Wiggle Test' with Live Data
   Using a scanner supporting SRS live data, monitor the resistance value of the passenger belt tension sensor. Wiggle the wiring harness under the seat. If the reading fluctuates wildly or drops to zero, you have an intermittent open or short in that harness section.
   Tools: OBD-II Scanner with Live Data (Advanced)
6. Test the Sensor's Internal Resistance
   With the battery disconnected and sensor unplugged, set a multimeter to Ohms (Ω). A good tension sensor reads between 2.0 and 3.0 ohms. A reading of OL (Open Loop) or near-zero ohms indicates internal failure, requiring replacement of the seat belt assembly.
   Tools: Digital Multimeter (Advanced)
7. Advanced Circuit Test (Continuity and Shorts)
   With the battery disconnected and both the sensor and control module unplugged, test the harness. Test for less than 1.0 ohm of resistance between corresponding terminals (continuity). Test for infinite resistance between each wire and a chassis ground (short to ground).
   Tools: Digital Multimeter, Vehicle-specific wiring diagram (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• System State: Key-On, Engine Off or Running (The SRS module performs a self-test every time the ignition is turned on.)
• Fault Type: Open or Short Circuit (The module continuously monitors electrical resistance. The code sets if resistance goes out of range (infinite for an open, near-zero for a short).)
• Time to Trigger: Approx. 2-5 seconds (The fault must be present continuously for a few seconds during the self-test cycle before the code logs.)

Related Codes

• B1776 — Indicates a 'Seat Belt Tension Sensor Power Source Circuit Malfunction'. A broken power wire in the harness triggers both B1773 and B1776 simultaneously.
• B1650 — A general code for an 'Occupant Classification System Malfunction.' Toyota/Lexus manuals instruct technicians to diagnose specific codes like B1773 first, as they trigger the generic B1650.
• C3373 — On GM vehicles like the Pontiac Vibe, C3373 points to the exact same passenger seat belt tensioner fault as B1773.

Climate & Environmental Factors

• Cold Climates: Low temperatures cause wire insulation to become stiff and brittle. Normal seat movement then cracks the insulation, exposing or breaking the copper wire.
• Humid/Wet Climates: High humidity or floor leaks accelerate corrosion on the electrical connector pins, increasing electrical resistance and triggering the circuit fault.

How to Talk to a Mechanic About This Code

Say this: "I have an airbag light on and my scanner shows code B1773 for the passenger seat belt tension sensor. Since the most common cause is a broken wire under the seat, can you start by testing the wiring harness for continuity before quoting a full seat belt assembly replacement?"

This signals you understand the common failure point. It directs the technician to perform a cost-effective diagnostic step first, preventing them from immediately defaulting to an expensive assembly replacement.

Avoid saying:

• 'My airbag light is on, can you fix it?' (Too vague, invites a high quote)
• 'I think I need a new seat belt.' (Suggests a more expensive repair than necessary)

Questions to ask before authorizing the repair:

• Did you perform a 'wiggle test' on the under-seat harness while monitoring live data?
• What was the resistance reading of the sensor itself? Was it open (OL) or within the 2-3 ohm spec?
• Is the fault a broken wire or a failed sensor? Can you show me the damaged wire?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under the 5yr/60k mile SRS warranty., Vehicles covered by a specific recall for this issue (e.g., Toyota Land Cruiser/Lexus LX 570).
  Downsides: Significantly higher labor rates., More likely to recommend replacing the entire seat belt assembly as a policy, even if only a wire is broken. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most out-of-warranty cases. An experienced independent technician diagnoses and repairs the common under-seat wiring issue for a fraction of the dealer's replacement cost.
  Best for: Out-of-warranty vehicles where the cause is likely the common wiring failure., Cost-conscious owners, as they are more willing to perform a wiring repair instead of a full component replacement.
  Downsides: Quality and experience with SRS systems varies; look for shops with ASE-certified technicians. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for repair. They are generally not equipped for safety-critical SRS repairs requiring specialized knowledge.
  Best for: Reading the initial code for free.
  Downsides: Technician skill with complex electrical and SRS diagnostics is highly variable., Often lack authorization to work on SRS components beyond reading codes. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value, consider selling the vehicle. However, the non-negotiable safety aspect of this code heavily favors repair.

• Car worth $5000, fix is $800: Fix it. The repair cost is a small fraction of the car's value and restores a critical safety system.
• Car worth $3000, fix is $2200: Walk away. The repair cost is nearly the entire value of the car.

What Scan Tool You Need for This Code

Minimum: A scanner that reads and clears 'B' (Body) and 'SRS' (Supplemental Restraint System) codes. A basic engine code reader ('P' codes) will NOT work.

A standard $20 scanner cannot communicate with the SRS module. It shows 'no codes' even when the airbag light is on. You need a tool specifically advertised with SRS/Airbag diagnostic capability.

Budget: Autel AutoLink AL619 (~$80) — Reads and clears engine, ABS, and SRS codes for most major vehicle brands. Retrieves the B1773 code and clears it after repair.

Mid-range: BlueDriver Pro (~$120) — Provides SRS code reading/clearing and live data streaming via a smartphone app. Live data is essential for performing a 'wiggle test' to confirm an intermittent broken wire.

Professional: Foxwell NT510 Elite / Autel MaxiCOM MK808 (~$200-500) — Offers bi-directional control and access to manufacturer-specific data. Required for calibrating a new OCS module if that turns out to be the failure.

Rent vs buy: To diagnose properly with live data or clear the code after repair, you must own or borrow an SRS-capable scanner. Given the sub-$100 price of capable tools, buying one is the most practical choice.

How to Clear the Code After You Fix It

1. Ensure the physical fault (wiring, sensor) is repaired.
2. Reconnect the battery.
3. Use an SRS-capable OBD-II scan tool to clear the stored B1773 code.
4. Turn the ignition off, wait 15 seconds, then turn the ignition back on.
5. Observe the airbag warning light. It illuminates for 7 seconds for a self-check and turns off if the repair was successful.

Drive cycle (~5 minutes): SRS codes do not require a complex drive cycle. The system self-tests at every key-on. A short 5-minute drive confirms the light does not return intermittently.

Readiness monitors affected: None. This is an SRS code and does not affect emissions readiness monitors.

Watch out for:

• Using a basic OBD-II scanner that only reads 'P' (Powertrain) codes cannot clear 'B' (Body) codes like B1773.
• Disconnecting the battery does not clear the airbag light. The fault is stored in non-volatile memory and requires a scan tool.
• If the physical repair fails, the code reappears immediately upon the next key-on self-test.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: An illuminated airbag light is not part of the Smog Check inspection, but it is a critical safety failure.
• New York: An illuminated airbag warning light is an advisement, not an automatic failure for the annual safety inspection, though inspectors must note it.
• Texas: The airbag warning light is NOT an item on the Texas vehicle safety inspection checklist. A vehicle passes inspection with the light on.

Most Commonly Affected Vehicles

• Toyota LX 570 (as Lexus) (2008-2019) — Subject to NHTSA Safety Recall 18V887000. The wiring harness breaks from the stress of normal seat belt use, causing an open circuit and setting codes B1773 and B1776.
• Toyota Tacoma (2008-2015) — Commonly traces to the under-seat wiring, consistent with other Toyota models of this era.
• Lexus ES, IS, LS (2007-2012) — Prone to fragile wires in the harness under the passenger seat breaking internally.
• Pontiac Vibe (2009-2010) — As a joint GM/Toyota vehicle, the Vibe exhibits the same fault. GM TSB 19-NA-204 instructs technicians finding code C3373 to follow the B1773 diagnostic procedure.
• Ford F-150, Explorer (2004-2018) — CRITICAL: On Ford vehicles, B1773 means 'Mirror Driver Up Circuit Failure'. It relates to the power mirror adjustment motor, not the airbag system.
• Hyundai Sonata, Elantra (2011-2022) — CRITICAL: Many Hyundai models use B1773 to indicate a fault in the power mirror circuit, not the seat belt sensor.
• Honda Various (2006-2024) — CRITICAL: B-codes in Honda's Maintenance Minder system (e.g., B1, B2) are for routine maintenance. A B1773 DTC is not a standard Honda SRS code.

Manufacturer-Specific Notes

• Toyota / Lexus: Highly prone to this code due to a wiring harness design flaw addressed in Safety Recall 18V887000. Normal seat movement causes wires to break inside the insulation, creating an invisible open circuit.

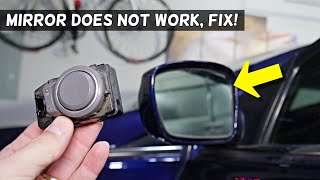

• Ford / Hyundai / Lincoln: B1773 means 'Mirror Driver Up Circuit Failure' and has nothing to do with the airbag system. Diagnosing this as an airbag fault is a common and costly mistake.

Real Owner Stories

2011 Lexus ES 350 - Intermittent Airbag Light

Airbag light came on randomly when the passenger seat was adjusted. The 'Passenger Airbag OFF' light stayed on.

What they tried:

1. Wiggled the yellow connectors under the seat, temporarily turning the light off.
2. Took it to an independent mechanic who read code B1773.

Outcome: The mechanic identified a broken wire inside the insulation at the connector. Instead of replacing the $700 seat belt assembly, they soldered a new pigtail connector for $250. The code cleared permanently.

Lesson: An intermittent light signals a broken wire. A 'wiggle test' confirms the location. Repairing the wire is significantly cheaper than replacing the entire assembly.

2015 Ford F-150 - Misdiagnosed Airbag Fault

A generic scanner showed code B1773. The owner assumed a serious airbag issue based on online searches.

What they tried:

1. Spent hours inspecting airbag wiring under the passenger seat with no change.

Outcome: The dealer informed the owner that on Ford vehicles, B1773 means 'Mirror Driver Up Circuit Failure'. The actual problem was a faulty driver's side power mirror motor. The mirror actuator was replaced, clearing the code.

Lesson: CRITICAL: Verify the code definition for your exact make and model. A Ford/Hyundai B1773 is a mirror fault, not an airbag fault.

2010 Toyota Tacoma - Easy Connector Fix

Airbag light came on suddenly at 176,000 miles. No items were stored under the seat.

What they tried:

1. Confirmed code B1773 with an SRS scanner.
2. Disconnected the battery and unplugged the main yellow connector under the passenger seat.

Outcome: The owner sprayed the pins with electrical contact cleaner and reconnected firmly. After clearing the code, the light stayed off. The problem was a poor connection developed over time.

Lesson: Start with the simplest fix. A simple 'disconnect, clean, and reconnect' of the primary connector solves many high-resistance faults.

How to Prevent This Code From Triggering

• Establish a 'No Storage Under Seats' rule (Daily habit) — Prevents items from rolling under the seat and snagging or unplugging the fragile SRS wiring harness.
• Secure the wiring harness (Once) — Use zip ties to gently secure excess harness slack to the seat frame, preventing it from catching in the seat tracks during adjustment.

Frequently Asked Questions

Is it safe to drive with code B1773?

While the vehicle operates normally, it is unsafe for a front-seat passenger. The code confirms the passenger-side airbags are disabled and will not deploy in a crash. Repair the vehicle immediately to restore this critical safety system.

Can I fix B1773 myself?

A beginner can perform basic checks like looking for obstructions and ensuring connectors are secure. An advanced DIYer with electrical skills can test and repair the wiring harness. Leave seat belt assembly replacement to a professional due to the extreme risk of accidental airbag deployment.

Why did my airbag light turn on if I haven't been in an accident?

The B1773 code indicates an electrical circuit fault, not a deployment event. The most common cause is a wire breaking under the passenger seat from cumulative stress caused by normal seat adjustments over many years.

Will clearing the code fix the problem?

No. Clearing the code with a scanner only turns the light off temporarily. The SRS module performs a self-test every time you start the car, immediately detects the physical fault, and re-triggers the warning light.

Is there a recall for code B1773?

Yes, Toyota issued safety recall 18V887000 for 2008-2019 Land Cruiser and Lexus LX 570 models for the wiring harness issue causing this code. Always check your VIN on the NHTSA website for open recalls.

Why does the B1773 definition I found online mention a power mirror?

The meaning of B1773 is manufacturer-specific. While it means 'Passenger Seat Belt Tension Sensor Circuit Malfunction' for Toyota, Lexus, and GM, it means 'Mirror Driver Up Circuit Failure' for Ford, Hyundai, and Lincoln. Verify the code's exact definition for your vehicle to avoid incorrect repairs.

My airbag light is intermittent. What does that mean?

An intermittent light is the classic symptom of a chafed or partially broken wire making and losing electrical contact as the seat moves. Even when the light is off, the fault remains present and the code is stored in the system's history.

Key Takeaways

• Code B1773 disables the passenger-side airbags, increasing the risk of severe injury in a frontal collision.
• A broken wire inside the under-seat harness causes over 80% of B1773 faults in Toyota and Lexus vehicles built between 2007 and 2019.
• Verify your vehicle's manufacturer definition, as B1773 indicates a power mirror fault—not an airbag issue—on most Ford, Lincoln, and Hyundai models.
• Remove all stored items from under the front passenger seat to prevent physical damage to the fragile yellow SRS wiring harness.
• Clearing the code with a scanner only turns the light off for 5 seconds; the SRS module will immediately re-trigger the code until the physical wiring or sensor is repaired.
