B2227 on 2015 Cadillac Escalade: The 'Ghost Code' Behind the C0398 'Service 4WD' Message

What's Unique About the 2015-2015 Cadillac ESCALADE

The 2015 Escalade (K2XX platform) and its siblings (Silverado, Sierra, Tahoe, Yukon) are uniquely prone to this issue due to specific software logic and hardware sensitivities. GM TSBs identify two main platform-specific triggers for the C0398 code: 1) A software glitch that causes the position sensor signal to 'drift' after driving for an hour or more in 'Auto 4WD' mode, which can be fixed by a TCCM reprogram to 'Version 9.2' or newer. 2) Sensitivity to cold weather, where the transfer case actuator can fail to operate correctly in temperatures below 10°F (-12°C), a condition addressed in TSB PIP5250E.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" message on the instrument cluster.
• Inability to switch between 2WD, Auto, 4HI, or 4LO modes.
• Indicator light for the 4WD switch may flash, not illuminate, or show the incorrect mode.
• Binding, skipping, or tire squealing sensation from the drivetrain during tight turns (if stuck in 4HI).
• Grinding or clicking noise from the transfer case area during a failed shift attempt.
• Vehicle may feel sluggish or like it has lost power if stuck in 4HI.

Most Likely Causes

1. Transfer Case Control Module (TCCM) Software Issue 🔴 High Probability → Shop Transfer Case Motor TSBs PIP5369C and Service Update 28770 confirm the original TCCM software is overly sensitive. It can falsely log code C0398 after long drives (1+ hour) in 'Auto 4WD' mode or during cold starts below 10°F (-12°C).
   How to confirm: A GM dealer or qualified shop must connect to the vehicle and check the TCCM software version in the GM Tis2Web system. TSBs specifically mention looking for 'Version 9.2' or newer to correct the issue.
   Typical fix: Reprogram the TCCM with the latest GM-certified software. This is a labor-only fix.
   Est. part cost: $0
2. Faulty Transfer Case Shift Control Actuator (Encoder Motor) 🟡 Medium Probability → Shop Transfer Case Motor This component contains the integrated position sensors (referenced by B2227) that fail over time. TSB PIP5250E specifically addresses failures of this motor in cold weather, indicating it's a known weak point.
   How to confirm: After confirming software is up-to-date, a technician can use a scan tool to monitor the live data from the 'Incremental Position Sensor' and 'Rotational Position Sensor' while commanding shifts. Erratic voltage, no signal, or a signal that doesn't correlate with the commanded position points to a failed encoder motor.
   Typical fix: Replace the transfer case encoder motor assembly and perform the mandatory 'Range Actuator Relearn' procedure with a scan tool.
   Est. part cost: $200-$450
3. Wiring or Connector Issue 🟡 Medium Probability The wiring to the transfer case is exposed, and multiple TSBs highlight issues with poor terminal tension, corrosion, or backed-out pins at the TCCM and actuator connectors.
   How to confirm: Visually inspect the wiring harnesses and connectors. TSB PIP5369C specifically calls for inspecting circuits 7477, 7478, and 7479 (position sensor) for issues between the sensor and the TCCM. A 'wiggle test' on the harness while monitoring live sensor data can reveal intermittent connections.
   Typical fix: Repair the damaged wiring, clean the connectors, or replace faulty terminals.
   Est. part cost: $10-$100

Rare But Worth Checking

• Failed Transfer Case Control Module (TCCM): → Shop Transfer Case Motor While far less common than software, actuator, or wiring failures, the module itself can fail. This should only be considered after all other possibilities, especially the TSB-documented software and wiring checks, have been exhausted.

Diagnosis Steps

1. Scan the Transfer Case Control Module (TCCM) for codes. C0398 will be the primary code of interest. 🎬 Watch: Diagnostic walkthrough for code C0398 on GM trucks Note any other codes like C0396 or C0326.
2. CRITICAL FIRST STEP: Have a dealer or qualified shop check for available TCCM software updates using GM's Tis2Web system. If the 'Version 9.2' update or newer for the C0398 'IPS drift' issue is available, perform the reprogram. This is the most common fix.
3. If software is current, perform a thorough visual inspection of the wiring harness and connectors at both the TCCM and the transfer case encoder motor. Look for corrosion, damage, or missing weather seals.
4. Following TSB PIP5369C, check the terminal tension and integrity of circuits 7477, 7478, and 7479 between the encoder motor and the TCCM.
5. Using a bidirectional scan tool, monitor the live data for the transfer case position sensors. Command the transfer case to shift between modes and watch for erratic, missing, or incorrect readings, which would indicate a faulty encoder motor.

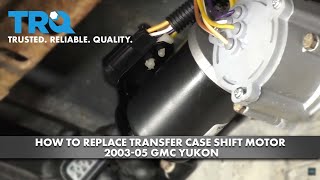

🎬 Watch: How to replace the transfer case encoder motor
6. If the encoder motor is confirmed to be faulty, replace the assembly.
7. After replacement, a 'Range Actuator Relearn' or 'ATC Motor Learn' procedure MUST be performed with a compatible scan tool. The system will not work correctly and the code may return if this step is skipped.
8. Clear all DTCs from the TCCM. Note that C0398 may require the 'clear codes' command to be sent twice.

Parts You'll Likely Need

• Transfer Case Shift Control Actuator (Encoder Motor) (OEM #23355888) — This assembly contains the internal position sensors that fail, causing code C0398. It is the most common hardware failure after software and wiring have been ruled out. TSB PIP5250E specifically calls out an updated motor to fix cold-weather issues.
  Trusted brands: ACDelco, GM Genuine Parts, Dorman
  OEM price range: $300-$450
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C0398 — This is the primary, public-facing code that is set when the TCCM detects a fault with the 'B2227' referenced sensor. They are two sides of the same coin.
• C0396 — This code for 'Rotational Position Sensor Performance' points more specifically to a fault within the encoder motor assembly. It often appears with C0398, as C0398 is a correlation error between this sensor and another.
• C0326 — This code for the 'Transfer Case Lock Actuator' is mentioned in TSB PIP5250E as appearing alongside C0398, especially in cold weather, and often points to a faulty transfer case actuator motor.
• U0403 — Invalid Data Received From Transfer Case Control Module. This code is often set in other modules (like the ECM or BCM) as a secondary result of the primary fault (C0398) in the TCCM. TSBs advise to ignore this code and fix the TCCM issue first.

Technical Service Bulletins (TSBs) & Recalls

• PIP5369C: The most current TSB, which supersedes older versions. It details the TCCM software update ('Version 9.2') needed to fix C0398 caused by long drives in Auto 4WD and provides specific wiring circuits to inspect.
• PIP5250E: Specifically addresses the 'Service 4WD' message and code C0398 when operating the vehicle in very cold temperatures, pointing to the transfer case actuator motor as the cause.
• Service Update #28770: A widespread campaign to reprogram the TCCM to prevent the vehicle from getting locked in 4HI after long drives due to the sensor drift issue that sets C0398.
• PIP5220B: An earlier bulletin that first established the connection between the internal 'B2227' sensor name and the diagnostic code C0398, advising

Platform-Specific Known Issues

• TSB #PIP5369C: Addresses C0398 caused by TCCM software sensitivity. The fix is reprogramming the module to 'Version 9.2' or newer to correct a sensor 'drift' issue that occurs after driving for over an hour in 'Auto 4WD' mode.
• TSB #PIP5250E: Addresses C0398 setting in ambient temperatures below 10°F (-12°C). This bulletin points to a failure of the transfer case actuator motor and provides an updated part number for the repair.
• TSB #PIP5220B: The original bulletin that linked the internal 'B2227 Gear Position Sensor' name to the public C0398 code and recommended inspecting circuits 7477, 7478, and 7479.

Mechanic-Grade Diagnostic Values

• Encoder Motor Winding Resistance — expected: 0.3 to 40.0 Ohms between motor control pins A and D at the encoder motor connector.. Failure: A reading outside this range indicates a faulty motor winding.
• Sensor/Motor Circuit-to-Ground Resistance — expected: Greater than 10 Ohms between motor control pins (A and D) and the encoder motor case.. Failure: A reading less than 10 Ohms indicates an internal short to ground within the motor assembly.
• Scan Tool Live Data: Sensor Correlation — expected: The 'Variation Between Transfer Case Range Position Sensor and Range Actuator Position Sensor' parameter should be less than the 'Variation Allowed' (typically 5%).. Failure: If the actual variation exceeds the allowed value, it confirms the correlation fault that sets C0398.
• Motor Control Circuit Diagnostic Voltage (Key On, Engine Off) — expected: 1.0 - 2.5 Volts between the motor control B circuit (Pin D at actuator connector) and a good ground.. Failure: Voltage above 2.5V suggests a short to voltage; below 1.0V suggests an open or short to ground in the harness or TCCM.

Hidden / Shadow Codes Worth Checking

• C0398 (Hard Fault Behavior): C0398 is a hard fault that, once set, will not clear on its own with key cycles. It must be manually cleared with a scan tool. (see via Visible with any standard scan tool, but its non-clearing behavior is a key diagnostic trait.)
• C0396 (in History): If C0398 is present and C0396 (Rotational Position Sensor Performance) is found in the history codes (even if not currently active), it strongly suggests an intermittent fault in the encoder motor's position sensor or its related wiring (circuits 7473-7476). (see via A professional scan tool capable of reading history DTCs from the TCCM.)
• U0403 / U0102: These 'Lost Communication' codes often set in other modules (BCM, ECM) as a direct result of the TCCM setting C0398. TSBs advise ignoring these codes and diagnosing the TCCM fault first. (see via Visible in other vehicle modules when scanning the entire vehicle network.)

Scan Tool Commands That Help

• GM GDS2 / SPS: K69 Transfer Case Control Module - Programming — This is the specific function within the GM Service Programming System (SPS) used to perform the TCCM software update, which is the most common fix for C0398 on this platform.
• GM GDS2 or equivalent bidirectional scanner: Range Actuator Relearn / ATC Motor Learn — This procedure is mandatory after replacing the transfer case actuator or reprogramming the TCCM. It allows the module to learn the new component's position endpoints. Failure to perform this step will cause the code to return.
• GM GDS2 or equivalent bidirectional scanner: Clear DTCs (Commanded Twice) — According to TSB PIP5369B, after a repair, the 'Clear DTCs' command may need to be sent twice to fully remove the C0398 code from the TCCM's memory.

Wiring & Ground Locations

• G218 — Under the driver's side of the instrument panel, behind the trim, often near the A-pillar and driver-side speaker.. This is a major body ground for the BCM and other interior modules. TSB PIT5405C documents that a poor connection here (due to a loose nut or trapped insulation) causes a cascade of seemingly unrelated electrical issues and communication DTCs across the vehicle, which can mimic or induce a TCCM fault.
• Encoder Motor Circuits — In the harness between the TCCM (under driver's dash) and the transfer case actuator motor.. TSB PIP5369C specifically calls to inspect circuits 7473, 7474, 7475, 7476 (actuator position) and 7477, 7478, 7479 (range position sensor) for poor terminal tension, corrosion, or damage.
• Connector X109 — On the left side of the engine compartment, located below the underhood fuse block.. This is a major inline harness connector. TSBs for various electrical faults, including some related to the 4WD system, point to checking this connector for corrosion or poor pin fitment.

Real Owner Repair Stories

• YouTube video, similar K2XX platform (2018 Silverado) (2018 Chevrolet Silverado) — Transfer case unresponsive, selector switch light flashes then goes out, communication and position error codes.
  ❌ Tried (didn't work) Attempting the 'Range Actuator Relearn' procedure repeatedly, which failed with a message that the unit was 'already in use'.
  ✅ What actually fixed it The root cause was a bad wire in the main connector at the transfer case. After the wire was repaired, the relearn still failed. The final fix required a full system reset: disconnecting the vehicle's battery for a period, reconnecting it, and only then running the 'Range Actuator Relearn' procedure, which then completed successfully.
• Tahoe Yukon Forum user (2006 Chevrolet Tahoe (similar issue, different generation)) — Service 4WD message, random shifting, code indicated encoder motor error.
  ❌ Tried (didn't work) Replacing the encoder motor with an aftermarket part., Cleaning the main frame ground wire.
  ✅ What actually fixed it Took the vehicle to a dealer. They replaced the aftermarket encoder motor with a genuine GM part and performed a TCCM reflash. The technician noted the module's software had been incorrectly configured (set to 'A B' instead of 'A A' or 'B B'), and correcting this during the reflash was the final solution.
• YouTube video by Phillip Bailey (2014 GMC Sierra (K2XX Platform)) — Service 4WD Message, code C0398, multiple U-codes for lost communication.
  ❌ Tried (didn't work) An initial attempt to reprogram the TCCM resulted in a new code, C038D (Range Actuator Position Not Learned).
  ✅ What actually fixed it The issue was resolved by correctly following TSB PIP5369C. The Transfer Case Control Module (TCCM) was successfully reprogrammed with the latest GM software, and a 'Range Actuator Relearn' was performed with a Snap-On scan tool, which cleared all codes and restored function.

OEM Part Supersession History

• Various older part numbers (e.g., 19133169, 19256065, etc.) → 84115497 (Standard Replacement) — Part consolidation and design updates over many years.
• Standard Catalog Part → 23355888 (Special Part) — This specific part number was released via TSB PIP5250E to address failures of the actuator motor in cold weather conditions (below 10°F / -12°C).
  Heads up: TSB PIP5250E advises *not* to use this part number for vehicles that do not operate in cold climates or for vehicles that have other transfer case codes stored along with C0398.
