B2227 on 2014 GMC Sierra 1500: Understanding the Gear Position Sensor Fault

What's Unique About the 2014-2014 Gmc SIERRA 1500

Unlike many codes, B2227 on this platform isn't a fault code itself but the name of a part referenced in repair instructions. The K2XX generation of GM trucks (including the 2014 Sierra) is known for setting 4WD-related codes like C0398 due to software glitches in the Transfer Case Control Module (TCCM) that make it overly sensitive. TSBs like PIP5369C and PIP5220B specifically point technicians to check for software updates or inspect the circuits connected to the 'B2227 Gear Position Sensor' when diagnosing C0398, highlighting a known potential point of failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" message on the instrument cluster.
• Inability to shift between 2WD, Auto, 4HI, or 4LO.
• 4WD mode indicator light may be off, flashing, or dimly lit.
• A feeling of drivetrain binding or tire scrubbing during turns on dry pavement (if stuck in 4HI).
• Multiple 'U' codes (loss of communication) may be stored in other modules, pointing back to the TCCM.

Most Likely Causes

1. Transfer Case Control Module (TCCM) Software Glitch 🔴 High Probability → Shop Transfer Case Motor GM released multiple service bulletins (e.g., PIP5369C, 15-04-21-001A) to update TCCM software. The original calibration was too sensitive and could misinterpret sensor data, especially after long drives (1-2 hours) in 'Auto 4WD' or in cold weather, falsely triggering a C0398 fault. 🎬 Watch: Diagnosing the C0398 code and Service 4WD message.
   How to confirm: A GM dealer or a shop with a subscription to GM's service programming system (SPS/TIS2Web) can check the TCCM's current calibration ID against the latest version on the server.
   Typical fix: Reprogramming the Transfer Case Control Module with the latest software. TSB PIP5369C specifically mentions a 'Version 9.2' calibration to address sensor drift.
   Est. part cost: $0 (software only)
2. Wiring or Connector Issue 🟡 Medium Probability TSB #PIP5220B specifically calls out inspecting circuits 7477, 7478, and 7479 between the Gear Position Sensor (B2227) and the TCCM for poor terminal tension, corrosion, or damage. The harness is exposed under the vehicle. TSB PIP5080B also notes that water can intrude into connectors X109 and the TCCM connector X3, causing corrosion and poor pin tension.
   How to confirm: Visually inspect the wiring harness and connectors at the transfer case and the TCCM for corrosion, damage, or loose pins. A multimeter can be used to check for continuity and shorts on the specified circuits. A 'wiggle test' on the harness while monitoring sensor data can reveal intermittent connections.
   Typical fix: Repairing the damaged section of the wiring harness or cleaning/replacing the affected connector terminals. A connector pigtail kit may be needed if corrosion is severe.
   Est. part cost: $10-$100
3. Failed Transfer Case Shift Control Actuator (Encoder Motor) ⚪ Low Probability → Shop Transfer Case Motor The Gear Position Sensor (B2227) is integrated into the transfer case shift actuator assembly. The entire unit can fail electronically or mechanically, providing an erratic signal. This is a common failure point after software and wiring are ruled out.
   How to confirm: If a TCCM reprogram and wiring inspection do not resolve the issue, and scan tool data shows an erratic or non-responsive position sensor signal while commanding shifts, the actuator assembly is the likely culprit.
   Typical fix: Replacement of the transfer case shift control actuator assembly. A special part (P/N 23355888) was released specifically for C0398 issues in extreme cold (below 10°F), per TSB PIP5250.
   Est. part cost: $250-$500

Rare But Worth Checking

• Failed Transfer Case Control Module (TCCM): → Shop Transfer Case Motor While a software glitch is common, the module itself can fail internally. This should only be considered after all other possibilities, including software and wiring, have been exhausted. Pre-programmed modules are available online.
• Improper Dinghy Towing Setup: TSB PIP5217A notes that code C0398 can be triggered if the vehicle was improperly configured for being towed behind another vehicle (like an RV), leading to a conflict in the transfer case position.

Diagnosis Steps

1. Connect a professional scan tool capable of reading codes from the Transfer Case Control Module (TCCM).
2. Check for primary fault codes. If codes other than C0398 are present (e.g., C0392, C0396 for sensor circuits), diagnose and repair them first, as they can cause C0398 to set as a secondary fault.
3. If C0398 is the only 'C' code, the first step is to check for a TCCM software update. A dealer or shop with GM's TIS2Web can verify if a newer calibration (like 'Version 9.2') is available.
4. If an update is available, reprogram the TCCM. This is the most common fix.
5. If no update is needed or the problem persists, follow the guidance of TSB #PIP5220B and PIP5369C. Perform a thorough visual and electrical inspection of the wiring and connectors for circuits 7477, 7478, and 7479 between the Gear Position Sensor (B2227) and the TCCM. Also inspect connectors X109 and TCCM connector X3.
6. After any repair (reprogram or wiring), clear all DTCs. C0398 may be a hard fault requiring the clear command to be sent twice. Then, perform the 'Transfer Case High/Low Clutch Reset' or 'Range Actuator Relearn' procedure with the scan tool.
7. Test drive the vehicle, shifting through all 4WD ranges to see if the code returns.
8. If the code returns and wiring/software are confirmed good, the fault is likely with the transfer case shift actuator/encoder motor assembly, which contains the position sensor. Replace the assembly.

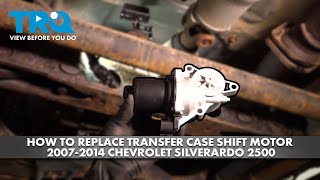

🎬 Watch: How to replace the transfer case shift motor assembly.

Parts You'll Likely Need

• Transfer Case Shift Control Actuator / Encoder Motor (OEM #84115497 (Supersedes 19133169, 19256065, 19258697, 23319285)) — This assembly contains one of the two position sensors (the Incremental Position Sensor). It is replaced as a complete unit if the sensor fails internally and software/wiring issues have been ruled out.
  Trusted brands: ACDelco (GM Genuine), Dorman
  OEM price range: $400-$550
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• C0398 — This is the primary code that indicates a 'Range Position Correlation Fault'. The diagnostic procedure for C0398 is what leads technicians to inspect the B2227 sensor circuit.
• C038D — Another transfer case-related code ('Range Actuator Position Not Learned') that can appear alongside C0398, often pointing to a TCCM software issue or a failed relearn procedure after a repair.
• C0397 — Another transfer case-related code that can appear alongside C0398, often pointing to a TCCM software issue per TSB PIP5220B.
• U0102 — Indicates 'Lost Communication with Transfer Case Control Module'. This often sets in other modules (ECM, BCM) as a secondary fault when the TCCM sets a code like C0398 and stops communicating properly.
• U0403 — Indicates 'Invalid Data Received From Transfer Case Control Module'. Like U0102, this code is often set in other modules as a direct result of the TCCM detecting an internal fault like C0398.

Technical Service Bulletins (TSBs) & Recalls

• PIP5220B: Instructs technicians to inspect circuits (7477, 7478, 7479) between the B2227 Gear Position Sensor and the TCCM when DTC C0398 is present, and to reprogram the TCCM if no wiring issues are found.
• PIP5369C: Supersedes previous versions and provides comprehensive diagnostic advice for C0398, emphasizing checking for software updates (specifically 'Version 9.2') as the primary step for faults occurring after long drives in Auto 4WD.
• PIP5250D/G: Addresses C0398 setting in very cold temperatures (below 10°F / -12°C) and discusses the use of an updated transfer case actuator motor (P/N 23355888) for this specific condition.
• 15-04-21-001A: Another bulletin referencing the TCCM software update as a fix for various transfer case issues, including erroneous C0398 codes.
• PIP5080B: Highlights poor terminal tension at connectors X109 and X3 as a specific, known cause for C0398 and related 4WD codes.

Platform-Specific Known Issues

• A known issue on this platform can cause code C0398 to set after driving for an extended period (1-2 hours) in 'Auto 4WD' mode. TSB PIP5369C identifies this as being caused by the position sensor signal 'drifting', which is resolved with the 'Version 9.2' TCCM software update.
• Extremely low ambient temperatures (below 10°F / -12°C) can also trigger a transfer case malfunction and set code C0398. This is addressed by TSB PIP5250, which recommends a software update and, in some cases, a specific cold-weather actuator motor (P/N 23355888).

Mechanic-Grade Diagnostic Values

• GDS2 Live Data: 'Variation Between Transfer Case Range Position Sensor and Range Actuator Position Sensor' — expected: The value should not exceed the 'Variation Allowed' parameter shown on the scan tool.. Failure: If the 'Variation' value exceeds the 'Variation Allowed' value, it will trigger code C0398. This is key for diagnosing intermittent sensor drift.
• Transfer Case Shift Motor Winding Resistance — expected: 0.5 to 35 ohms. Failure: A reading outside this range indicates a faulty motor winding in the actuator assembly.
• Transfer Case Encoder Motor (TCEM) Diagnostic Voltage — expected: 1.0 - 2.5 V. Failure: With the X1 connector disconnected, test between the motor B circuit (pin D) and ground. Voltage greater than 2.5V indicates a short to voltage; less than 1.0V may indicate an open or short to ground.
• Gear Position Sensor (B2227) Signal Type — expected: Variable Pulse-Width Modulated (PWM) signal. Failure: A signal that is stuck high or low (e.g., less than 0.25 volts can indicate a short to ground) points to a sensor or wiring fault.

Hidden / Shadow Codes Worth Checking

• C0398 with Symptom Byte: The primary C0398 code can be accompanied by a 2-digit symptom byte (e.g., C0398 5A) that provides more specific details about the nature of the correlation fault. This byte helps a technician narrow down the diagnostic path. (see via A professional GM-specific scan tool, such as the GDS2 (Global Diagnostic System 2) or a high-end aftermarket equivalent, is required to view the symptom byte.)

Scan Tool Commands That Help

• GM GDS2 / High-End Bidirectional Scanner: Transfer Case Range Actuator Relearn / Transfer Case High/Low Clutch Reset — This function MUST be performed after reprogramming the TCCM or replacing the transfer case actuator. It allows the module to learn the new end-points of the shift mechanism. Failure to perform this step will often cause the code to return immediately.
• GM GDS2: Special Functions > Transfer Case Motor Control — This bidirectional control allows a technician to command the transfer case motor forward and reverse directly from the scan tool. It is used to verify if the motor is physically capable of moving and to test the motor control circuits without needing to use the in-cab switch.

Wiring & Ground Locations

• TCCM (Transfer Case Control Module) — Typically located behind the lower dash panel, on the driver's side of the dashboard.. This is the brain of the 4WD system. All sensor inputs and actuator outputs route through this module. Its connector (X3) is a known point of failure for corrosion or poor pin tension.
• Connector X109 — A major harness connector, often located along the frame rail on the driver's side.. TSB PIP5080B specifically identifies this connector as a potential location for corrosion or poor terminal tension that can cause C0398 and other 4WD-related codes.
• G103 / G104 (Engine/Frame Grounds) — Main grounds are located on the engine block (passenger side) and on the frame horns at the front of the vehicle.. While not directly for the TCCM, poor engine-to-chassis grounds on this platform are a known cause of widespread, intermittent electrical issues and module communication errors (U-codes). A compromised ground can create an unstable electrical environment that could lead to the TCCM setting false codes.
• Transfer Case Actuator Connector (X1) — The main electrical connector on the transfer case shift actuator/encoder motor assembly itself.. This is the primary connection point for the motor control circuits and the integrated position sensor. It is exposed to the elements and is a common place to find corrosion or wire damage.

Real Owner Repair Stories

• YouTube channel 'MotorCityMechanic' (2014 GMC Sierra) — Service 4WD Message on the dash, code C0398 stored in the TCCM.
  ❌ Tried (didn't work) Initial diagnosis pointed towards common causes like the encoder motor or wiring.
  ✅ What actually fixed it The TCCM was reprogrammed with updated software via GM's online service. After the reprogram, a 'Transfer Case Range Relearn' procedure was performed with a scan tool, which successfully resolved the fault.
• YouTube channel 'JL's Auto Solution' (2014 Chevrolet Silverado) — Service 4WD message, 4WD system locked on, code C0398 ('Range actuator position range position correlation').
  ❌ Tried (didn't work) Clearing the code without performing a relearn.
  ✅ What actually fixed it Using an Autel bidirectional scan tool, the 'Range Actuator Relearn' special function was initiated. The procedure required putting the transmission in neutral and then commanding the learn via the scan tool. This cleared the immediate fault and allowed the 4WD system to function again.

OEM Part Supersession History

• 19133169, 19256065, 19258697, 23319285 → 84115497 — Standard part evolution, design improvements, and consolidation of previous part numbers.
  Heads up: This is the standard replacement part. For vehicles operating in extremely cold climates (below 10°F / -12°C), TSB PIP5250 recommends a specific cold-weather actuator, P/N 23355888, to resolve C0398. Do not use the cold-weather part unless the specific cold-weather conditions apply.

Model Year Variations Within This Range

• 2014-2015: A specific TCCM software update, described in TIS2Web as 'Version 9.2,' was released to address C0398 setting after long drives in 'Auto 4WD' mode due to sensor drift. This is a primary focus for these model years.
