B3060 on 2023-2025 Cadillac Escalade: Security System Fault Causes and Fixes

What's Unique About the 2023-2025 Cadillac ESCALADE

The fifth-generation Escalade (2021-present) and its T1XX platform mates feature a highly sophisticated keyless entry and start system. This system's sensitivity is highlighted in GM Technical Service Bulletin PIC5650M, which applies to this model. The bulletin, a 'Preliminary Information' document, explicitly advises technicians to investigate and eliminate sources of Radio Frequency Interference (RFI) *before* replacing any parts. The RFI can affect the Remote Control Door Lock Receiver (RCDLR), which also manages the Tire Pressure Monitoring System (TPMS), explaining why TPMS codes (C0750, etc.) are often seen with security codes like B3060.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not crank (no-crank)
• Engine cranks but will not start (no-start)
• Engine starts and then immediately stalls
• Security indicator light illuminated or flashing on the dashboard
• "No Remote Detected" message on the driver information center
• Vehicle completely unresponsive, key fob will not unlock doors.

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability As noted in TSB PIC5650M, modern GM security systems are sensitive to RFI from other key fobs, access cards, toll passes, aftermarket phone chargers, or LED lights. These signals can disrupt the 125 kHz communication between the key fob and the vehicle.
   How to confirm: Remove all other keys, fobs, and RFID cards from the keychain. Unplug any aftermarket devices from the vehicle's power outlets. Try starting the vehicle with only the Escalade key fob present. If the issue is resolved, RFI was the cause.
   Typical fix: Isolate the Escalade key fob from other electronic devices. This is a diagnostic step that often becomes the permanent solution. Owners may need to keep the fob on a separate ring.
   Est. part cost: $0
2. Weak or Dead Key Fob Battery 🟡 Medium Probability → Shop Vehicle Battery

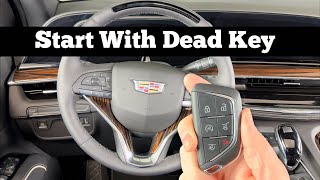

   How to confirm: Try the spare key fob. If the spare key works reliably, the battery in the primary fob is the likely culprit. You can also try placing the non-working fob in the designated transmitter pocket in the front cupholder, which can often start the vehicle even with a dead battery. 🎬 Watch: How to start your Escalade with a dead key fob.

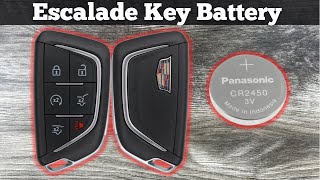

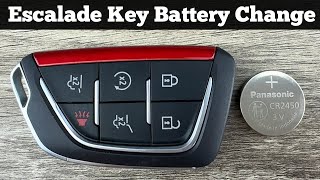

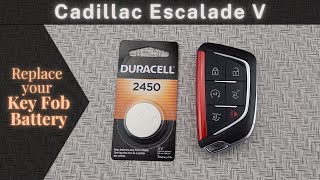

   Typical fix: Replace the CR2450 battery inside the key fob. 🎬 See this quick walkthrough on replacing your key fob battery.
   Est. part cost: $5-$15
3. Key Fob Has Lost Synchronization ⚪ Low Probability → Shop Keyless Entry Transmitter This can sometimes happen after a vehicle battery replacement or if the vehicle's battery was drained completely, causing the BCM to lose its memory of the learned keys. Some owners on forums report recurring dead battery issues that could lead to this state.
   How to confirm: This is difficult to confirm without a diagnostic tool. If the issue started immediately after a battery change or a jump-start, this is a strong possibility.
   Typical fix: A security relearn procedure must be performed. On newer models like the Escalade, this requires a dealer or locksmith with a compatible scan tool to reprogram the keys to the BCM.
   Est. part cost: $0-$150
4. Faulty Body Control Module (BCM) ⚪ Low Probability → Shop Body Control Module
   How to confirm: This is a diagnosis of exclusion after all other possibilities (key fobs, batteries, interference, wiring) have been ruled out. A professional scan tool is needed to check for communication errors with the BCM.
   Typical fix: Replace and reprogram the Body Control Module. This must be done by a qualified technician with the proper tools. Part numbers are highly specific to the vehicle's VIN and options.
   Est. part cost: $400-$700

Rare But Worth Checking

• Faulty Key Fob: → Shop Keyless Entry Transmitter If a new battery and isolating the fob from interference doesn't work, and the spare key works fine, the internal electronics of the key fob itself may have failed from being dropped or an internal defect.
• Wiring or Connector Issue: A loose connection at the Body Control Module (BCM) or the Remote Control Door Lock Receiver (RCDLR) antenna could cause an intermittent failure to detect the key. This is uncommon on new vehicles but possible.

Diagnosis Steps

1. Verify the active DTC is B3060 using a quality OBD-II scanner capable of reading Body (B) codes.
2. Remove all other key fobs, garage door openers, and RFID cards from the keychain and from inside the vehicle.
3. Unplug any aftermarket devices like phone chargers, dash cams, or aftermarket LED lights.
4. Attempt to start the vehicle with the isolated key fob.
5. If the vehicle still won't start, try using the spare key fob.
6. If the spare key works, replace the CR2450 battery in the original key fob.
7. If neither key works, place one of the fobs in the vehicle's transmitter pocket, located inside the front cupholder, and attempt to start the engine.
8. If the vehicle starts with the fob in the pocket, it confirms a weak signal issue (either fob battery or severe interference).
9. If none of the above steps work, the vehicle will require professional diagnosis with a GM-compatible scan tool to check BCM communication and key programming status.

Parts You'll Likely Need

• Key Fob Battery (OEM #CR2450) — This is the most common and cheapest part to fail, leading to a weak signal that the vehicle cannot detect. Note: This is a CR2450, not the more common CR2032.
  Trusted brands: Duracell, Energizer, Panasonic
  OEM price range: $5-$15
  Aftermarket price range: $3-$8
• Key Fob (OEM #13546300, 13538866, 13541571 (Confirm with VIN)) — If the internal transponder or electronics of the key fob fail, it will need to be replaced and programmed to the vehicle. FCC ID is typically YG0G20TB1.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $150-$300
  Aftermarket price range: $70-$150
• Body Control Module (BCM) (OEM #Varies by VIN) — In rare cases, the BCM itself fails and can no longer recognize learned keys or be programmed. This is a last resort replacement after all other causes are ruled out.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $400-$600
  Aftermarket price range: $250-$450

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation or No Transponder,' indicating the system received no signal from the key at all. It is frequently cited alongside B3060 in GM TSBs as they point to the same key recognition failure.
• B3935 — This code for 'Transponder Authentication Failed' means a signal was received but could not be verified. It's another part of the same security handshake process and is also mentioned in TSB PIC5650M.
• C0750, C0755, C0760, C0765, C0775 — These codes are related to tire pressure monitoring but are listed in TSB PIC5650M. This is because the TPMS and keyless entry systems share the same receiver module (RCDLR), which can be affected by the same underlying RFI issues.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: A Preliminary Information bulletin from GM addressing an intermittent no crank, no start, or start/stall concern with the security light on. It lists DTCs B3055, B3060, B3935, and TPMS codes. It points to RFI as a primary area of investigation before any parts are replaced.

Platform-Specific Known Issues

• Per TSB PIC5650M, this platform is highly susceptible to intermittent no-start conditions caused by Radio Frequency Interference (RFI). The bulletin explicitly advises checking for and removing sources of RFI before replacing any components.

Mechanic-Grade Diagnostic Values

• Radio Frequency Interference (RFI) Scan — expected: No significant signals detected on or near the key transponder frequency.. Failure: Strong signals detected on 125 kHz (key transponder), 315 MHz, or 433 MHz (key fob/TPMS) frequencies when an aftermarket device is active.
• Immobilizer Antenna Coil Resistance — expected: Approximately 6 Ohms (Note: This value is from a different GM model, the Chevy Spark, but provides a general diagnostic reference).. Failure: An open circuit (infinite resistance) or a reading significantly different from the reference value.

Hidden / Shadow Codes Worth Checking

• B3060 00: The '00' is a standard GM symptom byte for 'No Sub Type Information'. It confirms that the base code's definition ('Unprogrammed Transponder Identification Code Received') is the complete fault and no further sub-fault is identified. (see via A professional GM-specific scan tool, such as the dealer-level GDS2 (Global Diagnostic System 2), will display the DTC with its corresponding two-digit symptom byte.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > Remote Control Door Lock Receiver > Configure and Reset Functions > Add or Replace Key Fobs — This is the primary function used to program new or existing key fobs to the vehicle's security system after a key, BCM, or RCDLR replacement.
• GDS2 / Techline Connect: Vehicle Theft Deterrent Learn — This function is required after replacing a major security component like the BCM or ECM. It initiates a 10-12 minute security handshake process to synchronize the modules.
• GDS2: Setup SDM (Sensing and Diagnostic Module) — After replacing a BCM and performing the relearn, a B1001 code may set in the airbag module (SDM). This function is used to configure the new BCM with the SDM to clear the code.

Wiring & Ground Locations

• Body Control Module (BCM) — Inside the passenger cabin, located behind the lower dashboard panel on the driver's side, to the left of the steering column. It is often integrated with or mounted directly next to the interior fuse block assembly.. The BCM is the central computer for the anti-theft system. It stores the programmed key information and makes the final decision to enable or disable the engine. All communication from the key and RCDLR routes through the BCM.
• Remote Control Door Lock Receiver (RCDLR) — On GM SUVs of this type, the RCDLR module is typically located in the rear of the vehicle, behind the interior trim panel of the driver-side D-pillar (the rearmost pillar).. The RCDLR is the receiver for both the key fob's remote functions and the transponder signal used for starting the vehicle. It also receives TPMS signals, which is why TPMS and security codes often appear together per TSB PIC5650M.
• RCDLR Antenna System — This is a multi-part system consisting of the RCDLR module, a coax cable running from the module forward, an antenna amplifier, and the antenna itself, which is often integrated into the right rear quarter glass.. A disconnection at the RCDLR, at the amplifier, or between the amplifier and the glass antenna can cause a weak or total loss of signal from the key fob, directly leading to a B3060 code and a 'No Fob Detected' message.
