B3060 on 2008-2012 Cadillac Escalade Hybrid: No-Start Causes and Fixes

What's Unique About the 2008-2012 Cadillac ESCALADE HYBRID

The GMT900 platform, which this Escalade Hybrid is built on, uses GM's Pass-Key III+ (PK3+) immobilizer system. This system is known to be sensitive, and a key issue highlighted in multiple versions of GM Technical Service Bulletin PIC5650 is its susceptibility to intermittent failure from Radio Frequency Interference (RFI). Everyday items like other car fobs, gate access cards, aftermarket phone chargers, or even aftermarket LED lighting can disrupt the 125 kHz signal between the key and the vehicle, triggering a B3060 code and a no-start condition. This is a well-documented characteristic across the entire GMT900 truck and SUV lineup, including the Chevrolet Tahoe, GMC Yukon, and Chevrolet Silverado.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not crank or start.
• Engine starts and then immediately stalls.
• Security light is illuminated or flashing on the dashboard.
• "Service Theft Deterrent System" message may appear on the driver information center.
• Key may feel loose or wobbly in the ignition.

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability As noted in TSB PIC5650M, the GMT900 platform's security system is sensitive to RFI from aftermarket electronics (phone chargers, LED lights) or other RFID cards/fobs on the keychain. The interference 'jams' the low-frequency signal between the key and the reader coil.
   How to confirm: Remove all other keys, fobs, and access cards from the Escalade's keychain. Unplug any aftermarket chargers or accessories. If the vehicle starts with just the single key, RFI was the cause. This is the first diagnostic step recommended by GM for this issue.
   Typical fix: Isolate the vehicle key from other electronic devices. No parts replacement is necessary.
   Est. part cost: $0
2. Defective or Damaged Ignition Key 🟡 Medium Probability → Shop Ignition Switch The PK3+ transponder chip embedded in the key head can fail from being dropped or from internal electronic failure over time.
   How to confirm: Try starting the vehicle with a known-good spare key. If the spare key works consistently, the original key is faulty.
   Typical fix: Replace the faulty key and have the new key programmed to the vehicle by a dealer or qualified locksmith.
   Est. part cost: $50-$200
3. Loss of Key Synchronization 🟡 Medium Probability A weak vehicle battery, jump-starting, or disconnecting the battery can sometimes cause the BCM to lose synchronization with the programmed keys. The Pass-Key III+ system is known to be sensitive to voltage drops.
   How to confirm: This is a diagnosis of exclusion. If RFI is ruled out and keys are suspected to be good, attempting the relearn procedure is the next logical step. This is especially true if the issue occurred after a battery replacement or jump-start.
   Typical fix: Perform the 30-minute key relearn procedure. 🎬 Watch: Step-by-step guide to the 30-minute security reset procedure. This involves turning the key to 'ON' for 10 minutes until the security light goes out, repeating two more times for a total of 30 minutes. This can often re-sync the key without needing new parts.
   Est. part cost: $0
4. Faulty Ignition Lock Cylinder / Switch ⚪ Low Probability → Shop Ignition Switch The exciter coil that reads the key's transponder is part of the ignition lock cylinder assembly. Wear and tear from key usage, or internal failure of the coil or its delicate wiring, can lead to an intermittent or complete inability to read the key. This is a very common failure point on GMT900 trucks and SUVs.
   How to confirm: If the key relearn procedure fails with multiple known-good keys, and RFI is not present, the problem is likely with the reader in the vehicle. Wiggling the key in the ignition while trying to start may cause it to work intermittently, which points to a faulty cylinder or wiring. 🎬 See how to replace the ignition lock cylinder yourself. A professional can test the wiring and connections between the lock cylinder and the BCM.
   Typical fix: Replace the ignition lock cylinder and perform the key relearn procedure. This part contains the antenna that reads the key chip. The electrical ignition switch is often replaced at the same time.
   Est. part cost: $70-$150

Rare But Worth Checking

• Failing Body Control Module (BCM): → Shop Body Control Module The BCM is the brain of the security system. While uncommon, an internal BCM failure can cause it to stop recognizing valid keys. This is usually a last resort after all other causes have been ruled out. One owner of a related platform vehicle reported this as the ultimate fix after replacing other parts failed.
• Damaged Wiring: The wiring harness between the ignition lock cylinder and the BCM can get damaged, especially around the tilt-steering column, causing an intermittent connection. Poor ground connections for the BCM, such as G218, can also cause a host of electrical issues that mimic a security fault.

Diagnosis Steps

1. Verify B3060 is the active or primary code using an OBD-II scanner capable of reading Body Control Module (BCM) codes.
2. Question the driver about any aftermarket accessories (phone chargers, LED lights, dash cams) and check the keychain for other fobs or RFID cards.
3. Remove all other items from the keychain and unplug all aftermarket accessories. Attempt to start the vehicle with only the Escalade key to rule out RFI.
4. If the vehicle still won't start, try the spare key. If the spare key works, the primary key is defective.
5. If no key works, attempt the 30-minute key relearn procedure. Turn the ignition to 'ON' (don't start) and wait for the security light to turn off (approx. 10-11 minutes). Turn the ignition 'OFF' for 5-10 seconds. Repeat this sequence two more times for a total of three 10-minute cycles. On the fourth attempt after the third cycle, the vehicle should start.
6. If the relearn procedure fails (e.g., the security light never turns off), inspect the wiring and connector at the ignition lock cylinder for any visible damage, especially around the tilt column.
7. If wiggling the key in the ignition allows the vehicle to start intermittently, this strongly suggests a worn ignition lock cylinder/reader coil.
8. If wiring is intact and multiple keys fail the relearn procedure, the ignition lock cylinder (which contains the reader coil) is the most likely suspect.
9. If replacing the lock cylinder does not resolve the issue, professional diagnosis of the Body Control Module (BCM) and its ground connections (specifically G218) is required.

Parts You'll Likely Need

• Ignition Key — The transponder chip inside the key is a common failure point, causing the vehicle to no longer recognize it.
  Trusted brands: ACDelco, Strattec
  OEM price range: $80-$150
  Aftermarket price range: $40-$90

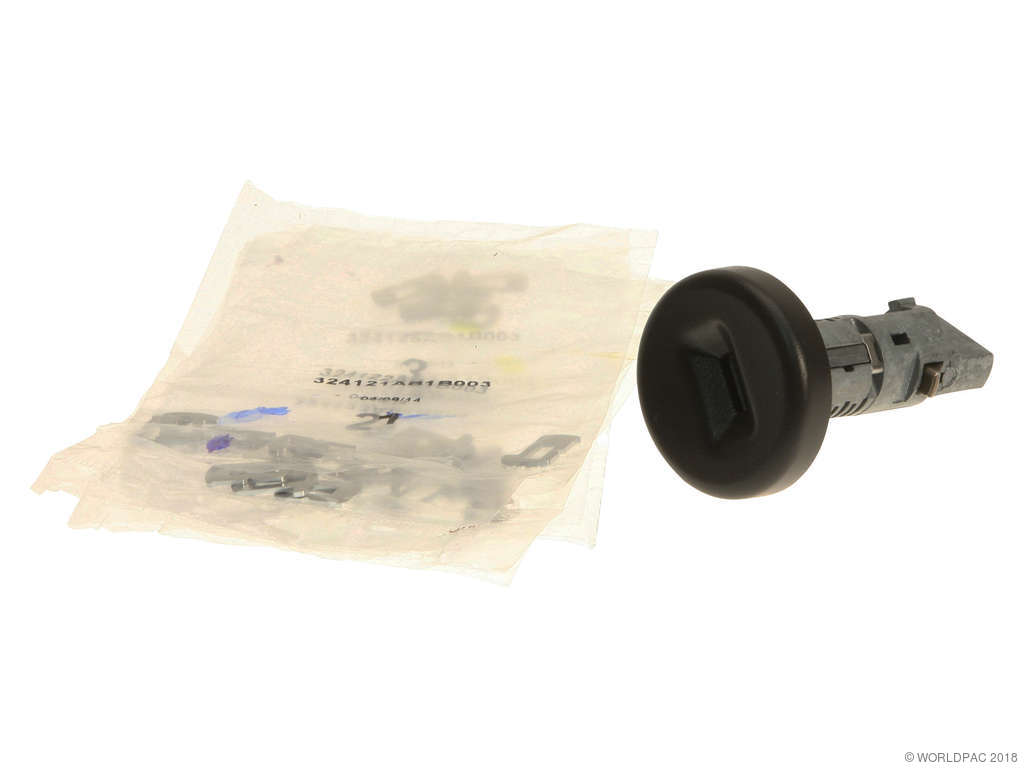

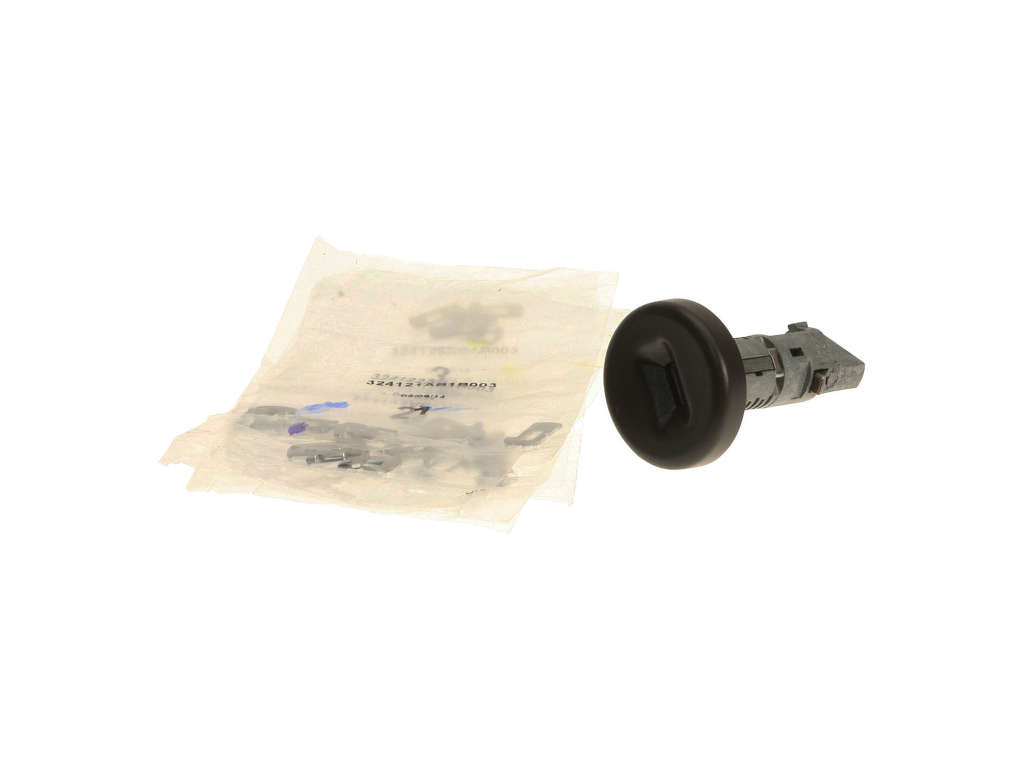

• Ignition Lock Cylinder (OEM #ACDelco D1497G (or equivalent)) — This component houses the exciter coil (antenna) that reads the key chip. If the coil or its wiring fails, no key will be recognized. It's the most common vehicle-side hardware failure for this code on the GMT900 platform.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $100-$180
  Aftermarket price range: $70-$120

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation or No Transponder,' indicating the security module received no signal from the key at all. It often appears with B3060 when the key fails completely, RFI is severe, or there is an issue with the reader coil.
• B3935 — This code for 'Transponder Authentication Error' indicates the module received a signal but could not validate it. It is frequently logged alongside B3055 and B3060 during a theft-deterrent system fault, as noted in TSBs.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: (And its previous versions like PIC5650C/G) Notes that intermittent no-crank/no-start conditions with codes B3055 and B3060 can be caused by Radio Frequency Interference (RFI) and strongly advises checking for and removing any aftermarket accessories before replacing any parts.

Platform-Specific Known Issues

• Per TSB PIC5650M, this platform is highly susceptible to Radio Frequency Interference (RFI) from aftermarket accessories or other RFID-enabled cards on a keychain, which can cause intermittent no-start conditions with a B3060 code.

Mechanic-Grade Diagnostic Values

• Immobilizer Antenna (Exciter) Coil Resistance — expected: ~6 Ω. Failure: An open circuit (infinite resistance) or a reading significantly different from the specification indicates a failed coil.
• BCM Low Reference (Ground) Circuit Resistance — expected: Less than 2.0 Ω. Failure: A reading of 2.0 Ω or greater indicates a poor ground connection (e.g., at G218), which can cause erratic module behavior.
• Ignition Voltage Circuit at BCM — expected: Greater than 9.0 V with key on. Failure: Voltage below 9.0 V suggests a problem in the power supply wiring or ignition switch, preventing the BCM from operating correctly.
• Immobilizer System Operating Frequency — expected: 125 kHz. Failure: Interference from other devices operating in the 120-135 kHz range can disrupt communication and set DTCs B3055, B3060, or B3935.

Scan Tool Commands That Help

• GM GDS2/Tech2: Immobilizer Learn / Vehicle Theft Deterrent Learn — This function is required to program new keys, relearn existing keys after a system glitch, or set up a new BCM or ignition lock cylinder. It initiates the security handshake process.
• GM GDS2/Tech2: BCM Data Display -> 'Valid Key' status — Used for live monitoring to see if the BCM is recognizing the key's transponder signal in real-time. This helps differentiate between an RFI issue, a bad key, or a faulty reader coil.
• GM GDS2/Tech2: Setup New BCM / BCM Programming/RPO Configuration — This is a mandatory first step when replacing the Body Control Module. It programs the vehicle's specific options (RPOs) into the new module before any security relearn procedures can be performed.

Wiring & Ground Locations

• Body Control Module (BCM) — Located under the driver's side dashboard, typically to the left of the steering column.. The BCM contains the Theft Deterrent Module (TDM) logic for the Pass-Key III+ system. All key validation signals are processed here. A failure of the BCM or its connections will directly cause security codes like B3060.
• G218 — A critical BCM ground point located in the upper left-hand corner of the driver's side footwell, under the dash speaker.. This ground is known to cause issues on the GMT900 platform. Sound deadening material can get trapped under the connection from the factory, leading to a poor ground over time. A bad G218 ground can cause erratic BCM behavior and a host of electrical problems, including false B3060 codes.
• Ignition Switch Connector — At the back of the ignition lock cylinder housing within the steering column.. The two small wires for the Pass-Key III+ exciter coil run from the lock cylinder through this connector to the BCM. Damage or corrosion at this connector or in the harness, especially where it flexes with a tilt steering wheel, can cause an open circuit and trigger B3055 or B3060.

Real Owner Repair Stories

• Go-Parts article citing a forum repair (2014 GMC Savana (related GMT610 platform)) — Persistent no-start condition with code B3060.
  ❌ Tried (didn't work) Replacing the ignition lock cylinder, Performing the 30-minute key relearn procedure
  ✅ What actually fixed it The ultimate fix was replacing and reprogramming the Body Control Module (BCM), which had failed internally.
• Go-Parts article citing a forum member (2018 Chevrolet Silverado (related K2XX platform)) — Recurring B3060 code and no-start condition.
  ❌ Tried (didn't work) Initial diagnostics did not immediately identify the cause.
  ✅ What actually fixed it The owner traced the problem to a company RFID access card kept on the same keychain as the ignition key. After separating the card from the key, the problem was permanently resolved, confirming RFI as the cause per TSB PIC5650M.

OEM Part Supersession History

• ACDelco Professional D1497G → ACDelco Gold D1497G — Branding change. ACDelco consolidated its 'Professional' line into the 'Gold' line. The part itself remains functionally the same.
  Heads up: This part requires programming and/or special setup procedures (i.e., the 30-minute relearn) to ensure proper operation in the vehicle.
