B3600 on 2014-2016 Chevrolet Silverado 1500: Dimmer Switch Code or Major Ground Fault?

What's Unique About the 2014-2016 Chevrolet SILVERADO 1500

The 2014-2016 Silverado belongs to the GM K2XX platform, which is known for a specific manufacturing flaw. During assembly, the front dash insulator mat was often trapped under the main ground terminal for the Body Control Module (G218), creating a poor connection. This leads to a cascade of bizarre electrical issues, with B3600 being a common collateral code. The symptoms are often far more severe than just a lighting issue, including stalling and loss of power steering, especially when turning at low speeds which puts a high load on the electrical system. This exact issue is documented in GM Technical Service Bulletin PIT5405C.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Flickering dashboard lights and headlights, especially when using a turn signal or brakes
• Interior lights not dimming correctly or not working at all
• Engine stalling, especially when turning the steering wheel at low speeds (e.g., parking)
• Sudden loss of electric power steering assist, often accompanied by a 'Service Power Steering' message
• Multiple, seemingly random warning messages on the dash, such as 'Service Stabilitrak', 'Park Assist Disabled', or 'Hood Ajar'
• Radio or infotainment screen randomly turning off, rebooting, or going blank
• Erratic turn signal operation or door lock cycling
• Wipers continuing to run for a short time after being turned off

Most Likely Causes

1. Poor Body Control Module (BCM) Ground at G218 🔴 High Probability → Shop Body Control Module A known manufacturing defect where the dash insulator mat gets trapped under the ground terminal during assembly, as documented in GM TSB #PIT5405C. This single ground point is critical for the BCM and many other instrument panel components.
   How to confirm: Visually inspect the G218 ground stud, located on the driver's side dash structure near the A-pillar, often behind or near the dash speaker. Check if the black foam sound-deadening mat is underneath the ground lug's eyelet. Check for looseness of the 10mm nut. The connection should be tight and metal-to-metal.
   Typical fix: Disconnect the battery. Remove the driver's side A-pillar trim and side dash panel to gain access. Remove the 10mm nut from the G218 stud. Trim away the interfering insulation mat with a utility knife. Clean the terminal eyelet and the body surface to bare metal with a wire brush or sandpaper. Securely re-tighten the nut to ensure a solid connection.
   Est. part cost: $0-$5
2. Faulty Headlamp/Dimmer Switch Assembly ⚪ Low Probability
   How to confirm: Only after confirming the G218 ground is perfect. Use a multimeter or scan tool to check for a consistent voltage signal from the switch as you rotate the dimmer. The signal should vary smoothly between approximately 0.10V and 4.97V. This is almost never the cause when accompanied by stalling or power steering loss.
   Typical fix: Replace the entire headlamp switch assembly, which includes the dimmer control.
   Est. part cost: $40-$110
3. Poor Battery Cable Connections ⚪ Low Probability → Shop Vehicle Battery General corrosion or vibration can loosen connections over time. TSB PIT5405C specifically calls out checking these connections as part of the diagnostic process.
   How to confirm: Inspect the main positive and negative battery terminals for corrosion or looseness. Per TSB PIT5405C, grasp the cables near the post and ensure they do not spin; if they do, the cable may need replacement. Also check the cable connections at the underhood fuse block (15 Nm torque) and the main engine block ground strap on the passenger side 🎬 See this walkthrough for locating passenger side ground points. (45 Nm torque).
   Typical fix: Clean terminals and cable ends thoroughly with a wire brush and tighten all connections to specified torque (e.g., 7 Nm for battery post clamps, 45 Nm for the engine block ground).
   Est. part cost: $0-$10

Rare But Worth Checking

• Shorted B+ Cable at Starter Solenoid:

Diagnosis Steps

1. Scan for all DTCs in all modules. Note any communication codes (U-codes) or codes related to power steering (C-codes) that accompany B3600. A cluster of seemingly unrelated codes strongly points to a ground issue.
2. Disconnect the negative battery terminal.
3. Access the G218 ground location. This is on the driver's side, high up on the metal dash support frame near the A-pillar. Removal of the side dash panel and sometimes the driver's side speaker is necessary.
4. Inspect the G218 ground terminal. Look for the black dash insulation mat being pinched between the metal eyelet and the vehicle body.
5. Whether insulation is present or not, remove the 10mm nut. Remove the ground lug(s).
6. Using a rotary tool, sandpaper, or wire brush, clean the body surface to bare metal. Clean the surfaces of the ground lug eyelet as well.
7. If insulation was interfering, carefully trim it back with a utility knife so it cannot contact the grounding point.
8. Securely reinstall the ground lug and tighten the 10mm nut. Ensure the connection is tight and does not move. While no official torque spec is published for this nut, 'good and tight' is the common practice.
9. While the battery is disconnected, inspect other key grounds, such as the main negative cable connection to the engine block on the passenger side (torque to 45 Nm / 33 ft lb), for corrosion and tightness.
10. Reconnect the battery. Clear all DTCs and start the vehicle. Test all functions, including turning the steering wheel lock-to-lock at a standstill 🎬 Watch: How to perform a ground upgrade to prevent future issues., to see if symptoms or codes return. This specific action often triggers the fault if the ground is still poor.
11. If codes and symptoms persist, the headlamp/dimmer switch becomes the next suspect. Test the switch's signal circuit for proper operation before replacing.

Parts You'll Likely Need

• Headlamp Switch Assembly (OEM #23393997) — This is only needed in the rare case that the dimmer switch itself has failed internally, after the G218 ground has been confirmed to be perfect.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $70-$110
  Aftermarket price range: $40-$80
• Body Control Module (BCM) (OEM #13594764, 13594692) — This is a common misdiagnosis. It should NOT be replaced unless all ground and power supply issues have been definitively ruled out by a professional. Replacement requires programming by a dealer or qualified shop.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $125-$250
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• U0140 — Lost Communication With Body Control Module. This is a direct result of the BCM losing its ground or power.
• U0073 — Control Module Communication Bus 'A' Off. The unstable BCM disrupts the entire CAN bus network.
• C0544 — Steering Assist Control Actuator Fault. This code often appears when the truck loses power steering due to the electrical fault.
• C0800 — Device Power #1 Circuit Malfunction. A general power supply code often triggered by the BCM's unstable ground.
• U0100 — Lost Communication with ECM/PCM. The network disruption can affect communication with the engine computer.
• U0121 — Lost Communication with ABS Control Module. The network disruption can affect communication with the anti-lock brake system.
• P0513 — Incorrect Immobilizer Key. Another collateral code that can be set by the BCM losing power/ground intermittently.

Technical Service Bulletins (TSBs) & Recalls

• PIT5405C: Instructs technicians to check the BCM ground at G218 for interference from the dash insulator mat as a cause for B3600 and over 20 other DTCs. It also advises checking battery cables and for a potential short at the starter solenoid.
• 18-NA-161: This bulletin supersedes PIT5405C, expanding the model years covered and reiterating the same diagnostic steps for the G218 ground fault and other potential electrical issues.
• PIT5405B: An earlier version of the same bulletin, also pointing to the G218 ground location as the source of numerous electrical DTCs.

Platform-Specific Known Issues

• A widespread manufacturing issue on the 2014-2019 GM K2XX platform involves the Body Control Module ground (G218) being compromised by an improperly placed dash insulator mat, causing numerous electrical faults. This is the first thing to check for any strange electrical behavior on these vehicles.
• Many owners report the most frightening symptom is the complete loss of power steering and engine power while turning at low speeds, which is a direct result of the unstable BCM ground.

Mechanic-Grade Diagnostic Values

• I/P Lamp Dimmer Switch Signal Voltage — expected: Smoothly varies between approx. 0.10V and 4.97V as the dimmer is rotated.. Failure: A reading consistently below 0.10V (short to ground/open) or above 4.97V (short to voltage) will set the code.
• I/P Dimming Voltage Reference Circuit — expected: Battery Positive Voltage (B+), typically ~12V with ignition on, at terminal 15 of the switch connector.. Failure: Voltage significantly less than B+ indicates a short to ground or an open/high resistance in the reference circuit from the BCM.
• Jumpered Dimming Control Signal (Scan Tool Parameter) — expected: Greater than 2.6V.. Failure: Less than 2.6V indicates a short to ground or open/high resistance in the signal circuit wire. Test is performed by disconnecting the switch and installing a 3A fused jumper between the signal circuit (Pin 13) and voltage reference circuit (Pin 15).
• Negative Battery Cable to Engine Block Nut Torque — expected: 45 Nm (33 ft lb).. Failure: A loose connection can cause a variety of electrical issues, including stalling.
• Battery Terminal Clamp Nut Torque — expected: 7 Nm (62 lb in).. Failure: Loose battery terminals are a primary cause of intermittent electrical faults.

Hidden / Shadow Codes Worth Checking

• B3600 03: Passenger Compartment Dimming Request Signal Voltage Below Threshold. Indicates the BCM detected the signal voltage was below ~0.10V, suggesting a short to ground or an open circuit. (see via A professional-grade scan tool like the GM GDS2 is required to see the two-digit failure type sub-code.)
• B3600 07: Passenger Compartment Dimming Request Signal Voltage Above Threshold. Indicates the BCM detected the signal voltage was above ~4.97V, suggesting a short to voltage. (see via A professional-grade scan tool like the GM GDS2 is required to see the two-digit failure type sub-code.)

Scan Tool Commands That Help

• GM GDS2 (or equivalent): BCM Live Data > 'Dimming Control Signal' — This is the primary live data parameter to monitor while rotating the physical dimmer knob. It allows you to see the exact voltage the BCM is receiving from the switch in real-time to confirm if the switch is sending a smooth, linear signal.
• GM GDS2 (or equivalent): BCM > Control Functions > Interior/Exterior Lighting — Use this bidirectional control to command the interior lights on, off, or to a specific brightness level, bypassing the physical switch. If the lights work correctly via the scan tool but not the switch (and the switch signal voltage is erratic), it points to a faulty switch. If the lights do not work correctly with the scan tool, it suggests a problem with the BCM, its output wiring, or its power/ground supply.

Wiring & Ground Locations

• G218 — On the driver's side dash support structure, near the A-pillar, often located behind or just below the driver's side dash speaker.. This is the primary ground for the Body Control Module (BCM). When compromised by the dash insulation mat, it causes the BCM to malfunction, setting B3600 and many other electrical fault codes.
• Headlamp Switch Connector Pin 13 — At the electrical connector for the headlamp switch assembly on the driver's side dash.. This is the 'I/P Lamp Dimmer Switch Signal' circuit. The BCM reads the voltage from this pin to determine the desired dimming level. A short or open on this wire will cause DTC B3600.
• Headlamp Switch Connector Pin 15 — At the electrical connector for the headlamp switch assembly on the driver's side dash.. This is the 'I/P Dimming Voltage Reference' circuit. The BCM supplies B+ voltage to the dimmer switch through this pin. Loss of this voltage will cause the switch to stop functioning and set a code.

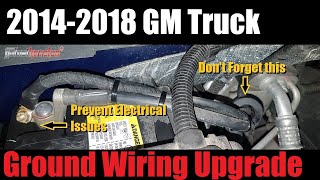

• Battery Negative Cable to Frame Ground — A smaller ground wire that splits off the main negative battery cable and attaches to the body/frame on the passenger side of the engine bay.. Owners have found this ground point loose or corroded, causing identical symptoms to the G218 issue, including stalling and total electrical cutout. It should be inspected and cleaned along with G218.

Real Owner Repair Stories

• YouTube user Tony Lester (2014 Chevrolet Silverado) — Annoying electrical issues, Stabilitrak warnings.
  ❌ Tried (didn't work) Ongoing diagnosis before finding the root cause.
  ✅ What actually fixed it The sound deadening/insulation material was trapped under the G218 ground wire. The user cut the rubber material away from the ground stud, re-secured the ground connection, and the issue was resolved.
• YouTube user Awrench Productions (2015 GMC Sierra) — Truck would randomly stall and become electrically dead, especially when turning corners at low speed. It would always restart immediately.
  ❌ Tried (didn't work) Initial inspection of the battery and its main connections.
  ✅ What actually fixed it The secondary ground wire from the negative battery terminal to the frame on the passenger side was loose and heavily corroded. The user removed the 10mm bolt, thoroughly cleaned the frame surface and the cable eyelet to bare metal, and securely re-tightened the connection. This permanently solved the stalling problem.
• YouTube user Hunter Wilson (2015 Chevrolet Silverado) — Flickering electrical components at low speeds (5-15 mph), power steering would shut off during sharp turns, and the truck would shut off completely when backing up.
  ✅ What actually fixed it The user performed two fixes: 1) Corrected the G218 ground under the dash by cutting away the interfering foam. 2) Cleaned the battery-to-body ground connection in the engine bay by sanding the contact points and repainting for protection. After these fixes, the truck ran strong for over a year with no more electrical issues.

Model Year Variations Within This Range

• 2016: The Silverado received a mid-cycle refresh for the 2016 model year, which primarily involved revised front-end styling (grille, headlights) and expanded 8-speed automatic transmission availability on some trims. However, the underlying K2XX electrical architecture and the G218 ground fault vulnerability remained unchanged from the 2014-2015 models.
