C0020 on 2020-2021 Lincoln Aviator: ABS Pump Fault Causes and Fixes

What's Unique About the 2020-2021 Lincoln AVIATOR

For early production 2020-2021 Aviators (and their Ford Explorer platform mates), this code is very frequently a false alarm. Lincoln issued Technical Service Bulletins (TSBs) because the true culprit is often a poor ground connection at a specific point (G108) on the chassis, caused by improperly plated attachment bolts. This known issue leads many to mistakenly replace the entire expensive ABS module assembly when only a simple, inexpensive ground repair is needed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Illuminated ABS warning light on the dashboard.
• Traction Control or Stability Control light may also be on.
• "Service AdvanceTrac" message may appear in the instrument cluster.
🎬 Watch: Common reasons and fixes for the Service AdvanceTrac light.
• In case of an actual pump failure, wheels may lock up and skid during hard braking.

Most Likely Causes

1. Poor Ground Connection at G108 🔴 High Probability A known issue on vehicles built on or before Dec 24, 2020, documented in Lincoln TSB 21-2030. The original attachment bolts may have had improper plating, leading to a poor connection. The G108 ground is located at the right rear of the engine compartment.
   How to confirm: Visually inspect the ground connection at point G108 (right rear of engine bay) for looseness, corrosion, or signs of poor contact. A voltage drop test across the ground point can confirm high resistance; it should be less than 3-5 ohms.
   Typical fix: Replace the two ground cable fasteners (bolts) with updated parts and ensure the contact surface on the chassis and the cable eyelets are cleaned to bare metal. Tighten bolts to specification. This procedure is outlined in TSB 21-2030.
   Est. part cost: $5-$20
2. Failed ABS Pump Motor ⚪ Low Probability → Shop ABS Control Module
   How to confirm: After confirming the ground connection is good, a technician can use a bi-directional scan tool to command the ABS pump motor to activate. 🎬 See how to test an ABS pump without removing it. If the motor does not run, runs poorly, or makes unusual noises, it has likely failed.

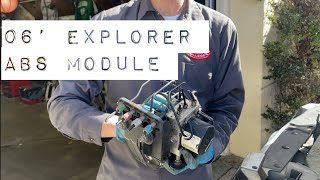

   Typical fix: Replace the entire ABS module and Hydraulic Control Unit (HCU) assembly, as the motor is typically integrated. 🎬 Watch this walkthrough for Ford Explorer ABS module replacement and programming. The system must then be bled using a specific scan tool procedure.
   Est. part cost: $800-$1500
3. Damaged Wiring or Connectors ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness leading to the ABS module for any signs of chafing, breaks, or corrosion. Check the connector pins for damage or corrosion. A multimeter would be used to check for proper voltage (12.0-12.6V) and continuity.
   Typical fix: Repair the damaged section of the wiring harness or replace the faulty connector.
   Est. part cost: $20-$100

Diagnosis Steps

1. Connect a professional OBD-II scanner to confirm the presence of code C0020 and check for any other related DTCs.
2. Check vehicle build date. If built on or before December 24, 2020, immediately suspect the G108 ground issue per TSB 21-2030.
3. Locate and inspect the G108 ground connection. It is located on the right rear of the engine compartment. Check for any looseness or corrosion.
4. Even if it looks okay, it is highly recommended to replace the two ground bolts with the updated part and clean the contact surfaces to bare metal as per the TSB.
5. If the ground repair does not resolve the issue, inspect the ABS module's main electrical connector and wiring harness for damage, moisture, or corrosion.
6. Using a multimeter, verify that the ABS module is receiving proper battery voltage (12.0V+) and has a solid ground (less than 5 ohms resistance).
7. Using a bi-directional scan tool, attempt to command the ABS pump motor to activate. Listen for the pump running for approximately 2 seconds.
8. If the pump does not activate despite having good power and ground, the ABS module/pump assembly is likely faulty and requires replacement.

Parts You'll Likely Need

• Ground Cable Fasteners/Bolts (OEM #W719492-S439) — This is the most common fix for C0020 on this specific vehicle, as documented in TSB 21-2030, due to improper plating on the original bolts causing a poor ground. Note: This part number is for a hex head flanged bolt used in many Ford applications and is believed to be the correct service part, though the TSB itself does not specify it.
  Trusted brands: Motorcraft
  OEM price range: $5-$20
  Aftermarket price range: $5-$15
• ABS Control Module and Hydraulic Unit Assembly — This part is only needed if the pump motor has actually failed, which is much less common than the ground issue. The TSBs explicitly warn against replacing this part unnecessarily.
  Trusted brands: Motorcraft
  OEM price range: $1200-$1500
  Aftermarket price range: $800-$1200

Related Codes That Often Appear With This One

• U0418 — This code means 'Invalid Data Received From Brake System Control Module' and can be triggered as a secondary fault when the ABS module sets a code like C0020.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-2030: Notes that a poor ground connection (G108) is a likely cause for C0020 and that replacing the ABS module may not be necessary.
• TSB 20-2364: An earlier version of the bulletin with similar information for an earlier build date range.
• TSB 21-2017: A related bulletin for the platform-mate Ford Explorer, confirming the same issue and fix.

Platform-Specific Known Issues

• TSB 21-2030: Affects 2020-2021 Aviator/Explorer vehicles built on or before 24-Dec-2020. States that an illuminated ABS light with DTC C0020 may be caused by a poor ground at G108 due to improper plating on the attachment bolts. The fix is to replace the ground fasteners, not the ABS module.
• TSB 20-2364: An earlier, superseded bulletin for vehicles built on or before 29-Feb-2020 describing the same issue with DTC C0020 and advising that ABS module replacement may not be necessary.
• TSB 21-2017: A related TSB for the Ford Explorer platform mate, also updating the production fix date and pointing to the G108 ground as the cause.

Mechanic-Grade Diagnostic Values

• ABS Module Power Supply Voltage — expected: Greater than 10 Volts. Failure: Voltage below 10V indicates a power supply issue from the Battery Junction Box (BJB) or wiring.
• ABS Module Ground Circuit Resistance — expected: Less than 5 ohms. Failure: Resistance greater than 5 ohms between the ground pin at the module connector and a clean chassis ground point indicates a faulty ground connection.
• ABS Pump Motor Feedback Voltage (Motor Off) — expected: Less than 0.75 Volts. Failure: If the feedback voltage remains greater than 0.75V for more than 50ms after the pump is commanded off, it indicates a short to power or an internal module fault, setting DTC C0020:15.

Hidden / Shadow Codes Worth Checking

• C0020:12: ABS Pump Motor Control: Circuit Short To Battery. Sets if the module detects an open driver or supply condition. (see via Ford IDS/FDRS or equivalent professional scan tool that can read manufacturer-specific suffix codes.)
• C0020:15: ABS Pump Motor Control: Circuit Short To Battery Or Open. Sets if feedback voltage is too high after the pump is commanded off. (see via Ford IDS/FDRS or equivalent professional scan tool that can read manufacturer-specific suffix codes.)
• C0020:71: ABS Pump Motor Control: Actuator Stuck. Sets when the module commands the pump motor to run but does not detect rotation. (see via Ford IDS/FDRS or equivalent professional scan tool that can read manufacturer-specific suffix codes.)

Scan Tool Commands That Help

• Ford IDS/FDRS: ABS Module Self-Test — This is a primary command used to retrieve all active and stored DTCs, including the critical suffix codes that point to the specific failure type (e.g., actuator stuck, circuit open).
• Ford IDS/FDRS: DataLogger: PMP_MOTOR Active Command — This is a bidirectional control used to command the ABS pump motor ON and OFF. It is a critical step to verify if the motor is physically capable of running, after power and ground have been confirmed good.
• Ford IDS/FDRS: Programmable Module Installation (PMI) — This function is required when replacing the ABS module. It copies the configuration data (As-Built data) from the old module or retrieves it from Ford's servers and writes it to the new one to ensure it works correctly with the vehicle's specific features.

Wiring & Ground Locations

• G108 — Located at the right rear of the engine compartment.. This is the primary ground point identified in TSB 21-2030 as the most common cause of code C0020 on this vehicle due to improperly plated bolts causing a poor connection.
• ABS Module Connector (C135) — The main electrical connector at the ABS module itself.. This is where all power, ground, and control signals are sent to the module. Pinpoint voltage and resistance tests are performed here to confirm the integrity of the circuits before condemning the module.
• C135 Pin 1 (Circuit SBB08 or SBB26) — Pin 1 on the ABS module connector.. This is a primary power supply pin for the ABS pump motor, fed from a fuse in the Battery Junction Box. It should have battery voltage (greater than 10V) with the key on.
• C135 Pin 47 (Circuit GD121) — Pin 47 on the ABS module connector.. This is a primary ground pin for the ABS module. It should be tested for resistance to a clean chassis ground, which should be less than 5 ohms.

Real Owner Repair Stories

• Explorer ST Forum (2019-2021 Ford Explorer (platform mate)) — AWD module not responding or turning on, displaying 8-12V in FORScan instead of 14V with engine on.
  ❌ Tried (didn't work) Replacing the AWD module (issue would sometimes return)., Wiggling or reseating the module connector (provided only a temporary fix).
  ✅ What actually fixed it The issue was a poor ground connection via the module's metal case and mounting standoffs, which were often covered in paint. The definitive fix was to de-pin the ground wire from the connector, solder on a new wire with a ring terminal, and create a dedicated ground connection to a clean metal point on the car body under the seat.

OEM Part Supersession History

• LC5Z-2C219-A (example) → LC5Z-2C219-B, LC5Z-2C219-C, etc. — Revisions often address internal hardware or software improvements.
  Heads up: When replacing the ABS module, the part number must be matched exactly to the original unit. Different letters at the end of the part number signify different hardware and software configurations for features like AWD, RWD, or specific driver-assist packages. Installing an incompatible module will result in programming failure or malfunction.

Model Year Variations Within This Range

• 2020-2021 (early production): Vehicles built on or before December 24, 2020, are specifically called out in TSB 21-2030 as being susceptible to the G108 ground fault. Vehicles built after this date received a production fix, making the ground issue much less likely to be the cause of C0020.
