C0035 on 2007-2014 GMC Acadia: Left Front Wheel Speed Sensor Causes and Fixes

What's Unique About the 2007-2014 Gmc ACADIA

On the GMC Acadia and its platform-mates (Buick Enclave, Chevy Traverse, Saturn Outlook), the wheel speed sensor is not a small, separate part that can be easily unbolted. Instead, it is integrated with the wheel bearing into a single, sealed hub assembly. This design means that an internal sensor failure requires the replacement of the entire wheel hub. Additionally, these vehicles use a magnetic encoder ring made of magnetized nitrile rubber instead of a traditional toothed reluctor wheel. This magnetic ring is prone to attracting and accumulating ferrous metallic debris (brake dust, rust particles), which disrupts the sensor's signal and is a primary cause of this code, as noted in GM Technical Service Bulletins.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak or Traction Control (TC) warning light is on
• "Service StabiliTrak" or "Service Brake System" message on the driver information center
• Cruise control is disabled
• An audible grinding, clicking, or ABS pump motor noise at low speeds.
• A flashing Traction Control light at low speeds with no codes set can be a precursor symptom.

Most Likely Causes

1. Debris on Magnetic Encoder Ring 🔴 High Probability This is a well-documented issue acknowledged by GM in TSBs PIC5428G and 17-NA-047. The magnetic encoder ring on the inboard side of the hub attracts metallic particles from brake wear and rust. This buildup interferes with the North/South pole pairs the sensor reads, causing an erratic or lost signal.
   How to confirm: This requires removing the wheel and brake caliper to get a clear view of the inboard side of the hub assembly. Look for a build-up of dark, metallic 'paste' or 'fuzz' on the brown, rubber-like seal of the hub. A magnetic viewing film can visually show the disruption.
   Typical fix: Gently clean the magnetic encoder ring with a soft nylon brush and brake cleaner. Do not use magnetic tools for cleaning as they can damage the encoder. In many cases, this cleaning procedure resolves the code without replacing any parts.
   Est. part cost: $0 - $15 (Brake Cleaner)
2. Failed Wheel Speed Sensor / Hub Assembly 🔴 High Probability → Shop Hub Assembly If cleaning the encoder ring doesn't work or the ring is damaged, the internal sensor itself has likely failed. The wheel hub is a wear-and-tear item, and the integrated sensor is subjected to immense heat, vibration, and moisture, leading to eventual electronic failure.
   How to confirm: Use a scan tool to monitor live data from all four wheel speed sensors while driving. The left front sensor will show a 0 MPH reading or an erratic signal compared to the others. If cleaning the encoder ring has no effect, the hub is the next logical point of failure.
   Typical fix: Replace the entire left front wheel hub and bearing assembly.
   Est. part cost: $80-$200
3. Damaged Wiring Harness or Connector 🟡 Medium Probability The wiring harness leading to the wheel hub is exposed to weather, road debris, and constant movement from suspension and steering. On some Lambda platform vehicles, the harness connector is located behind the airbox, requiring its removal for inspection. Wires can chafe against the fender liner or suspension components, leading to shorts or breaks.
   How to confirm: Visually inspect the entire length of the wire from the back of the hub up to its connection point in the engine bay. Unplug the connector and check for green or white corrosion on the pins. Perform a continuity or resistance test on the wires between the EBCM and the sensor connector 🎬 Watch: Quick tip for diagnosing ABS code C0035 on GM vehicles to find breaks.
   Typical fix: If the connector is corroded, replace the pigtail connector. If a wire is broken or chafed, it can be spliced, soldered, and sealed with heat shrink tubing.
   Est. part cost: $15-$40

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is the computer that controls the ABS and StabiliTrak systems. It's an expensive part and rarely the cause of a single wheel speed sensor code. This should only be considered after the hub, wiring, and connectors have been definitively ruled out.

Diagnosis Steps

1. Connect an ABS-capable OBD-II scanner and confirm C0035 is the active code.
2. Access the live data stream on the scanner and monitor all four wheel speed sensors while driving slowly (5-10 mph).
3. Observe the reading for the Left Front (LF) wheel speed sensor. If it reads 0, is erratic, or doesn't match the other sensors, the problem is isolated to that corner.
4. Raise and safely support the front of the vehicle. Remove the left front wheel.
5. Visually inspect the wiring harness leading to the left front wheel hub. Look for any signs of chafing, melting, or physical damage from the hub to the engine bay connector.
6. Disconnect the sensor's electrical connector. On some models, this may require removing the air filter box for access. Inspect the pins on both the harness side and the hub side for corrosion, moisture, or damage.
7. Inspect the magnetic encoder ring on the inboard side of the hub assembly. It is a brown, rubber-like ring. Look for a buildup of metallic debris.
8. If debris is present, thoroughly clean it off using a nylon brush and brake cleaner. Reassemble and test drive to see if the code clears.
9. If cleaning does not resolve the issue, or if the wiring and connector appear intact, the most likely cause is a failure within the wheel hub assembly itself.
10. If wiring is suspected, use a multimeter to test for continuity on the harness wires between the EBCM connector and the wheel speed sensor connector to rule out a wire break.
11. If the wiring is confirmed to be good and cleaning the encoder failed, replace the left front wheel hub assembly.
🎬 See this step-by-step walkthrough for replacing the front wheel hub

Parts You'll Likely Need

• Front Wheel Hub and Bearing Assembly (OEM #25999311 (ACDelco FW413)) — This is the most common required part if cleaning the encoder ring fails. The wheel speed sensor is integrated into this assembly.
  Trusted brands: ACDelco (FW413), Timken (513276), MOOG (513276), Duralast (DL513276)
  OEM price range: $150-$220
  Aftermarket price range: $80-$150

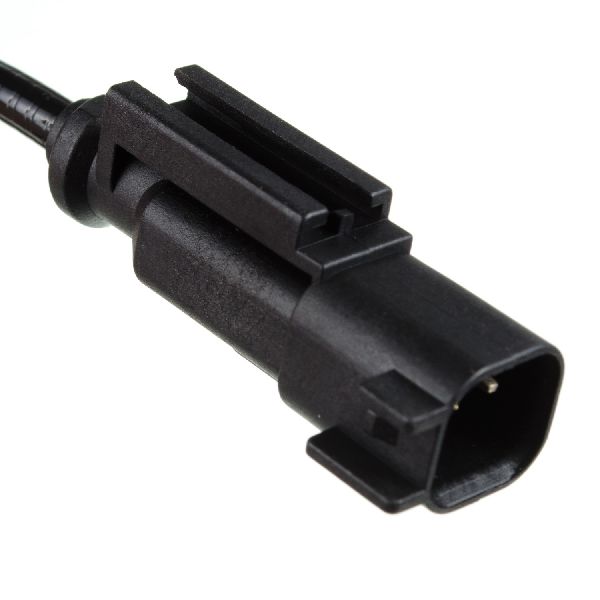

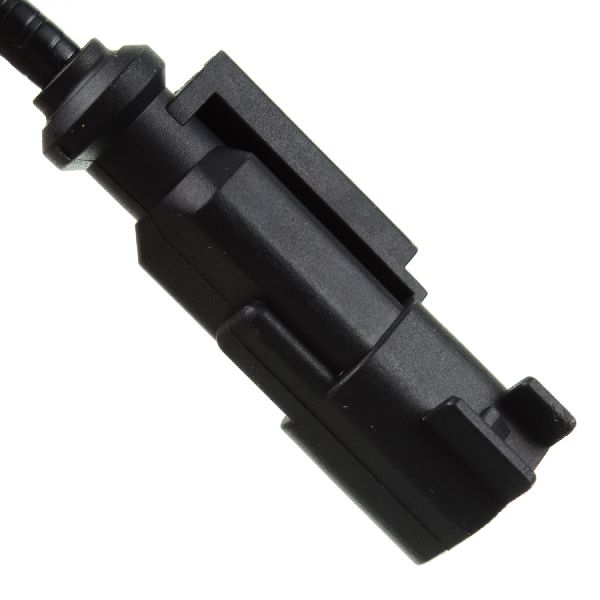

• ABS Wheel Speed Sensor Connector Pigtail (OEM #PT2160) — If the wiring connector is the source of the fault due to corrosion or damage, replacing this pigtail is the correct repair.
  Trusted brands: ACDelco, Standard Motor Products, Dorman
  OEM price range: $25-$40
  Aftermarket price range: $15-$25

Related Codes That Often Appear With This One

• C0040 — This is the code for the Right Front Wheel Speed Sensor. It can appear if there is a systemic issue like corrosion affecting both front connectors or if both hubs are failing around the same time due to similar age and wear.
• U0415 — This code may be set in the Power Steering Control Module, indicating it has received invalid data from the EBCM. TSB PIC5428G notes this is a normal default action when a wheel speed signal is lost on vehicles with electric power steering.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428G: "Service Stabilitrak lights with DTCs C0035-C0050... inspect the appropriate corner magnetic encoder ring for possible debris... In most cases the DTCs... can be repaired by removing and/or cleaning 🎬 Watch: How to properly clean the magnetic encoder ring any accumulated debris". This TSB applies to the Acadia, Enclave, Traverse, and Outlook.
• 17-NA-047: This bulletin supersedes PIC5428G, updating the model years and providing the same diagnostic advice. It cautions against using magnetic tools for cleaning the encoder ring.

Platform-Specific Known Issues

• GM Technical Service Bulletin (TSB) #PIC5428G (later superseded by #17-NA-047) directly addresses codes C0035-C0050 on these vehicles. It specifically identifies metallic debris on the magnetic encoder ring as a primary cause and recommends cleaning it as the first step of repair.
• Owner experiences on forums for the Acadia and its platform-mates frequently cite the hub replacement as the ultimate fix, but many have had success with the cleaning method first.
• Accessing the wiring harness connector can be difficult, sometimes requiring the removal of the air filter housing to reach the connection point in the engine bay.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Supply Voltage — expected: Approximately 10.9V - 12V (Battery Voltage) with key on, engine off.. Failure: Voltage significantly below battery voltage or 0V indicates a wiring or EBCM power supply issue.
• Wheel Speed Sensor Signal (Oscilloscope) — expected: A clean digital square wave that alternates between a low (approx. 7mA) and high (approx. 14mA) state as the wheel is spun.. Failure: A missing, erratic, or noisy square wave pattern indicates a faulty sensor/hub assembly or debris on the encoder ring.
• Wheel Speed Sensor Resistance — expected: Resistance testing is NOT recommended for these active (3-wire Hall effect) sensors. It will not provide a conclusive result.. Failure: N/A

Hidden / Shadow Codes Worth Checking

• C0035 18: Symptom byte '18' indicates 'Signal Circuit Short to Ground or Open'. This points directly to a wiring issue or an internal short/open in the sensor itself. (see via A professional scan tool like the GM Tech2 or GDS2 is required to view symptom bytes.)
• C0035 5A: Symptom byte '5A' means 'Signal Plausibility Failure'. The EBCM is receiving a signal, but it's erratic, irrational, or doesn't match the signals from other wheels. This is often caused by debris on the magnetic encoder ring. (see via A professional scan tool like the GM Tech2 or GDS2 is required to view symptom bytes.)
• C0035 0F: Symptom byte '0F' indicates an 'Erratic Signal'. This is similar to 5A and points to a signal that is dropping out or noisy, often due to a failing sensor or debris on the encoder. (see via A professional scan tool like the GM Tech2 or GDS2 is required to view symptom bytes.)

Wiring & Ground Locations

• EBCM (Electronic Brake Control Module) — Located on the driver's side of the engine compartment, under the brake fluid reservoir, attached to the ABS hydraulic block.. This module receives the signal from the left front wheel speed sensor. All wiring tests for the sensor circuit ultimately lead back to this module's connector.
• EBCM Connector (X1) — The main 38-pin electrical connector on the EBCM.. Pin 25 (Dark Green wire) is the 12V power supply to the LF wheel speed sensor. Pin 26 (Tan wire) is the signal return from the LF wheel speed sensor. Testing at these pins can confirm if the signal is reaching the module.
• G115 — A primary chassis ground point located on the left inner fender panel in the engine compartment.. The EBCM relies on a clean, solid ground connection to function correctly. A corroded or loose G115 can cause various ABS faults, including erroneous wheel speed sensor codes.
• ABS Fuses — In the under-hood fuse box. There is a 40A box fuse and a 25A blade fuse, both labeled for the ABS motor/system.. While a blown fuse is unlikely to cause a single sensor code, it's a fundamental check for any ABS system issue.

Real Owner Repair Stories

• YouTube channel 'Fixing cars and stuff' (2015 GMC Acadia) — ABS, StabiliTrak, and Traction Control warning lights were on.
  ❌ Tried (didn't work) Initial diagnosis pointed to the left rear wheel speed sensor.
  ✅ What actually fixed it Upon removing the left rear wheel hub, the magnetic reluctor/encoder ring was found to have completely shattered and delaminated from the bearing assembly. Pieces were stuck magnetically to the remnants of the ring. Replacing the entire wheel hub assembly with a new one resolved all the warning lights.
• YouTube channel 'Keith Perkins' (2014 Chevrolet Impala (related GM platform)) — C0035 with symptom bytes 00 and 0F (Erratic Signal).
  ❌ Tried (didn't work) The vehicle had already had two wheel bearings, an ABS control module, and a previous wiring repair, none of which permanently fixed the issue.
  ✅ What actually fixed it The technician found an internal break in the copper wire inside the insulation of the sensor pigtail, close to the connector. The insulation would stretch when pulled, but was not visibly damaged. Replacing the pigtail harness (GM P/N 10340314) was the correct and final fix.

Model Year Variations Within This Range

• 2013-2014: The GMC Acadia received a significant facelift for the 2013 model year, including revised exterior and interior styling. However, the underlying chassis, 3.6L V6 engine, and ABS components like the wheel hub assemblies remained fundamentally the same as the 2007-2012 models. Therefore, the causes and fixes for code C0035 are consistent across the entire 2007-2014 range.
