GMC Canyon C0035 Code: Left Front Wheel Speed Sensor Circuit Fault (2015-2019)

What's Unique About the 2015-2019 Gmc CANYON

While a faulty sensor is a common cause on any vehicle, the 2015-2019 GMC Canyon and its sibling, the Chevy Colorado, are subject to a specific Technical Service Bulletin (TSB #PIT5499B). This TSB highlights a problem where water can get into the main connector for the Electronic Brake Control Module (EBCM), causing corrosion and a wide range of ABS-related codes, including C0035. The TSB suggests the water may enter the harness conduit leading to ground G400. This makes checking the EBCM connector a crucial, platform-specific diagnostic step that can prevent unnecessary replacement of the wheel speed sensor itself.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• Traction Control (TCS) or Electronic Stability Control (ESC) warning light is on
• "Service Trailer Brake" message may appear on the Driver Information Center.
• "Service StabiliTrak" message may appear.
• Low Brake Fluid" warning light may illuminate even if the fluid level is full.
• ABS and traction control systems are disabled or function erratically.

Most Likely Causes

1. Damaged or Corroded Tone Ring on Wheel Hub 🔴 High Probability The magnetic tone ring (reluctor) is integrated into the wheel hub's seal and is susceptible to rust and damage from road debris. The rust can cause the ring to crack or delaminate, sending an erratic signal. This is a very common failure point on these trucks.
   How to confirm: Remove the wheel speed sensor and use a small mirror and light to visually inspect the tone ring inside the hub for rust, cracks, or missing magnetic sections. A Reddit user confirmed this was their issue after a sensor replacement didn't work.

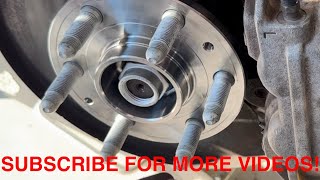

   Typical fix: The tone ring is integrated into the wheel hub bearing assembly. The entire hub assembly must be replaced. 🎬 See this step-by-step guide to replacing the front wheel hub.
   Est. part cost: $100-$250
2. Faulty Left Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor Wheel speed sensors are exposed to harsh conditions (water, dirt, road salt) which leads to internal failure or damage to the wiring pigtail over time.
   How to confirm: Use a scan tool to monitor live data from the left front wheel speed sensor while driving. If the speed reading is erratic, zero, or doesn't match the other wheels, the sensor is a likely culprit. You can also test the sensor circuit for proper voltage and signal.
   Typical fix: Replace the left front wheel speed sensor harness. The sensor is held in by a single Torx bolt (T30).
   Est. part cost: $25-$70
3. Damaged Wiring or Connector for the Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness runs down the suspension and can be damaged by road debris, improper service, or chafing against suspension components.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to where it enters the main harness. Look for chafing, breaks, or corrosion in the connector pins. Perform a continuity test on the wires.
   Typical fix: Repair the damaged section of wire or replace the sensor pigtail connector.
   Est. part cost: $15-$40
4. Water Intrusion at the EBCM Connector 🟡 Medium Probability As documented in TSB #PIT5499B, the wiring harness leading to the EBCM may allow water to enter the connector, causing corrosion on the pins. The TSB specifically mentions checking the conduit leading to ground G400.
   How to confirm: Disconnect the main electrical connector at the Electronic Brake Control Module (EBCM) and inspect for any signs of water, moisture, or blue/green corrosion on the terminals.
   Typical fix: If corrosion is found, the affected terminals must be replaced using proper terminal repair kits. The EBCM itself may also require replacement if the pins are damaged beyond repair. The source of the water leak into the harness conduit must also be found and sealed.
   Est. part cost: $50-$800 (depending on whether EBCM needs replacement)

Rare But Worth Checking

• Faulty Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is uncommon unless other codes are present or if water intrusion is confirmed. The module itself can fail internally, but this should only be considered after all other possibilities have been exhausted.
• Incorrect Signal from Aftermarket Hub Assembly: A technician working on a related Chevy Colorado with a persistent C0035 code found that a new aftermarket hub assembly was producing a signal with an incorrect duty cycle (waveform), which the EBCM flagged as a fault. Using an OEM or high-quality OEM-spec hub assembly resolved the issue.
• Rust Buildup Under Sensor Mounting Surface: In rust-prone regions, rust can build up on the steering knuckle in the hole where the wheel speed sensor mounts. This physically pushes the sensor slightly out, increasing the air gap to the tone ring and causing a weak or missing signal, especially at low speeds. 🎬 Watch: How to clean rust buildup under the sensor mounting. The fix is to remove the sensor and thoroughly clean the mounting surface with a wire brush or die grinder before reinstalling.

Diagnosis Steps

1. Read all codes from the ABS/EBCM module using a capable OBD-II scanner.
2. Confirm the code is C0035 and check for any other related codes, especially communication codes (U-codes) or codes for other wheels.
3. Crucial Step for this Platform: Inspect the main electrical connector at the Electronic Brake Control Module (EBCM) for any signs of water or corrosion, as per TSB #PIT5499B. If clean, also inspect the wiring conduit leading to ground G400 for signs of water entry.
4. If the EBCM connector is clean, raise the front of the vehicle and secure it on jack stands. Remove the left front wheel.
5. Visually inspect the wheel speed sensor and its wiring harness for any obvious damage, chafing, or loose connections.
6. Remove the single Torx bolt (T30) holding the wheel speed sensor and pull the sensor out of the hub.
7. Crucial Step for this Platform: With the sensor removed, use a light and a small mirror to carefully inspect the magnetic tone ring on the wheel hub. Look for heavy rust, flaking, or cracks. A broken tone ring is a very common cause.
8. If the tone ring looks good, use a scan tool with live data capabilities. Monitor the wheel speed of all four wheels while spinning the left front wheel by hand. Observe if the left front sensor provides a reading. Compare it to the other side.
9. If the reading is absent or erratic, test the sensor and harness. Disconnect the sensor and test for proper voltage supply from the harness. Check the sensor's internal resistance with a multimeter and compare it to the manufacturer's specifications.
10. If the sensor, wiring, and tone ring all appear to be in good condition, the fault may lie within the EBCM itself or be caused by an out-of-spec aftermarket part.

Parts You'll Likely Need

• Front Wheel Hub and Bearing Assembly (OEM #ACDelco FW420 (4WD); MOOG 515167 (4WD); MOOG 515196 (2WD)) — Required if the magnetic tone ring, which is integral to the hub, is damaged or rusted. This is a very frequent failure point on these trucks, often misdiagnosed as a bad sensor. Part numbers differ for 2WD and 4WD models, so verify with VIN.
  Trusted brands: ACDelco, Timken, MOOG, TRQ
  OEM price range: $200-$350
  Aftermarket price range: $100-$220
• Front Wheel Speed Sensor Harness (OEM #ACDelco 23483107 (superseded by 84426128)) — This is the second most common failure point after the hub/tone ring. The sensor itself fails or the attached wiring gets damaged.
  Trusted brands: ACDelco, Delphi, Bosch, SKF
  OEM price range: $50-$90
  Aftermarket price range: $25-$70

Related Codes That Often Appear With This One

• C0040 — This is the code for the Right Front Wheel Speed Sensor. If both appear, it may point towards a systemic issue like the EBCM connector problem or a wiring harness issue common to both sides.
• U0121, U0415, U0420 — These are communication codes that are often stored alongside wheel speed sensor codes when there is water intrusion in the EBCM connector, as noted in TSB #PIT5499B.
• C027B — This code relates to the brake booster electric vacuum pump. In at least one documented case, it appeared alongside C0035, indicating multiple simultaneous issues within the braking control system.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #PIT5499B: Addresses an ABS/ESC light, Service Trailer Brake message, or Low Brake Fluid warning caused by water intrusion in the EBCM connector, which can log codes C0035, C0040, and others. It advises inspecting the connector and the harness conduit to ground G400.

Platform-Specific Known Issues

• A known issue documented in TSB #PIT5499B involves water intrusion into the Electronic Brake Control Module (EBCM) connector, which can cause code C0035 along with other ABS/communication faults. The bulletin suggests water may wick through the harness from the G400 ground point.
• The magnetic tone ring integrated into the wheel hub assembly is highly prone to rust and delamination, causing erratic signals that are often misdiagnosed as a faulty sensor.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Power Supply Voltage — expected: Battery Voltage (~12V) with key on, engine off.. Failure: No voltage indicates a wiring or EBCM fault.
• Wheel Speed Sensor Signal (Oscilloscope) — expected: A clean square wave that increases in frequency as the wheel is spun.. Failure: A missing, erratic, or distorted waveform indicates a faulty sensor, tone ring, or wiring.

Hidden / Shadow Codes Worth Checking

• C0035 06: Left Front Wheel Speed Sensor Circuit Low Voltage/Open. This points to a wiring break, connector issue, or internal sensor failure. (see via A professional GM-capable scan tool (e.g., GDS2, Tech2) that can read ABS module symptom bytes.)
• C0035 0F: Left Front Wheel Speed Sensor Circuit Signal Erratic. This often points to a damaged tone ring, debris on the sensor, or a loose connection. (see via A professional GM-capable scan tool (e.g., GDS2, Tech2) that can read ABS module symptom bytes.)
• C0035 18: Left Front Wheel Speed Sensor Circuit Low Signal Amplitude. This can be caused by an excessive air gap (e.g., rust under sensor mount) or a failing sensor. (see via A professional GM-capable scan tool (e.g., GDS2, Tech2) that can read ABS module symptom bytes.)
• C0035 5A: Left Front Wheel Speed Sensor Circuit Not Plausible. The signal doesn't make sense compared to other vehicle sensors (e.g., other wheels). This can be caused by a damaged tone ring or an incorrect aftermarket part. (see via A professional GM-capable scan tool (e.g., GDS2, Tech2) that can read ABS module symptom bytes.)

Scan Tool Commands That Help

• GDS2 / Professional Scan Tool: Live Data - ABS/EBCM Module — Use this to monitor the speed readings from all four wheels simultaneously while driving or spinning the wheels on a lift. This is the primary method to confirm if the Left Front sensor is dropping out, reading zero, or providing an erratic signal compared to the other three wheels.
• GDS2 / Professional Scan Tool: Clear DTCs — After clearing codes, cycling the ignition on GM active wheel speed systems will cause the EBCM to send a brief 12V pulse down the circuit. This can be used with an oscilloscope at the sensor connector to quickly verify wiring and module integrity without having to drive the vehicle.

Wiring & Ground Locations

• EBCM Connector — The Electronic Brake Control Module (EBCM) is typically mounted to the ABS hydraulic unit (the pump block) in the engine bay.. This is the main 38-pin connector for the entire ABS system. TSB #PIT5499B specifically calls for inspecting this connector for water intrusion and corrosion, which is a known cause of code C0035 on this platform.
• G400 — The exact location on a 2015-2019 Canyon is not well-documented in public sources, but on similar GM trucks, major frame grounds are located on the frame rail in the engine bay or under the cab.. TSB #PIT5499B suggests that water can enter the wiring harness near ground G400 and travel through the conduit to the EBCM connector, causing the fault. Inspecting the harness in the vicinity of frame grounds for damage or improper sealing is a key diagnostic step.

Real Owner Repair Stories

• Reddit user on r/chevycolorado (Chevy Colorado (GMC Canyon sibling)) — ABS light on, code C0035 for the left ABS sensor.
  ❌ Tried (didn't work) Replacing the left front wheel speed sensor.
  ✅ What actually fixed it The user replaced the entire front hub assembly. The underlying cause was that the magnetic reluctor ring on the original hub had rusted out, which was providing a bad signal to the new sensor.
• YouTube video by Phillip Bailey (2016 Chevrolet Colorado) — ABS and TCS lights on, codes C0035 (Left Front Wheel Speed Circuit Plausibility Failure) and C027B.
  ✅ What actually fixed it Diagnosis using a scan tool's live data showed the left front wheel speed signal dropping out while being spun by hand. The technician identified this as a classic symptom of a failed reluctor ring on the hub and determined the entire wheel hub and bearing assembly needed replacement.

When the Usual Fixes Don't Work

• In multiple documented cases, replacing only the C0035-indicated wheel speed sensor did not resolve the issue. The final repair required replacing the entire wheel hub assembly because the integrated magnetic tone ring was rusted, cracked, or delaminated, which is not a separately serviceable part. This highlights the importance of visually inspecting the tone ring through the sensor hole before purchasing parts.

OEM Part Supersession History

• 23483107 → 84426128 — Standard part number update by GM.

Model Year Variations Within This Range

• 2015-2019: The front wheel hub assembly part number is different for Two-Wheel Drive (RWD) and Four-Wheel Drive (4WD) models. Installing the wrong one will result in fitment issues. Example part numbers are MOOG 515196 for 2WD and MOOG 515167 for 4WD.
