C0035 on 2007-2014 GMC Yukon: Left Front Wheel Speed Sensor Circuit Causes and Fixes

What's Unique About the 2007-2014 GMC Yukon

The 2007-2014 GMC Yukon, built on the GMT900 platform, integrates the wheel speed sensor directly into the sealed wheel hub and bearing assembly. This design means that if the sensor itself fails internally, the entire hub assembly must be replaced as a unit. A very common issue on these trucks is also rust buildup in the knuckle where the sensor sits, which can push the sensor away from the reluctor ring, causing a poor signal, or damage the sensor during removal. The wiring harness is also a known weak point, 🎬 Watch: How to fix common wiring issues for C0035 and C0040. prone to chafing and internal breaks from suspension travel and steering.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak or Traction Control warning light is on
• "Service StabiliTrak" or "Service Traction Control" message on the Driver Information Center (DIC)
• ABS system may activate erratically at low speeds, causing a grinding or pulsating brake pedal
• Cruise control may be disabled

Most Likely Causes

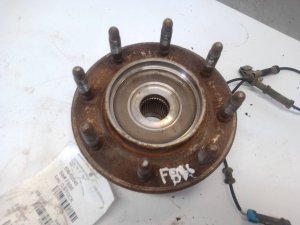

1. Failed Left Front Wheel Hub & Bearing Assembly (Integrated Sensor) 🔴 High Probability → Shop Hub Assembly The sensor is not sold separately and is integral to the hub. These hubs are a common wear item, and failure of the internal sensor electronics is frequent due to heat, vibration, and moisture intrusion over time.
   How to confirm: Using a capable OBD-II scanner, monitor the live data for the left front wheel speed sensor 🎬 Watch: How to properly diagnose GM ABS codes without guessing. while driving. If the speed reads 0 mph or is erratic while other wheels show a correct speed, the hub assembly is the likely culprit. A failing bearing may also produce a roaring or humming noise that changes with turning.
   Typical fix: Replace the entire left front wheel hub and bearing assembly. 🎬 See this step-by-step walkthrough for replacing the front wheel hub. The axle nut torque spec is critical, typically 177 ft-lbs.
   Est. part cost: $120-$400
2. Damaged Wheel Speed Sensor Wiring or Connector 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness is exposed in the wheel well and is subject to constant flexing with suspension travel and steering. This can cause internal wire breaks even with no visible external damage. It's also vulnerable to chafing from road debris, improper routing after suspension work (like installing a leveling kit), or rubbing against the tire or suspension components.
   How to confirm: Visually inspect the entire length of the harness from the back of the hub up to its connection point on the frame. Pay close attention to flex points. Wiggle the harness while monitoring live sensor data to see if the signal cuts out. Check the connector for corrosion, backed-out pins, or moisture.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. In some cases, the entire sensor harness needs to be replaced.
   Est. part cost: $20-$60
3. Debris or Corrosion on Hub's Magnetic Encoder Ring ⚪ Low Probability Rust and metallic brake dust can accumulate on the hub's surface where the magnetic ring is located, disrupting the signal the sensor reads. TSB #PIC5428G (superseded by 17-NA-047) specifically addresses this issue.
   How to confirm: After removing the wheel speed sensor from the knuckle (if possible without breaking it), inspect the surface of the hub that the sensor reads. Look for a build-up of rust or metallic debris.
   Typical fix: Clean the magnetic encoder ring surface with a cloth and a suitable solvent like alcohol. This should be attempted before replacing the hub.
   Est. part cost: $0-$10

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is uncommon. Before condemning the EBCM, all other possibilities (hub, wiring) must be exhaustively ruled out. This is a last-resort diagnosis that requires advanced diagnostics to confirm. Manufacturer service bulletin TSB Bulletin #PIT5499B notes that technicians should specifically inspect the EBCM connector for water intrusion if codes like C0035 are present.
• Corroded EBCM Ground Connection: A critical but often overlooked cause. The main ground for the EBCM is on the driver's side frame rail and is highly susceptible to corrosion. A poor ground can cause a variety of erratic ABS codes, including a false C0035. Always inspect and clean this ground before replacing expensive components.

Diagnosis Steps

1. Connect a professional OBD-II scanner capable of reading ABS codes and live data.
2. Confirm C0035 is present. Note any other codes and any sub-codes (e.g., C0035 5A).
3. View the live data stream for all four wheel speed sensors.
4. Drive the vehicle slowly (5-15 mph) and observe the reading from the Left Front (LF) sensor. Compare it to the Right Front (RF) sensor.
5. If the LF sensor reads 0 mph or its signal is erratic/jumpy while the others are steady, the problem is in the LF circuit.
6. Lift the front of the vehicle securely on jack stands and remove the left front wheel.
7. Thoroughly inspect the wheel speed sensor wiring harness from the hub to the frame connector. Look for any signs of chafing, breaks, or corrosion. Gently wiggle and pull on the harness at various points while an assistant watches the live data for dropouts; an internal break will often reveal itself here.
8. If wiring looks good, disconnect the sensor and inspect the connector terminals for corrosion or damage. Apply dielectric grease upon reassembly.
9. Inspect and clean the main EBCM ground connection. It is located on the outside of the driver's side frame rail, approximately under the driver's door. Remove the bolt, clean the terminal and frame to bare metal, and re-secure tightly.
10. If wiring and connections are confirmed to be good, the most likely cause is a faulty wheel speed sensor, which requires replacing the entire hub assembly.
11. Before replacing the hub, consider cleaning the magnetic encoder ring as described in the 'Common Causes' section.

Parts You'll Likely Need

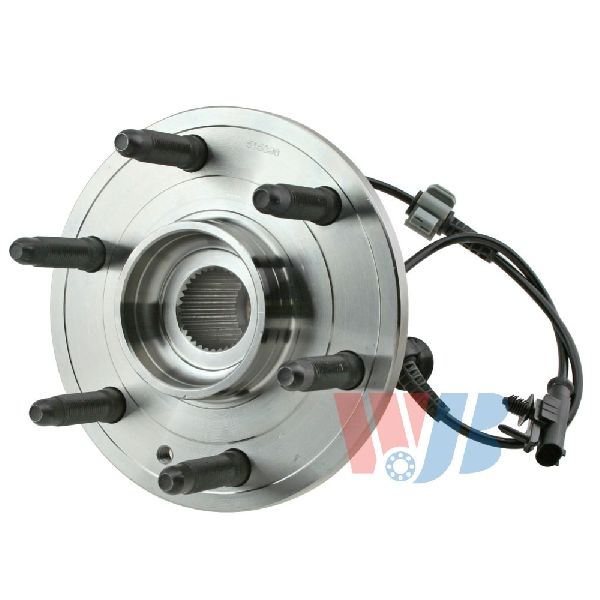

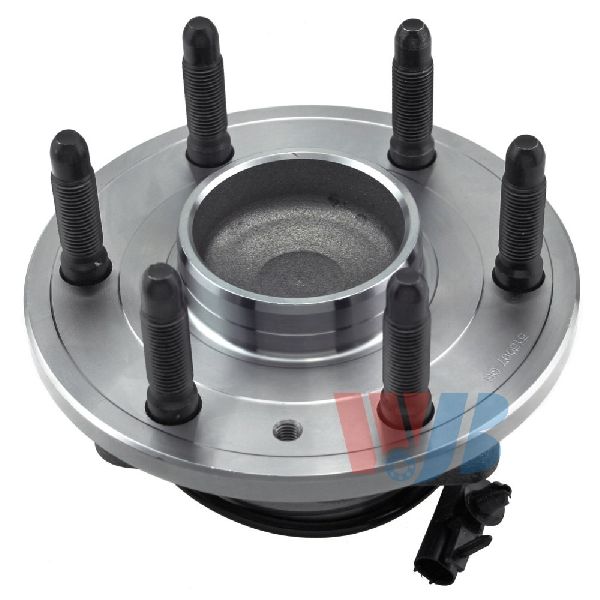

• Front Wheel Hub and Bearing Assembly (OEM #ACDelco 84856653 (supersedes 10393170, 20883242, 84356642, 25819677, 22841380)) — The wheel speed sensor is integrated into this assembly, and it is the most common failure point for code C0035 on this vehicle.
  Trusted brands: ACDelco (OEM Supplier), Timken (Often considered OEM quality), MOOG, SKF
  OEM price range: $250-$400
  Aftermarket price range: $120-$250

Related Codes That Often Appear With This One

• C0040 — This code is for the Right Front Wheel Speed Sensor circuit. It's common to see both front sensor codes if there is a common wiring issue or if both hubs are failing around the same time due to age and mileage.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428G: Notes that metallic debris on the magnetic encoder ring can cause this code and suggests cleaning it as a potential fix before hub replacement. This TSB has been superseded by 17-NA-047, which contains similar diagnostic advice. TSB Bulletin #PIC5428G further clarifies that this code may be accompanied by symptoms 18, 5A, or 0F, and technicians should gain access to the wheel bearing to inspect for debris.
• TSB Bulletin #PIT5499B: Mentions that a "Service Trailer Brake" message or ABS lamps may be on with code C0035, and technicians should inspect the Electronic Brake Control Module connector for water.

Platform-Specific Known Issues

• There was a recall (GM #N192261050) for certain 2014-2018 GM trucks and 2015-2020 SUVs regarding EBCM software that could cause unintended braking if a wheel speed sensor failed. While the year range is slightly different, it highlights the platform's sensitivity to wheel speed sensor inputs.

Mechanic-Grade Diagnostic Values

• Sensor Supply Voltage (Key On, Engine Off) — expected: 4.5V - 5.5V (or ~12V depending on specific EBCM) on one pin, 0V on the other.. Failure: No voltage indicates a wiring problem from the EBCM or a faulty EBCM. Voltage below spec can indicate a corroded EBCM ground or wiring fault.
• Sensor Signal (Live Data) — expected: A smooth, increasing speed reading on a scan tool that matches the other wheels as the vehicle moves.. Failure: A reading of 0 mph, or a signal that is erratic, jumpy, or drops out intermittently while other wheels read correctly.

Hidden / Shadow Codes Worth Checking

• C0035 5A: Indicates 'Signal Plausibility Failure'. The EBCM is receiving a signal, but it's irrational or doesn't make sense compared to the other wheel speed sensors. This often points to a damaged magnetic encoder ring on the hub or severe debris. (see via GM-specific scan tool (e.g., Tech2, GDS2) or a high-end scanner that can read manufacturer symptom bytes.)
• C0035 0F: Indicates an 'Erratic Signal'. The signal is present but is unstable, noisy, or dropping out. This is a classic symptom of an internal wire break in the harness, a loose connection, or debris on the sensor ring. (see via GM-specific scan tool (e.g., Tech2, GDS2).)
• C0035 18: Indicates 'Signal Amplitude Less Than Minimum' or 'Circuit Low'. The signal is too weak to be read properly. This is often caused by an excessive air gap between the sensor and the ring (due to rust buildup pushing the sensor out) or a failing sensor. (see via GM-specific scan tool (e.g., Tech2, GDS2).)

Scan Tool Commands That Help

• GM Tech2 / GDS2: Special Functions -> EBCM -> Automated Bleed / ABS Motor Test — While primarily for brake bleeding, running this function cycles the ABS pump and solenoids. It can help verify that the EBCM is powered, grounded, and the pump motor is functional, helping to rule out a major module failure if the test runs successfully.

Wiring & Ground Locations

• EBCM Ground (G303) — Bolted to the outside of the driver's side frame rail, approximately under the driver's door.. This is the primary ground for the Electronic Brake Control Module. This location is highly exposed to road salt and moisture, making it a very common point of corrosion. A poor ground here can cause erratic EBCM behavior and false wheel speed sensor codes, including C0035. This should be cleaned to bare metal as a primary diagnostic step.
• Left Front WSS Connector — In the driver's side front wheel well, where the short pigtail from the hub assembly connects to the main body harness.. This 2-pin connector is the main test point for the circuit. Pin A (often a Tan wire) is the Low Reference, and Pin B (often a Dark Green wire) is the Signal/Voltage Supply. Testing for voltage here separates the hub/sensor side of the circuit from the main harness going to the EBCM.

Real Owner Repair Stories

• Technician video for a similar GM platform (2014 Chevrolet Impala) — ABS light on with code C0035.
  ❌ Tried (didn't work) Replacing the wheel bearing (twice), Replacing the Electronic Brake Control Module (EBCM)
  ✅ What actually fixed it The technician found the sensor signal wire was broken *inside* the insulation about an inch from the connector pigtail. The wire passed a visual inspection, but when pulled, the insulation would stretch, revealing the severed copper inside. Replacing the pigtail harness finally resolved the code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Cracked Dashboard 🟠 Medium — Extremely common, especially on 2007-2008 models. Cracks typically appear above the instrument cluster and on the passenger side near the airbag, regardless of sun exposure.
• Active Fuel Management (AFM) Lifter Failure 🔴 High — A well-documented issue on V8 engines (5.3L, 6.2L) where AFM lifters can become stuck or collapse, causing misfires (P0300), a ticking noise, and potential camshaft damage. (Ref: PIP4568P, 15-06-01-002K)
• Excessive Oil Consumption 🔴 High — Affects many 5.3L V8 engines, often linked to the AFM system and piston ring design. Can lead to fouled spark plugs and internal engine damage if not monitored. (Ref: 10-06-01-008L, 19-NA-036)
• Peeling Interior Chrome/Paint 🟡 Low — Common cosmetic issue where the chrome plating on interior door handles and the paint on steering wheel controls flakes off, leaving sharp edges.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, a used part is almost never a smart choice. The labor to replace a wheel hub assembly is significant, and the service life of a used part from a salvage yard is unknown. The risk of premature failure and having to do the job again outweighs any potential cost savings.

What to inspect on the donor part:

• Not applicable. Avoid used hub assemblies for this repair.

Aftermarket brands forum-validated for this vehicle:

• Timken: Frequently cited as being of OEM quality or better for this platform.
• MOOG: Generally considered a reliable, high-quality aftermarket option.
• SKF: A well-known bearing manufacturer, though some forum users have noted potential recent declines in quality compared to their older products.

Brands owners have reported issues with on this vehicle:

• Unbranded or 'white box' parts from online marketplaces should be avoided. While the initial cost is low, they have a high rate of premature failure, often leading to the code returning within a few months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0035 5A — A specific sub-code of C0035 that may appear during diagnosis to provide further detail on the left front wheel speed sensor circuit fault.
• P0300 — A random misfire code that, while not directly caused by the wheel sensor, is a known common issue on the Yukon's V8 engine (5.3L, 6.2L) due to AFM lifter failure.

Frequently Asked Questions
