C0040 on 2007-2014 Chevrolet Impala: Right Front Wheel Speed Circuit Fault Guide

What's Unique About the 2007-2014 Chevrolet IMPALA

The 2007-2014 Impala and its W-body platform mates are notoriously prone to issues with the front wheel speed sensor wiring harnesses. The copper wires inside the protective insulation fatigue and break from the constant flexing and movement of the suspension and steering, even when the exterior sheathing looks undamaged. This issue is so common that GM issued multiple Technical Service Bulletins (TSBs) for it. Owners and even some shops often mistakenly replace the entire wheel hub/sensor assembly when the true fault lies in the inexpensive wiring pigtail that connects to it.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2007-2014 year range covers the end of the ninth generation (2006-2013) and the 2014 Impala Limited model, which was a continuation of the ninth generation sold to fleets. The tenth generation also launched in 2014 for the retail market. The cited TSBs specifically cover the ninth-generation body style up to 2016 (as the 'Impala Limited'), indicating the wiring harness issue is specific to that platform.

Symptoms You May Notice

• ABS warning light is on
• Traction Control (TC) or StabiliTrak/ESC light is on
• "Service StabiliTrak", "Service Traction Control", or "Service ABS" message on the driver information center
• Unwanted or erratic ABS or traction control activation, especially during slow-speed turns. This can feel like a grinding or buzzing noise and may be felt in the steering wheel.

Most Likely Causes

1. Damaged Right Front Wheel Speed Sensor Wiring Harness 🔴 High Probability → Shop ABS Wheel Speed Sensor The wiring inside the harness is known to fatigue and break from suspension and steering movement. The break typically occurs where the harness makes a sharp turn or is subject to the most flex. This is a widely recognized failure point on this platform, confirmed by TSBs and countless owner forums.
   How to confirm: With the car off, disconnect the harness. Gently pull on each of the two wires (typically yellow and blue); a broken wire will stretch like a rubber band or pull apart completely. You can also wiggle the harness while a scan tool monitors live wheel speed data to see if the signal drops out. TSB PIC-5992-A suggests running a fingernail down the wire insulation to feel for an internal break.
   Typical fix: Replace the short jumper harness (pigtail) that runs from the wheel hub to the main connector in the fender well. This involves cutting the old harness and splicing the new one in, typically using solder and heat-shrink tubing or waterproof butt connectors.
   Est. part cost: $25-$70
2. Faulty Right Front Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The sensor is integrated into the wheel hub bearing assembly. While generally reliable, they can fail over time from wear, corrosion, or an impact. A failing wheel bearing can also cause excessive play, damaging the sensor or disrupting its signal.
   How to confirm: After confirming the wiring is good, use a multimeter to check the sensor's resistance (typically 850-1350 ohms for this vehicle) or use a scan tool to graph the wheel speed data while spinning the wheel. A missing or erratic signal points to a bad sensor. Also check for excessive wheel bearing play by trying to rock the tire at the 12 and 6 o'clock positions.
   Typical fix: Replace the entire front wheel hub and bearing assembly, which includes the new sensor.
   Est. part cost: $80-$200
3. Chafed Wiring Harness ⚪ Low Probability As noted in TSB #PIC5720B, the wiring harness under the hood can sometimes rub against the crank pulley or A/C compressor pulley, causing a short.
   How to confirm: Visually inspect the engine bay wiring harnesses for any signs of contact with moving pulleys.
   Typical fix: Repair the damaged wires and secure the harness away from the pulleys.
   Est. part cost: $5-$20

Rare But Worth Checking

• Damaged or Dirty Tone Ring: The tone ring (reluctor) is part of the wheel hub assembly. If it gets cracked or covered in metallic debris from a failing bearing, it can cause an erratic signal. This is usually diagnosed when replacing the hub.
• Faulty Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is rare. Before condemning the expensive EBCM, you must exhaustively rule out all wiring and sensor issues. An EBCM fault will often be accompanied by other wheel speed sensor codes or communication errors.
• Water Intrusion in Connector: TSB PIC-5992-A mentions inspecting for signs of water intrusion into the wheel speed sensor harness connector, which can cause corrosion and a poor connection. Diagnostic aids suggest spraying the area with a 5% saltwater solution to replicate the fault if it only occurs in wet conditions.

Diagnosis Steps

1. Read the code with an ABS-capable OBD-II scanner. Note any sub-codes (e.g., C0040 0F for erratic signal), as they can help pinpoint the issue.
2. Visually inspect the right front wheel speed sensor wiring harness from the hub to the connector in the wheel well. Look for obvious damage, chafing, or poor routing.
3. Perform the 'tug test': Gently pull on the individual wires of the harness pigtail. If a wire stretches or separates, it is broken internally. This is the most common failure.
4. If the tug test is inconclusive, use a scan tool to monitor the live data for the right front wheel speed sensor while spinning the wheel by hand. Compare it to the other wheels.

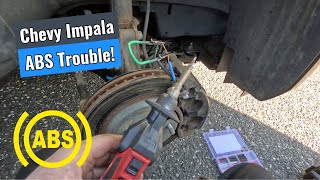

5. While monitoring the live data, wiggle and flex the wiring harness, especially at bend points, to see if you can force the signal to drop out. 🎬 Watch: How to fix C0035 and C0040 ABS codes yourself. A signal dropout confirms a wiring problem.

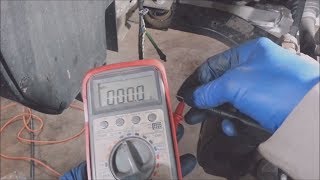

6. If the wiring seems good, disconnect the sensor and test its resistance with a multimeter. A reading outside the 850-1350 ohm range indicates a failed sensor. Note that TSB PIC-5992-A states that an ohm check may not identify a partial break.
7. Check for excessive play in the wheel bearing by rocking the tire from top to bottom. Excessive movement indicates a worn hub that needs replacement.
8. If the sensor and wiring are confirmed to be good, the issue may lie with the EBCM, but this is unlikely and should be the last consideration.

Parts You'll Likely Need

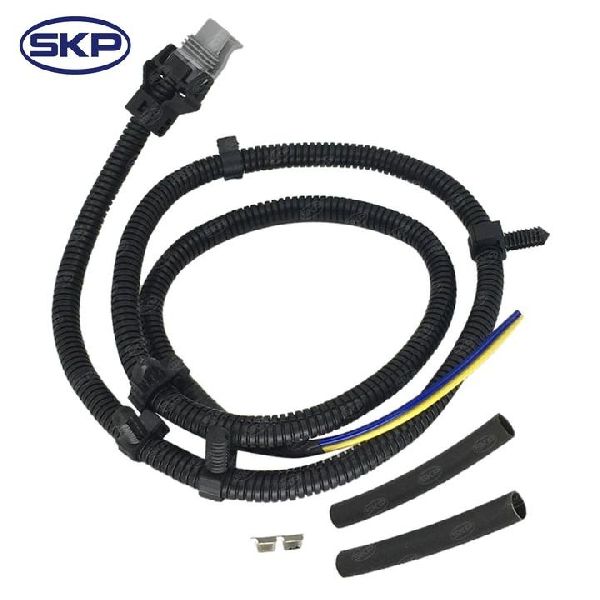

• ABS Wheel Speed Sensor Wire Harness (OEM #10340316 (ACDelco GM Original Equipment)) — This is the most frequent failure point for code C0040 on this vehicle, due to internal wire breakage from suspension movement.
  Trusted brands: ACDelco, Dorman (p/n 970-040), Carquest
  OEM price range: $40-$60
  Aftermarket price range: $25-$50
• Front Wheel Hub and Bearing Assembly (OEM #25903242 (ACDelco GM Original Equipment)) — If the wiring harness is good, the sensor itself (which is integrated into the hub assembly) has failed.
  Trusted brands: ACDelco, Timken, MOOG, SKF
  OEM price range: $150-$250
  Aftermarket price range: $80-$200

Related Codes That Often Appear With This One

• C0035 — This is the code for the Left Front Wheel Speed Sensor Circuit. Seeing both codes together could point to a systemic issue like a wiring harness problem common to both sides or an EBCM fault. The failure mode is identical for both front harnesses.
• C027B — Mentioned in TSB #PIC5720B alongside C0040, this code relates to the Brake Pedal Position Sensor and can be triggered by related wiring harness issues.
• P0CBE — Also mentioned in TSB #PIC5720B, this powertrain code can be set if a wiring issue affects multiple systems.

Technical Service Bulletins (TSBs) & Recalls

• PIC5720B: Warns of wiring harness contact with engine pulleys.
• PIC-5992-A: Details diagnosing broken wires inside the wheel speed sensor harness insulation, a common issue on this model and its platform mates.

Platform-Specific Known Issues

• TSB PIC-5992-A: The Definitive Guide: This TSB specifically calls out inspecting the front wheel speed sensor jumper harnesses for wiring broken inside the insulation, noting that the condition is more easily duplicated while turning. It advises technicians to run a fingernail down the wire to feel for the break and to check for water intrusion.
• TSB #PIC5720B: Under-hood Chafing: This bulletin warns that under-hood wiring may contact the crank or A/C compressor pulleys, causing shorts that can trigger C0040 among other codes.
• Owner Experience: The 'Tug Test' is Key: A YouTube video by 'Chris Fix' demonstrates the common failure perfectly: after removing the old harness, a gentle pull on the blue wire causes it to stretch and snap, revealing the internal break that was invisible from the outside. This confirms the 'tug test' as a primary diagnostic step.
• Owner Complaint NHTSA ODI #10472531: An owner explicitly describes that both front wheel speed sensor harnesses were 'coming apart inside wire installation,' leading to ABS/Traction Control codes including C0040.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 850 - 1350 Ohms. Failure: A reading outside this range (especially open/infinite resistance) indicates a failed sensor.
• Wheel Speed Sensor AC Voltage Output — expected: Greater than 100 mV AC when spinning the wheel by hand at ~1 revolution/second.. Failure: Voltage below 100 mV AC suggests a weak or failed sensor, or excessive air gap.
• Circuit Resistance at EBCM Connector — expected: 850 - 1350 Ohms between the sensor signal and low reference circuits.. Failure: Greater than 1350 ohms indicates an open/high resistance in the wiring. Less than 850 ohms suggests a short between the wires.

Hidden / Shadow Codes Worth Checking

• C0040 00: Indicates an Open or Shorted Signal circuit. (see via ABS-capable scan tool (e.g., Tech2, GDS2, or high-end aftermarket).)
• C0040 02: Indicates the ABS module has detected a short to ground in the right front wheel speed sensor circuit. (see via ABS-capable scan tool.)
• C0040 05: Indicates the ABS module has detected a short to power or an open in the right front wheel speed sensor circuit. (see via ABS-capable scan tool.)
• C0040 0F: Indicates the ABS module has detected an Erratic Signal from the right front wheel speed sensor. (see via ABS-capable scan tool.)
• C0040 18: Indicates the signal amplitude from the sensor is below the minimum threshold. (see via ABS-capable scan tool.)

Scan Tool Commands That Help

• GDS2/Tech2 or equivalent: Live Data Display - Wheel Speed Sensors — This is the primary diagnostic function. Use it to monitor the signal from the right front wheel speed sensor while an assistant wiggles the wiring harness. A signal that drops to zero or becomes erratic during the wiggle test confirms a wiring fault.

Wiring & Ground Locations

• EBCM (Electronic Brake Control Module) — Part of the Brake Pressure Modulator Valve (BPMV) assembly in the engine bay, where the brake lines converge.. The EBCM receives the signal from the RF wheel speed sensor via the 'Rf wheel sens sig' and 'Rf wheel sens lo ref' wires. All circuit tests ultimately lead back to this module's connector.
• G115 — On the transmission case, below the brake booster (for non-V8 engines).. This is a primary ground location for the Electronic Brake Control Module (EBCM). A poor connection here could cause various ABS faults, including C0040.
• RF WSS Harness Wires — Running from the wheel hub to a connector in the fender well.. The two wires (typically yellow and blue) are twisted together to prevent radio frequency interference. This is the section of wiring most prone to internal breaks from suspension movement.

Real Owner Repair Stories

• YouTube video by Chris Arnau (Chevrolet Impala (2007-2014 generation)) — ABS and Traction Control lights on, code C0035 or C0040.
  ❌ Tried (didn't work) The video focuses directly on the known common failure.
  ✅ What actually fixed it The wiring harness between the wheel hub and the fender well connector was broken internally. The 'tug test' revealed the blue wire was broken inside the insulation. The fix was to cut out the old pigtail and splice in a new one (GM part) using solder and heat shrink.
• YouTube video by 'ABS Code C0040, Circuit issue, Wiring Issue' (2012 Chevrolet Impala) — ABS light on, code C0040. Light was intermittent and would change when turning the wheel.
  ❌ Tried (didn't work) The previous owner or another shop had already replaced the entire wheel hub/bearing assembly, which did not fix the problem.
  ✅ What actually fixed it The wiring harness was damaged internally. The video demonstrates how the wire stretches like a rubber band ('flimsy'), indicating an internal break. The final fix was repairing the broken wire within the harness.
• Chevrolet Forum user 'tech2' (2008 Chevrolet Impala) — ABS light and messages on dash.
  ❌ Tried (didn't work) Initial diagnosis pointed to sensor or wiring.
  ✅ What actually fixed it The user found both wires on the right front harness were broken inside the protective tubing, about 10 inches from the hub connector. The wires were repaired with solder and heat shrink, which resolved the codes.

When the Usual Fixes Don't Work

• While the vast majority of C0040 codes on this platform are caused by the pigtail harness, it is crucial not to skip diagnostics. In one documented case, a technician found that a previous repair attempt had failed because they did not use waterproof connectors, leading to corrosion and a repeat failure. In another case, a user had to replace the wheel hub/bearing assembly because the sensor itself had failed the resistance test (reading outside the 850-1350 ohm spec), confirming that while less common, sensor failure is still a possibility that must be verified.

OEM Part Supersession History

• 10340316 (GM / ACDelco) → N/A (Still active) — This is the current OEM part number for the front wheel speed sensor harness.
  Heads up: Dorman 970-040 is a widely used aftermarket cross-reference for this part. No major incompatibilities are noted, but OEM (ACDelco) is often preferred for critical components.
