C0040 on 2015-2023 Ford Mustang: Wheel Speed Sensor and Brake Switch Faults

What's Unique About the 2015-2023 Ford Mustang

For the S550 generation Mustang (2015-2023), the C0040 code is overwhelmingly associated with a failure of the right front wheel speed sensor or its wiring. Unlike some other Ford vehicles, such as Super Duty trucks where this code often points to unrelated electrical issues, the cause on the Mustang is typically straightforward. The key is to use a high-quality scan tool that can read not just the main code but also any manufacturer-specific sub-codes, which can differentiate between a wheel speed sensor fault and a less common brake pedal switch problem. The sensor is a modern magneto-resistive type that reads a magnetic encoder integrated into the wheel hub bearing assembly.

Symptoms You May Notice

• ABS light is on
• AdvanceTrac / Traction Control light is on
• Service AdvanceTrac message may appear in the instrument cluster

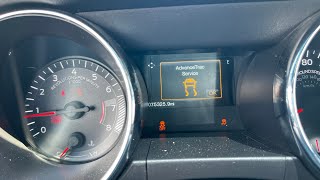

🎬 Watch: Causes and fixes for the AdvanceTrac warning
• Cruise control may be inoperative

Most Likely Causes

1. Failed Right Front Wheel Speed Sensor 🔴 High Probability → Shop ABS Wheel Speed Sensor The sensor and its wiring are exposed to harsh conditions in the wheel well, including water, dirt, and heat from the brakes, leading to eventual failure. The internal electronics of the sensor can fail, causing an open or short in the circuit.
   How to confirm: Use a scan tool with live data capability to monitor all four wheel speeds while driving. The right front sensor will likely show an erratic, incorrect, or zero mph reading compared to the other three. The sensor is held in by a single 8mm or 10mm bolt to the steering knuckle.
   Typical fix: Replace the right front ABS wheel speed sensor. It is a direct-fit part held in by a single bolt. Ensure the mounting surface on the knuckle is clean before installing the new sensor. 🎬 Watch: S550 Mustang ABS sensor replacement walkthrough
   Est. part cost: $60-$90
2. Damaged Wheel Speed Sensor Wiring or Connector 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness can be damaged by road debris, improper routing after previous repairs, or from the constant movement of the suspension. The most common failure point is the short pigtail from the sensor to the first connector in the wheel well.
   How to confirm: Visually inspect the wiring harness from the sensor up into the engine bay for any signs of chafing, breaks, or corrosion at the connector pins. Perform a continuity test on the wires between the sensor connector and the ABS module connector.
   Typical fix: Repair the damaged section of the wiring harness or replace the pigtail connector. Use heat-shrink connectors to protect the repair from moisture.
   Est. part cost: $20-$50
3. Damaged Tone Ring / Magnetic Encoder ⚪ Low Probability The tone ring is integrated into the sealed wheel hub/bearing assembly. While durable, damage can occur during other repairs (like replacing the wheel bearing) or if the bearing itself fails, causing excessive play.
   How to confirm: After removing the wheel speed sensor, visually inspect the magnetic encoder ring inside the hub for cracks, heavy corrosion, or metallic debris. Also, check for excessive play in the wheel bearing, as this can alter the air gap between the sensor and the ring.
   Typical fix: Replace the entire front wheel hub and bearing assembly.
   Est. part cost: $150-$250

Rare But Worth Checking

• Faulty Brake Pedal Switch (with sub-code): This is a rare cause for the base C0040 code but becomes the primary cause if a sub-code like C0040-64 is present. The ABS module sees a conflict between the brake switch signal and other data (like vehicle speed). Symptoms may include brake light issues or the inability to shift out of Park.
• Faulty ABS Control Module: → Shop ABS Control Module This is extremely rare and should only be considered after all other possibilities (sensor, wiring, hub) have been definitively ruled out through testing.

Diagnosis Steps

1. Connect a high-quality OBD-II scanner capable of reading ABS codes and manufacturer-specific sub-codes.
2. Confirm C0040 is present and check for any sub-codes (e.g., -02, -0F, -64).
3. If no sub-code or a wheel-speed-related sub-code is present, access the live data stream for the ABS module.
4. Monitor the speeds of all four wheels while driving in a straight line. Confirm that the Right Front (RF) wheel speed reading is absent, erratic, or does not match the other three.
5. If the signal is faulty, raise and secure the front of the vehicle. Remove the right front wheel.
6. Visually inspect the ABS sensor and its wiring harness for any obvious damage, chafing, or loose connections. Pay close attention to the harness routing near suspension components.
7. If the visual inspection is clear, disconnect the sensor. Test the wiring harness for correct voltage supply and ground from the ABS module. Test for continuity on the signal wire back to the ABS module.
8. Modern magneto-resistive sensors cannot be reliably tested with a simple resistance check. Diagnosis relies on live data and scope testing of the signal if available.
9. If the sensor and wiring test good, inspect the tone ring on the wheel hub for damage or debris.
10. If a sub-code like C0040-64 is present, shift diagnosis to the brake pedal switch. Check for proper brake light operation and use the scan tool to monitor the brake pedal position PID to ensure it changes state when the pedal is pressed and released.

Parts You'll Likely Need

• Right Front ABS Wheel Speed Sensor (OEM #FR3Z-2C204-A) — This is the most common failure point for the C0040 code on this platform due to its exposure to the elements.
  Trusted brands: Motorcraft, Duralast, NTK/NGK
  OEM price range: $80-$90
  Aftermarket price range: $50-$70
• Brake Light Switch / Brake Pedal Position Sensor (OEM #GL3Z-13480-A) — This is the likely cause if a sub-code like C0040-64 is stored along with the main code.
  Trusted brands: Motorcraft
  OEM price range: $35-$45
  Aftermarket price range: $20-$30

Related Codes That Often Appear With This One

• C0040-64 — This specific sub-code changes the diagnosis from the wheel speed sensor to the Brake Pedal Switch, indicating a 'Signal Plausibility Failure'. This means the ABS module received a brake signal that doesn't make sense, such as the brake being applied for over 6 minutes while driving at speed.

Platform-Specific Known Issues

• Sensor Bolt Seizure: Owners on forums like Mustang6G.com have noted that the single bolt holding the wheel speed sensor into the steering knuckle can become corroded and seize. It's recommended to use penetrating oil and work the bolt back and forth carefully to avoid breaking it off in the knuckle, which would require drilling and tapping.
• Brake Pedal Switch Confirmation: A thread on Mustang6G.com confirms the C0040-64 sub-code pointing to the brake pedal switch. One user's co-worker experienced this exact issue, which resolved the fault lights after replacement.
🎬 See how to replace the brake light switch

Mechanic-Grade Diagnostic Values

• Magneto-Resistive Sensor DC Voltage Signal — expected: With key-on, engine-off, backprobing the sensor's two wires should show a reference voltage on one wire and ground on the other. When the wheel is slowly spun by hand, the signal wire's voltage should toggle in a clean square-wave pattern. For example, it might switch between 10.8V and 11.2V. The key is observing a distinct, repeating change, not a specific voltage, which can vary.. Failure: No voltage, a steady voltage that does not change when the wheel is spun, or an erratic/noisy signal on an oscilloscope indicates a failed sensor or a problem with the tone ring/encoder.

Hidden / Shadow Codes Worth Checking

• C0040-02: Indicates the ABS module has detected a short to ground in the right front wheel speed sensor circuit. (see via A professional scan tool capable of reading Ford-specific sub-codes, such as Ford IDS or high-end aftermarket scanners.)
• C0040-05: Indicates the ABS module has detected a short to power or an open in the right front wheel speed sensor circuit. (see via A professional scan tool capable of reading Ford-specific sub-codes.)
• C0040-0F: Indicates the ABS module has detected erratic operation from the right front wheel speed sensor. This could be due to a failing sensor, debris on the tone ring, or excessive wheel bearing play. (see via A professional scan tool capable of reading Ford-specific sub-codes.)
• C0040-18: Indicates the ABS module has detected the right front wheel speed sensor signal amplitude is below the minimum required threshold. (see via A professional scan tool capable of reading Ford-specific sub-codes.)

Scan Tool Commands That Help

• Ford IDS (or equivalent professional scanner): Datalogger - Monitor PID: BPP/BOO1 (Brake Pedal Position/Brake On-Off) — When diagnosing the C0040-64 sub-code. This PID allows you to see in real-time if the ABS and PCM modules are receiving the 'On/Off' signal from the brake pedal switch as you press and release the pedal, confirming if the switch or its circuit is faulty.

OEM Part Supersession History

• 7t4z13480aa, 8t4z13480a, bl3z13480a → GL3Z-13480-A — Part has been revised and updated by Ford over time for improved reliability or to consolidate inventory.
  Heads up: GL3Z-13480-A is the current correct replacement for the earlier part numbers on many Ford platforms, including the Mustang.
