C0045 on 2010-2017 GMC Terrain: Left Rear Wheel Speed Circuit Causes and Fixes

What's Unique About the 2010-2017 Gmc TERRAIN

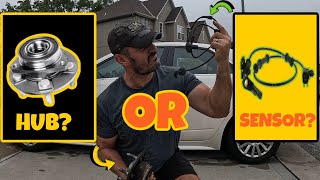

For the first-generation GMC Terrain and its sibling, the Chevrolet Equinox, code C0045 is very frequently caused by a specific, well-documented wiring issue. General Motors issued Technical Service Bulletin #PIT5427B which identifies a large 14-pin electrical connector, known as X411, as a major failure point. 🎬 Watch: How to diagnose and repair this common GM failure point. This connector is located under the driver's side rear of the vehicle, where it's highly exposed to road salt and moisture, leading to corrosion that disrupts the wheel speed sensor signal and triggers this code, often along with many others. Another TSB, PIT5171C, specifically calls out the wires for the rear wheel speed sensors (circuits 882, 883, 884, 885) near the X411 connector as being prone to internal breaks.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light illuminated
• StabiliTrak / Traction Control warning light illuminated

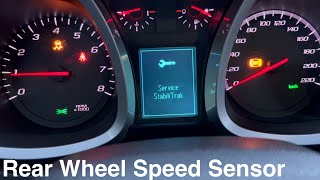

• "Service StabiliTrak" or "Service ABS System" message on the driver information center
• AWD system may be disabled (if equipped)
• "Service Power Steering" message may appear, with increased steering effort at low speeds.

Most Likely Causes

1. Corrosion or Internal Wire Break in/near Connector X411 🔴 High Probability The connector is located under the rear of the vehicle on the driver's side, behind the fuel tank, making it extremely vulnerable to water and road salt intrusion. This is a well-documented design flaw noted in GM TSB #PIT5427B. TSB PIT5171C also notes that internal wire breaks can occur in the harness near this connector, sometimes with no visible external damage other than discoloration of the wire insulation.
   How to confirm: Disconnect the battery, then locate and unplug the X411 connector. Visually inspect all male and female terminals for green or white powder (corrosion), bent pins, or water damage. Per TSB PIT5171, remove conduit and tape from the harness leading to X411 and inspect circuits 882, 883, 884, and 885 for discoloration or breaks by gently pulling on the wires.
   Typical fix: Clean the terminals with electrical contact cleaner and a small brush, then apply dielectric grease. If corrosion is severe or wires are broken, the affected terminals or the entire connector may need to be replaced with weatherproof splices.
   Est. part cost: $10-$50

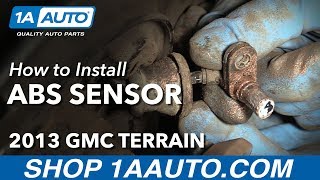

2. Damaged or Corroded Wheel Speed Sensor Harness Connector (Pigtail) 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The pigtail connector at the wheel hub is exposed to the elements, vibration, and suspension movement. GM issued bulletin PI0934 for the 2013 model year highlighting issues with terminals not being fully seated in this connector, located on the upper control arm.
   How to confirm: Inspect the connector where it plugs into the left rear wheel hub assembly. Check for corrosion, broken wires, or terminals that have backed out of the connector housing. TSB PI0934 specifically advises checking if the wire grommets are fully seated into the back of the connector.
   Typical fix: Replace the pigtail connector. This involves cutting the old connector off and splicing the new one in, using weatherproof butt connectors and heat shrink tubing. Per TSB PI0934, if a terminal is found unseated, the entire connector must be replaced, not just re-seated, to ensure a permanent repair.
   Est. part cost: $20-$40
3. Failed Left Rear Wheel Hub and Bearing Assembly 🟡 Medium Probability → Shop Hub Assembly The wheel speed sensor is integrated into the wheel hub assembly. The magnetic encoder ring on the hub can become damaged or accumulate metallic debris, or the internal sensor can fail. TSB PIC5428G notes that debris on the magnetic encoder ring is a common cause of this code across many GM vehicles.
   How to confirm: After confirming the wiring and connectors are good, use a scan tool to monitor live data from the left rear wheel speed sensor while driving. If the reading is zero or erratic while other wheels show speed, the hub assembly is likely faulty. Visually inspect the magnetic encoder ring on the inboard side of the hub for rust, cracks, or metallic debris.
   Typical fix: First, try cleaning the magnetic encoder ring with a cloth or brush. If this does not resolve the issue, replace the entire left rear wheel hub and bearing assembly.
   Est. part cost: $100-$250

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is rare. The EBCM is the computer that controls the ABS. It would typically set multiple codes or communication codes if it failed, not just a single sensor circuit code. A cold solder joint on the EBCM board is a possibility.

Diagnosis Steps

1. Read the fault codes with an OBD-II scanner capable of reading ABS/chassis codes.
2. Inspect the X411 connector. Locate it under the rear of the vehicle, on the driver's side, attached to the frame rail behind the fuel tank. Disconnect and check thoroughly for corrosion or damage. Clean or repair as necessary.
3. Inspect the wiring harness leading to the X411 connector. Per TSB PIT5171C, remove the conduit and check circuits 882, 883, 884, and 885 for hidden breaks or corrosion inside the insulation.
4. If X411 and its harness are clean, inspect the wheel speed sensor pigtail connector at the left rear wheel hub (on the upper control arm) for corrosion, damage, or unseated terminals per TSB PI0934.
5. Visually inspect the magnetic encoder ring on the inboard side of the wheel hub for metallic debris. Clean as necessary.
6. Using a scan tool, monitor the live data for all four wheel speed sensors while driving slowly. Check if the left rear sensor provides a reading consistent with the others.
7. If the wiring is confirmed to be good but the signal is absent or erratic, the wheel hub/bearing assembly is the likely culprit and should be replaced.
8. If the sensor and wiring are good, the final step would be to test the circuits at the EBCM, though this is rarely the cause.

Parts You'll Likely Need

• Left Rear Wheel Hub and Bearing Assembly (OEM #13591999) — The wheel speed sensor is integrated into the hub. If the sensor or its magnetic encoder ring fails, the entire assembly must be replaced.
  Trusted brands: ACDelco (GM Genuine), Timken (HA590363), MOOG, Duralast
  OEM price range: $200-$300
  Aftermarket price range: $80-$160
• Rear Wheel Speed Sensor Harness Connector (Pigtail) (OEM #13586115) — This connector at the wheel is prone to corrosion and damage from unseated terminals, causing an open or short in the circuit. The ACDelco part number is PT2160.
  Trusted brands: ACDelco (PT2160), Dorman (e.g., 970-040), Standard Motor Products (HP3945)
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Electrical Contact Cleaner — Needed for cleaning corrosion from the X411 connector and sensor pigtail, which is a very common first step in the repair.
  Trusted brands: CRC, WD-40
  Aftermarket price range: $8-$15

Related Codes That Often Appear With This One

• C0050 — This is the code for the Right Rear Wheel Speed Sensor Circuit. It often appears with C0045 when the X411 connector is corroded, as this connector serves both rear wheel speed sensors.
• U0121 — Lost Communication With Electronic Brake Control Module. This and other U-codes can be triggered by the corrosion in the X411 connector, which disrupts the vehicle's High Speed GMLAN communication network.
• U0415 — Invalid Data Received From Electronic Brake Control Module. This code is often set by the Power Steering Control Module (PSCM) because it relies on wheel speed data. When the EBCM reports a fault like C0045, the PSCM may default to a higher-effort steering mode as a safety precaution.

Technical Service Bulletins (TSBs) & Recalls

• PIT5427B: Lists C0045 as a potential code caused by corrosion in the X411 connector. It advises technicians to inspect this connector for damage and replace terminals as needed.
• PI0934: Specific to the 2013 model year, this bulletin notes that C0045 can be caused by the rear wheel speed sensor harness connector not being fully seated or having unseated terminals. It mandates connector replacement if a terminal is out of position.
• PIT5171C: Details intermittent ABS/Stabilitrak lights caused by internal wire breaks in the harness near connector X411, specifically citing the wheel speed sensor circuits (882, 883, 884, 885).
• PIC5428G: A broad GM bulletin that explains that many wheel speed sensor codes (C0035-C0050) are caused by metallic debris accumulating on the magnetic encoder ring of the wheel hub and can often be fixed by simply cleaning the debris off.

Platform-Specific Known Issues

• Corrosion in the X411 underbody connector is a widespread and well-documented problem for the 2010-2017 Terrain/Equinox platform, causing a variety of chassis and network codes, including C0045.
• Internal wire breaks within the harness leading to the X411 connector are also a known issue, as detailed in TSB PIT5171C.
• Improperly seated terminals in the wheel-end pigtail connector were a known issue on 2013 models, per TSB PI0934.

Mechanic-Grade Diagnostic Values

• Active WSS 12V Power Pulse Check — expected: A brief pulse of ~12V (battery voltage) should be seen on the sensor power wire at the harness connector immediately after turning the ignition key on.. Failure: No voltage pulse indicates a problem with the EBCM or the wiring between the module and the sensor connector. The EBCM will turn off the 12V driver if a fault is detected, so codes must be cleared before this test.
• WSS Signal (with Oscilloscope) — expected: A clean square wave signal that increases in frequency as the wheel is spun.. Failure: A missing, erratic, or distorted waveform points to a bad sensor/hub assembly or wiring issue.

Hidden / Shadow Codes Worth Checking

• C0045 06: Left Rear Wheel Speed Sensor Circuit Low Voltage/Open. This sub-code points specifically to an open wire, poor connection, or a short to ground. (see via A professional scan tool like the GM GDS2 or Tech2 that can read ABS symptom bytes (sub-codes).)
• C0045 0F: Left Rear Wheel Speed Sensor Circuit Signal Erratic. This often points to a damaged magnetic encoder ring on the hub, metallic debris on the sensor, or electrical interference. (see via A professional scan tool like the GM GDS2 or Tech2 that can read ABS symptom bytes.)

Scan Tool Commands That Help

• GDS2 / Tech2 or equivalent: Live Data > Wheel Speed Sensors — This is the primary diagnostic step to confirm the fault. While driving slowly in a straight line, compare the Left Rear WSS reading to the other three. A reading of zero, or one that is erratic or doesn't match the others, confirms a problem in that circuit.
• GDS2 / Tech2 or equivalent: Clear DTCs — After a repair, codes must be cleared. Also used during diagnosis; because the EBCM disables the 12V driver to a faulty sensor circuit, you must clear the codes to temporarily restore power to the circuit for voltage testing at the connector.

Wiring & Ground Locations

• X411 Connector — Under the vehicle on the driver's side, attached to the frame rail behind the fuel tank.. This is a major junction connector that is highly susceptible to corrosion. TSB PIT5171C identifies specific circuits for the rear wheel speed sensors (882, 883, 884, 885) that pass through this area and are known to fail.
• WSS Pigtail Connector — At the wheel hub, connecting to the sensor. The harness is routed along the upper control arm.. This connector is exposed to the elements and suspension movement. TSB PI0934 notes that for 2013 models, terminals can be improperly seated in this connector, causing a poor connection. Corrosion is also common here.

Real Owner Repair Stories

• YouTube channel 'The Pit Stop' (GMC Terrain (year not specified, but within 2010-2017 generation)) — ABS, traction, and parking brake lights on. Code C0045 present and would not clear, indicating a hard electrical fault.
  ❌ Tried (didn't work) Swapping the left and right rear wheel speed sensors; the fault remained on the left side, proving the sensor itself was not the issue.
  ✅ What actually fixed it The mechanic found corrosion inside the pigtail connector at the left rear wheel. The gray and black wires were corroded. Repairing the wiring and cleaning the connector resolved the code.

When the Usual Fixes Don't Work

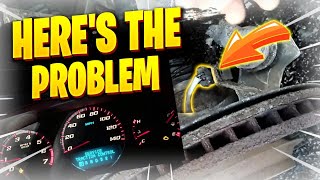

• While the most common causes are wiring at the X411 connector or the hub pigtail, it's critical not to assume. In one documented case on a similar GM platform (Corvette), a user replaced the hub assembly with a quality aftermarket part (MOOG) and the C0045 code remained. The ultimate fix was cleaning corrosion from an entirely different connector located near the battery in the engine bay. This underscores the importance of a full circuit diagnosis before replacing expensive components, as the fault can be far from the sensor itself.

OEM Part Supersession History

• 13502873, 13500574, 13580091, 13598920, 13577407 → 13591999 — Standard part revision and consolidation by the manufacturer.
• 13586115 (Pigtail Connector) → 86802964 — Standard part revision by the manufacturer.

Model Year Variations Within This Range

• 2013 (built prior to Feb 26, 2013): TSB PI0934 was issued for these vehicles due to a manufacturing issue where the terminals in the rear wheel speed sensor harness connector were not always fully seated. The TSB states that if a terminal is found unseated, the entire connector pigtail must be replaced, as simply pushing it back in is not a permanent repair.
