OBD-II Code C0293: Electronic Parking Brake Switch Circuit Malfunction

What Does C0293 Mean?

C0293 indicates the Electric Parking Brake (EPB) control module detects an electrical fault—such as a short or open wire—in the driver-operated EPB switch circuit. This is strictly an electrical communication issue, not a mechanical failure of the brake calipers. The control module disables the EPB system and triggers a warning light to prevent erratic brake operation.

Technical definition: The SAE/ISO definition is 'Park Brake Switch Control Circuit Malfunction.' The EPB module logs C0293 when it reads abnormal voltage from the switch circuit (short to battery, short to ground, open circuit, or invalid signal). Some systems also trigger this code if the switch sends an 'apply' or 'release' signal for over 60 seconds, indicating a physically jammed button.

Can I Drive With C0293?

⚠️Yes, But With Caution. Yes, you can continue to drive, as the primary hydraulic braking system remains fully operational. However, the electronic parking brake (EPB) is completely disabled. This creates a severe roll-away risk when parking on inclines if the transmission's parking pawl fails.

Common Causes

• Faulty or Jammed EPB Switch (Very Common) — Internal contacts wear out, or sticky residue from spilled drinks physically jams the button. This constant or missing signal triggers the code.
• Damaged Wiring or Corroded Connector (Common) — Liquid spills in the center console corrode the switch's connector pins. Additionally, the wiring harness chafes or breaks from console movement, causing an open circuit.
• Corrupt Software or Programming Failure (Common) — On General Motors vehicles, code C0293 with a '-08' suffix specifically indicates the control module's software is corrupt or lost calibration. 🎬 Watch: A short explanation of the GM C0293-08 code. This requires a software flash, not hardware replacement.
• Low Battery Voltage (Less Common) — A weak battery causes system voltage to drop below the EPB module's 7-volt operating threshold during engine cranking, logging a false circuit fault.
• Defective EPB Control Module (Rare) — The control module fails internally. Rule out the switch, wiring, and software updates before replacing this expensive component.

Symptoms

• "Service Parking Brake" Warning Message — A text warning such as 'Service Parking Brake' or 'Parking Brake Malfunction' appears on the driver information center.
• Flashing Red Parking Brake Light — The red 'BRAKE' light or a 'P' symbol flashes continuously on the instrument cluster.
• Inoperative Electronic Parking Brake — The parking brake refuses to engage or disengage when you pull the switch.

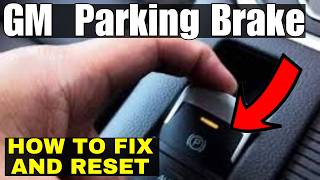

🎬 See how to diagnose and fix a common GM parking brake issue.
• Disabled Auto-Hold Feature — The 'Brake Hold' or 'Auto Hold' feature disables automatically because it relies on the EPB system.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace or Clean EPB Switch — Parts: $30-$80, Labor: $85-$150, ~1.0 hr book time (DIY)
  Chevrolet Equinox (2018-2024): OEM GM 23178025 (Alt: Standard Motor Products PBS140)
  Hyundai Santa Fe (2018-2020): OEM 93310S1850VCS (Alt: N/A)
• Repair Wiring or Connector Pigtail — Parts: $15-$50, Labor: $150-$300, ~2.0 hr book time (Intermediate)
• Reprogram EPB Module — Parts: $0, Labor: $150-$250, ~1.0 hr book time (Professional)
• Replace EPB Control Module — Parts: $250-$800, Labor: $150-$300, ~1.5 hr book time (Professional)
  Chevrolet Equinox (2019-2023): OEM GM 84375587 (Alt: Remanufactured units available)

DIY vs Professional

• Replace or Clean EPB Switch 🟢 Beginner
  Tools: Plastic trim removal tools, Phillips screwdriver, 10mm socket.
• Repair Wiring or Connector 🟢 Beginner
  Tools: Multimeter, wire strippers, soldering iron, heat shrink tubing.
• Reprogram or Replace EPB Module 🟢 Beginner
  Tools: Manufacturer-specific diagnostic software, J2534 interface, stable power supply.

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM switch from a salvage yard is a smart choice for older vehicles if a new part exceeds $100. Avoid used EPB control modules, as they require complex VIN programming.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the part number and interior color code match exactly.
• Ensure the switch button has a crisp, tactile 'click' and is not sticky.
• Inspect the connector pins for green or white corrosion.

Decision logic:

• If New OEM switch is under $50 → Buy new for the warranty and guaranteed clean contacts.
• If The problem is the EPB Control Module → Buy a new or professionally remanufactured module. Used modules often carry hidden faults.

Warranty tradeoff: Used parts offer 30-day warranties. New OEM parts carry a 1-year warranty.

Worst-case if a used part fails: $150 if a used switch fails, requiring repeat labor.

What Happens If You Wait — Timeline

1. Immediate: Code C0293 sets. The EPB system disables completely as a fail-safe. You lose parking brake functionality. (MPG impact: 0%% · Added cost: $0)
2. 1 week - 3 months: The vehicle fails mandatory state safety inspections due to the illuminated brake warning light. (MPG impact: 0%% · Added cost: $20-$50 (Failed inspection fee))
3. 6+ months: Parking on an incline relies solely on the transmission parking pawl. If it fails, the vehicle rolls away, causing severe property damage. (MPG impact: 0%% · Added cost: $5,000 - $50,000+ (Property damage and liability))

Cost of Not Fixing It

• Immediate: No functional parking brake. Severe roll-away risk when parking on inclines. (Added cost: $0)
• Ongoing: Guaranteed failure of state safety inspections due to the illuminated brake warning light. (Added cost: $20-$50 (Inspection fee))
• Potential (Incident-based): Vehicle roll-away incident causing property damage or injury. (Added cost: $500 - $50,000+)

Diagnosis Steps

1. Read Full Diagnostic Trouble Code with Suffix
   Use an OBD-II scanner capable of reading Chassis (C-codes) to confirm C0293. Note any two-digit suffix: C0293-01 is Short to Battery, C0293-06 is Low Voltage/Open, and C0293-08 is Signal Invalid. This dictates your diagnostic path.
   Tools: OBD-II Scanner (with ABS/Chassis capability) (Beginner)
2. Perform Visual Inspection & Clean
   Operate the EPB switch. If it feels sticky or lacks a crisp click, remove the center console trim. Inspect the switch and connector for liquid spills or corrosion. Clean the pins with isopropyl alcohol.
   Tools: Flashlight, Plastic trim removal tools, Isopropyl alcohol (Beginner)
3. Check Technical Service Bulletins (TSBs)
   Search online for TSBs related to 'C0293' for your specific vehicle. Manufacturers release bulletins for known issues, providing a direct fix and preventing unnecessary parts replacement.
   Tools: Internet access (Beginner)
4. Monitor Live Data
   Navigate to the EPB module's live data stream on an advanced scan tool. Watch the 'Park Brake Switch Status' PID. If the value does not change from 'Inactive' to 'Active' when you pull the switch, the module is not receiving the signal.
   Tools: Advanced OBD-II Scanner (Intermediate)
5. Test Switch Resistance
   Disconnect the switch. Set a multimeter to Ohms (Ω) and probe the internal contacts. Resistance must drop from infinite (O.L.) to under 5 Ohms when pressed. If resistance remains high, replace the switch.
   Tools: Multimeter (Intermediate)
6. Test Reference Voltage
   Turn the key ON (engine off). Probe the switch's wiring connector for a 5V or 12V reference signal from the control module. Missing voltage indicates a broken wire between the module and the switch.
   Tools: Multimeter, Vehicle-specific wiring diagram (Advanced)
7. Test Wiring Integrity
   Disconnect the switch and the EPB module. Test the wires between them for continuity (under 5 Ohms), short to ground (infinite resistance to chassis), and short to power. Repair any broken or chafed wires.
   Tools: Multimeter, Vehicle-specific wiring diagram (Advanced)
8. Diagnose EPB Control Module
   If the switch and wiring test perfectly, the EPB control module is at fault. For GM vehicles with C0293-08, a dealer must reprogram the module. If reprogramming fails, replace the module.
   Tools: Advanced scan tool, Multimeter (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Ignition Status: On (Run/Accessory) (The fault is detected during the module's power-on self-test.)
• EPB Switch Status: Apply or Release command (The fault logs the exact moment the driver pulls or pushes the switch.)

Related Codes

• C0293-01, C0293-06, C0293-08 — Diagnostic suffixes pinpointing the electrical state: -01 is Short to Battery, -06 is Low Voltage/Open, and -08 is Invalid Signal (software issue).
• C2007 / C2008 — Ford-specific codes indicating a circuit failure at the rear left or right caliper motor. Symptoms mimic C0293, but the fault is at the wheel, not the dashboard.
• U0128 — Indicates the EPB module lost communication with the vehicle's network. This points to a module power/ground failure, not a switch circuit fault.

Climate & Environmental Factors

• Liquid Spills: Sugary drinks spilled in the center console seep into the EPB switch, corroding the connector pins and physically jamming the button mechanism.
• Cold Weather: Extreme cold severely reduces battery capacity. The resulting voltage drop during engine cranking falls below the EPB module's operating threshold, logging a false low-voltage fault.

How to Talk to a Mechanic About This Code

Say this: "I have a 'Service Parking Brake' warning and my scanner shows code C0293. Please test the console switch and its wiring harness for opens or shorts before quoting a control module. If it's a GM vehicle showing C0293-08, I want to start with a module reprogram."

Signals you know the common failure points and prevents the shop from immediately quoting a $800 module replacement for a $40 switch problem.

Avoid saying:

• 'My parking brake light is on, can you fix it?'
• 'I think I need a new parking brake module.'

Questions to ask before authorizing the repair:

• What were the exact resistance readings on the switch and wiring continuity tests?
• Did you find any evidence of liquid spills around the switch connector?
• If recommending a module, have you ruled out a software reprogram?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Mandatory for GM software faults; otherwise, unnecessarily expensive for a simple switch replacement.
  Best for: Vehicles under warranty., GM vehicles displaying the C0293-08 code requiring a proprietary software flash.
  Downsides: Highest labor rates., Tendency to replace entire module assemblies rather than splicing a $20 wiring pigtail. (Typical cost: +40% vs. baseline)
• Independent Shop: The best fit for 80% of C0293 cases. They can perform the electrical tests for a fraction of the dealer cost.
  Best for: Out-of-warranty vehicles requiring switch replacement or wiring repair.
  Downsides: May lack the specific software tools to reprogram a module if required. (Typical cost: +0% vs. baseline)
• Chain Shop: Avoid. High risk of misdiagnosis and unnecessary parts replacement.
  Best for: Tires and oil changes.
  Downsides: Technicians often lack the training for nuanced electrical circuit diagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40% of the car's private-party value, consider selling the vehicle as-is.

• Car worth $11000, fix is $800: Fix it. An $800 module replacement is only 7% of the vehicle's value.
• Car worth $3000, fix is $1500: Walk away. A $1,500 dealer repair on a $3,000 car is uneconomical. Sell the vehicle as a 'mechanic special'.

What Scan Tool You Need for This Code

Minimum: A scanner that reads and clears Chassis (C) codes from the ABS/Brake Control Module.

C0293 is stored in the brake module, not the engine computer. A basic $20 P-code reader will show 'no codes', leaving you blind.

Budget: BlueDriver Pro or Foxwell NT301 (~$70) — Confirms the C0293 code and reads the specific suffix (-01, -08) to guide your diagnosis.

Mid-range: Foxwell NT630 Plus (~$150) — Reads ABS codes and includes Electronic Parking Brake (EPB) service functions to retract calipers for future brake jobs.

Professional: Autel MaxiCOM MK808S (~$450) — Provides full bidirectional control to command the EPB module, view live switch data, and perform module calibrations.

How to Clear the Code After You Fix It

1. Perform the physical repair (replace switch, fix wiring, or reprogram module).
2. Use an OBD-II scan tool capable of accessing the ABS module to clear the C-code.
3. Cycle the ignition off, then on.
4. Apply and release the EPB switch three times to confirm normal operation.

Drive cycle (~5 minutes): No specific drive cycle is required. The module confirms the electrical fix immediately upon ignition cycle and switch operation.

Readiness monitors affected: None. Chassis codes do not affect emissions readiness monitors.

Watch out for:

• Using a basic P-code reader that cannot clear C-codes from the ABS module.
• Assuming the code will clear itself without a scanner after replacing the switch.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: C0293 does not fail the emissions portion of a Smog Check, but the illuminated 'BRAKE' light constitutes a safety failure, allowing inspectors to refuse the test.
• New York: NYS safety inspections mandate functional brake warning lamps. An illuminated light results in immediate failure.
• Texas: Texas annual safety inspections check the braking system. An active brake warning lamp causes an automatic failure.

Most Commonly Affected Vehicles

• Chevrolet Equinox / Traverse (2018-2024) — Highly susceptible to both physical switch failure and the C0293-08 software fault requiring a dealer reprogram.
• GMC Terrain / Acadia (2018-2024) — Shares the exact EPB architecture and failure points as the Chevrolet Equinox.
• Cadillac CTS / ATS (2010-2019) — Service manuals document specific tests for shorts to battery (C0293-01) and open circuits (C0293-06) originating at the console switch.
• Hyundai Santa Fe / Tucson (2015-2020) — Known for expensive EPB module failures. Diagnose the switch thoroughly before condemning the module.
• Subaru Legacy / Outback / WRX (2015-2018) — Displays identical symptoms, but the root cause is usually a brittle wiring connector at the rear brake calipers (covered by TSB 06-87-22R), not the console switch.
• Ford Expedition / F-150 (2018-2022) — Identical dashboard warnings are typically caused by broken wires near the rear wheel calipers (Codes C2007/C2008), not the C0293 switch code.

Manufacturer-Specific Notes

• General Motors (Chevy, GMC, Cadillac): GM vehicles frequently log the C0293-08 'Signal Invalid' code. This is a known software glitch requiring an Electronic Brake Control Module (EBCM) reprogram, not a hardware replacement.
• Subaru: Subaru extended the warranty to 15 years for EPB wiring harness failures at the rear calipers (TSB 06-87-22R). Mechanics often misdiagnose this wheel-level fault as a console switch issue.

Real Owner Stories

2018 Chevy Equinox - The Soda Spill

A week after spilling soda in the console, the 'Service Parking Brake' message appeared with code C0293. The switch felt sticky.

What they tried:

1. Attempted to clean the switch externally with a wipe.
2. Removed the center console trim to access the switch assembly.

Outcome: The switch connector was heavily corroded. The owner cleaned the harness pins with alcohol and installed a new OEM switch ($38). The repair took one hour, cleared the code, and restored function.

Lesson: Liquid spills are the primary killer of console switches. If the fault appears after a spill, replace the switch before paying for a diagnostic fee.

2021 GMC Acadia - The Software Glitch

The 'Service Parking Brake' warning appeared suddenly. A scan tool revealed code C0293-08 ('Signal Invalid').

What they tried:

1. Disconnected the battery for 30 minutes to perform a hard reset.
2. Checked the switch and wiring for visible damage.

Outcome: The owner visited a GM dealership. The technician recognized C0293-08 as a known software issue and reprogrammed the Electronic Brake Control Module (EBCM). The one-hour fix was covered under warranty.

Lesson: The two-digit suffix is critical. On GM vehicles, a '-08' suffix dictates a software flash. Never authorize hardware replacement for this specific suffix without a reprogram first.

How to Prevent This Code From Triggering

• Keep the center console clean and use spill-proof cups (Daily habit) — Prevents sugary liquids from corroding the EPB switch connector, eliminating the #1 cause of this code.
• Operate the electronic parking brake periodically (Weekly) — Regular use keeps internal switch contacts clean and prevents rear caliper motors from seizing.
• Maintain a healthy battery (Every 6 months) — Prevents low-voltage drops during engine cranking that trigger false communication codes in the EPB module.

Frequently Asked Questions

Can I fix code C0293 myself?

Yes, if the fault is a sticky or failed EPB switch in the center console, it is a straightforward DIY repair requiring basic trim tools. Diagnosing complex wiring shorts or reprogramming a control module requires professional equipment. Stop DIYing if a new switch does not clear the code.

Will clearing the C0293 code fix the problem?

No. C0293 indicates a hard electrical fault in the circuit. The code and warning light return immediately upon startup until you repair the underlying switch or wiring issue.

What is the most common misdiagnosis for C0293?

The most expensive mistake is replacing the EPB control module before exhaustively testing the $40 console switch and its wiring. Mechanics also frequently overlook known wiring breaks at the rear calipers on Ford and Subaru models, wrongly suspecting the console switch.

The 'Service Parking Brake' light appeared after a battery change. What happened?

Voltage spikes during a battery replacement corrupt the software memory in the EPB module, triggering a false fault code. Perform a hard reset by disconnecting the negative battery terminal for 15 minutes. If the code returns, a dealer must recalibrate the module.

My parking brake is stuck ON. Is that a C0293 fault?

No, code C0293 disables the system and prevents it from engaging. A brake stuck in the ON position indicates a mechanical failure, such as a seized caliper motor or a catastrophic module failure.

Is the electronic parking brake part of the ABS system?

Yes. The EPB control logic lives within the Anti-lock Brake System (ABS) control module. This makes C0293 a Chassis code, requiring an advanced scanner to read and clear.

My cheap scanner doesn't show C-codes. How can I read it?

Basic $20 OBD-II readers only pull Powertrain (P-codes) from the engine computer. You need a mid-range scanner (like a BlueDriver or Foxwell) that communicates with the ABS and Body control modules to read Chassis (C-codes).

What's the difference between a C0293 and a mechanical parking brake failure?

C0293 is strictly an electrical circuit fault between the dashboard switch and the control module. Mechanical failures involve seized calipers or stripped actuator gears at the wheels. Mechanical failures set codes related to motor current draw, not switch circuits.

Key Takeaways

• Code C0293 disables your electronic parking brake due to an electrical fault in the dashboard switch circuit, leaving hydraulic brakes fully functional.
• Liquid spills in the center console cause over 50% of C0293 codes by corroding the EPB switch or its wiring connector.
• On General Motors vehicles, a C0293-08 code indicates a software failure requiring a $150-$250 dealership module reprogram, not a hardware replacement.
• Test the switch resistance with a multimeter; a functional switch shows under 5 ohms when pressed, while a broken one reads infinite resistance (O.L.).
• Subaru and Ford owners experiencing identical symptoms should inspect the rear brake caliper wiring harnesses for breaks before replacing the console switch.
