C0326 on 2015-2017 Cadillac Escalade: Service 4WD Light Causes & Fixes

What's Unique About the 2015-2017 Cadillac ESCALADE

The 2015-2017 Escalade (K2XX platform) and its platform-mates (Chevy Tahoe/Suburban, GMC Yukon) are known for issues where the 4WD system faults in very cold temperatures. Multiple Technical Service Bulletins (TSBs) from GM confirm that operating below 10°F (-12°C) can trigger codes C0326 and C0398 due to sensitive software logic or actuator performance in the cold. Additionally, a specific and serious issue was identified on 2017 models where a sticking transfer case actuator brake could cause the vehicle to slip into neutral and roll away, prompting a customer satisfaction program (#17048).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" or "Service AWD" message on the Driver Information Center (DIC).
• Inability to switch between 2WD, 4WD Auto, 4HI, or 4LO modes.
• 4WD system may be stuck in one mode.
• Potential for vehicle rollback when parked on a slight incline (specifically noted for 2017 models under Customer Satisfaction Program 17048).
• 4WD selector switch lights may flash or not illuminate.
🎬 Watch: Diagnosing the Service 4WD message and common electrical faults.
• A grinding or clunking noise from the transfer case area during attempted shifts.

Most Likely Causes

1. Failing Transfer Case Actuator Assembly 🔴 High Probability → Shop Transfer Case Motor The actuator motor or its internal brake can fail, particularly under specific temperature conditions. GM issued a customer satisfaction program (#17048) for certain 2017 models due to a sticking actuator motor brake that could lead to a rollback condition. TSBs also identify a specific part number (23355888) to address cold-weather failures on 2015 models.
   How to confirm: A technician can use a scan tool to command the actuator to shift ranges. If it fails to move or responds erratically, and the wiring is confirmed to be good, the actuator is faulty. The serial number on the actuator can also be checked against the range specified in program #17048 for 2017 models. A resistance test across the motor terminals should yield a specific value (e.g., around 9.9 ohms); an open or shorted reading indicates failure.

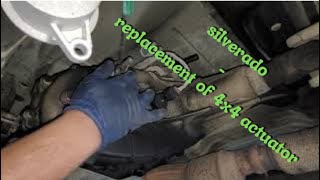

   Typical fix: Replace the transfer case actuator assembly. 🎬 See this step-by-step walkthrough for replacing the 4x4 actuator. A relearn procedure is required after installation using a compatible scan tool.
   Est. part cost: $450-$610
2. Transfer Case Control Module (TCCM) Software Issue 🟡 Medium Probability → Shop Transfer Case Motor Early software calibrations were overly sensitive, especially in cold weather. TSBs #PIP5250A and #PIP5250G specifically mention reprogramming the TCCM as a potential fix for this code, particularly when it appears with C0398 in cold climates below 10°F (-12°C).
   How to confirm: A GM dealer or a qualified shop with access to the GM TIS2Web or Techline Connect system can check the vehicle's VIN for available TCCM software updates.
   Typical fix: Reprogram the Transfer Case Control Module with the latest software calibration. This should be the first step before replacing parts for a cold-weather complaint.
   Est. part cost: $0 (Labor cost only)
3. Wiring or Connector Issue ⚪ Low Probability The wiring harness and connectors leading to the transfer case are exposed to the elements, making them susceptible to corrosion, damage, or loose connections. Forum users have reported finding water and corrosion in the main electrical connector at the transfer case, causing intermittent issues. A known issue on this platform involves pins pushing out of the back of connectors, such as the X109 inline harness connector.
   How to confirm: Visually inspect the wiring harness and connectors between the TCCM and the transfer case actuator for any signs of damage, corrosion, or loose pins. A 'wiggle test' on the harness while monitoring sensor data on a scan tool can check for intermittent connections. Check for correct voltage on reference and signal wires; for example, the position sensor should have a solid 5V reference.
   Typical fix: Repair the damaged section of the wiring harness or thoroughly clean the pins and connector housing, applying dielectric grease before reconnecting. In some cases, a new connector pigtail is required.
   Est. part cost: $20-$100

Diagnosis Steps

1. Connect a professional scan tool capable of reading chassis codes to the vehicle's OBD-II port. A GM-specific tool like GDS2 is recommended.
2. Confirm that C0326 is present in the Transfer Case Control Module (TCCM) and note any other codes, especially C0398. Note any symptom byte, such as '58', which indicates a sticking actuator motor brake.
3. Check for applicable Technical Service Bulletins (TSBs) using the vehicle's VIN. Specifically look for TSBs #GCUS-3-861, #PIP5250G/A/B, and Customer Satisfaction Program #17048.
4. If TSBs indicate a software issue (especially for cold weather complaints), the first step should be to update the TCCM software using GM's service programming system.
5. If no software update is available or the issue persists, raise the vehicle and visually inspect the wiring harness and connectors at the transfer case actuator for any signs of damage, corrosion, or loose pins. Pay close attention to the main connector for water intrusion and pushed-out pins.
6. Using the scan tool's bidirectional controls, command the transfer case to shift through its ranges (2WD, 4WD, etc.). Monitor the actuator's response.
7. If the actuator does not respond or responds incorrectly, test the circuits at the actuator connector. Check for proper power, ground, and reference voltages (typically 5V or 8V depending on the sensor). A low reference voltage (e.g., 3.18V instead of 5V) points to a wiring issue.
8. Test the actuator motor itself. Check resistance between the motor control terminals; a reading around 9.9 ohms is expected. An open circuit (infinite resistance) or a short to ground indicates a failed motor.
9. If wiring and the motor test good, the fault may lie within the TCCM itself.
10. After replacing the actuator, perform the 'Transfer Case High/Low Clutch Reset' or 'actuator learn' procedure using the scan tool to calibrate the new part to the TCCM. This step is critical for proper function.
🎬 Watch: How to perform the essential programming and relearn procedure.

Parts You'll Likely Need

• Transfer Case Actuator Assembly (OEM #84109212) — This is the most common hardware failure for code C0326, as documented in multiple TSBs and a customer satisfaction program. This part number is the specific replacement called for in program #17048. It supersedes several previous part numbers, including 23355888. Note: This part has itself been superseded by P/N 84718571.
  Trusted brands: ACDelco, GM Genuine Parts, Dorman
  OEM price range: $340-$610
  Aftermarket price range: $250-$400

Related Codes That Often Appear With This One

• C0398 — This code for 'Range Position Correlation Fault' is frequently mentioned alongside C0326 in GM service bulletins, especially for faults occurring in cold weather. TSBs PIP5250G and PIP5250E confirm they often appear together.
• U0403 — This code for 'Invalid Data Received From Transfer Case Control Module' may be set in other modules (like ABS or BCM) as a secondary fault when the TCCM reports a primary issue like C0326. It typically clears once the root cause in the TCCM is fixed.

Technical Service Bulletins (TSBs) & Recalls

• GCUS-3-861: Addresses a potential rollback condition on 2017 models due to a sticking transfer case actuator, setting code C0326 58.
• PIP5250G/B/A: Discusses the 'Service 4WD' message and codes C0326 or C0398 appearing in cold weather on 2015 models, recommending a TCCM reprogram or actuator replacement.
• 17048: A GM Customer Satisfaction Program to replace the transfer case actuator assembly (P/N 84109212) on certain 2017 models to prevent a potential rollback condition. The program was in effect until March 31, 2019.
• PIP5250E: Mentions that C0326 can appear with C0398 in cold weather and discusses part restrictions for a special cold-weather actuator (P/N 23355888).

Platform-Specific Known Issues

• A known issue for 2015 models involves the 'Service 4WD' message appearing when operated below 10°F (-12°C), often setting codes C0326 and C0398. This is addressed in TSBs #PIP5250G, #PIP5250B, and #PIP5250A, which may recommend a TCCM reprogram or replacement with a special cold-weather actuator (P/N 23355888).
• For 2017 models, TSB #GCUS-3-861 and Customer Satisfaction Program #17048 address a condition where the transfer case actuator motor brake can stick, setting C0326 58 and potentially allowing the vehicle to roll back when parked. The fix is to replace the transfer case actuator assembly with P/N 84109212 (or its successor).

Mechanic-Grade Diagnostic Values

• 4WD Selector Switch Voltage (at TCCM) — expected: 2HI: ~2.02V, 4HI: ~3.04V, 4LO: ~1.51V, Auto 4WD: ~4.66V. Failure: No voltage change when buttons are pressed, or voltage out of expected range for a given selection.
• Transfer Case Actuator Motor Winding Resistance — expected: ~9.9 Ohms. Failure: An open circuit (infinite resistance) or a short to ground indicates a failed motor.
• Transfer Case Position Sensor 5V Reference — expected: 5.0 Volts. Failure: A significantly lower voltage, such as 3.18V, indicates high resistance in the wiring harness due to corrosion or damage.
• Incremental Encoder Sensor (in Actuator) Reference Voltage — expected: 8.0 Volts (when measured with a multimeter). Failure: Missing or low reference voltage points to a wiring or TCCM issue.

Hidden / Shadow Codes Worth Checking

• C0326 58: This symptom byte indicates the TCCM has detected that the transfer case actuator motor brake is sticking in the open position. This specific fault was the subject of GM Customer Satisfaction Program #17048 due to a risk of vehicle rollback. (see via A professional scan tool capable of reading GM-specific chassis codes and symptom bytes, such as the GM GDS2.)

Scan Tool Commands That Help

• GM GDS2 (Global Diagnostic System 2): Module Diagnostics -> TCCM -> Control Functions — To perform bidirectional control of the transfer case actuator, commanding it to shift between ranges (2WD, 4HI, 4LO) to verify motor operation without using the in-cab switch.
• GM GDS2 (Global Diagnostic System 2): Module Diagnostics -> TCCM -> Configure/Reset Functions -> Transfer Case High/Low Clutch Reset — This is a required relearn procedure after replacing the transfer case actuator assembly to calibrate the new motor's position to the TCCM. Failure to perform this step will result in continued malfunction.

Wiring & Ground Locations

• Frame Grounds — On the vehicle frame, located under the driver-side door and directly behind both front wheels.. These ground points are highly exposed to road spray from the tires, making them extremely prone to rust and corrosion. A poor ground connection here can cause a host of intermittent and difficult-to-diagnose electrical issues, including problems with the 4WD system.
• Connector X109 — An inline harness connector, often located under the dash or near the underhood fuse panel.. While not specific to C0326, a service bulletin for a similar code (C0306) on this platform identifies this connector as a weak point where terminals can become loose or push out, creating an open circuit to the transfer case actuator.

Real Owner Repair Stories

• YouTube channel 'Phillip Bailey' (2017 GM Truck (same platform/system)) — 'Service 4WD' message, ABS and Traction Control lights on, code C0392 (related position sensor code).
  ❌ Tried (didn't work) The diagnostic approach avoided replacing parts until the root cause was found.
  ✅ What actually fixed it The technician found the 5-volt reference wire to the transfer case position sensor was corroded, causing the voltage to drop to 3.18V. The fix was to repair the single corroded wire and seal the connection; no parts were replaced.
• YouTube channel 'South Main Auto LLC' (2013 Chevy 1500 (similar system)) — 'Service 4WD' message, no 4x4 operation, code C0306 (actuator control circuit).
  ❌ Tried (didn't work) A visual inspection of the wiring harness showed no obvious damage.
  ✅ What actually fixed it The diagnostic logic pointed to an internal failure of the transfer case motor. The TCCM tests the circuit by sending voltage down one wire and expecting to see it on the return wire; if it doesn't, it sets the code. The final repair was replacing the transfer case encoder motor assembly.

OEM Part Supersession History

• 23355888 → Multiple revisions, eventually leading to 84109212 — Part P/N 23355888 was a special part released under restriction specifically to address the cold-weather performance issue (below 10°F / -12°C) on 2014-2015 trucks and 2015 SUVs.
• Multiple, including 19256064, 19258696, 23355888 → 84109212 — Consolidation of previous part numbers and design updates to address failures, including the sticking motor brake issue from the 2017 recall.
• 84109212 → 84718571 — Standard part lifecycle update for service replacement.

Model Year Variations Within This Range

• 2015: These models were particularly susceptible to setting C0326 and C0398 in ambient temperatures below 10°F (-12°C). The fix often involved a TCCM software update or a special cold-weather actuator (P/N 23355888) as per TSB PIP5250.
• 2017: A specific batch of transfer case actuators was prone to a sticking internal brake, causing a rollback risk and setting code C0326 with symptom byte 58. This was addressed by Customer Satisfaction Program #17048, which replaced the faulty actuator.
