C0326 on 2015-2017 GMC Canyon: Service 4WD Light Causes and Fixes

What's Unique About the 2015-2017 Gmc CANYON

For this generation of GMC Canyon and its platform-mate, the Chevrolet Colorado, the C0326 code is frequently linked to two distinct, well-documented issues. One is a hardware failure where the transfer case actuator motor's internal brake sticks, which can even create a vehicle rollback risk in specific situations as outlined in Customer Satisfaction Program #17048. The other is a software sensitivity in the Transfer Case Control Module (TCCM) that causes the "Service 4WD" light to appear in very cold temperatures, often alongside code C0398. Diagnosing which issue is present is key, although later service bulletins for the cold weather issue also point towards actuator replacement as the final fix if reprogramming doesn't work.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" or "Service AWD" message on the Driver Information Center (DIC).
• Inability to shift into or out of 4WD or AWD modes.
• 4WD system may get stuck in one mode.
• The 4WD indicator light may flash or not illuminate correctly when a shift is attempted.
• Audible click, grinding, or clunking from the transfer case area, followed by the service message.

Most Likely Causes

1. Faulty Transfer Case Actuator Assembly 🔴 High Probability → Shop Transfer Case Motor A specific failure of the actuator motor's internal brake sticking open is documented in GM Customer Satisfaction Program #17048. This TSB targeted 2017 models but the part is used across the generation. Later versions of the cold-weather TSB (PIP5250 series) also began recommending actuator replacement, suggesting a hardware problem is more common than just a software glitch.
   How to confirm: A technician can use a scan tool to monitor actuator commands and position. The presence of code C0326 with symptom code 58 specifically points to the actuator brake sticking. For 2017 models, a dealer can check if the actuator's serial number falls within the range of 1610140257 to 1610192840, which requires replacement under the campaign.

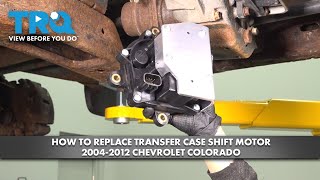

   Typical fix: Replace the transfer case actuator assembly. GM issued part number 84109212 for this repair, which has since been superseded by part number 84718571. After replacement, a relearn procedure may be necessary. 🎬 See this walkthrough on fixing the Service 4WD warning.
   Est. part cost: $200-$450
2. Transfer Case Control Module (TCCM) Software Issue 🟡 Medium Probability → Shop Transfer Case Motor Multiple TSBs (PIP5250 series) were issued for a condition where the "Service 4WD" message appears in ambient temperatures below 10°F (-12°C) due to a software sensitivity.
   How to confirm: The issue occurs primarily in cold weather and may be intermittent. A technician would check the TCCM for the latest software calibration using the GM Service Programming System (SPS). Freeze frame data from the scan tool will show the ambient temperature when the fault occurred.
   Typical fix: Reprogram the Transfer Case Control Module with updated software. If reprogramming doesn't resolve the issue, or if specified by a later version of the TSB, the actuator may need replacement.
   Est. part cost: $0 (if reprogramming is the only step at a dealership)

Rare But Worth Checking

• Wiring Harness or Connector Issue: Moisture intrusion or corrosion in connectors for the TCCM or encoder motor can cause intermittent signal problems. More specifically, owners and technicians on forums mention the potential for the wiring harness to chafe, causing a short to ground, which can trigger various 4WD codes. A confirmed repair involved a broken wire a few inches from the sensor connector.
• Corroded or Wet Transfer Case Control Module (TCCM): → Shop Transfer Case Motor On this generation of Canyon/Colorado, the TCCM is located under the driver's seat beneath the carpet. This location makes it highly susceptible to moisture from wet boots, snow, or water crossings, leading to corrosion on the module and its connectors. This can cause a variety of 4WD-related codes, including C0326. Some owners proactively relocate the module to a safer location under the dashboard.
🎬 Watch: How to relocate your TCCM to prevent water damage.

Diagnosis Steps

1. Connect a professional scan tool capable of reading Chassis (C) codes from the Transfer Case Control Module (TCCM).
2. Read and document all DTCs and any associated symptom bytes (e.g., C0326 58).
3. Check freeze frame data to see the conditions under which the code was set, paying close attention to the ambient temperature.
4. If the code was set in very cold weather (below 10°F / -12°C) and C0398 is also present, check for available TCCM software updates per TSBs like PIP5250.
5. For 2017 models, check vehicle history in the GM Global Warranty Management system for open campaign #17048. If applicable, inspect the transfer case actuator serial number. If it's between 1610140257 and 1610192840, replace the actuator.
6. If software is up-to-date and no campaigns apply, use the scan tool to command the transfer case actuator through its ranges (2WD, 4HI, 4LO) while monitoring its position sensor data to verify proper operation.
7. Inspect the TCCM under the driver's seat for any signs of water intrusion or corrosion.
8. If the actuator fails to move, makes noise but doesn't complete the shift, or its position is erratic, inspect the wiring and connectors between the TCCM and the actuator. Pay close attention to harness routing for any signs of chafing, rubbing, or damage. A known failure point is a broken wire within the harness near the actuator connector.
🎬 Watch: How to replace the front differential actuator.
9. If wiring is intact and the actuator is unresponsive or confirmed faulty, it is the most likely failed component and should be replaced.
10. After replacement, perform the 'Range Actuator Learn' procedure using a compatible scan tool to calibrate the new motor.

Parts You'll Likely Need

• Transfer Case Actuator Assembly (Shift Motor) (OEM #84109212 (superseded by 84718571)) — This is the primary component identified in TSBs for causing code C0326, due to either an internal brake failure or other electronic faults. The original part number 84109212 has been replaced by 84718571.
  Trusted brands: ACDelco (GM Genuine), Dorman
  OEM price range: $350-$450
  Aftermarket price range: $150-$275

Related Codes That Often Appear With This One

• C0398 — This code, for 'Transfer Case Range Actuator Position Sensor Performance', is frequently stored alongside C0326. Multiple TSBs mention them appearing together, especially in the cold-weather software issue scenario.

Technical Service Bulletins (TSBs) & Recalls

• GCUS-3-861 / #17048: Addresses a sticking transfer case actuator motor brake on 2017 models, causing C0326 58 and a potential for vehicle rollback. The fix is to replace the actuator assembly with part 84109212.
• PIP5250G, PIP5250D, PIP5250C, PIP5250B, PIP5250A: Discusses the "Service 4WD" message with codes C0326 or C0398 in cold weather, recommending TCCM reprogramming or actuator replacement.

Platform-Specific Known Issues

• A GM Customer Satisfaction Program (#17048) was issued for some 2017 models due to a transfer case actuator motor brake sticking, which could cause the vehicle to roll back when parked on a slight incline in 4LO. This specific issue sets code C0326 58.
• A series of Preliminary Information bulletins (PIP5250A through PIP5250G) address a recurring "Service 4WD" message with codes C0326 and/or C0398 that appears in temperatures below 10°F (-12°C). The initial recommended fix was a TCCM reprogram, with later versions suggesting actuator replacement if the problem persists.

Mechanic-Grade Diagnostic Values

• 8-Volt Reference (8VREF) at Actuator Position Sensor — expected: Approximately 8.0 Volts. Failure: No voltage or significantly low voltage on the specified wire indicates a broken wire or a fault in the TCCM.
• Transfer Case Actuator Motor Resistance — expected: 0.3–40 Ω (between motor control terminals). Failure: A reading outside this range (e.g., an open circuit) suggests a faulty motor.

Hidden / Shadow Codes Worth Checking

• C0326 58: Indicates the Transfer Case Control Module (TCCM) has detected that the actuator motor's internal brake is sticking in the open position. This is the specific fault that can lead to a vehicle rollback condition. (see via A dealer-level scan tool (like GM GDS2) or some high-end aftermarket scanners capable of reading manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GM GDS2, Autel, Snap-on, etc.: Range Actuator Learn / ATC Motor Learn / Transfer Case Relearn — This procedure is mandatory after replacing the transfer case actuator assembly or the TCCM. It calibrates the new motor's electronic position sensor to the physical positions of the shift fork inside the transfer case. Failure to perform the learn procedure will result in the 4WD system remaining inoperative and codes returning.

Wiring & Ground Locations

• Transfer Case Control Module (TCCM) — Under the driver's seat, beneath the carpet or floor liner.. This location is prone to water damage from snow, rain, or wet boots, which can cause corrosion on the module and its connectors, leading to C0326 and other 4WD faults. Visual inspection for water stains or corrosion is a key diagnostic step.
• Actuator Position Sensor Harness — The wiring harness leading to the transfer case actuator motor.. A known failure point is a broken wire within this harness, a few inches from the connector. Specifically, the White/Light Green wire provides the 8V reference signal; a break here will cause position sensor codes. A 'wiggle test' of the harness while monitoring scan tool data can help identify this intermittent issue.

Real Owner Repair Stories

• ALLDATA Tech-Assist Case Study (GMC Canyon (year not specified, but within platform)) — 4WD suddenly stopped working, DTC C0396 08 (Range Actuator Performance) was stored.
  ❌ Tried (didn't work) Initial diagnosis was inconclusive before calling tech support.
  ✅ What actually fixed it The technician found there was no 8V reference voltage on the White/Light Green wire at the actuator sensor. An inspection revealed the wire was broken inside the harness a few inches from the connector. Repairing the broken wire resolved the issue.
• Reddit user adonpr37 on r/chevycolorado (2017 GMC Canyon Duramax) — 'Service 4x4' message.
  ❌ Tried (didn't work) A manual relearn procedure involving pulling the TREC fuse (#25) and turning the 4WD knob did not provide a permanent fix.
  ✅ What actually fixed it The final solution was to replace the transfer case actuator motor and re-pin a new plug/connector for it.

OEM Part Supersession History

• 84109212 → 84718571 — Standard part revision and improvement by the manufacturer. The original part was identified in a GM Customer Satisfaction Program for a sticking internal brake.

Model Year Variations Within This Range

• 2017: 2017 models were subject to Customer Satisfaction Program #17048 for a sticking transfer case actuator motor brake, which sets C0326 with symptom byte 58 and creates a rollback risk. The fix is a mandatory actuator replacement if the serial number is within a specific range.
• 2015-2017: Models across this range can experience a cold-weather related "Service 4WD" light due to a TCCM software sensitivity, as detailed in the PIP5250 TSB series. The initial fix was a software update, but later revisions also pointed to actuator replacement, blurring the lines between a software and hardware fault.
