OBD-II Code C0364: Front Axle Actuator Circuit Malfunction

What Does C0364 Mean?

Code C0364 indicates the Transfer Case Control Module (TCCM) detected an electrical fault in the front axle actuator circuit. This actuator is a small electric motor that locks the front axle to engage four-wheel drive. An open or short circuit prevents the TCCM from controlling this motor, immediately disabling the 4WD system.

Technical definition: For General Motors (where this code is most prevalent), C0364 is defined as "Front Axle Control Circuit Malfunction." It means the TCCM detected an out-of-range voltage or an open circuit in the electrical path to the front axle actuator during its startup self-test.

Can I Drive With C0364?

⚠️Yes, But With Caution. You can drive the vehicle, but it remains locked in two-wheel drive (2WD). If the 4WD system is stuck engaged (indicated by code C0364-02), you must avoid driving on dry pavement. Driving on high-traction surfaces with 4WD engaged causes severe drivetrain binding, destroying the transfer case and resulting in a $2,000 to $8,000 repair bill.

Common Causes

• Poor Frame Ground Connection (Very Common) — On GM trucks, the TCCM relies on a specific ground bolt (G110) located on the frame rail under the driver's door. This bolt rusts heavily, creating high electrical resistance that triggers C0364 and disables the 4WD system.
• Damaged Wiring or Corroded Connectors (Very Common) — The wiring harness running to the front axle actuator is exposed to road debris, moisture, and salt. Wires chafe against the frame, or connectors (like the GM C111 harness under the fuse box) trap water and corrode the internal pins.
• Failed Front Axle Actuator (Common) — The actuator motor burns out, its plastic gears strip, or the housing cracks. A cracked housing allows water intrusion, which rusts the internal electronics and causes a direct short.
• Blown 4WD Fuse (Less Common) — A blown "TREC," "ATC," or "4WD" fuse cuts power to the TCCM and actuator. This usually happens as a secondary result of a short circuit elsewhere in the wiring.
• Failed Transfer Case Control Module (TCCM) (Less Common) — An internal driver circuit inside the TCCM burns out, preventing it from sending voltage to the actuator. On 2014-2015 GM trucks, a known software glitch mimics a hardware failure and requires a dealer re-flash.
• Mechanical Failure in Front Differential (Rare) — The actuator motor works, but the mechanical fork inside the front differential seizes. The motor stalls trying to move the stuck fork, drawing excessive current and triggering a circuit code.

Symptoms

• Service 4WD Warning Message — A "Service 4WD" message illuminates immediately on the driver information center.
• 4WD System Inoperative — The vehicle refuses to shift into 4WD and remains permanently in 2WD.
• Flashing 4WD Selector Lights — The indicator lights on the dashboard 4WD switch flash continuously or go completely dark.
• Abnormal Front Axle Noises — You hear clicking or buzzing from the front differential as the TCCM unsuccessfully attempts to move the actuator.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Cleaning and Securing the Frame Ground — Parts: $0-$5, Labor: $50-$120, ~0.5 hr book time (DIY)
• Repairing Damaged Wiring or Connectors — Parts: $10-$50, Labor: $150-$300, ~1.5 hr book time (Intermediate)
• Replacing the Front Axle Actuator — Parts: $60-$150, Labor: $150-$300, ~1.5 hr book time (DIY)
  Chevrolet Silverado / GMC Sierra (2007-2018): OEM ACDelco 84178335 (Alt: Dorman 600-115)
  Dodge Ram 1500 (2006-2018): OEM Mopar 68216944AA (Alt: Dorman 600-399)
• Replacing the Transfer Case Control Module (TCCM) — Parts: $200-$400, Labor: $150-$250, ~1.5 hr book time (Professional)
  Chevrolet Silverado / GMC Sierra (2014-2015): OEM ACDelco 23247709 (Alt: Dorman 599-225)

DIY vs Professional

• Cleaning the Frame Ground — Beginner:
• Replacing the Front Axle Actuator — Beginner:
• Repairing Damaged Wiring — Beginner:
• Replacing the TCCM — Beginner:

Used vs. New Parts: Buying Guide

When a used part is worth it: Buy a used TCCM if budget is tight, provided it comes from a vehicle without water damage. Never buy a used front axle actuator; they are highly susceptible to moisture damage and internal wear.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the OEM part number matches exactly.
• Ensure the donor vehicle has no history of flood damage.
• Avoid parts from rust-belt states.

Decision logic:

• If The failed part is the front axle actuator → Buy new. The labor to replace it twice negates any savings from a used part.
• If The failed part is the TCCM → A used module is acceptable, but factor in the cost of dealer programming.

Warranty tradeoff: Used parts offer 30-day warranties. New OEM (ACDelco) parts provide a 24-month warranty, while premium aftermarket parts (Dorman) often include a limited lifetime warranty.

Worst-case if a used part fails: $300 if a used actuator fails, requiring you to pay for the part and labor a second time.

What Happens If You Wait — Timeline

1. Immediate: Code C0364 sets. The 'Service 4WD' light illuminates, and the 4WD system is disabled. The vehicle operates safely in 2WD. (MPG impact: 0%% · Added cost: $0)
2. Immediate (if stuck in 4WD): If a short circuit locks the actuator in the engaged position, driving on dry pavement causes immediate drivetrain binding and heavy steering. (MPG impact: 10%% · Added cost: $100 in accelerated tire wear.)
3. 100+ miles of driving while stuck in 4WD: The immense binding force shatters the chain or gears inside the transfer case, resulting in a total loss of motive power. (MPG impact: 100% (vehicle disabled)% · Added cost: $2,500-$8,000 for a complete transfer case replacement.)

Cost of Not Fixing It

• Immediate: Total loss of four-wheel drive capability. The vehicle operates strictly in 2WD. (Added cost: $0)
• Ongoing: If the actuator shorts and sticks in the engaged position (C0364-02), driving on dry pavement causes severe drivetrain binding and tire scrubbing. (Added cost: $100-$300)
• Long-term: Continued binding from driving on pavement while stuck in 4WD shatters the transfer case chain or gears. (Added cost: $2,000-$8,000)

Diagnosis Steps

1. Scan Codes and Note the Suffix
   Use a Chassis-capable OBD-II scanner to read the specific C0364 sub-code. C0364-04 indicates an Open Circuit (broken wire or dead motor), while C0364-02 indicates a Short to Ground.
   Tools: OBD-II Scanner (Chassis capable) (Beginner)
2. Check the 4WD Fuses
   Locate the TREC, ATC, or 4WD fuses in the under-hood and cabin fuse boxes. Pull them and verify the internal filament is intact.
   Tools: Owner's Manual, Fuse Puller (Beginner)
3. Clean the Frame Ground (G110)
   On GM trucks, locate the ground wire bolted to the frame under the driver's side door. Unbolt it, scrub the frame and terminal to bare metal with a wire brush, apply dielectric grease, and tighten securely.
   Tools: Wrench/Socket Set, Wire Brush, Dielectric Grease (Beginner)
4. Visually Inspect the Actuator Wiring
   Trace the wiring harness from the front differential actuator up into the engine bay. Look for chafed insulation, melted wires, or unplugged connectors. Disconnect the actuator plug and check for green corrosion on the pins.
   Tools: Flashlight, Safety Glasses (Beginner)
5. Command Actuator with Scan Tool
   Using a bidirectional scan tool, command the front axle to engage. If you hear the actuator motor click but the axle doesn't lock, the actuator is mechanically failed. If you hear nothing, proceed to electrical testing.
   Tools: Bidirectional Scan Tool (Advanced)
6. Test Actuator Circuit Voltage
   Disconnect the actuator. Turn the key ON. Use a multimeter to test the harness pins. You must find 12V on the power wire (usually brown) and good continuity on the ground wire (usually black). If power is missing, the wiring harness is broken.
   Tools: Multimeter, Vehicle-Specific Wiring Diagram (Advanced)
7. Check Actuator Motor Resistance
   Set your multimeter to Ohms (Ω) and probe the two motor pins on the actuator itself. A reading of 'OL' (Open Loop) means the internal motor is burned out and the actuator requires replacement.
   Tools: Multimeter (Advanced)
8. Check for Technical Service Bulletins (TSBs)
   If the wiring and actuator test perfectly, check for manufacturer TSBs. For example, 2014-2015 GM trucks require a TCCM software update (TSB #15-NA-035) to resolve false C0364 codes.
   Tools: TSB Database Access (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Fault Trigger: Key-On Self-Test (The TCCM checks the actuator circuit immediately upon ignition, setting the code before the engine starts.)
• Vehicle Speed: 0 mph (The fault logs while the vehicle is stationary during its startup routine.)
• Commanded 4WD State: 2WD (The TCCM continuously monitors the circuit, detecting the fault while in the default 2WD state.)

Related Codes

• C0398 — Means 'Range Position Correlation Fault'. The TCCM sets this because the C0364 fault prevents it from verifying the axle's position. Fixing C0364 automatically clears C0398.
• C0379 — Means 'Front Axle System Performance'. C0364 is an electrical fault, while C0379 is a mechanical fault. Seeing both means the actuator is receiving power but physically failing to move.
• C0306 — Indicates a fault in the transfer case shift motor circuit. Seeing C0306 and C0364 together points to a shared bad ground (like G110) or a completely failed TCCM.

Climate & Environmental Factors

• Moisture and Road Salt: Water and salt penetrate the actuator housing and wiring connectors, causing rapid corrosion. This is the leading cause of open circuits and failed actuators in rust-belt states.
• Cold Weather: Freezing temperatures stiffen internal actuator lubricants, increasing motor resistance. This triggers intermittent C0364 codes on startup that disappear once the vehicle warms up.

How to Talk to a Mechanic About This Code

Say this: "I have a 'Service 4WD' light and code C0364. Before quoting a new actuator, please test the circuit for 12V power and inspect the frame ground under the driver's door. I want to rule out wiring issues first."

This proves you are an informed customer. It forces the technician to perform proper electrical diagnostics rather than blindly replacing the most expensive part.

Avoid saying:

• 'My 4WD is broken, just fix it.'
• 'I think I need a new 4WD actuator.'

Questions to ask before authorizing the repair:

• Did you verify 12V power and ground at the actuator connector?
• If replacing the actuator, what was the resistance reading that confirmed the motor failed?
• Did you check the G110 frame ground for rust?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under warranty., 2014-2015 GM trucks requiring a TCCM software update (TSB #15-NA-035).
  Downsides: Labor rates are $180-$250/hour., Tendency to replace entire wiring harnesses instead of splicing a single broken wire. (Typical cost: +40% vs. baseline)
• Independent Shop: The best choice. C0364 is a standard electrical fault that any competent independent shop can diagnose and repair for significantly less than a dealer.
  Best for: Out-of-warranty vehicles., Cost-effective wiring repairs and actuator replacements.
  Downsides: May lack the specialized software to re-flash a TCCM if required. (Typical cost: +0% vs. baseline)
• Chain Shop: Avoid. Chain shops frequently misdiagnose circuit codes, costing you money on parts that don't fix the root cause.
  Best for: Oil changes and tires.
  Downsides: Technicians often lack advanced electrical diagnostic skills., High risk of the 'parts cannon' approach (replacing the actuator without testing the wiring). (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the repair cost exceeds 40% of the vehicle's private-party value, consider selling. However, C0364 is rarely expensive enough to justify scrapping a vehicle.

• Car worth $15000, fix is $350: Fix it. This is a minor repair that restores critical functionality and resale value.
• Car worth $4000, fix is $800: Borderline. If the truck needs a TCCM and wiring harness, get a second opinion. If the truck has severe rust or transmission issues, sell it as-is.

What Scan Tool You Need for This Code

Minimum: A scanner capable of reading Chassis (C) codes from the Transfer Case Control Module.

A $20 generic code reader only scans the engine computer (P-codes). It cannot see C0364 or communicate with the 4WD system.

Budget: Innova 5210 (~$90) — Reads and clears Chassis codes, allowing you to confirm the exact C0364 sub-code.

Mid-range: XTOOL D7 (~$350) — Provides bidirectional control. You can command the TCCM to engage the actuator directly from the scanner, instantly proving if the motor works.

Professional: Autel MaxiCOM MK808S (~$500) — Offers dealer-level diagnostics, live data graphing, and module relearn functions required after replacing a TCCM.

Rent vs buy: AutoZone loans basic ABS/Chassis scanners for free to read the code. Buy a midrange bidirectional tool if you plan to diagnose the electrical circuit yourself.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear codes from the Transfer Case Control Module (TCCM).
2. Start the engine and wait 15 seconds for the TCCM self-test to complete.
3. Shift from 2WD to 4WD High, then back to 2WD to verify the repair.

Drive cycle (~20 minutes): If the battery was disconnected, idle for 3 minutes with A/C on. Accelerate to 55 mph and hold for 3 minutes. Coast to 20 mph without braking. Accelerate to 60 mph and hold for 5 minutes. Coast to a stop.

Readiness monitors affected: Evaporative System, Catalyst, O2 Sensor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the electrical fault causes the 'Service 4WD' light to return instantly.
• Disconnecting the battery erases emissions readiness monitors, causing an automatic smog check failure until a drive cycle is completed.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: C0364 is a Chassis code and does not trigger a smog failure. However, disconnecting the battery during repair resets readiness monitors, requiring a 50+ mile drive cycle before testing.
• New York: The OBD-II emissions test ignores C-codes. However, an illuminated 'Service 4WD' light fails the separate NYS safety inspection at the inspector's discretion.
• Texas: C0364 does not cause an emissions failure. As of 2025, annual safety inspections are no longer required for non-commercial vehicles.

Most Commonly Affected Vehicles

• Chevrolet Silverado 1500/2500/3500 (2007-2018) — Extremely common due to exposed wiring and the rust-prone G110 frame ground. 2014-2015 models frequently require a TCCM software update (TSB #15-NA-035).
• GMC Sierra 1500/2500/3500 (2007-2018) — Mechanically identical to the Silverado, suffering the exact same ground and actuator failures.
• Chevrolet Tahoe / Suburban (2007-2020) — Uses the same front axle system. On 2015+ models, actuator replacement is labor-intensive due to tight clearances around the steering rack.
• Dodge Ram 1500 (2006-2018) — Utilizes an electronic Front Axle Disconnect (FAD) system highly prone to actuator motor burnout and circuit faults.

Manufacturer-Specific Notes

• General Motors: GM scanners display a two-digit suffix. C0364-04 means 'Open Circuit' (broken wire), while C0364-02 means 'Shorted to Ground' (pinched wire or flooded actuator).
• General Motors: Always check the G110 ground bolt on the frame rail beneath the driver's door before replacing parts. Rust here causes over half of all C0364 codes.
• Ford: Ford F-150 4WD issues usually stem from vacuum leaks in the IWE system, causing a grinding noise. Direct electrical codes like C0364 are rare on Fords.

Real Owner Stories

2008 Chevy Silverado 1500 - The $5 Ground Fix

The truck displayed a 'Service 4WD' light and refused to shift out of 2WD. Code C0364-04 was active.

What they tried:

1. Checked the 4WD fuse, which was intact.
2. Located the G110 ground bolt on the frame under the driver's door.
3. Found the bolt and frame heavily rusted.

Outcome: The owner unbolted the ground, scrubbed the frame to bare metal with a wire brush, applied dielectric grease, and reinstalled the bolt. The code cleared immediately, and 4WD functioned perfectly. Total cost: $5.

Lesson: Always clean the G110 frame ground on GM trucks before replacing any parts. It is the cheapest and most common fix for this code.

2015 GMC Sierra 2500HD - The Misdiagnosis Trap

Assuming the actuator was bad, the owner bought a $150 replacement to fix the C0364 code.

What they tried:

1. Installed the new actuator, but the code immediately returned.
2. Tested the wiring harness with a multimeter and found no power reaching the actuator.
3. Traced the harness back to the C111 connector under the fuse box.

Outcome: The true cause was severe green corrosion inside the C111 connector. The owner had to cut out the connector and solder the wires directly. They wasted $150 on an actuator they didn't need.

Lesson: Never replace parts without testing. A simple multimeter check for 12V power prevents wasting money on unnecessary hardware.

2014 Chevy Silverado - The Software Glitch

The truck intermittently set C0364 and C0398 codes during cold weather, disabling 4WD.

What they tried:

1. Verified wiring and grounds were in perfect condition.
2. Took the truck to the dealership for advanced diagnostics.

Outcome: The dealer found TSB #15-NA-035, detailing a software glitch in the TCCM for 2014-2015 models. A 30-minute software re-flash resolved the issue permanently without replacing any physical parts.

Lesson: Check for Technical Service Bulletins before replacing expensive modules. Software bugs perfectly mimic hardware failures.

How to Prevent This Code From Triggering

• Clean and Grease the Frame Ground Annually (Once a year, before winter) — Removing rust from the G110 ground bolt and sealing it with dielectric grease prevents the high electrical resistance that triggers C0364.
• Apply Dielectric Grease to Actuator Connectors (Anytime the connector is unplugged) — Packing the electrical connector with dielectric grease blocks saltwater and moisture, preventing the pin corrosion that causes open circuits.
• Engage 4WD Monthly (Once a month on dirt or gravel) — Activating the system moves the actuator motor and lubricates internal seals, preventing the mechanism from seizing due to lack of use.

Frequently Asked Questions

What is the most common mistake when diagnosing C0364?

The biggest mistake is replacing the front axle actuator without testing the circuit. The actual cause is frequently a broken wire, a corroded connector, or a rusty frame ground. Test for 12V power at the connector before buying parts.

I replaced the actuator, but the C0364 code came back. What now?

If a new actuator didn't fix it, the fault lies in the wiring, the ground, or the TCCM. Clean the frame ground under the driver's door immediately. If that fails, perform a continuity test on the harness to find the broken wire.

What does the '-04' in code C0364-04 mean?

The '-04' suffix on GM vehicles indicates an 'Open Circuit'. This means electrical current cannot complete its path. It points directly to a broken wire, an unplugged connector, or a completely burned-out actuator motor.

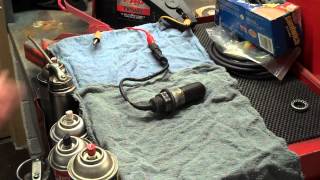

How do you test a front axle actuator?

Unplug the actuator and use a multimeter to verify it receives 12V power and ground when the key is ON. Next, measure the resistance across the actuator's motor pins; a reading of 'OL' confirms the internal motor is dead.

Will clearing the code fix the problem?

No. C0364 is a hard electrical fault. The TCCM runs a self-test every time you start the vehicle, and the code will return instantly until the broken circuit is repaired.

Is the front axle actuator the same as the transfer case motor?

No. The front axle actuator mounts to the front differential and locks the front wheels. The transfer case motor mounts to the transfer case under the center of the truck and shifts the system between 2WD, 4WD High, and 4WD Low.

My 4WD is stuck on. Is it safe to drive?

If stuck in 4WD High, you must avoid driving on dry pavement. Turning on high-traction surfaces causes severe drivetrain binding. Drive straight to a repair shop to prevent destroying your transfer case.

Key Takeaways

• Code C0364 disables your 4WD system due to an electrical failure in the front axle actuator circuit, locking the vehicle in 2WD.
• Cleaning the G110 frame ground under the driver's door fixes over 50% of C0364 codes on GM trucks for less than $5.
• Driving on dry pavement with a shorted actuator (code C0364-02) causes severe drivetrain binding that destroys a $2,000+ transfer case.
• Test the actuator connector for 12V power and ground using a multimeter before spending $150+ on a replacement unit.
