C0392 on 2015-2018 Cadillac Escalade: Service 4WD Message Causes and Fixes

What's Unique About the 2015-2018 Cadillac ESCALADE

The 2015-2018 Escalade, along with its GM K2XX platform siblings (Silverado, Sierra, Tahoe, Yukon), is particularly known for this issue. Multiple Technical Service Bulletins (TSBs) from GM confirm that the root cause is frequently poor pin tension in the main harness connector (X1) at the Transfer Case Control Module. Before condemning expensive parts like the control module or the transfer case motor, a thorough inspection of this specific connector is the mandatory first step.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD Message" displayed on the Driver Information Center (DIC).
• Inability to switch between 2WD, 4WD Auto, 4-High, or 4-Low.
• ABS and Traction Control lights may illuminate.
• 4WD selector switch lights may be off or inaccurate.

Most Likely Causes

1. Poor Terminal Tension at TCCM Connector X1 🔴 High Probability This is a well-documented issue confirmed by multiple GM Technical Service Bulletins (PIP5304, PIP5304A, PIP5304B). Vibrations can cause specific female terminals in the connector to loosen over time, creating a poor connection. TSB PIP5304B specifically states that for code C0392, while cavities 1, 2, and 9 are related, cavity 9 is the primary terminal in question.
   How to confirm: A technician will use a special, correctly sized test probe (like J-35616-2A) to check the tension of pins 1, 2, and especially 9 in the TCCM X1 connector. The TCCM is located on the driver's side of the dashboard, often near the parking brake pedal. Wiggling the harness near the module may cause the code to set or clear, confirming an intermittent connection.
   Typical fix: Repairing or re-tensioning the specific loose terminals in the connector. In some cases, a new connector pigtail may be installed if the terminal or housing is damaged.
   Est. part cost: $0-$50
2. Corroded or Damaged Wiring Harness 🟡 Medium Probability Another TSB (PIC6303A) mentions that missing wire seals on harness connectors can allow moisture to enter, leading to corrosion and intermittent signals. The harness is also exposed to road debris and weather under the vehicle, which can cause chafing or physical damage.
   How to confirm: Visually inspect the wiring harness leading to the TCCM and the transfer case encoder motor for any signs of physical damage, chafing, or green/white corrosion at the connectors. A YouTube repair video showed a corroded 5V reference wire as the direct cause.
   Typical fix: Repairing the damaged section of wire or replacing the corroded connector and its mating component if necessary.
   Est. part cost: $10-$150
3. Faulty Transfer Case Encoder Motor / Position Sensor ⚪ Low Probability → Shop Transfer Case Motor The position sensor is integrated into the transfer case encoder motor assembly. While less common than the wiring issues on this platform for this specific code, the sensor itself can fail internally.
   How to confirm: After confirming the wiring and connectors are good, a technician would use a scan tool to monitor the position sensor data while commanding shifts. If the signal is erratic or does not change, the sensor is likely faulty.
   Typical fix: Replacement of the transfer case encoder motor assembly. A relearn procedure is often required after installation.
   Est. part cost: $200-$450
4. Failed Transfer Case Control Module (TCCM) ⚪ Low Probability → Shop Transfer Case Motor
   How to confirm: This should only be considered after all wiring and sensor possibilities have been exhaustively ruled out. If the module has proper power and ground but fails to communicate or send correct signals, it may be faulty.
   Typical fix: Replacement and programming of the TCCM. The new module must be programmed to the vehicle's VIN.
   Est. part cost: $150-$300

Diagnosis Steps

1. Scan the Transfer Case Control Module (TCCM) for all active and history codes.
2. Note any other codes present, especially C0396 and C0398, as TSBs indicate they are related.
3. Gain access to the TCCM, located to the left of the steering column, behind the lower dashboard trim.
4. Carefully disconnect the X1 electrical connector and inspect for any obvious signs of corrosion, moisture, or damaged pins.
5. Following TSB PIP5304B, use the correct terminal test probe (e.g., J-35616-2A, a grey-handled probe) to check the pin tension on cavities 1, 2, and especially 9. The probe should have a snug fit and not fall out under its own weight. DO NOT use a standard multimeter probe, as it will damage the terminal.
6. If poor tension is found, repair the terminal(s) as needed. This may involve carefully re-forming the terminal or replacing it with a new one.
7. If terminal tension is good, inspect the wiring harness between the TCCM and the transfer case encoder motor for any damage, chafing against the frame, or corrosion, especially at any inline connectors.
8. If wiring is confirmed to be good, use a scan tool to monitor the transfer case position sensor voltage. It should be a variable PWM signal, not stuck high (>6V) or low (<0.25V).
9. If the sensor signal is faulty and wiring is good, the encoder motor/position sensor assembly is the likely cause.
10. If all wiring and the sensor check out, the TCCM itself may be the issue, but this is the least likely cause.

Parts You'll Likely Need

• Transfer Case Control Module Connector Repair Kit/Pigtail (OEM #ACDelco PT2712 (or GM 88988938)) — This is often needed if the original connector is damaged or terminals cannot be sufficiently re-tensioned. The primary cause of C0392 is often a wiring/connector issue.
  Trusted brands: ACDelco, Dorman
  OEM price range: $40-$80
  Aftermarket price range: $20-$50
• Transfer Case Encoder Motor / Actuator (OEM #GM 84109212 (supersedes previous numbers)) — If the wiring and TCCM are confirmed to be good, the internal position sensor within this motor assembly may have failed.
  Trusted brands: ACDelco (GM Genuine), Dorman (e.g., 600-907)
  OEM price range: $350-$500
  Aftermarket price range: $200-$450
• Transfer Case Control Module (TCCM) (OEM #GM 23249401 (verify by VIN, may vary)) — This is the least common failure point and should only be replaced after all other diagnostic steps have been completed. Requires programming.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $200-$300
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C0396 — This code is for the Transfer Case Range Actuator Position Sensor circuit and is often caused by the same poor terminal tension issue in the TCCM connector, just involving different pins (specifically pin 3).
• C0398 — This code for Transfer Case Range Position Correlation is often a secondary code, set as a result of the primary fault indicated by C0392 or C0396. Resolving C0392 typically clears C0398.
• C0306 — This code relates to the motor A/B circuit and can also be triggered by wiring issues or appear alongside other transfer case codes.

Technical Service Bulletins (TSBs) & Recalls

• PIP5304B: Service 4WD Message With DTC C0392 Or C0396 Stored In TCCM.
• PIP5304A: Service 4WD Message With DTC C0392 Or C0396 Stored In TCCM. [Bulletin #PIP5304A]
• PIP5304: Service 4wd Message With DTC C0392 Or C0396 Stored In TCCM.
• PIP5250F: Mentions that C0392 appearing with C0398 points away from TCCM replacement as the primary fix.

Platform-Specific Known Issues

• A series of Technical Service Bulletins (PIP5304, PIP5304A, PIP5304B) were released by GM specifically addressing C0392 and C0396 on these vehicles, pointing directly to poor terminal tension in the TCCM X1 connector as the primary cause. PIP5304B narrows the focus for C0392 to cavities 1, 2, and especially 9.
• Another bulletin (PIC6303A) notes that missing wire seals on various transfer case-related connectors can allow moisture intrusion, causing corrosion and a host of intermittent electrical codes, including C0392.
• TSB PIP5250F clarifies that when C0398 appears with C0392, the fault lies with the cause of C0392, and the TCCM should not be replaced for the C0398 code.

Mechanic-Grade Diagnostic Values

• Transfer Case Range Position Sensor Voltage (DTC Trigger) — expected: Constantly changing Pulse-Width Modulated (PWM) signal.. Failure: Voltage is stuck low (< 0.25V) or high (> 6V).
• 5-Volt Reference at TCCM — expected: 4.8 - 5.2 Volts.. Failure: Voltage is below 4.8V or above 5.2V, indicating a circuit issue or faulty module.
• TCCM X1 Connector Pinout (for C0392) — expected: Pin 1: 5V Reference, Pin 2: Low Reference (Ground), Pin 9: Sensor Signal.. Failure: Poor terminal tension, corrosion, or incorrect voltage/continuity readings on these specific pins.

Hidden / Shadow Codes Worth Checking

• C0392-08: Transfer Case Range Position Sensor Circuit Performance - Signal Invalid. This symptom byte indicates the TCCM sees a signal that is not changing when it should be, which is more specific than a simple circuit fault. (see via GM GDS2 or other professional-grade scan tools that can read manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GDS2: Transfer Case Range Learn — After replacing the transfer case encoder motor or TCCM, this procedure is required to teach the control module the new sensor's position values.
• GDS2: Module Diagnostics / DTC Information — To scan all vehicle modules for codes. This is useful to see if other modules have lost communication with the TCCM, pointing to a broader network or power/ground issue.
• GDS2: Data Display > Transfer Case Data — To watch live data from the position sensor while commanding shifts. This helps determine if the sensor signal is present and reacting correctly.

Wiring & Ground Locations

• TCCM (Transfer Case Control Module) — Under the driver's side dashboard, to the left of the steering column, often near the parking brake pedal assembly.. This is the location of the X1 connector where poor pin tension, the primary cause of C0392, occurs.
• X1 Connector — The main electrical harness connector plugging into the TCCM.. TSB PIP5304B identifies poor tension in cavity 9 (Sensor Signal), cavity 1 (5V Reference), and cavity 2 (Low Reference) of this specific connector as the root cause.
• Frame Grounds (e.g., G300) — There are multiple ground points on the frame. One key location is under the vehicle near the driver's door on a body mount (G300). Others are located behind the front wheels on the frame.. The TCCM and its sensor circuits rely on a solid ground connection. A corroded or loose frame ground can cause intermittent and difficult-to-diagnose electrical issues, including this code.

Real Owner Repair Stories

• YouTube channel 'Phillip Bailey' (2017 GM Truck (platform-mate)) — 'Service 4WD' message, ABS and Traction Control lights on, code C0392.
  ❌ Tried (didn't work) Initial inspection of TCCM pin tension as per the TSB did not immediately reveal the issue.
  ✅ What actually fixed it A corroded and broken 5-volt reference wire was found inside the insulation, right at the connector for the transfer case position sensor. The wire had failed internally due to vibration. The fix was to cut out the bad section of wire and splice in a new piece.

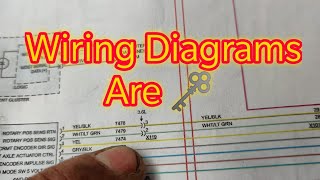

• YouTube channel 'Super Auto Dent' (2018 Chevrolet Colorado (platform-mate)) — Service 4x4 message, code C0392-08.
  ❌ Tried (didn't work) Extensive diagnostic time looking for the fault in the main harness.
  ✅ What actually fixed it The issue was a heavily corroded inline harness connector (X119) located near the battery on the driver's side. Cleaning the green, corroded terminals in the connector restored function. The final recommendation was to replace the connector pigtail due to the extent of the corrosion.
