C0397 on 2015 Cadillac Escalade ESV: "Service 4WD" Message Causes and Fixes

What's Unique About the 2015-2015 Cadillac ESCALADE ESV

For the 2015 model year Escalade and its GM K2XX platform siblings, this code is very frequently a software issue rather than a mechanical failure. A specific Technical Service Bulletin (TSB #PIP5220B) was issued because the TCCM's programming was overly sensitive, causing it to set false fault codes and disable the 4WD system. When the code sets, the system's default action is to apply the clutch pack and then disable all further shifting. This can cause the drivetrain to bind on turns, even if the driver selects 2WD, because the system is stuck in a partially engaged 4WD state.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4 Wheel Drive" or "Service 4WD" message on the driver information center (DIC).
• Four-wheel drive system is inoperative.
• Drivetrain binding, shuddering, or tire scrubbing noise during turns, even when the selector switch is in 2WD.
• Inability to shift the transfer case between 2WD, 4WD Auto, and 4WD High/Low.
• 4WD mode indicator lights on the selector switch may flash and then turn off.

Most Likely Causes

1. Transfer Case Control Module (TCCM) Software Glitch 🔴 High Probability → Shop Transfer Case Motor A known issue documented in GM Technical Service Bulletin #PIP5220B affects 2015 Escalades built before September 7, 2014. The original software calibration was prone to setting false codes due to being overly sensitive.
   How to confirm: A GM dealer or a shop with a subscription to GM's TIS2Web can check the current software calibration number in the TCCM and compare it to the latest version. If the vehicle was built before the cutoff date and has not been updated, this is the most likely cause.
   Typical fix: Reprogram the Transfer Case Control Module with the updated software. The TSB explicitly states to also perform a 'high low clutch reset' procedure after the update and then shift through all ranges to confirm the fix.
   Est. part cost: $0
2. Worn Transfer Case Clutch Pack ⚪ Low Probability → Shop Transfer Case Motor While far less common than the software issue for the 2015 model year, the multi-plate clutch pack can wear out. This would typically be seen on very high mileage vehicles or those used for heavy towing. A specific symptom byte, C0397 F3, indicates 'Worn Out Clutch'.
   How to confirm: A diagnostic scan tool can monitor front and rear driveshaft speeds under acceleration in 4WD. If the rear shaft speed is significantly higher than the front while the clutch is commanded on, it points to internal slipping. A mechanic may also find metal debris when draining the transfer case fluid.
   Typical fix: The transfer case must be removed, disassembled, and the clutch pack replaced. Often, replacing the entire transfer case with a remanufactured unit is more cost-effective.
   Est. part cost: $300-$600 for a clutch rebuild kit, $1500-$2500 for a remanufactured transfer case.
3. Faulty Transfer Case Encoder Motor / Actuator ⚪ Low Probability → Shop Transfer Case Motor The encoder motor shifts the transfer case and contains a position sensor. Failure of the motor or its internal sensor can prevent the TCCM from confirming clutch engagement or range selection, leading to a performance code. This is a more common failure on older GM trucks but is less likely than the software bug on a 2015 model.
   How to confirm: A technician can command the actuator to move using a bi-directional scan tool while monitoring the position sensor data. If the actuator doesn't move, makes grinding noises, or the sensor reading is erratic, the part is likely faulty. A stuck transfer case motor lock can specifically cause symptom byte C0397 58.

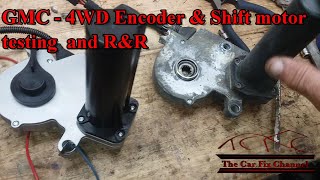

   Typical fix: Replace the transfer case encoder motor assembly. 🎬 See this walkthrough for testing and replacing the encoder motor. After replacement, a 'Range Actuator Learn' or 'Transfer Case High/Low Clutch Reset' procedure must be performed with a scan tool.
   Est. part cost: $200-$450

Rare But Worth Checking

• Faulty Wheel Speed Sensor: The TCCM relies on accurate wheel speed data from the ABS module to detect slip. An erratic signal from a single wheel speed sensor can trick the module into thinking there's a transfer case problem when there isn't one. This can specifically cause C0397 with symptom bytes 58 or F3.
• Wiring or Connector Issues: Damage or corrosion in the wiring harness leading to the transfer case encoder motor or the TCCM itself can cause intermittent communication and performance codes. TSBs for related codes mention checking for poor pin grip issues at the TCCM connector. Other owners have reported corrosion in connectors under the fuse box 🎬 Watch: Troubleshooting common causes for the Service 4WD message. causing similar 4WD faults.
• Incorrect Transfer Case Fluid: → Shop Transfer Case Motor Using a non-approved transfer case fluid can cause clutch chatter or improper engagement, potentially leading to performance codes. GM vehicles require a specific fluid (e.g., Auto-Trak II).
• Poor TCCM or BCM Ground Connection: A poor ground connection can cause a host of intermittent electrical issues. While not directly cited for C0397, owners of the same platform have fixed 'Service 4WD' messages by cleaning bad grounds located under the dashboard near the A-pillar, such as G218.

Diagnosis Steps

1. Scan the Transfer Case Control Module (TCCM) for C0397 and any other stored codes. Note if codes like C038D or C0398 are also present, and record the specific symptom byte (e.g., 54, 58, 4B, F3).
2. Check for applicable Technical Service Bulletins (TSBs). For a 2015 Escalade, TSB #PIP5220B is highly relevant.
3. Verify the vehicle's build date. If it is before September 7, 2014, and the TCCM has not been updated, reprogramming is the most probable fix. TSB #PIP5220A explicitly states reprogramming will NOT correct the issue on vehicles built on or after this date.
4. If software is up-to-date, use a scan tool to monitor live data from all four wheel speed sensors while driving at a steady speed. Verify all sensors read identically. An erratic reading can falsely trigger C0397.
5. Command the transfer case to shift through all ranges (2WD, 4WD Auto, 4WD High, 4WD Low) using a scan tool to test the function of the encoder motor.
6. Perform the 'Transfer Case High/Low Clutch Reset' or 'Range Actuator Learn' procedure with a scan tool as part of the diagnostic process.
7. Inspect the wiring and connectors at the TCCM (may be located on the driver's side frame rail or under the dash) and the transfer case encoder motor for any signs of damage, corrosion, or looseness.
8. If all electronics and software are confirmed to be good, the final step is to diagnose for an internal mechanical failure of the transfer case clutch pack, potentially by checking for excessive slip between front and rear driveshafts under load.

Parts You'll Likely Need

• Transfer Case Control Module Reprogramming — This is not a physical part, but a software update service. It is the most common and manufacturer-recommended fix for this code on this specific vehicle, as per TSB #PIP5220B. The service must be done at a dealership or a well-equipped independent shop.
  OEM price range: $125-$250
  Aftermarket price range: N/A
• Transfer Case Shift Actuator / Encoder Motor (OEM #19258696) — If the software update does not resolve the issue, or if diagnostic tests show the actuator is failing to move or report its position correctly, this is the next most likely component to fail. Note that part numbers can be superseded; always verify with a VIN.
  Trusted brands: ACDelco, Dorman
  OEM price range: $350-$450
  Aftermarket price range: $200-$300
• Transfer Case Control Module (TCCM) (OEM #23235587) — In the rare event that the module itself fails and cannot be reprogrammed, it will need to be replaced. A new module will also require programming to the vehicle's VIN.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $150-$250
  Aftermarket price range: $100-$200

Related Codes That Often Appear With This One

• C038D — This code is also related to transfer case clutch performance and is specifically mentioned alongside C0397 in TSB #PIP5220B as being resolved by the TCCM software update.
• C0398 — This code relates to the transfer case position sensor. It is often triggered by the same software issues or procedural errors (like dinghy towing) that can cause C0397, and is also listed in TSB #PIP5220B.

Technical Service Bulletins (TSBs) & Recalls

• PIP5220B: Addresses a "repeat service 4 wheel drive message" with DTCs C0397, C038D, or C0398 on vehicles built before 9/7/2014. Recommends reprogramming the Transfer Case Control Module with the latest software and performing a clutch reset.
• 14-04-21-001B: A related service update bulletin that also calls for reprogramming the TCCM to address a "Service 4WD" message that appears after starting the vehicle in Auto 4WD mode.

Platform-Specific Known Issues

• A significant number of 2015 Escalades built before 09/07/2014 had TCCM software that could incorrectly set code C0397, often with C038D, causing a "Service 4WD" message and drivetrain binding. The fix is a software update outlined in TSB #PIP5220B.
• When this fault occurs, the TCCM's default response is to engage the transfer case clutch and then disable shifting, locking the vehicle in a 4WD state even if the dash switch is set to 2WD.

Mechanic-Grade Diagnostic Values

• Transfer Case Encoder Position Sensor 5V Reference — expected: Approx. 5.0V. Failure: Voltage that is low (e.g., 3.7V) or missing points to a wiring issue or a fault within the TCCM.
• Transfer Case Motor Amperage during shift — expected: Amperage increases during the shift, then returns to 0 amps within 5 seconds.. Failure: If amperage stays high for longer than 5 seconds, it indicates the motor's internal brake is not holding.

Hidden / Shadow Codes Worth Checking

• C0397 4B: Transfer Case Clutch Calibration Not Learned. This sets when the 'power down kiss point learn' has failed 20 consecutive times. This can cause code C038D to set as well. (see via GM GDS2 or equivalent professional scan tool.)
• C0397 54: Transfer Case Clutch High Temperature. The TCCM calculates a clutch temperature and sets this code if it exceeds the maximum allowable temperature twice. (see via GM GDS2 or equivalent professional scan tool.)
• C0397 58: Transfer Case Clutch Performance. The TCCM has detected that the clutch failed to reach the desired output torque after three attempts. This can be caused by a stuck transfer case motor lock. (see via GM GDS2 or equivalent professional scan tool.)
• C0397 F3: Transfer Case Clutch Worn Out. The TCCM has determined that the maximum clutch wear limit has been exceeded. This can be triggered by a faulty wheel speed sensor. (see via GM GDS2 or equivalent professional scan tool.)
• C0397 F4: Transfer Case Range Position Sensor Over Travel. This code can only be cleared by the successful execution of the 'Transfer Case High/Low Clutch Reset' procedure. (see via GM GDS2 or equivalent professional scan tool.)

Scan Tool Commands That Help

• GDS2 (or equivalent): Range Actuator Learn — This procedure is required after replacing the transfer case encoder motor/actuator or sometimes after transfer case service. It teaches the TCCM the new motor's position. Failure to perform this can leave the C0397 code active.
• GDS2 (or equivalent): Transfer Case High/Low Clutch Reset — This procedure is specified in TSB #PIP5220B to be performed after the TCCM is reprogrammed. It is also used to clear certain fault conditions like symptom byte F4.
• GDS2 (or equivalent): Transfer Case Control Module Setup — This is the function used after programming the TCCM to ensure proper operation, as noted in GM service updates.

Wiring & Ground Locations

• TCCM Location — Can be located on the driver's side frame rail near the transmission, or under the driver's side dashboard.. Knowing the physical location is essential for inspecting the module and its connectors for corrosion, damage, or poor pin tension, which are common causes of communication and performance codes.
• G218 — Under the driver's side dash, near the base of the A-pillar, often behind the speaker grille.. This is a primary ground for the Body Control Module (BCM). A poor connection here is a known issue on this platform (TSB #PIT5405C) that can cause widespread network communication faults, potentially leading to codes like C0397 as a secondary effect.

Real Owner Repair Stories

• Abdullah auto electrician YouTube Channel (2015 GMC Yukon (same K2XX platform)) — "Service 4WD" light was on, and the C0397 code would not clear after transfer case work and actuator replacement.
  ❌ Tried (didn't work) Replacing the transfer case actuator., Attempting to clear the C0397 code without performing a relearn.
  ✅ What actually fixed it The 'Range Actuator Learn' special function was performed using a scan tool. The procedure initially failed until the transmission was shifted into Neutral, as required by the on-screen instructions. After successfully completing the learn procedure, the C0397 code cleared and the 4WD light went out.

"I Checked Everything" — The Actual Cause

• The most common instance for this code is when a technician replaces the transfer case or encoder motor based on the C0397 'performance' description, but the actual root cause was a software issue in the TCCM that required a dealer reprogram per TSB #PIP5220B.
• Diagnostics on the transfer case may show no mechanical faults, but the code is being triggered by an erroneous reading from a single faulty wheel speed sensor, which is an input to the TCCM.

OEM Part Supersession History

• 24269374, 23285501, 23287058, and others → 23235587 (TCCM) — Part consolidation and potential internal revisions.
  Heads up: A new or used replacement TCCM must be programmed to the vehicle's VIN using GM's SPS software to function correctly.
• 19258696 (Encoder Motor) → 84109212, 23369032 — Part consolidation and potential design updates.
  Heads up: Aftermarket replacements are common. Regardless of OEM or aftermarket, a 'Range Actuator Learn' procedure is required after installation.

Model Year Variations Within This Range

• 2015 models built before 09/07/2014: These vehicles are susceptible to the software glitch described in TSB #PIP5220B. The primary fix is reprogramming the TCCM.
• 2015 models built on or after 09/07/2014: TSB #PIP5220A explicitly states that reprogramming the TCCM will NOT correct the issue for these vehicles. Standard diagnostic procedures for a mechanical or electrical fault must be followed.
