C0397 on 2014-2015 Chevrolet Tahoe: Service 4WD Message Causes and Fixes

What's Unique About the 2014-2015 Chevrolet TAHOE

The 2014-2015 Tahoe model years span two different generations: the 2014 is the last of the GMT900 platform, while the 2015 introduced the K2XX platform. A GM Technical Service Bulletin (TSB PIP5220B) specifically addresses code C0397 on both generations, noting that for vehicles built before early September 2014, the code is often set in error by faulty software. This makes a software reprogram the most likely fix, a unique situation compared to other vehicles where this code might point directly to a mechanical failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This issue affects both the final year of the GMT900 generation (2014 Tahoe) and the first year of the K2XX generation (2015 Tahoe). The primary fix, a TCCM software update, is applicable to both, particularly for vehicles built before September 7, 2014, as specified in TSB PIP5220B.

Symptoms You May Notice

• "Service 4 Wheel Drive" message on the instrument cluster.
• 4WD system is inoperative or stuck in one mode.
• Binding, hopping, or skipping sensation from the drivetrain during turns, even on dry pavement with the switch in 2WD.
• The 4WD indicator light may be flashing or off.
• Inability to switch between 2WD, 4HI, and 4LO.

Most Likely Causes

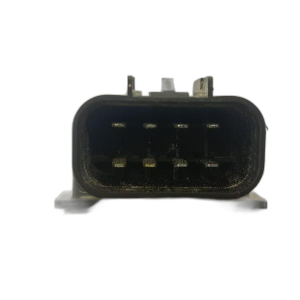

1. Transfer Case Control Module (TCCM) Software Glitch 🔴 High Probability → Shop Transfer Case Motor A specific GM Technical Service Bulletin (PIP5220B) identifies that previous software versions could set this code in error on vehicles built before September 7, 2014. The bulletin explicitly states the software was released to repair a known condition with previous versions that set these codes incorrectly.
   How to confirm: A GM dealer or a shop with advanced scan tools can check the current software calibration version in the TCCM and compare it to the latest version available. The presence of C0397 along with C038D is a strong indicator.
   Typical fix: Reprogram the TCCM with the latest software available through GM's tis2web service. The TSB also recommends performing a high/low clutch reset procedure 🎬 Watch: How to perform the transfer case clutch reset procedure. after the update and shifting through all ranges to confirm the fix.
   Est. part cost: $0
2. Faulty Transfer Case Control Module (TCCM) ⚪ Low Probability → Shop Transfer Case Motor Control module failure can occur on any modern vehicle. This is typically only considered after a software update fails to resolve the issue on an applicable vehicle, or if the vehicle was built after the TSB cutoff date.
   How to confirm: If reprogramming the TCCM doesn't fix the problem and all wiring is confirmed to be good, the module itself is the likely culprit. This is a process of elimination.
   Typical fix: Replace the Transfer Case Control Module and program the new module to the vehicle.
   Est. part cost: $150-$350
3. Damaged Wiring or Connectors ⚪ Low Probability On the K2XX platform (2015+), there are some owner reports of wiring harnesses being pinched or rubbing against the frame or body, particularly in the rear of the vehicle near the spare tire, leading to various electrical faults. 🎬 Watch: Common 4WD part locations and wiring on GM trucks. TSB PIP5220B also advises checking specific circuits if code C0398 is present.
   How to confirm: Visually inspect the wiring harness leading to the Transfer Case Control Module and the transfer case itself for any signs of chafing, corrosion, or damage.
   Typical fix: Repair the damaged section of the wiring harness and secure it to prevent future damage.
   Est. part cost: $10-$50

Rare But Worth Checking

• Worn Transfer Case Clutch Pack: → Shop Transfer Case Motor This is a mechanical failure inside the transfer case. It can be triggered by a specific symptom byte (C0397 F3) and indicates the clutch is physically worn out. This is less common than the software issue but requires significant mechanical repair, potentially a transfer case rebuild or replacement.
• Faulty Wheel Speed Sensor: A faulty wheel speed sensor can provide incorrect data to the TCCM, causing it to believe there is slip when there isn't, potentially leading to a C0397 code (specifically C0397 58 or F3). This would typically be accompanied by ABS or Stability Control warnings as well.

Diagnosis Steps

1. Connect a professional-grade scan tool capable of reading chassis codes and TCCM data.
2. Check for code C0397 and any accompanying symptom bytes (e.g., 54, 58, 4B, F3) or other codes like C038D or C0398.
3. Verify if TSB PIP5220B applies to the vehicle based on its build date (prior to Sept 7, 2014) or service history.
4. If the TSB applies, the primary diagnostic step is to reprogram the Transfer Case Control Module (TCCM) with the latest GM software.
5. After reprogramming, perform the 'high low clutch reset' procedure with the scan tool and shift the transfer case through all ranges (2WD, Auto, 4HI, 4LO) to ensure the codes do not return.
6. If codes return, the TSB does not apply, or a mechanical fault code like C0397 F3 is present, proceed with further diagnosis.
7. Perform a thorough visual inspection of the wiring and connectors at the TCCM and the transfer case for damage or corrosion.
8. If wiring is intact, use the scan tool to monitor live data from the transfer case position sensor and wheel speed sensors to check for erratic readings.
9. If all other steps fail to identify the issue, suspect a faulty Transfer Case Control Module or internal transfer case mechanical failure (if indicated by symptom bytes).

Parts You'll Likely Need

• Transfer Case Control Module (TCCM) Reprogram — This is not a physical part, but a software update. It is the most common and manufacturer-recommended fix for this code on these specific vehicles, as per TSB PIP5220B.
  Trusted brands: GM (Dealer Service)
  OEM price range: $100-$250
  Aftermarket price range: N/A
• Transfer Case Control Module (OEM #84191225 (for 2015 K2XX models, check VIN for exact fit)) — This part is replaced only if the software update does not resolve the issue and the wiring is confirmed to be good, indicating an internal failure of the module.
  Trusted brands: ACDelco (Genuine GM), Dorman
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• C038D — This code is related to the transfer case clutch performance and is specifically mentioned in TSB PIP5220B as appearing alongside C0397 due to the same software issue.
• C0398 — This code relates to the transfer case motor or position sensor and is also cited in TSB PIP5220B as part of the same family 🎬 See a technician diagnose code C0398 on a GM truck. of erroneous codes fixed by the software update.

Technical Service Bulletins (TSBs) & Recalls

• PIP5220B: Addresses a repeat 'Service 4 Wheel Drive' message with DTCs C0397, C038D, or C0398, recommending a TCCM reprogram for vehicles built before 9/7/2014. It also explains the binding symptom is caused by the TCCM defaulting to an engaged clutch state.

Platform-Specific Known Issues

• TSB PIP5220B: This General Motors bulletin is the most critical piece of information for this code. It states that for vehicles built before September 7, 2014, codes C0397, C038D, and C0398 are often set erroneously. The fix is a TCCM software update.
• Owner Experience: An owner of a 2015 Tahoe reported getting the 'Service 4WD' message twice. Symptoms included the vehicle being stuck in 4WD and binding on dry pavement. In both instances, a dealer technician performed a TCCM reprogram in about ten minutes to resolve the issue.

Mechanic-Grade Diagnostic Values

• System Voltage for TCCM Diagnostics — expected: 10.5–18.5 V. Failure: DTCs P0562 (low voltage) or P0563 (high voltage) may be set, preventing C0397 diagnosis.
• Wheel Speed Sensor Live Data — expected: All wheel speed sensors should display similar RPM values when driving at a steady speed on a level surface.. Failure: If RPM values vary or become intermittent, it can cause C0397 58 or C0397 F3 to set. This points to a faulty wheel speed sensor or an issue in the Electronic Brake Control Module (K17) circuit.

Hidden / Shadow Codes Worth Checking

• C0397 54: Transfer Case Clutch High Temperature. Sets when the TCCM's calculated clutch temperature model exceeds the maximum allowed temperature for a second time. (see via Professional scan tool like GM GDS2 that can read chassis codes with symptom bytes.)
• C0397 58: Transfer Case Clutch Performance. Sets when the TCCM detects that the transfer case clutch has failed to reach the desired output torque after three attempts. Can be caused by a stuck transfer case motor lock. (see via Professional scan tool like GM GDS2 that can read chassis codes with symptom bytes.)
• C0397 4B: Transfer Case Clutch Calibration Not Learned. Sets when the TCCM determines that the power-down 'kiss point' learn procedure has failed 20 times in a row. (see via Professional scan tool like GM GDS2 that can read chassis codes with symptom bytes.)
• C0397 F3: Transfer Case Clutch Worn Out. Sets when the TCCM determines that the maximum clutch wear limit has been exceeded. This DTC can only be cleared by a successful 'kiss point' learn procedure after repair. (see via Professional scan tool like GM GDS2 that can read chassis codes with symptom bytes.)

Scan Tool Commands That Help

• GM GDS2 / Professional Scan Tool: Transfer Case High/Low Clutch Reset — This procedure is required after reprogramming the TCCM per TSB PIP5220B to ensure proper clutch operation and clear certain fault codes.
• GM GDS2 / Professional Scan Tool: Range Actuator Learn — This function is used to teach the TCCM the position of a new or existing transfer case shift motor (actuator). It is necessary after replacing the actuator or sometimes after a TCCM replacement or reprogram if C0397 4B is present. The vehicle must be in Neutral with the parking brake set for the procedure to succeed.
• GM GDS2 / Professional Scan Tool: Clear DTCs — Used to clear fault codes after a repair. Note that some C0397 symptom bytes, like F3 and F4, cannot be cleared with this command and require a successful learn procedure instead.

Wiring & Ground Locations

• K69 Transfer Case Control Module (TCCM) — On the 2015 K2XX platform, the TCCM is located on the lower left part of the dash, behind the instrument panel trim below the steering wheel.. This is the central computer for the 4WD system. All related sensor inputs and actuator outputs are processed here. Poor connections or internal faults in this module are a primary cause of C0397.
• TCCM X1 Connector — The main connector at the Transfer Case Control Module (TCCM).. A related TSB for codes C0392/C0396 on the same platform mentions that poor terminal tension in this connector can cause intermittent faults. While not specific to C0397, checking for loose pins in the TCCM connector is a valid diagnostic step if wiring is suspected.
• G303 / G304 — G303 is on the left side B-pillar behind the trim panel. G304 is on the right side B-pillar behind the trim panel.. These are body ground points. While not directly linked to the TCCM in documentation, poor grounds are a common source of intermittent electrical issues in modern vehicles and should be considered during diagnosis.

Real Owner Repair Stories

• YouTube channel 'Abdullah auto electrician' (2015 GMC Yukon (sister vehicle to Tahoe)) — Service 4WD light was on, 4WD system not working properly, and code C0397 would not clear with a scan tool.
  ❌ Tried (didn't work) Clearing the DTC directly with the scan tool.
  ✅ What actually fixed it Using a professional scan tool's special function for 'Range Actuator Learn'. The technician noted the vehicle must be in Neutral with the parking brake on for the procedure to work. After the learn procedure completed successfully, the C0397 code cleared automatically and the 4WD light went out.

Model Year Variations Within This Range

• 2014 (GMT900) vs 2015 (K2XX): The physical location of the Transfer Case Control Module (TCCM) and the specific wiring harness routing differ between the 2014 GMT900 and 2015 K2XX platforms. While TSB PIP5220B applies to both, the physical diagnosis of wiring or module replacement would follow different procedures.
