C0397 on 2014 GMC Sierra 2500: 'Service 4WD' Causes and Fixes

What's Unique About the 2014-2014 Gmc SIERRA 2500

The 2014 GM truck platform (K2XX), including the Sierra 2500, is known for having software issues within the Transfer Case Control Module (TCCM). GM issued a Technical Service Bulletin (TSB #PIP5220B) specifically for this problem, where the primary solution is a software reprogram, not a hardware replacement. This is a common owner experience, and attempting to replace parts before performing the update often leads to unnecessary expense. This TCCM is shared across many GM trucks and SUVs of the era, making this a widespread issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4 Wheel Drive" message on the driver information center
• 4WD system is inoperative or stuck in one mode
• A binding or hopping sensation from the drivetrain during turns, even with the switch in 2WD
• 4WD indicator light may be illuminated or flashing
• Inability to shift between 2WD, 4HI, and 4LO modes

Most Likely Causes

1. Outdated Transfer Case Control Module (TCCM) Software 🔴 High Probability → Shop Transfer Case Motor A known software glitch was identified by GM for this model year, prompting Technical Service Bulletin PIP5220B, which states the new software was released specifically to repair a condition that set these codes in error.
   How to confirm: A GM dealer or a shop with a J2534 pass-thru device and a subscription to GM's service information (TIS2Web) can check the current software calibration ID against the latest version. The presence of C0397 and C038D together is a strong indicator.
   Typical fix: Reprogram the Transfer Case Control Module (TCCM) with the latest software version, then perform a 'high low clutch reset' procedure with a scan tool.
   Est. part cost: $0

Rare But Worth Checking

• Worn Transfer Case Clutch Pack: → Shop Transfer Case Motor If the TCCM reprogram does not resolve the issue, or if the code has a specific suffix like C0397-F3 (Worn Out Clutch), it may indicate the clutch pack inside the transfer case is worn out and requires internal inspection and repair.
• Failed Transfer Case Control Module (TCCM): → Shop Transfer Case Motor In some cases, the module itself can fail. This should only be considered after the software has been updated and the code still returns immediately. A scan tool may show the module as unresponsive.
• Wiring or Connector Issue: Damaged wiring or a poor connection at the TCCM or the transfer case encoder motor/position sensor can cause a variety of codes, including C0397.
• Transfer Case Position Sensor/Actuator Failure: → Shop Transfer Case Motor A fault in the range position sensor or actuator can also trigger this code, sometimes with a specific suffix like C0397-F4 (Range Position Sensor Over Travel). After replacement, a 'Range Actuator Learn' procedure is required.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading chassis codes to confirm the presence of C0397. Note any suffix codes (e.g., -F3, -58) and any other DTCs.
2. Specifically note if C038D is also present, as this strongly points to the software issue described in the TSB.
3. Crucial First Step: Do not clear codes or replace parts. Take the vehicle to a GM dealership or qualified independent shop to have the TCCM software updated per TSB #PIP5220B.
4. After the reprogram, the technician must perform a 'high low clutch reset' and/or a 'Range Actuator Learn' procedure using a scan tool, then shift the transfer case through all ranges to confirm the fix.
5. If the code returns after the update, then proceed with further diagnosis based on the specific suffix code.
6. For C0397-F3 (Worn Clutch), diagnosis will focus on the internal mechanics of the transfer case.
7. For C0397-58 (Clutch Performance), check for faulty wheel speed sensor inputs or a stuck transfer case motor lock.
8. Inspect the wiring harness and connectors to the TCCM and transfer case for any visible damage, corrosion, or loose connections.
9. Use a scan tool to monitor transfer case data (e.g., clutch command, position sensor readings) to check for anomalies that would indicate a mechanical or sensor failure.

Parts You'll Likely Need

• Transfer Case Control Module (TCCM) Reprogram — This is not a physical part, but a software update that is the most common and manufacturer-recommended first step to fix the issue as per TSB PIP5220B.
  OEM price range: $150-$250
  Aftermarket price range: N/A

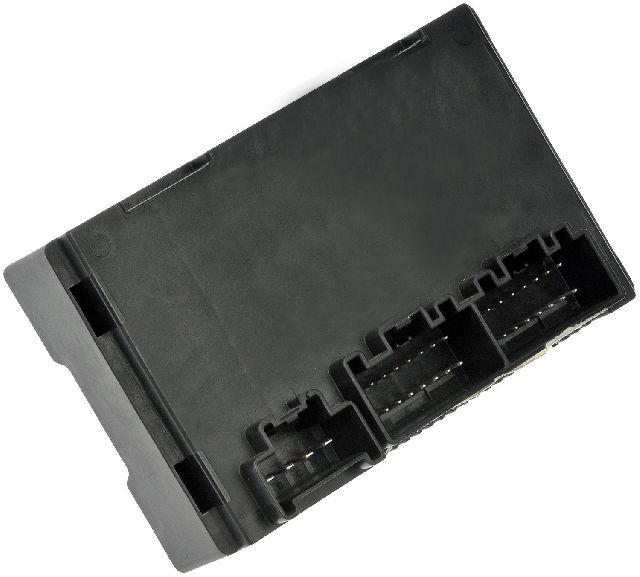

• Transfer Case Control Module (OEM #ACDelco 86522174 (Verify with VIN)) — Only needed if the module itself is proven to be faulty after the software update has been performed and wiring has been checked. A replacement module will also require programming.
  Trusted brands: ACDelco (GM Genuine), Dorman
  OEM price range: $200-$350
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C038D — This code often sets along with C0397 as part of the same software-related fault condition described in TSB PIP5220B.
• C0398 — Also mentioned in TSB PIP5220B as a related code that can be caused by the same TCCM software issue.
🎬 Watch: Diagnosing the C0398 code and Service 4WD message.
• U0102 — This is a generic code for 'Lost Communication With Transfer Case Control Module'. It may appear in other modules (like the ECM or BCM) when the TCCM sets a fault and stops communicating properly.

Technical Service Bulletins (TSBs) & Recalls

• PIP5220B: Addresses a repeat 'service 4 wheel drive' message with DTCs C0397, C0398, or C038D. It explicitly states that new software was released to fix a condition where these codes were set in error and recommends a TCCM reprogram as the primary fix, followed by a clutch reset procedure.

Platform-Specific Known Issues

• A software glitch in the TCCM is the most common cause for this code, as documented in GM TSB #PIP5220B.
• A related recall (GM #14192, NHTSA #14V374000) was issued for 2014-2015 GM trucks/SUVs for a separate TCCM software issue that could cause the transfer case to shift to neutral unexpectedly while driving or parked. This further highlights a pattern of software problems with this component on this platform.

Mechanic-Grade Diagnostic Values

• Transfer Case Motor Amperage Draw (via Scan Tool) — expected: Increases during a shift, then returns to 0 amps within 5 seconds.. Failure: Amperage stays high for longer than 5 seconds, indicating the motor brake is not holding.
• Transfer Case Mode Switch Reference Voltage — expected: ~8 volts sent from TCCM to the switch.. Failure: Voltage significantly different from 8V could indicate a wiring or TCCM issue.
• Transfer Case Shift Motor Resistance — expected: 0.5 to 35 ohms (on older models, but indicative).. Failure: Resistance outside this range suggests a faulty motor.

Hidden / Shadow Codes Worth Checking

• C0397 54: Transfer Case Clutch High Temperature. The TCCM has calculated that the clutch temperature has exceeded the maximum allowable limit. (see via GM GDS2 or equivalent professional scan tool that can read manufacturer-specific symptom bytes.)
• C0397 58: Transfer Case Clutch Performance. The TCCM has detected that the clutch failed to reach the desired torque after three attempts. (see via GM GDS2 or equivalent professional scan tool that can read manufacturer-specific symptom bytes.)
• C0397 4B: Transfer Case Clutch Calibration Not Learned. The TCCM has failed its 'kiss point' learn procedure 20 consecutive times during power-down. (see via GM GDS2 or equivalent professional scan tool that can read manufacturer-specific symptom bytes.)
• C0397 F3: Transfer Case Clutch Worn Out Clutch. The TCCM has determined the maximum clutch wear limit has been exceeded, indicating a mechanical failure. (see via GM GDS2 or equivalent professional scan tool that can read manufacturer-specific symptom bytes.)
• C0397 F4: Transfer Case Range Position Sensor Over Travel. The position sensor is reporting a value outside of its expected range. (see via GM GDS2 or equivalent professional scan tool that can read manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GM GDS2 / Techline Connect: Range Actuator Learn — This is mandatory after reprogramming the TCCM or replacing the transfer case, actuator motor, or position sensor. It calibrates the actuator's position to the module. The transmission must be in Neutral for the procedure to run successfully.
• GM GDS2 / Techline Connect: Transfer Case High/Low Clutch Reset — This procedure is required by TSB PIP5220B after reprogramming the TCCM to clear learned values and ensure proper clutch operation.
• GM GDS2 / Techline Connect: Module Reprogramming (SPS) — This is the primary fix for a C0397 on vehicles built before 9/7/2014, per TSB PIP5220B. It updates the TCCM with revised software to correct the false DTC.

Wiring & Ground Locations

• K69 Transfer Case Control Module (TCCM) — Lower left side of the dash, typically behind the instrument panel.. This is the module that sets the code. Checking its connectors for corrosion or damage is a key diagnostic step if reprogramming fails.
• G201 — Upper left corner of the dash, near the A-pillar.. This is a primary instrument panel ground. A poor connection here could cause erratic behavior or communication issues with the TCCM, which is located nearby.
• G102 — On the lower left front of the engine block.. This is a major engine and chassis ground. While less likely to be the direct cause than an interior ground, a poor connection can introduce electrical noise that affects various modules.

Real Owner Repair Stories

• YouTube channel 'Abdullah auto electrician' (GM Truck (model not specified, but procedure is identical)) — Truck was stuck in 4-Low, selector switch was inoperable, and code C0397 could not be cleared after a new transfer case was installed.
  ❌ Tried (didn't work) Replacing the transfer case., Attempting to clear the code with a basic scan tool.
  ✅ What actually fixed it Using a professional scan tool with bidirectional controls to perform the 'Range Actuator Learn' function. The procedure required placing the transmission in Neutral, after which the learn process completed and the DTC cleared.
• YouTube channel 'Phillip Bailey' (2014 GMC Sierra) — 'Service 4WD' message on the dash with code C0398 stored in the TCCM.
  ❌ Tried (didn't work) The previous mechanic had replaced the front axle actuator ('swapnostics').
  ✅ What actually fixed it Following the TSB, the technician reprogrammed the TCCM with the latest software via GM's online service. After the reprogram, a 'range relearn' procedure had to be performed with the scan tool to restore function.

OEM Part Supersession History

• 23270060, 23285501, 23287058, 23377972, 24268719, 24269374, 24269597, 84047227, 84115056, 84219971 → 86522174 — GM regularly updates production and service part designs to integrate new materials and technologies, often to resolve issues found in earlier versions.
  Heads up: The large number of superseded parts for the TCCM highlights a history of revisions. Using an older, non-current part number, even if new-old-stock, may re-introduce the original software flaws. Always use the latest part number (86522174) and ensure it is programmed with the latest software after installation.

Model Year Variations Within This Range
