OBD-II Code C0398: 4WD System Position Sensor Fault

What Does C0398 Mean?

Code C0398 means the Transfer Case Control Module (TCCM) is receiving conflicting position data from the transfer case. The TCCM uses an Incremental Position Sensor (IPS) and a Rotational Position Sensor (RPS) to verify if the vehicle is in 2WD, 4HI, or 4LO. When these two sensor signals disagree by 5% or more, the computer disables the 4WD system and triggers the 'Service 4WD' light to prevent mechanical damage.

Technical definition: The SAE/ISO definition is "Incremental Sensor - Rotational Position Sensor Correlation Plausibility Failure." The TCCM detects that the signals from the two transfer case position sensors disagree by a specified threshold (typically 5%). Consequently, the TCCM disables shifting and illuminates the Service 4WD indicator until the fault is cleared.

Can I Drive With C0398?

⚠️Yes, But With Caution. You can drive, but we strongly advise against it. If the 4WD system is stuck in 4HI, driving on dry pavement causes severe driveline binding that can destroy your transfer case, axles, and differentials, leading to repair bills over $2,000. In some cases, the transfer case unexpectedly shifts to neutral, causing a complete loss of power to the wheels and leaving you stranded.

Common Causes

• Outdated TCCM Software (Very Common) — On 2014-2019 GM trucks and SUVs, overly sensitive original TCCM software incorrectly triggers C0398 during long drives in 'Auto 4WD' or in temperatures below 10°F (-12°C). This is the primary cause and requires a software update before replacing any parts.
🎬 Watch: A real-world diagnosis of C0398 on a GM truck.
• Faulty Transfer Case Shift Actuator (Encoder Motor) (Common) — This electric motor physically shifts the transfer case gears and houses the position sensors. Exposure to underbody heat, water, and road grime causes internal wear, sensor failure, or electrical shorts.

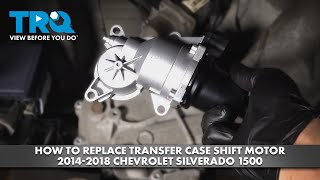

🎬 See this step-by-step guide to replacing the shift actuator motor.
• Damaged Wiring or Water Intrusion (Less Common) — A torn grommet on the actuator harness connector allows water to enter, corroding the sensor pins. Chafed wires between the TCCM and the transfer case also cause intermittent signal drops.
• Improper 'Dinghy Towing' Procedure (Rare) — Towing the vehicle with all four wheels on the ground without following the exact neutral-positioning procedure in the owner's manual causes the transfer case to stick in neutral, triggering the code.
• Poor Engine/Body Grounds (Rare) — A loose or corroded main ground connection (like the G218 point on GM frames) introduces electrical noise, interfering with sensitive position sensor readings.
• Internal Transfer Case Failure (Rare) — A worn shift fork or damaged internal gear prevents the shift mechanism from moving correctly, causing a physical sensor disagreement accompanied by grinding noises.
• Faulty Transfer Case Control Module (TCCM) (Very Rare) — The control module itself fails internally. Diagnose this by exclusion only after ruling out software, wiring, and the actuator.

Symptoms

• Service 4WD Light On — A message appears on the driver information center instructing you to service the 4-wheel drive system.
• 4WD System Inoperable — The system disables itself as a precaution, preventing shifts between 2WD, 4WD, or Auto modes.
• Vehicle Stuck in 4WD High (4HI) — The system defaults to its last known position. On dry pavement, steering becomes difficult and tires squeal or hop during sharp turns.
• Vehicle Stuck in Neutral — The transfer case gets stuck in Neutral, sending zero power to the wheels. The engine revs, but the vehicle will not move.
• Selector Switch Lights Blinking — The dashboard indicator lights blink when attempting to change modes, then return to the original position or turn off completely.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Reprogram Transfer Case Control Module (TCCM) — Parts: $0, Labor: $150-$250, ~1.0 hr book time (Professional)
• Replace Transfer Case Shift Actuator (Encoder Motor) — Parts: $200-$400, Labor: $150-$300, ~1.5 hr book time (Intermediate)
• Repair Damaged Wiring or Connectors — Parts: $20-$100, Labor: $150-$450, ~2.5 hr book time (Intermediate)
• Replace Transfer Case Control Module (TCCM) — Parts: $300-$600, Labor: $150-$300, ~1.5 hr book time (Professional)

DIY vs Professional

• Reprogram Transfer Case Control Module (TCCM) 🟢 Beginner
  Tools: Manufacturer-specific programming tool (e.g., GM MDI) and paid access to their software service.
• Replace Transfer Case Shift Actuator (Encoder Motor) 🟢 Beginner
  Tools: Socket set, wrenches, torque wrench, bidirectional scan tool.
• Repair Damaged Wiring or Connectors 🟢 Beginner
  Tools: Digital multimeter, wire strippers, crimpers, heat shrink tubing, connector pin tools.

Used vs. New Parts: Buying Guide

When a used part is worth it: Only for budget-conscious repairs on high-mileage vehicles (>150k miles) if sourced from a low-mileage donor. Given the high failure rate of this part, new is strongly preferred.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor VIN wasn't scrapped for a 4WD issue.
• Match the part number exactly to avoid buying an older, defective revision.
• Inspect the connector for green corrosion.

Decision logic:

• If The vehicle is a 2014+ GM model and the TCCM software has not been updated → Do not buy any part. Perform the software update first.
• If The vehicle is low-mileage (<100k) and you plan to keep it → Buy a new OEM or high-quality aftermarket part (e.g., ACDelco) for reliability.
• If Budget is the primary constraint and you accept the risk of premature failure → A used part is an option, but expect a shorter lifespan.

Warranty tradeoff: Used parts offer 30-90 days. New aftermarket parts offer 1-year to lifetime warranties. New OEM parts carry a 1-2 year warranty.

Worst-case if a used part fails: $400-$700 if a used part fails, representing the cost of a new part plus repeat installation labor.

What Happens If You Wait — Timeline

1. Immediate: Code C0398 sets, 4WD disables and locks in the last used mode. (MPG impact: 0-1%% · Added cost: $0)
2. 0-1 month: Driving on dry pavement in 4HI causes immediate drivetrain binding, tire scrubbing, and difficult steering. (MPG impact: 2-5%% · Added cost: $200 - $500 (Premature tire wear).)
3. 1-6 months: Continued binding stretches the transfer case chain and wears gears. Risk of unexpectedly shifting to Neutral increases. (MPG impact: 5-10%% · Added cost: $1,500 - $3,000 (Stretched chain requiring rebuild).)
4. 6+ months: Catastrophic failure. The transfer case locks up or suffers major internal damage, causing a complete loss of mobility. (MPG impact: N/A (Vehicle likely inoperable)% · Added cost: $3,000 - $6,000 (Full transfer case replacement).)

Cost of Not Fixing It

• Immediate: 4WD system is disabled. If stuck in 4HI, driving on dry pavement causes immediate drivetrain binding, tire scrubbing, and stress on axles. (Added cost: $0)
• 1-3 months: Continued driving in 4HI causes premature wear on the transfer case chain, gears, and tires. The risk of the transfer case shifting to neutral increases. (Added cost: $500 - $1,500 (Tire replacement, minor driveline repairs).)
• 3+ months: Catastrophic transfer case failure. Drivetrain binding destroys front/rear differentials or axle shafts, resulting in a complete loss of mobility. (Added cost: $2,500 - $6,000 (Full transfer case replacement and collateral damage).)

Diagnosis Steps

1. Check for Technical Service Bulletins (TSBs)
   Search for TSBs related to C0398 for your VIN. GM Service Update 28770 and PIP5369C identify a TCCM software update as the primary fix for sensor drift.
   Tools: Computer with internet access, vehicle VIN (Beginner)
2. Scan for All Trouble Codes
   Use a bidirectional scanner to read TCCM codes. If C0306, C0326, C0392, or C0396 are present, diagnose them first, as they represent the root electrical fault causing the C0398 correlation error.
   Tools: Bidirectional OBD-II Scanner (Intermediate)
3. Perform TCCM Software Update
   If a TSB applies, update the TCCM software using manufacturer-specific programming tools. This is the definitive fix for most 2014+ GM trucks.
   Tools: Manufacturer-specific programming tool (e.g., GM MDI) (Professional)
4. Analyze Live Sensor Data
   Graph live data for the 'Range Actuator Position Sensor' and 'Transfer Case Range Position Sensor' while commanding shifts. The faulty sensor will display erratic, frozen, or drifting voltage while the other remains stable.
   Tools: Bidirectional OBD-II Scanner (Intermediate)
5. Inspect Wiring and Connectors
   Unplug the transfer case actuator connectors and inspect for green corrosion, backed-out pins, or water intrusion from a torn grommet. Check the harness for chafing against the frame.
   Tools: Flashlight, mirror, connector picks (Intermediate)
6. Perform Circuit Voltage Checks
   With the sensor unplugged, use a multimeter to verify a 5-volt reference and a solid ground. Check the sensor for a smooth voltage sweep (0.5V to 4.5V) as it manually rotates. Erratic readings confirm a failed component.
   Tools: Digital Multimeter, wiring diagram (Advanced)
7. Replace the Faulty Component
   Replace the failed part based on live data. This is almost always the entire transfer case shift actuator assembly, as internal sensors are rarely sold separately.
   Tools: Socket set, wrenches, torque wrench (Advanced)
8. Perform Relearn Procedure
   After replacing the actuator or reprogramming the TCCM, use a bidirectional scanner to execute the 'Transfer Case Range Actuator Relearn'. The system will not function until the TCCM learns the new part's position.
   Tools: Bidirectional OBD-II Scanner (Intermediate)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 55-70 mph (Extended highway driving (1-2 hours).)
• Ambient Air Temperature: < 10°F (-12°C) (During startup or initial drive in very cold weather.)
• Transfer Case Mode: Auto 4WD (The sensor drift software glitch is most common when driving for long periods in Auto 4WD mode.)
• Variation Between Sensors: > 5% (This is the direct trigger; freeze frame shows the measured variation exceeding the allowed threshold.)

Related Codes

• U0403 / U0102 — Communication codes meaning other modules lost contact with the TCCM. Fix the C0398 fault first, and these U-codes will resolve automatically.
• C0326 — Indicates a 'Transfer Case Lock Actuator Control Circuit' fault. When paired with C0398 in cold weather, it strongly points to a failing transfer case actuator rather than a software bug.
• C0396 / C0392 — Indicates a specific 'Rotational Position Sensor Performance' issue. Diagnose these first, as they pinpoint the exact sensor circuit causing the C0398 correlation error.
• C0306 — Points to a fault in the 'Motor A/B Circuit'. Indicates an electrical problem within the shift motor or wiring, requiring diagnosis before addressing C0398.

Climate & Environmental Factors

• Cold Weather: On 2014-2015 GM trucks, C0398 frequently triggers in temperatures below 10°F (-12°C). TSB PIP5250 addresses this, recommending an updated actuator motor (P/N 23355888) designed for extreme cold.
• High Humidity / Water Exposure: Vehicles driven in wet climates are prone to water intrusion at the actuator connector. A torn harness grommet allows water in, corroding sensor pins and triggering the code.

How to Talk to a Mechanic About This Code

Say this: "I have a C0398 code on my [Year/Make/Model]. Based on my research, this is often a software issue. Can you check if my TCCM has the latest software calibration and if any TSBs apply before quoting me for part replacement?"

Directs the shop to the most common and least expensive fix (a software update) before they default to replacing a costly transfer case actuator.

Avoid saying:

• 'My 4-wheel drive is broken, fix it.'
• 'Just do whatever it takes.'
• 'I think I need a new transfer case motor.'

Questions to ask before authorizing the repair:

• Did you confirm my TCCM software is up to date?
• What did the live sensor data show?
• Does the estimate include the mandatory relearn procedure?
• What is the warranty?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended for GM vehicles. They have guaranteed access to the latest TCCM software and programming tools required for the primary fix.
  Best for: Vehicles under powertrain warranty., 2014+ GM trucks where a TCCM software update is the most likely fix.
  Downsides: Highest labor rates., May be quick to replace parts before confirming a software-only fix. (Typical cost: +50% vs. baseline)
• Independent Shop: Good fit, IF you verify they have the capability to perform a TCCM software update and the bidirectional tool for the relearn.
  Best for: Out-of-warranty vehicles with a clear hardware failure., Shops that specialize in 4x4 or drivetrain repair.
  Downsides: May lack the expensive subscription to manufacturer software needed for TCCM reprogramming., Quality and diagnostic capability vary widely. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. This code requires specialized diagnostic steps beyond the scope of most chain repair shops.
  Best for: Simple maintenance.
  Downsides: Technicians lack specialized tools for module programming or advanced bidirectional diagnostics., High pressure to sell parts. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost exceeds 50% of your vehicle's value, consider selling it.

• Car worth $18000, fix is $250: Fix it. A $250 software update is a tiny fraction of the vehicle's value.
• Car worth $15000, fix is $700: Fix it. A $700 actuator replacement is well below the 50% threshold.
• Car worth $8000, fix is $4500: Walk away. If the transfer case requires a $4,500 replacement, this exceeds 50% of the car's value.

What Scan Tool You Need for This Code

Minimum: A bidirectional scan tool capable of reading TCCM codes, viewing live sensor data, and performing the 'Transfer Case Range Actuator Relearn'.

A basic $50 reader cannot see chassis 'C' codes and cannot perform the mandatory relearn procedure after a repair.

Budget: BlueDriver Pro (~$100) — Reads and clears TCCM codes and views live data, but LACKS the bidirectional 'relearn' function.

Mid-range: Foxwell NT510 Elite (~$160) — The sweet spot for DIY. Offers full diagnostics and has the bidirectional capability to perform the mandatory relearn procedure.

Professional: Autel MaxiCOM MK808 (~$500) — Provides full bidirectional control for all systems, faster processing, and broader vehicle coverage.

Rent vs buy: You cannot rent a tool with bidirectional relearn capabilities from an auto parts store. Pay a shop for the 1-hour labor if this is a one-time repair.

How to Clear the Code After You Fix It

1. Use a bidirectional scan tool to perform the 'Range Actuator Relearn' procedure.
2. Send a 'Clear DTCs' command to the TCCM.
3. Shift through all ranges (2HI, 4HI, Auto, 4LO) to confirm operation.

Drive cycle (~20 minutes): Start the vehicle and idle. In Neutral, command shifts to each 4WD mode, waiting for completion. Drive the vehicle, making several turns to ensure no binding occurs in 2WD.

Readiness monitors affected: Clearing codes resets all OBD-II readiness monitors., Active U-codes prevent emissions readiness until C0398 is fixed.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code with a basic reader or disconnecting the battery will not fix the issue or perform the required relearn.
• The code is a hard fault and returns immediately if the relearn is skipped.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: C0398 sets communication U-codes in the ECM. Any active U-code causes an automatic failure of the OBD-II smog inspection.
• New York: The NYS inspection includes an OBD-II scan. The underlying C0398 code and resulting U-codes stored in the computer system cause an inspection failure.
• Texas: A fault code like C0398 indicates a malfunction in a primary subsystem and sets related codes in the powertrain computer, resulting in an inspection failure.

Most Commonly Affected Vehicles

• Chevrolet Silverado 1500 / 2500 / 3500 (2014-2019) — Extremely common. TSB PIP5369C points to a TCCM software update as the primary fix for sensor drift on long drives.
• GMC Sierra 1500 / 2500 / 3500 (2014-2019) — Identical to the Silverado, highly prone to C0398 due to TCCM software sensitivity.
• Chevrolet Tahoe / Suburban (2015-2019) — Subject to Service Update 28770 recommending a software update to fix false C0398 triggers.
• GMC Yukon / Yukon XL (2015-2019) — Shares the faulty TCCM logic. The code often appears after two hours of driving in 'Auto' mode.
• Cadillac Escalade / Escalade ESV (2015-2019) — Shares the NQH transfer case and is affected by the same TCCM software glitch requiring a reprogram.
• Chevrolet / GMC Colorado / Canyon (2015-2019) — These mid-size trucks suffer from the same software issues addressed by TSB PIP5369C.
• Dodge / Ram 1500 / 2500 (2006-2018) — Typically caused by a failing transfer case shift motor rather than a software issue.
• Jeep Grand Cherokee (WK/WK2) (2005-2021) — Often due to a failed transfer case actuator motor or the Final Drive Control Module (FDCM).

Manufacturer-Specific Notes

• General Motors (Chevrolet, GMC, Cadillac): For 2014-2019 models, the root cause is almost always a TCCM software glitch. GM released multiple TSBs advising technicians to reprogram the TCCM with 'Version 9.2' software before replacing any hardware.
• Ford: C0398 is rarely a software issue. The problem is almost always internal corrosion or failure of the transfer case shift motor assembly.
• Dodge / Ram: The 'Service 4x4' light is commonly caused by a physical failure of the transfer case shift motor, requiring replacement.
• Jeep: Often due to a failed transfer case actuator motor or a faulty Final Drive Control Module (FDCM) causing electrical interference.

Real Owner Stories

2015 Chevrolet Silverado with 'Service 4WD' light, especially in cold weather.

Owner reported C0398 during cold snaps. A dealer software update failed.

What they tried:

1. A dealership first tried reprogramming the TCCM, but the code returned.

Outcome: Replacing the transfer case encoder motor assembly permanently resolved the issue.

Lesson: If C0398 appears primarily below 10°F, the encoder motor is a strong suspect per TSB PIP5250.

2016 Chevrolet Colorado with persistent C0398 after multiple part replacements.

Owner replaced the actuator three times and the TCCM once, but the fault persisted.

What they tried:

1. Replaced the 4WD actuator three times.
2. Replaced the Transfer Case Control Module (TCCM).
3. Visually inspected wiring and connectors for corrosion.

Outcome: Live data showed the sensor drifting only while moving. The issue was an intermittent wiring fault.

Lesson: If multiple parts don't fix it, the root cause is a wiring problem requiring live data analysis.

2014 GMC Sierra with C0398 after a long highway drive.

The 'Service 4WD' message appeared after an hour in 'Auto 4WD'.

What they tried:

1. The owner took the truck to a shop that was aware of GM's service bulletins.

Outcome: A technician reprogrammed the TCCM with 'Version 9.2' software, permanently fixing the issue.

Lesson: For codes appearing after long drives in 2014+ GM trucks, a TCCM software update is the definitive first step.

How to Prevent This Code From Triggering

• Periodically 'exercise' the 4WD system. (Once a month for 10 miles.) — Engaging 4HI on a low-traction surface circulates gear oil and actuates the encoder motor, preventing seizure and corrosion from disuse.
• Apply dielectric grease to electrical connectors. (During any under-vehicle repair.) — Applying non-conductive dielectric grease to the actuator connector prevents moisture intrusion and corrosion.
• Change transfer case fluid. (Every 30,000 to 50,000 miles.) — Clean fluid provides lubrication for the gears and chain. Old fluid increases wear, leading to mechanical binding.
• Regularly inspect and clean underbody wiring. (Annually, especially for vehicles in the salt belt.) — The wiring harness can chafe against the frame. Inspecting and cleaning prevents wires from shorting out and triggering false codes.

Frequently Asked Questions

Can I just clear the C0398 code to fix the problem?

No. C0398 is a 'hard fault' that returns immediately on startup if the underlying issue remains. You must repair the cause and perform a relearn procedure.

Is it safe to drive with the C0398 code?

We do not recommend it. If stuck in 4HI, driving on dry pavement causes severe drivetrain binding and expensive damage. The transfer case can also unexpectedly shift into neutral, causing a total loss of power.

Why did my 'Service 4WD' light turn on after a long highway trip?

This is a known glitch on 2014-2019 GM vehicles. The original TCCM software allows the position sensor signal to electronically 'drift' during long drives in Auto 4WD mode. A dealer software update permanently fixes this.

I replaced the transfer case actuator and the code is still there. What now?

You must perform a mandatory 'Transfer Case Range Actuator Relearn' procedure using a bidirectional scan tool. If you skip this step, the system will not function. If the relearn fails, check for damaged wiring.

Should I replace the 4WD selector switch on the dash?

No. The dash switch only sends a request to the TCCM and does not cause a C0398 correlation error. The problem lies at the transfer case actuator, the wiring, or the TCCM software.

Can a bad battery cause a C0398 code?

Yes. The TCCM requires a stable 10.5-18V to operate correctly. A weak battery or corroded ground wire causes voltage drops that interfere with sensor signals, triggering false codes.

Key Takeaways

• On 2014-2019 GM trucks, a $150-$250 TCCM software update fixes the C0398 code 80% of the time—do this before replacing any parts.
• Code C0398 disables your 4WD system and often locks it in 4HI; driving on dry pavement in this state causes severe driveline binding and can destroy your transfer case.
• Never replace the $400 transfer case actuator without first verifying the TCCM software is up-to-date and inspecting the underbody wiring harness for water intrusion.
• You must use a bidirectional scan tool to perform a mandatory 'Range Actuator Relearn' procedure after replacing the actuator, otherwise the new part will not function.
