C0398 on 2015 GMC Canyon: Service 4WD Message Causes and Fixes

What's Unique About the 2015-2015 Gmc CANYON

The 2015 GMC Canyon and its sibling, the Chevrolet Colorado, were particularly susceptible to this code due to a known software sensitivity in the Transfer Case Control Module. GM issued multiple Technical Service Bulletins (TSBs) acknowledging that cold temperatures, below 10°F (-12°C), could trigger this fault. Another TSB, PIP5369C, explicitly states that long drives (around an hour) in 'Auto' mode could cause the Incremental Position Sensor (IPS) signal to drift, setting the code and locking the system in 4HI. This makes a software reflash the official first step in diagnosis, before any parts are replaced.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service 4WD" message on the Driver Information Center (DIC)
• Inability to shift the transfer case between 2WD, 4HI, and 4LO
• 4WD system is stuck in one mode (often 4HI)
• 4WD switch indicator light may blink and then go out
• Grinding or unusual noises from the transfer case area during attempted shifts
• A clicking sound from the actuator followed by the "Service 4WD" message

Most Likely Causes

1. Outdated Transfer Case Control Module (TCCM) Software 🔴 High Probability → Shop Transfer Case Motor Multiple GM TSBs (including #GCUS-9-286, #PIP5250-series, and #PIP5369C) specifically identify a software sensitivity as the primary cause for the 2015 model year. The software was too sensitive to sensor signal 'drift' on long drives in Auto 4WD and to cold temperatures.
   How to confirm: A GM dealer or a qualified shop with a subscription to the Service Programming System (SPS) can check if a software update is available for the TCCM. TSB #PIP5369C points to a specific 'Version 9.2' calibration that addresses the sensor drift issue.
   Typical fix: Reprogramming (reflashing) the TCCM with the latest GM software. This is a software-only fix and must be followed by a 'Range Actuator Relearn' procedure using a scan tool. 🎬 See how to perform a transfer case relearn procedure
   Est. part cost: $0
2. Faulty Transfer Case Shift Motor / Actuator Assembly 🟡 Medium Probability → Shop Transfer Case Motor This assembly contains the electric motor that physically shifts the transfer case and the internal position sensors (IPS/RPS) that report its position. The sensors can fail or provide erratic readings, or the motor can weaken, leading to the correlation fault. Some owners report needing multiple replacements.
   How to confirm: After a software update is ruled out, a technician can use a bidirectional scan tool to command shifts while monitoring sensor data. If the data is erratic, drifts while driving, or doesn't change, the actuator is likely faulty.
   Typical fix: Replacement of the transfer case shift motor assembly, followed by a relearn procedure.
   Est. part cost: $150-$450

Rare But Worth Checking

• Wiring Harness or Connector Issue: TSB #PIP5369C advises inspecting the wiring and connectors for the actuator motor (circuits 7473-7476) and position sensors (circuits 7477-7479) for corrosion, backed-out terminals, or damage before replacing parts. Another TSB, 18-NA-060, notes that missing connector seals can allow moisture intrusion, causing oxidation and intermittent faults. Some owners on forums have also pointed to chafed wiring harnesses as a cause.
🎬 Watch: Troubleshooting a Service 4WD message and wiring issues
• Improper Dinghy Towing Procedure: TSB #PIP5217B specifically mentions that if the vehicle was towed with all four wheels on the ground (dinghy towed) without following the correct owner's manual procedure, the transfer case can be left in an indeterminate state, triggering code C0398. A user on the Good Sam Community forum shared a specific 'Transfer Case High/Low Clutch Reset' procedure provided by a dealer to resolve this without a scan tool.
• Failed Transfer Case Control Module (TCCM): → Shop Transfer Case Motor While a software glitch is common, the module itself can fail internally. TSB #PIP5369B notes that if the latest software is already installed and the issue persists, module replacement may be necessary. This should only be considered after all other possibilities, including software, wiring, and the actuator assembly, have been thoroughly ruled out.

Diagnosis Steps

1. Scan the TCCM for C0398 and any other codes. Note if codes like C0326, C0396, or U-codes are present. TSBs advise diagnosing other 'C' codes before C0398.
2. Check for applicable TSBs. For a 2015 Canyon, TSBs #GCUS-9-286, #PIP5250-series, and #PIP5369C are critical. Note the freeze-frame data, especially the ambient temperature and if the vehicle was in 'Auto' mode.
3. Verify the TCCM has the latest software using a GM SPS/Tis2Web subscription. If an update is available (specifically 'Version 9.2' or newer as mentioned in TSB #PIP5369C), perform the reprogram.
4. Clear the codes. Note that TSBs mention the 'Clear DTCs' command may need to be performed twice. Perform a transfer case 'Range Actuator Relearn' procedure with a scan tool.
5. Test drive the vehicle, attempting to shift through all 4WD ranges. If the code returns, inspect the wiring harness and connectors at the transfer case actuator and the TCCM for corrosion, damage, missing seals, or loose pins per TSBs #PIP5369C and #18-NA-060.
6. Using a scan tool, command the transfer case to shift while monitoring the live data from the position sensors (IPS and RPS). If a sensor's reading is illogical, erratic, or drifts while driving, the actuator assembly is the likely point of failure.
7. If the actuator is suspected, confirm it has good power and ground at its connector before ordering a replacement part.

Parts You'll Likely Need

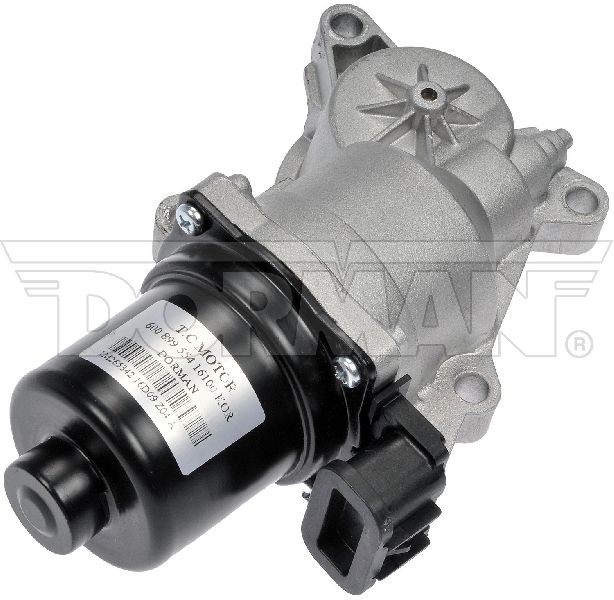

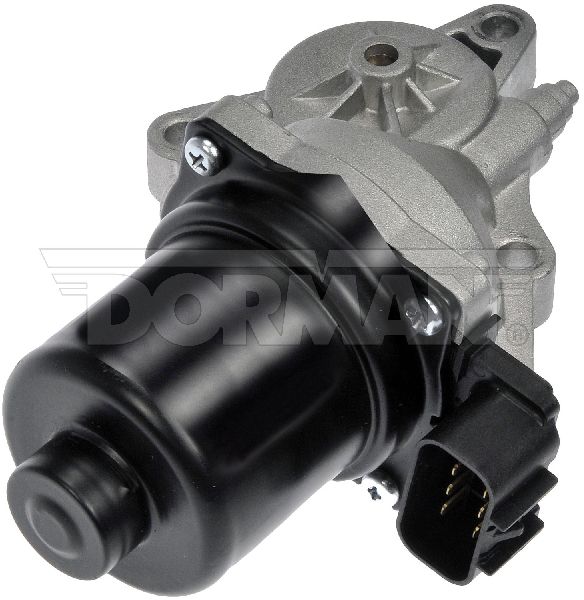

• Transfer Case Shift Motor / Actuator Assembly (OEM #84107838) — This is the most common hardware failure for C0398 after software issues are ruled out. It contains the motor and position sensors that cause the correlation fault when they fail. A Reddit user reported needing three actuators before also replacing the TCCM to try and solve the issue.
  Trusted brands: ACDelco (GM OE), Dorman (e.g., 600-899)
  OEM price range: $300-$450
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C0326 — Several TSBs, including #PIP5250G, mention that C0326 can be stored alongside C0398. C0326 relates to the transfer case motor clutch coil circuit, pointing towards an electrical issue within the actuator assembly.
• U0102 / U0403 — These codes indicate a loss of communication with the TCCM. TSB #PIP5369C notes that when C0398 sets, it's common for other modules on the vehicle's network to log these communication codes as a secondary result. The primary fault is C0398, which should be diagnosed first.
• C0396 — This code indicates a 'Rotational Position Sensor Performance' issue. Since C0398 is a correlation fault between two sensors, seeing a specific performance code for one of them (like the RPS) can more directly point to the actuator assembly being the culprit.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #GCUS-9-286: Addresses C0398 and the transfer case locking in 4HI in low ambient temperatures, fixed by a software update.
🎬 Watch: Diagnosing code C0398 and the Service 4WD message
• Bulletin #PIP5250G/E: Recommends reprogramming the TCCM for a 'Service 4WD' message with code C0398 or C0326, especially in cold weather.
• Bulletin #PIP5217B: Discusses C0398 when the transfer case is stuck in neutral, potentially

Platform-Specific Known Issues

• A series of TSBs (#GCUS-9-286, #PIP5250 series) were issued for the 2015 GMC Canyon due to TCCM software being overly sensitive to cold temperatures (below 10°F), causing C0398 to set. The primary fix is a software update.
• TSB #PIP5369C identifies a specific software update ('Version 9.2') to fix C0398 being set after long drives (approx. 1 hour) in 'Auto' mode due to the Incremental Position Sensor (IPS) signal drifting.
• TSB #PIP5217B highlights that C0398 can be set if the vehicle is stuck in neutral after an improper dinghy towing procedure. A user on the Good Sam Community forum shared a manual relearn procedure from a dealer that can fix this on the road.
• TSB #18-NA-060 points to missing seals on the transfer case encoder motor connectors, which allows moisture to enter and cause corrosion, leading to intermittent 'Service 4WD' messages and codes like C0398.

Mechanic-Grade Diagnostic Values

• Transfer Case Shift Motor Resistance — expected: 0.5 to 35 ohms. Failure: A reading outside this range, or continuity to the motor case, indicates a faulty motor.
• Sensor Signal and Ground Circuit Resistance — expected: Below 5.0 ohms. Failure: A reading above 5.0 ohms indicates high resistance or an open in the wiring harness between the TCCM and the actuator.
• Scan Tool Live Data: 'Variation Between Transfer Case Range Position Sensor and Range Actuator Position Sensor' — expected: Within the value shown for 'Variation Allowed' on the scan tool.. Failure: If the actual variation exceeds the allowed variation, it confirms the correlation fault that sets C0398.

Scan Tool Commands That Help

• GM GDS2 / Tech2: Transfer Case Control Module Programming — This is the primary function used to reflash the TCCM with updated software, which is the most common fix for C0398 on this vehicle per multiple TSBs.
• GM GDS2 / Tech2 or equivalent bidirectional scanner: Range Actuator Relearn / Transfer Case Re-Learn — This procedure is mandatory after replacing the transfer case actuator or reprogramming the TCCM. It teaches the control module the new motor's position values. Failure to perform this step will result in the code returning or the 4WD system being inoperative.
• GM GDS2 / Tech2: Output Control / Bidirectional Control — Allows a technician to command the transfer case motor to shift into each range (2HI, 4HI, etc.) while monitoring sensor data. This is used to confirm if the motor is physically working and if the position sensors are responding correctly, helping to isolate a bad actuator from a wiring or module problem.

Wiring & Ground Locations

• SP106 (Ground Splice Pack) — On the passenger side of the engine bay, behind the engine airbox.. This ground splice pack is the grounding point for the Transfer Case Control Module (TCCM). These splice packs are known for poor internal connections and corrosion, which can cause intermittent and difficult-to-diagnose issues with the TCCM, potentially leading to code C0398.
• SP105 (Ground Splice Pack) — On the driver's side of the engine bay, near the battery and behind the ABS module.. While SP106 is the primary ground for the TCCM, SP105 grounds other critical modules like the EBCM. Poor grounding at either location can introduce electrical noise and voltage stability problems on the vehicle's data networks, which can indirectly affect TCCM operation.
• Transfer Case Actuator Connector — On the transfer case itself, where the wiring harness connects to the shift motor assembly.. TSB 18-NA-060 specifically calls out that the seals for this connector can be missing, allowing moisture to enter and cause corrosion on the pins. This directly impacts the signals from the position sensors and power to the motor, causing intermittent C0398 faults.

Real Owner Repair Stories

• Go-Parts.com article citing a user repair (2012-2016 Silverado 2500 (similar platform/system)) — C0398 and other communication codes.
  ❌ Tried (didn't work) Repeatedly attempting the 'Range Actuator Relearn' procedure, which failed with a message that the unit was 'already in use'.
  ✅ What actually fixed it The root cause was a bad wire in the main connector at the transfer case. After repairing the wire, the final fix required a full system reset: disconnecting the vehicle battery, reconnecting, then using the scan tool to start a new session, clearing all codes, and then successfully running the 'Range Actuator Relearn' procedure.
• YouTube video by Phillip Bailey (2014 GMC Sierra (similar platform/system)) — Service 4WD Message, code C0398 in TCCM, and multiple U-codes for loss of communication.
  ❌ Tried (didn't work) Clearing the code, which resulted in a new code C038D (Range Actuator Position Not Learned) appearing after an attempted reprogram.
  ✅ What actually fixed it The issue was resolved by following TSB PIP5369C. The Transfer Case Control Module (TCCM) was successfully reprogrammed with the latest GM software using the Service Programming System (SPS).

OEM Part Supersession History

• Unknown → 23355888 — To address failures in cold climates.
  Heads up: TSB PIP5250G notes that part number 23355888 was released specifically to correct C0398 issues in cold climates for 2014-2015 trucks. It warns dealers not to use this part number for vehicles outside of cold regions, implying it was a targeted fix and that standard replacement parts should be used otherwise.
