C0455 on 2007-2011 GMC Sierra Denali: Steering Angle Sensor Circuit Fault Guide

What's Unique About the 2007-2011 Gmc SIERRA DENALI

On this specific generation of GM trucks (GMT900 platform), code C0455 is very frequently caused by a known issue with the steering angle sensor's electrical connector. Due to excessive clearance and vibration, the connector can develop a loose fit or fretting corrosion on the terminals, leading to intermittent signal loss. General Motors issued a Technical Service Bulletin (TSB #PI0639C) detailing a specific fix that involves adding a shim and dielectric lubricant to the connector, rather than replacing the entire sensor. The TSB explicitly states, "DO NOT replace the steering position sensor for this condition. 🎬 Watch: A quick tip on inspecting the sensor connector."

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service StabiliTrak" message displayed in the Driver Information Center (DIC)
• "Service Traction Control" message displayed
• StabiliTrak and/or Traction Control indicator light is on
• StabiliTrak and Traction Control systems are disabled
• In rare instances, a feeling of the brakes engaging or jerking during turns as the system incorrectly tries to stabilize the vehicle before shutting down.

Most Likely Causes

1. Poor Connection at Steering Angle Sensor Connector 🔴 High Probability → Shop Steering Angle Sensor This is a well-documented issue on the GMT900 platform. TSB #PI0639C directly addresses excessive clearance in the connector housing causing fretting corrosion and signal loss.
   How to confirm: Physically access the connector on the steering column and check for looseness. Disconnect it and inspect the terminals for small, dark smudges, which indicate fretting corrosion. A user on PerformanceTrucks.net reported their code went away and stayed away simply by unplugging the sensor to read the part number and plugging it back in, demonstrating the intermittent nature of a poor connection.
   Typical fix: Perform the TSB #PI0639C repair: Clean the terminals with a dedicated nylon brush, apply a small amount of dielectric lubricant (GM Part #12377900), and add a piece of adhesive-backed shim stock (Kent Automotive P40100) to the connector to create a tighter fit.
   Est. part cost: $10-$25
2. Faulty Steering Angle Sensor 🟡 Medium Probability → Shop Steering Angle Sensor While the connector is the most common issue, the sensor itself can fail electronically or mechanically over time. It is a sensitive electronic component mounted on a high-vibration area (the steering column).
   How to confirm: Use a scan tool capable of reading live data from the EBCM. Monitor the steering angle sensor data while turning the steering wheel. The reading should change smoothly and return to near-zero when the wheels are straight. If the data is frozen, erratic, jumps, or has dead spots, the sensor has likely failed.
   Typical fix: Replace the steering angle sensor (e.g., ACDelco P/N 25849366). This requires removing the lower dash panels and lowering the steering column for access. A steering angle sensor calibration is required after installation using a capable scan tool.
   Est. part cost: $40-$120
3. Improper Steering Wheel Installation/Centering ⚪ Low Probability This typically occurs after a steering or suspension repair, such as an alignment, intermediate steering shaft replacement, or steering column service.
   How to confirm: If the code appeared immediately after a repair, this is the prime suspect. A scan tool may show a large angle (e.g., 360 degrees) when the wheels are straight. TSB #PIT4225F notes the importance of proper steering wheel installation. A user on TahoeYukonForum.com confirmed this was their issue after an intermediate shaft replacement; the steering wheel had spun 360 degrees off-center and required a reset at an alignment shop.
   Typical fix: The steering wheel and shaft must be correctly aligned. The steering angle sensor must then be re-centered or calibrated using a scan tool with that function. A professional alignment shop can typically perform this reset.
   Est. part cost: $0-$100

Rare But Worth Checking

• Damaged Wiring Harness: Check the wiring leading to the steering angle sensor for any signs of chafing, breaks, or pinched wires, especially where it passes through the dash and around the adjustable steering column.
• Software/Programming Issue: TSB #PIT5207 indicates that the code can sometimes appear after a sequential programming event in the EBCM, suggesting a potential software glitch or calibration error.
• Aftermarket OBD-II Device Interference: In some cases, aftermarket devices left plugged into the OBD-II port (such as insurance trackers or Bluetooth performance monitors) can interfere with the vehicle's data bus and cause spurious StabiliTrak warnings. One owner found their issue was resolved by unplugging a Bluetooth OBD-II adapter.

Diagnosis Steps

1. Scan the Electronic Brake Control Module (EBCM) for codes with a scanner capable of reading chassis (C-codes). Confirm C0455 is present and note if C0710 is also stored.
2. Gain access to the steering column under the driver's side dashboard by removing the necessary trim panels and air ducts.
3. Locate the steering angle sensor and its electrical connector. It is a rectangular black sensor clamped to the steering column.
4. Wiggle the connector. If it feels loose, this is the likely cause.
5. Disconnect the connector. Inspect the terminals on both the harness and sensor side for dark smudges (fretting corrosion).
6. If looseness or corrosion is found, perform the fix outlined in TSB #PI0639C: apply dielectric lubricant (GM P/N 12377900) and add a shim to the connector housing to ensure a tight fit.
7. If the connector is tight and clean, use a scan tool to monitor the steering angle sensor's live data. Turn the wheel lock-to-lock. The value should change smoothly. If it's erratic, stuck, or doesn't change, the sensor is likely faulty.
8. If the sensor is suspected to be bad, replace it. Be sure to order the correct part number for your specific year, as there was a design change in 2010.
9. After any repair (especially sensor replacement or alignment), perform a Steering Angle Sensor (SAS) Calibration using a compatible scan tool.
10. Clear the codes and perform a test drive, turning the wheel left and right, to ensure the 'Service StabiliTrak' message does not return.

Parts You'll Likely Need

• Dielectric Grease and Shim Stock (OEM #12377900) — These are the parts required to perform the TSB fix for the most common cause: a poor connector fit. The grease is GM P/N 12377900 (or ACDelco 10-4071), and the shim is specified as Kent Automotive P40100.
  Trusted brands: ACDelco, Kent Automotive, Permatex
  OEM price range: $15-$25
  Aftermarket price range: $5-$15
• Steering Angle Sensor (OEM #25849366) — This is the component that fails if the connector fix does not resolve the issue. Note: Part numbers can vary by year; a design change occurred in 2010. Always verify with VIN.
  Trusted brands: ACDelco (Genuine GM), Dorman (e.g., 601-003)
  OEM price range: $70-$120
  Aftermarket price range: $40-$80

Related Codes That Often Appear With This One

• C0710 — This code also relates to the steering angle sensor circuit. Multiple GM Technical Service Bulletins (PI0639C, PIT5207, PIT4225F) list C0455 and C0710 together as they are triggered by the same set of faults.

Technical Service Bulletins (TSBs) & Recalls

• PI0639C: (Jan 2016) The most critical TSB. Addresses the loose connector causing C0455/C0710. Recommends adding a shim and dielectric grease and explicitly states not to replace the sensor for this condition.
• PIT5207: (Apr 2013) Notes that C0455 can appear after a sequential programming event.
• PIT4225F: (Nov 2012) Mentions that improper steering wheel installation can cause C0455/C0710.

Platform-Specific Known Issues

• A primary documented issue for this platform is fretting corrosion and excessive clearance in the steering angle sensor connector, as detailed in TSB #PI0639C. The bulletin explicitly states to add a shim and dielectric lubricant to the connector before considering sensor replacement.
• A mid-year design change for the sensor in 2010 means that owners of 2010 models must be careful to source the correct part, as the '1st Design' and '2nd Design' sensors are not interchangeable.

Mechanic-Grade Diagnostic Values

• Steering Angle Sensor Analog Signal Voltage — expected: Approximately 2.5V with the steering wheel centered. The voltage should range smoothly from 0.25V (full left turn) to 4.75V (full right turn).. Failure: Voltage is stuck, jumps erratically, or is outside the 0.25V-4.75V range during wheel rotation.
• Steering Angle Sensor Marker Pulse (Scan Tool Data) — expected: The scan tool should display the marker pulse as 'HIGH' when the steering wheel is between +10 and -10 degrees of center.. Failure: The marker pulse displays as 'LOW' when the wheel is centered, or does not change state when the wheel is turned past 10 degrees.
• Centered Steering Angle vs. Initialized Angle (Scan Tool Data) — expected: When driving straight, the live steering angle data should be close to 0 degrees.. Failure: The code may set if the centered steering angle, when driven straight, differs by more than 30 degrees from the angle recorded when the sensors were last initialized.

Scan Tool Commands That Help

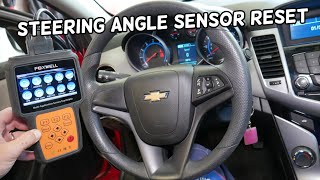

• Tech2, GDS2, or capable aftermarket scanner (Autel, Xtool, etc.): Steering Angle Sensor Calibration / Relearn / Center — This procedure is mandatory after replacing the steering angle sensor, performing a wheel alignment, or replacing other steering or suspension components that could affect the steering's center point. Failure to perform this calibration will cause code C0455 to persist or return immediately.

Wiring & Ground Locations

• G201 — Located at the upper left corner of the dash.. This is a primary instrument panel ground. A poor connection here could affect the 5-volt reference or signal integrity for various dash-mounted modules and sensors, including the steering angle sensor circuit.
• EBCM Main Ground — On the outside of the frame rail, directly beneath the driver's side door.. This is the main ground for the Electronic Brake Control Module (EBCM), which is the module that reads the steering angle sensor data and sets code C0455. A corroded or loose ground here can cause a host of ABS and StabiliTrak issues.
• Steering Angle Sensor Connector — On the steering column, under the driver's side dash. It's a multi-pin connector plugging into the black rectangular sensor clamped to the column.. This is the most common failure point. The connector pins for Phase A, Phase B, 5-volt reference, and 12-volt reference are susceptible to fretting corrosion, leading to signal loss as described in TSB PI0639C.

Real Owner Repair Stories

• Tahoe Yukon Forum user 'Sparky75013' (2005 GMC Yukon (similar GMT800/900 issue)) — Service Stabilitrak message and code C0455 appeared immediately after replacing the intermediate steering shaft.
  ❌ Tried (didn't work) Taking it to a dealership, who quoted $542 to replace the steering angle sensor without attempting to diagnose the root cause.
  ✅ What actually fixed it The owner's assistant had allowed the steering wheel to spin 360 degrees during the shaft replacement. The final fix was taking the vehicle to an alignment shop with Hunter equipment. The technician was able to electronically reset the steering angle sensor's incorrect center position in about 10 minutes for a small fee, resolving the code without replacing any parts.

OEM Part Supersession History

• Varies by year (e.g., pre-2010 design) → Varies by year (e.g., post-2010 design) — A design change occurred during the 2010 model year.
  Heads up: The '1st Design' and '2nd Design' sensors for 2010 models are not interchangeable. Part numbers like 25849366 and 13590209 exist for this platform, but verifying the correct part with the vehicle's VIN is critical to ensure compatibility.

Model Year Variations Within This Range

• 2010: A mid-year design change occurred for the steering angle sensor. 2010 models can have either a '1st Design' or '2nd Design' sensor, which are not interchangeable. Sourcing the correct part via VIN is essential for this model year.
